Pioneer Portable High Resolution Digital Audio Player, Silver

The HiRes XDP-100 digital audio player from Pioneer is the right travel partner for demanding music fans. It plays HiRes WAV and FLAC files with Studio Master resolutions of up to 384 kHz/24 bit and DSD files of up to 11.2 MHz. Play music very flexibly from the internal memory or wirelessly directly from the network or from streaming services such as Tidal, Deezer and Spotify. Upload HiRes files directly from the onkyo music shop onto the XDP-100’s hard disk. With the futuristic MQA format it is possible to stream high-resolution audio files easily via the internet; the data quantity is therefore not larger than that of a FLAC file. Pioneer’s experience and knowledge in the development of highly-demanding audio components is also reflected here in the selection of the best elements and a design optimized for sound. Explore your music collection intuitively with the unique user interface, experiment with individual music settings and, thanks to the great, fast-reaction touch screen and access to the Google PlayTM, experience the unlimited possibilities of the XDP-100R.

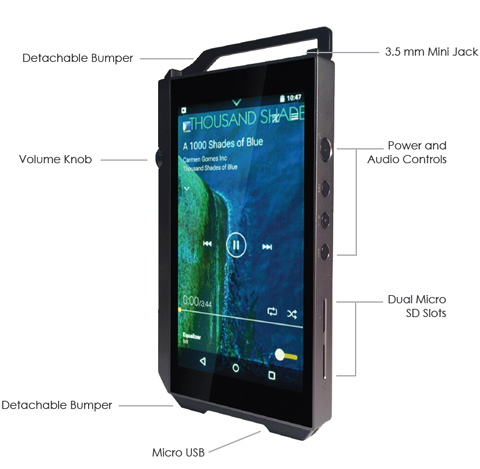

BUILD FEATURES

• Aluminum build for extended durability strength with removable bumpers
• 4.7 inch (1280 x 720) touch screen for easily navigating music files
• 32GB Internal storage (Max 432GB capacity with 2 expandable SD slots)
• Two (2) SD card slots for extended file storage (Max 400GB/200 x2, Micro SDXC type)
• Built-In Wi-Fi® (802.11b/g/n or 802.11ac)
• Built-In Bluetooth® with aptX® (A2DP, AVRCP, HSP, OPP, HID, PAN)
• Built-in speaker
• 3.5mm Stereo Phone out
• Micro USB B/OTG Digital out
• Battery Life: 16 hours (96kHz/24bit Playback)

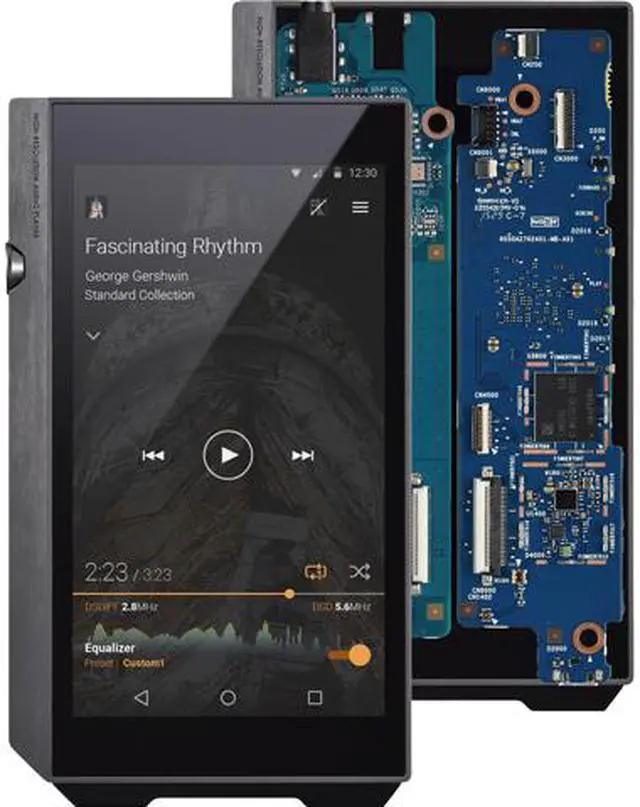

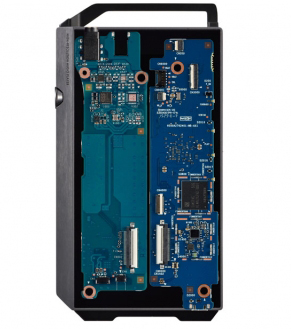

• Separate DAC/AMP circuit board and CPU circuit board

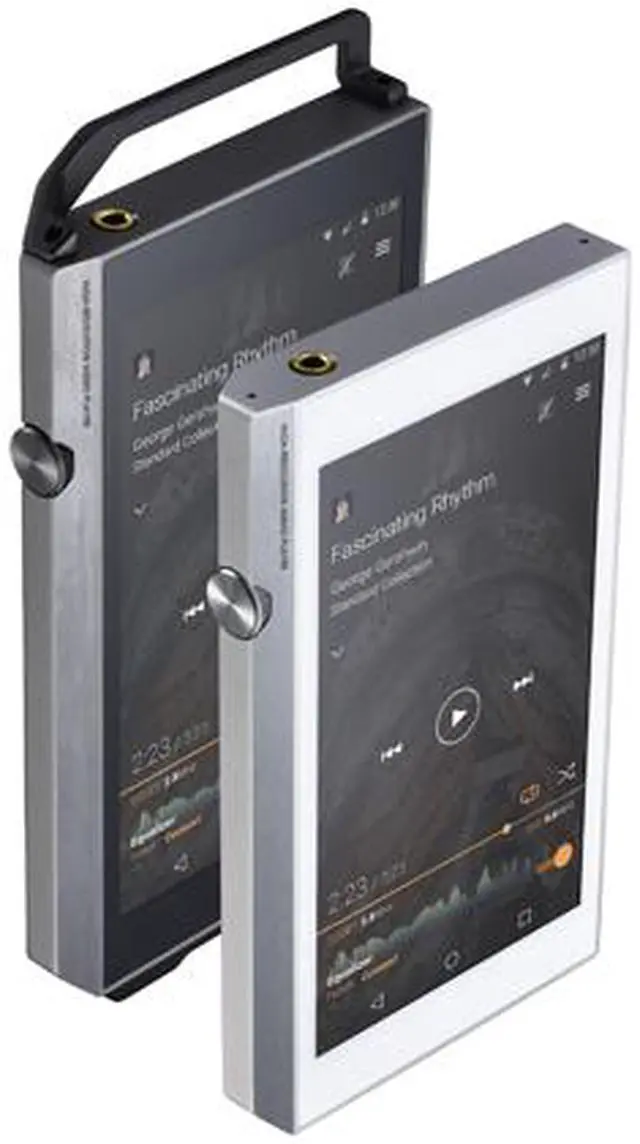

• Available in Black (XDP-100R-K) and in Silver (XDP-100R-S)



AUDIO PERFORMANCE FEATURES

• MQA® playback support (with firmware update)
• DSD File Playback:
  Convert to PCM 192 kHz/24-bit (3.5mm Phone/Line-out mode)
  Up to 11.2 MHZ DoP/ Direct Transfer and Up to 5.6/2.8 MHz DoP/ Direct Transfer/ PCM (Micro USB-B)
• Hi Res file Playback:
  Up to 192 kHz/24-bit 32-bit Integer/float 24-bit down convert (3.5mm Phone/Line-out mode)
  Up to 384kHz/24-bit 32-bit Integer/float 24-bit down convert (Micro USB-B)
• Sound Arrange Function:
  Up-Sampling 192kHz/24-bit (3.5mm Phone/Line-out mode)
  Up-Sampling 384Hz/24-bit Real-time DSD Convert 5.6MHz (Micro USB-B)
• Six built-in sound adjustments (Lock range adjust, digital filter, up sampling to 384 kHz, Realtime DSD conversion to 5.6 MHz, High Precision EQ, Club Sound Boost)



TECHNOLOGY FEATURES

• ESS SABRE® DAC ES9018K2M
• Headphone AMP SABRE 9601K
• Qualcomm® APZ8074 Processor (2.2 gHz Krait 400 Quad-core, AdrenoTM 330 GPU 450 mHz)
• AndroidTM OS 5.1.1 with Google PlayTM
• X-DAP Link for content file transfer (PC to DAP)
• OnkyoMusic.com Direct Download
• Output Power - 75mW + 75mW 32 ohm
• Impedance Support - 16-300 ohm



PRODUCT SPECIFICATIONS

• Dimensions Without Bumpers: (H x W x D) 5 x 3 x 0.5 Inches
• Dimensions With Bumpers: (H x W x D) 5.7 x 3 x 0.5 Inches
• Weight Without Bumpers: 0.4 lbs
• Weight With Bumpers: 0.4 lbs
• XDP-100R-K UPC: 814633020201
• XDP-100R-S UPC: 814633020218
