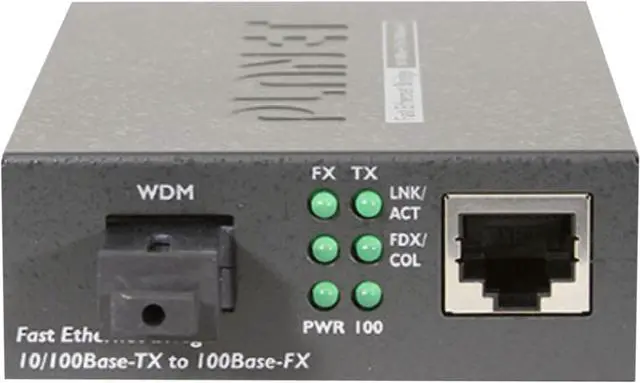

PLANET FT-806B20 10/100TX - 100Base-FX (WDM) Bi-directional Fiber Converter (SM, SC, 1550nm, 20 Km, LFPT)
- 10/100TX to 10/100 TP / SFP
- Mode: Single Mode WDM
- Wavelength: TX: 1550nmm, RX: 1310nm
- Fiber Connection: SC
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
FT-80x Series
10/100Base-TX to 100Base-FX Bridge Media Converters
Quick Summary
The PLANET FT-80x is a quick Ethernet Bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (TP) converter. It provides an ideal way for building a network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) or FTTB (Fiber to the Building) for ISPs, campuses and enterprises.
The PLANET FT-80x supports both half-duplex and full-duplex operations and a variety of fiber options. It can automatically adapt to the highest level of performance supported by the device connected to the STP port. When the connected device is a switch or a workstation that supports full duplex, it adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, it adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth.
The PLANET FT-80x offers a manual option in the fiber optic interface that allows for complete control over half and full duplex modes. The fiber port of the converter operates at 1310 nm and uses ST, SC, MTRJ, VF45 or WDM connectors. The multi-mode models support distances up to 2km. The single-mode models support distances up to 15/20/35/50/60km.
The PLANET FT-80x is with LFP (Link Fault Pass-through function which includes LLCF and LLR and the DIP switch design. The DIP switch provides the disabling or enabling of the LFP function. LLCF/LLR can immediately alert administrators to the problem of the link media and provide efficient solution to monitoring the net.
LLCF (Link Loss Carry Forward) means when a device is connected to the converter and the TP line loses the link, the converter's fiber will disconnect the link of transmission. LLR (Link Loss Return) means when a device is connected to the converter and the fiber line loses the link, the converter's fiber will disconnect the transmission link.
Applications
Standalone and Centralized Management Media Converter Installation
To meet the demand for the growing network, PLANET FT-80x has provided the advanced media conversion technology. The FT-80x media converter provides various fiber connecting types to meet different network applications.
Available in Multiple Models
| FT-801 | 10/100BASE-TX to 100BASE-FX (ST, MM) Bridge Media Converter -- 2km |
| FT-802 | 10/100BASE-TX to 100BASE-FX (SC, MM) Bridge Media Converter -- 2km |
| FT-802S15 | 10/100BASE-TX to 100BASE-FX (SC, SM) Bridge Media Converter -- 15km |
| FT-802S35 | 10/100BASE-TX to 100BASE-FX (SC, SM) Bridge Media Converter -- 35km |
| FT-802S50 | 10/100BASE-TX to 100BASE-FX (SC, SM) Bridge Media Converter -- 50km |
| FT-803 | 10/100BASE-TX to 100BASE-FX (MT-RJ, MM) Bridge Media Converter |
| FT-806A20 * | 10/100BASE-TX to 100BASE-FX (WDM TX:1310nm, SM) Bridge Media Converter -- 20km |
| FT-806A60 * | 10/100BASE-TX to 100BASE-FX (WDM TX:1310nm, SM) Bridge Media Converter -- 60km |
| FT-806B20 * | 10/100BASE-TX to 100BASE-FX (WDM TX:1550nm, SM) Bridge Media Converter -- 20km |
| FT-806B60 * | 10/100BASE-TX to 100BASE-FX (WDM TX:1550nm, SM) Bridge Media Converter -- 60km |
| Remarks * | FT-806A20/806B20 and FT-806A60/806B60 should run in pair. It means you must connect FT-806A20 / FT-806A60 to one end while FT-806B20 / FT-806B60 to the other end. |
Planet Technology FT-806B20 10/100TX - 100Base-FX (WDM) Bi-directional Fiber Converter - 1550nm - 20KM LFPTThe PLANET FT-80X is Fast Ethernet Bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (STP) converter. It supports selectable for half-duplex and full-duplex operations and supports a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation in fiber-optic interface. The fiber port of converter operates at 1310 nm and uses ST SC MT-RJ VF-45 or WDM connectors. Multi-mode models that support distances up to 2 km and single-mode models that support distances up to 15/35/50 km are available.The FT-80x series are with LFP (Link Fault Pass Through function) (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. The DIP Switch provides disable or enable the LFP function.LLCF (Link Loss Carry Forward) means when a device connected to the converter and the TP line loss the link the converter's fiber will disconnect the link of transmit. LLR (Link Loss Return) means when a device connected to the converter and the fiber line loss the link the converter's fiber will disconnect the link of transmit. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. Ordering Information FT-801 10/100Base-TX to 100Base-FX (ST MM) Bridge Media Converter -2km FT-802 10/100Base-TX to 100Base-FX (SC MM) Bridge Media Converter -2km FT-802S15 10/100Base-TX to 100Base-FX (SC SM) Bridge Media Converter - 15km FT-802S35 10/100Base-TX to 100Base-FX (SC SM) Bridge Media Converter - 35km FT-802S50 10/100Base-TX to 100Base-FX (SC SM) Bridge Media Converter - 50km FT-803 10/100Base-TX to 100Base-FX (MT-RJ MM) Bridge Media Converter FT-806A20 * 10/100Base-TX to 100Base-FX (WDM TX:1310nm SM) Bridge Media Converter -20km FT-806B20 * 10/100Base-TX to 100Base-FX (WDM TX:1550nm SM) Bridge Media Converter -20km Remark * FT-806A20/806B20 should runs in pair. It means you must connect FT-806A20 in one end another FT-806B20 in other end.
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 2 years
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Return for refund within: 15 days
- Return for replacement within: 15 days
- This item is covered by Newegg.com's 15-Day Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 800-989-2797
- Support Email: sales@planetechusa.com
- Support Website
- View other products from PLANET
LOADING...
The PLANET FT-806B20 is a 10/100 Mbps Ethernet-to-fiber media converter for network teams extending compatible single-mode WDM links up to 20 km over SC fiber; its transmit wavelength is 1550 nm and receive wavelength is 1310 nm.
Recommended For
- Network installers extending a 10/100 Ethernet connection between buildings or remote network points over single-mode fiber, where a link of up to 20 km fits the route.
- Teams connecting existing Fast Ethernet equipment to a single-mode WDM fiber run with SC connectors, when they can use a compatible FT-806A20 at the other end.
- Campus, branch-office, or ISP network technicians adding a fiber segment to legacy 10/100BASE-TX devices without replacing the copper-side equipment.
- Installers building a fixed Ethernet link who want link-fault pass-through behavior to help identify a broken link.
Real-World Use Scenarios
- Connecting a branch office to a main-site Ethernet network over an existing single-mode fiber run: pair the FT-806B20 with an FT-806A20 at the other end, and the link carries 10/100 Ethernet between the two locations.
- Extending a 10/100 Ethernet connection between buildings: use the converters at each end to bridge copper network equipment across a single-mode fiber span, instead of relying on a long copper run.
- Providing a fiber uplink to a building or remote network segment with 10/100 equipment: the converter links the copper Ethernet side to a 100BASE-FX fiber network, while keeping the connection at Fast Ethernet speeds.
- Using a single fiber strand for a point-to-point Ethernet link: WDM sends and receives over that strand, reducing the need for a second fiber; the link requires the complementary FT-806A20 at the far end.
- Troubleshooting a remote Ethernet-over-fiber connection: with link-fault pass-through enabled, a fault on one side can be reflected to the other side, helping network staff identify that the end-to-end link is not healthy.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Converting 10/100 Ethernet to single-mode WDM fiber over an SC connection for links up to 20 km |
| Ethernet And Fiber Link | 10/100TX to 10/100 TP / SFP, using single-mode WDM fiber with an SC connection |
| Wavelengths | TX 1550 nm; RX 1310 nm |
| Network Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, and IEEE 802.3u 100BASE-FX |
| Power | 5 V DC, 2 A maximum input; AC adapter supports 100–240 V AC at 50–60 Hz |
| Operating Environment | Operating temperature 0–50 °C; storage temperature −40–70 °C; humidity 5%–90% non-condensing |
| Deployment Compatibility | Listed as compatible with desktop devices |
| Packaging And Weight | 200 g item weight; package dimensions 70 × 94 × 26 mm |
| Model Identifiers | PLANET FT-806B20 Ethernet-to-fiber converter |
