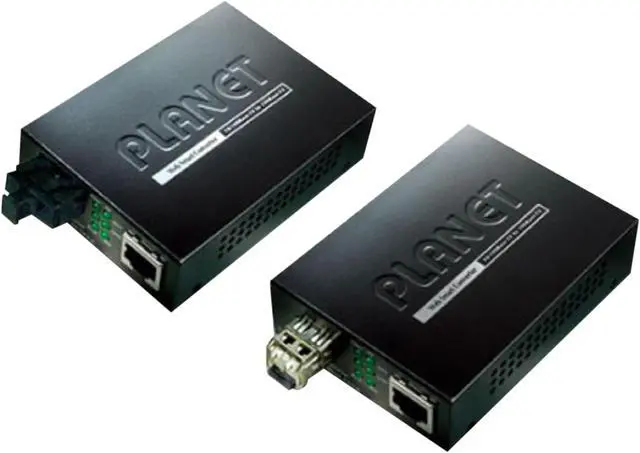

PLANET FT-905A 10/100Base-TX to 100Base-FX Web Smart Media Converter (SFP)
- 10/100TX to 100FX SFP
- Distance: 60 km
- Fiber Connection: LC
+
+
Overview
Specs
Reviews

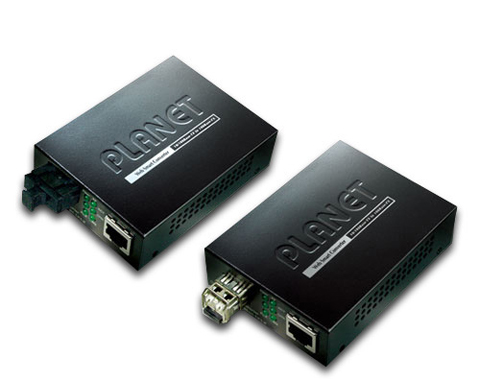

FT-90x Series
10/100Base-TX to 100Base-FX Web Smart Media Converter
Quick Summary
Seeking an ideal solution for building a fiber-optic networking for ISPs, enterprises, and homes? Combining high-performance data transmission, advanced management function, innovative web-smart function and easy installation, the PLANET FT-90x series Web Smart Media Converter is sure to be the top choice.
The PLANET FT-90x series supports conversion between 10/100Base-TX and 100Base-FX network. There are SC/SFP/WDM connectors and single-mode/multi-mode media for your needs. The Ethernet signal allows two types of segments to connect easily, efficiently and inexpensively. Each Web Smart converter can be used as a stand-alone unit or as a slide-in module to PLANET Media Converter Chassis (MC-700, MC-1500 and MC-1500R / MC-1500R48).
The PLANET FT-90x series is able to manage through the Web interface. The powerful Web Smart Media Converter supports flow control, QoS, bandwidth control and ingress/egress rate control, etc. The statistics functions of the Web Smart converter help administrators to remotely analyze and count the packet flow of the current Ethernet link. Management function helps reduce the amount of valuable time that a network administrator spends detecting and locating network problems, otherwise it requires visual inspection of cabling and equipment.
The web-smart function includes the LLR and Loop Back Test. The LLR function has the ability to notify users of issues with the link media, and provides them with sensible solutions to monitor the network.
Applications

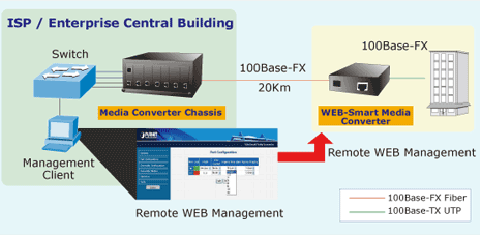

The FT-90x series can help users build an ISP network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) or FTTB (Fiber to the Building) for ISPs and small office network environment from enterprises. The Web management helps network administrators to monitor and set up the converter, speed and duplex through Web browsers.
Available in Multiple Models
| FT-902 | 10/100Base-TX to 100Base-FX (SC, MM) Web Smart Media Converter -2km |
| FT-902S15 | 10/100Base-TX to 100Base-FX (SC, SM) Web Smart Media Converter -15km |
| FT-902S35 | 10/100Base-TX to 100Base-FX (SC, SM) Web Smart Media Converter -35km |
| FT-902S50 | 10/100Base-TX to 100Base-FX (SC, SM) Web Smart Media Converter -50km |
| FT-905A | 10/100Base-TX to 100Base-FX (SFP) Web Smart Media Converter -up to 60km |
| FT-906A20 | 10/100Base-TX to 100Base-FX (WDM, SM, TX: 1310 RX: 1550) Web Smart Media Converter -20km |
| FT-906B20 | 10/100Base-TX to 100Base-FX (WDM, SM, TX: 1550 RX: 1310) Web Smart Media Converter -20km |
PLANET TECHNOLOGY FT-905A Web Manageable 10/100Base-TX to 100Base-FX (SFP) Media Converter NEW The Web-Smart FT-90X Series Media Converters support conversion between 10/100Base-TX and 100Base-FX network. There are SC/SFP/WDM connectors and single-mode/multi-mode media for your needs. Ethernet signal that allows two types of segments to connect easily efficiently and inexpensively. This converter can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700 MC-1000 and MC-1500).Each Web-Smart converter is able to manage through the Web Interface. The powerful Web-Smart Media Converter supports flow control QoS bandwidth control and Ingress/Egress rate control etc. The statistics functions of the Web-Smart converter helps administrators to remote analyses and count the packet flow of the current Ethernet link. Management function helps reduce the amount of valuable time that a network administrator spends detecting and locating network problems otherwise it requires visual inspection of cabling and equipment.The Web-Smart function also includes the LLR and Loop Back Test. LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. It provides more flexible settings for converters. Ordering Information FT-902 10/100Base-TX to 100Base-FX (SC MM) Web Smart Media Converter -2km FT-902S15 10/100Base-TX to 100Base-FX (SC SM) Web Smart Media Converter -15km FT-902S35 10/100Base-TX to 100Base-FX (SC SM) Web Smart Media Converter -35km FT-902S50 10/100Base-TX to 100Base-FX (SC SM) Web Smart Media Converter -50km FT-905A 10/100Base-TX to 100Base-FX (SFP) Web Smart Media Converter -up to 60km FT-906A20 10/100Base-TX to 100Base-FX (WDM SM TX: 1310 RX: 1550) Web Smart Media Converter -20km FT-906B20 10/100Base-TX to 100Base-FX (WDM SM TX: 1550 RX: 1310) Web Smart Media Converter -20km
