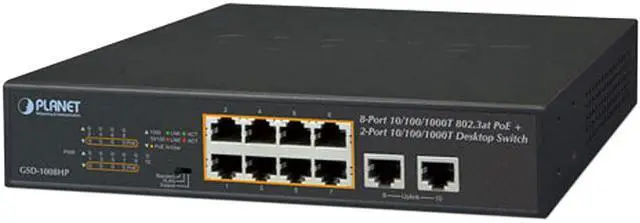

PLANET GSD-1008HP Unmanaged 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch (120 Watts)

Be the first to review this product...
  • 8K MAC Address Table
  • Unmanaged
  • PoE
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the PLANET GSD-1008HP

Model
Brand PLANET
Model GSD-1008HP
Format & Standards
Format Desktop
Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
Network Management Type Unmanaged
Ports & Interface
Primary Ports 10-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper
8-port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)
Primary Port Speed 10/100/1000Mbps
Data Transmission
MAC Address Table 8K
Switching Method Store and Forward
VLAN Support Yes
Details
PoE Yes
LEDs System:
Power (Green)

10/100/1000BASE-T RJ45 interfaces:
10/100 Mbps LNK / ACT (Red)
1000 Mbps LNK / ACT (Green)

PoE interfaces: PoE-in-Use (Orange)
Power Power Requirements: AC 100~240V, 50/60 Hz, 2.5A max.
Power Consumption / Dissipation:
System On: Max. 5.6 watts / 19.1 BTU
Ethernet Full Loading: Max. 10.6 watts / 36.1 BTU
PoE Full Loading: Max. 139 watts / 474.2 BTU
Dimensions & Weight
Dimensions 1.69" x 8.66" x 5.91"
Weight 2.78 lbs.
Additional Information
Date First Available December 28, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
