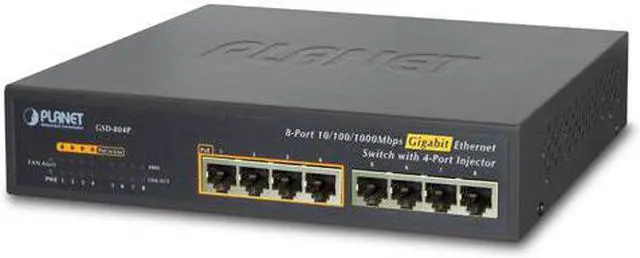

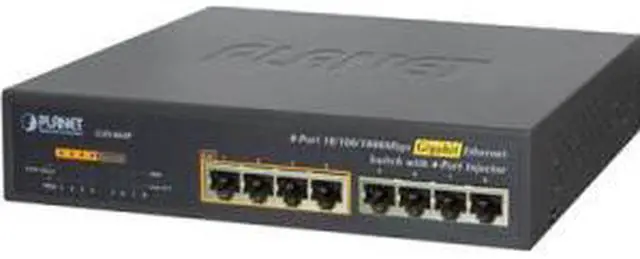

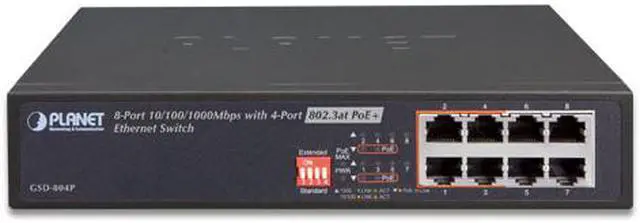

Planet GSD-804P 8-Port 10/100/1000 Mbps with 4-Port PoE Ethernet Switch

Centralized Power Distribution for Gigabit Ethernet Networking
To fulfill the demand of sufficient PoE power for network applications with Gigabit speed transmission, PLANET introduces a new member in the 802.3af PoE Gigabit Ethernet Switch family - GSD-804P, the 8-Port 10/100/1000Mbps with 4-Port 802.3af Power over Ethernet Switch which features high performance Gigabit IEEE 802.3af PoE (Up to 15.4 Watts) and totally 55 Watts PoE budget on half of the 10/100/1000Mbps TP ports of GSD-804P. The four 802.3af PoE ports provide PoE power injector function which is able to drive 4 IEEE 802.3af compliant powered devices. The GSD-804P also provides a simple, cost-effective, and non-blocking wire-speed performance with 10-inch metal shape for desktop deployment in compact housing, SOHO office or department network application.

RJ-45 Interface
• 8-Port 10/100/1000Mbps Gigabit Ethernet ports
• 4-Port supports 48V DC power to PoE Powered Device

PoE
• Complies with IEEE 802.3af Power over Ethernet End-Span PSE
• Up to 4 IEEE 802.3af devices powered
• Supports PoE Power up to 15.4 Watts for each PoE port
• Auto detect powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m

Switching
• Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X
• Flow control for Full Duplex operation and back pressure for Half Duplex operation
• Integrates address look-up engine, supporting 8K absolute MAC addresses
• 9K Jumbo Frame supports at all speed (10/100/1000Mbps)
• Automatic address learning and address aging

Hardware
• 10-inch desktop size, rack mountable; 1U height
• LED indicators for PoE ready and PoE activity
• Optional Rack Ear Accessories Kit for 10-inch cabinet (RKE-10A) and 19-inch cabinet (RKE-10B)
• 1 silent FAN to provide stable and efficient power performance
• Energy-Saving technology
- Link down power saving
- Intelligent scales power based on cable length
