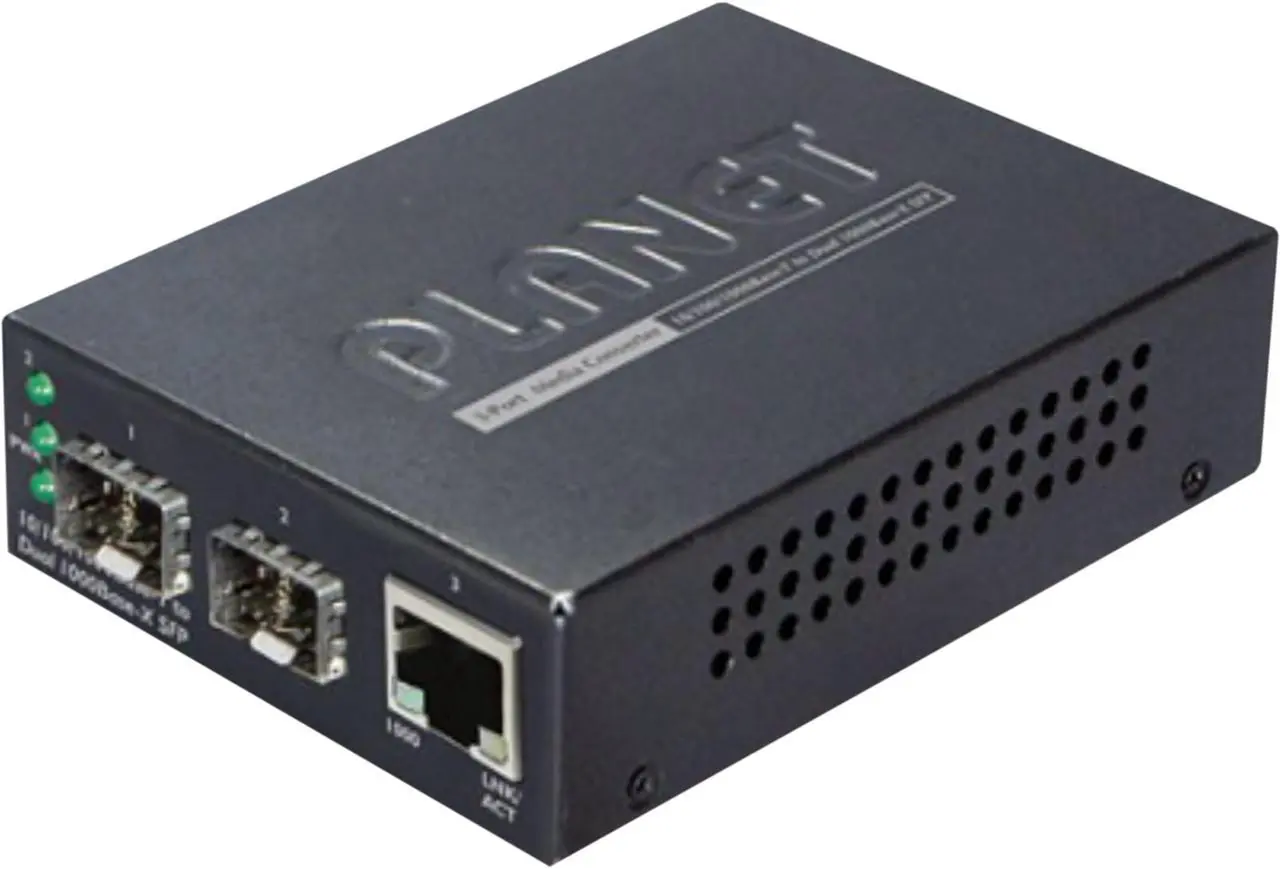

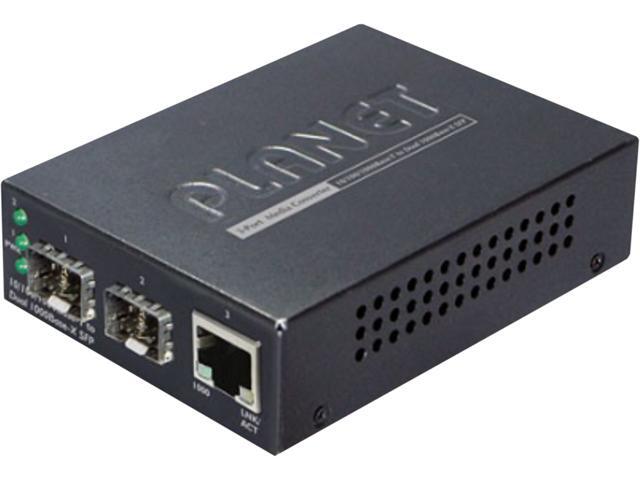

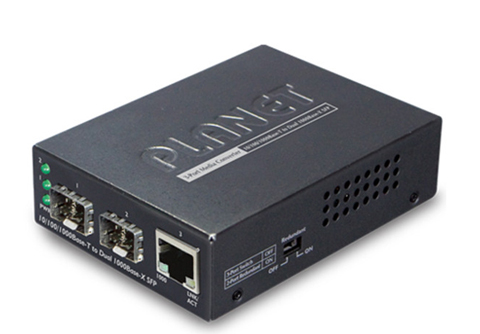

PLANET GT-1205A 1-Port 10/100/1000Base-T - 2-Port 1000FX (SFP) Switch Media Converter

  • 10/100/1000TX to 2 x 1000FX SFP
  • Fiber Connection: LC
Overview
Specs
Reviews
Easy & Chassis Installation Highly Convenient and Distance ExtendableThe GT-1205A Gigabit SFP Media Converter provides 1 TP and dual SFP ports to support conversion between 10/100/1000Base-T and 1000Base-X network. With the two 1000Base-SX / LX SFP ports the GT-1205A provides high reliability and flexibility to extend the media transmission distance up to 550m 120km or longer depending on the 1000Base-SX / LX SFP transceiver modules. It allows the two types of segment to connect easily efficiently and inexpensively. The GT-1205A can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis  MC-700 and MC-1500 series chassis.

The GT-1205A can be fed DC power from these media chassis and help the administrators to maintain the fiber-optic network at one central location. With the 3-Port Switch mode they work in high performance Store and Forward mechanism and prevent packet loss with IEEE 802.3 x Flow Control (Full-Duplex) and Back Pressure (Half-Duplex) function. Plug & PlayAs the GT-1205A Media Converter fully complies with IEEE 802.3 10Base-T IEEE 802.3 u 100Base-TX IEEE 802.3 ab 1000Base-T and IEEE 802.3 z 1000Base-LX / SX the Gigabit media conversion installation is quite quick and easy by simply plug and play.

Easy & Chassis InstallationThe GT-1205A can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis  MC-700 and MC-1500 series chassis. The GT-1205A can be fed DC power from these media chassis and help the administrators to maintain the fiber-optic network at one central location. With the 3-Port Switch mode they work in high performance Store and Forward mechanism and prevent packet loss with IEEE 802.3 x Flow Control (Full-Duplex) and Back Pressure (Half-Duplex) function. Plug & PlayAs the GT-1205A Media Converter fully complies with IEEE 802.3 10Base-T IEEE 802.3 u 100Base-TX IEEE 802.3 ab 1000Base-T and IEEE 802.3 z 1000Base-LX / SX the Gigabit media conversion installation is quite quick and easy by simply plug and play.

general information

general information

GT-1205A

10/100/1000Base-T to Dual 1000Base-X SFP Media Converter

The PLANET GT-1205A Gigabit SFP Media Converter is upgraded by providing two Gigabit SFP slots, strengthened redundant function, and a group of advanced features. It features a DIP switch for 3-port operation in Gigabit switch mode or redundant mode. The 3-port switch mode allows the unit to work in optimal performance and can keep packet loss to a minimum with the IEEE 802.3x Flow Control (Full-Duplex) and Back Pressure (Half-Duplex) feature. Since the unit is compatible with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX / SX, the installation of this media converter is simpler than ever with the plug and play feature.

In addition to being used as a standalone unit, this unit can be utilized as an additional slide-in module to the Planet media converter chassis, such as MC-700 and MC-1500 (sold separately). It can be powered by the media chassis and allows administrators to keep the fiber optic network at one location.

Features

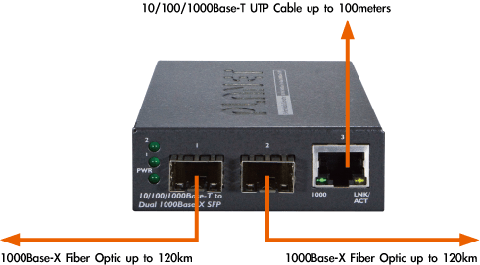

Highly Convenient and Distance Extendable

The GT-1205A is equipped with one 10/100/1000Base-T port and dual Gigabit SFP slots to support conversion between 10/100/1000Base-T and 1000Base-X network. The dual SFP slots make the Ethernet signals connect easily and efficiently by adding single-mode or multi-mode media modules or the combination of both types. The GT-1205A provides high reliability and flexibility to extend the media transmission distance up to 550m, 10km or longer, depending on the optional 1000Base-SX / LX SFP transceiver modules.

general information

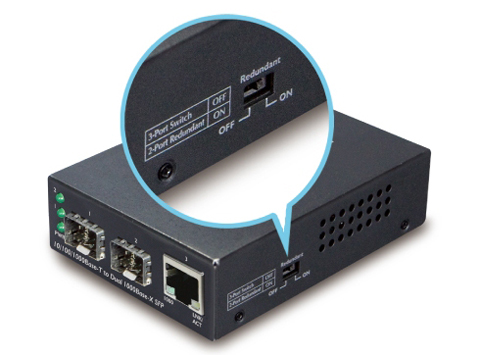

Adjustable 3-Port Switch Mode or 2 Fiber Port Redundant Mode

Via the built-in DIP switch, the GT-1205A can be configured as 3-port Ethernet switch or 2-port Redundant Media converter. With the 3-port switch mode, the GT-1205A can operate in Store-and-Forward mechanism with high performance; on the other hand, when in the 2-port redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.

general information

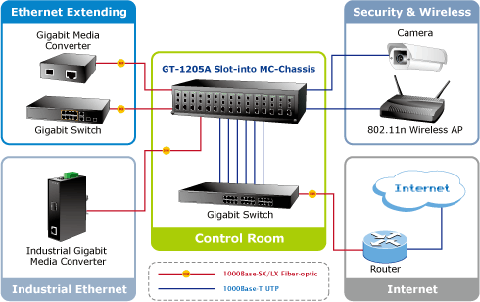

Easy Deployment: Standalone or with Chassis

The GT-1205A Gigabit Media Converter can be used as a standalone unit or as a slide-in module to the PLANET Media Converter Chassis, MC-700 and MC-1500 chassis series. These media chassis can assist in providing DC power to the GT-1205A Gigabit Media Converter and the fiber-optic network can be maintained at one central location. With the 3-port switch mode, they work in high performance Store-and-Forward mechanism, and prevent packet loss with IEEE 802.3x Flow Control (Full-duplex) and Back Pressure (Half-duplex) function.

Plug & Play Installation

As the GT-1205A Gigabit Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX / SX, the Gigabit media conversion installation is quite quick and easy by using the plug and play feature.

Applications

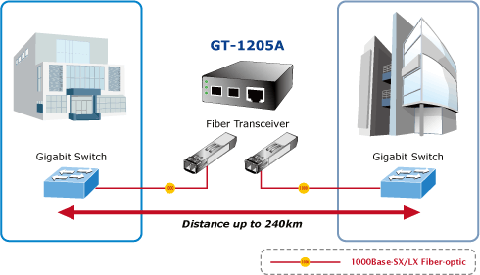

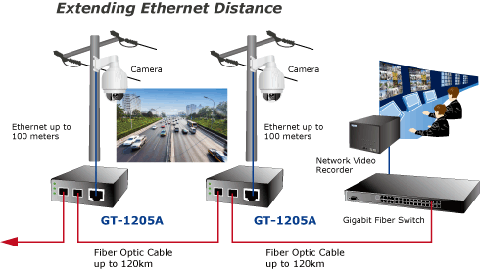

Gigabit Ethernet Distance Extension

The GT-1205A directly converts the media from the Gigabit fiber to twisted pair interface. For example, it can be applied between the Gigabit Fiber Switch and the Gigabit Copper Network Card to perform media conversion and transmission.

With the conversion, you can easily have the transmission distance of Gigabit copper cable extended up to 550 meters or longer (depending on SFP module). Built in with two SFP ports, the GT-1205A can integrate with the existing copper switch to provide Gigabit fiber transmission without the need of replacing with the Gigabit Fiber Switch. With the Gigabit fiber transmission, the GT-1205A enables video stream to be delivered from the camera up to 120km away to local Network Video Recorder.

general information

general information

Fiber-Optic Networking for ISPs, System Integrators, Enterprises, and Homes

With high performance of data transmission and easy installation, the GT-1205A can build the ISP network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) and FTTB (Fiber to the Building). The GT-1205A is also ideal for small office network environment of enterprises.

general information

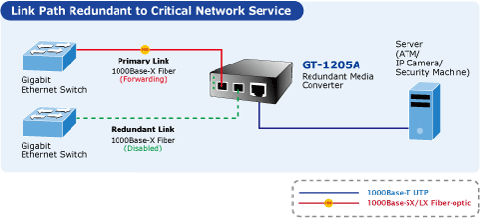

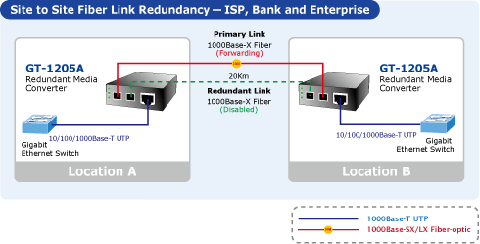

Fault Tolerant Redundant Link for Critical Network Applications

The GT-1205A is designed for optical fiber networks that require rapid link redundancy. With the auto-recovering feature, the redundant media converter responses rapidly for critical applications.

general information

general information
