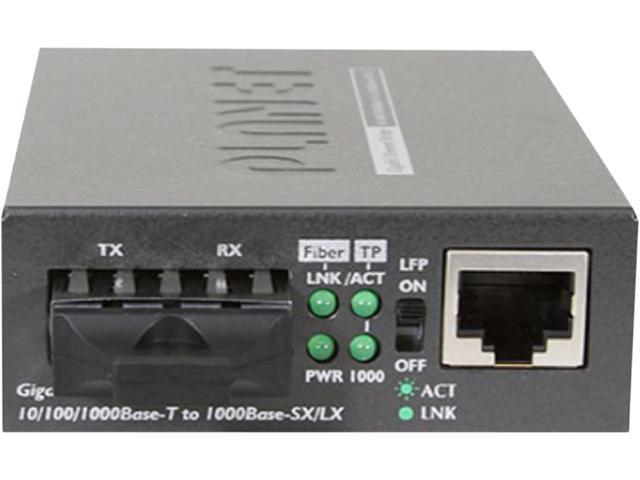

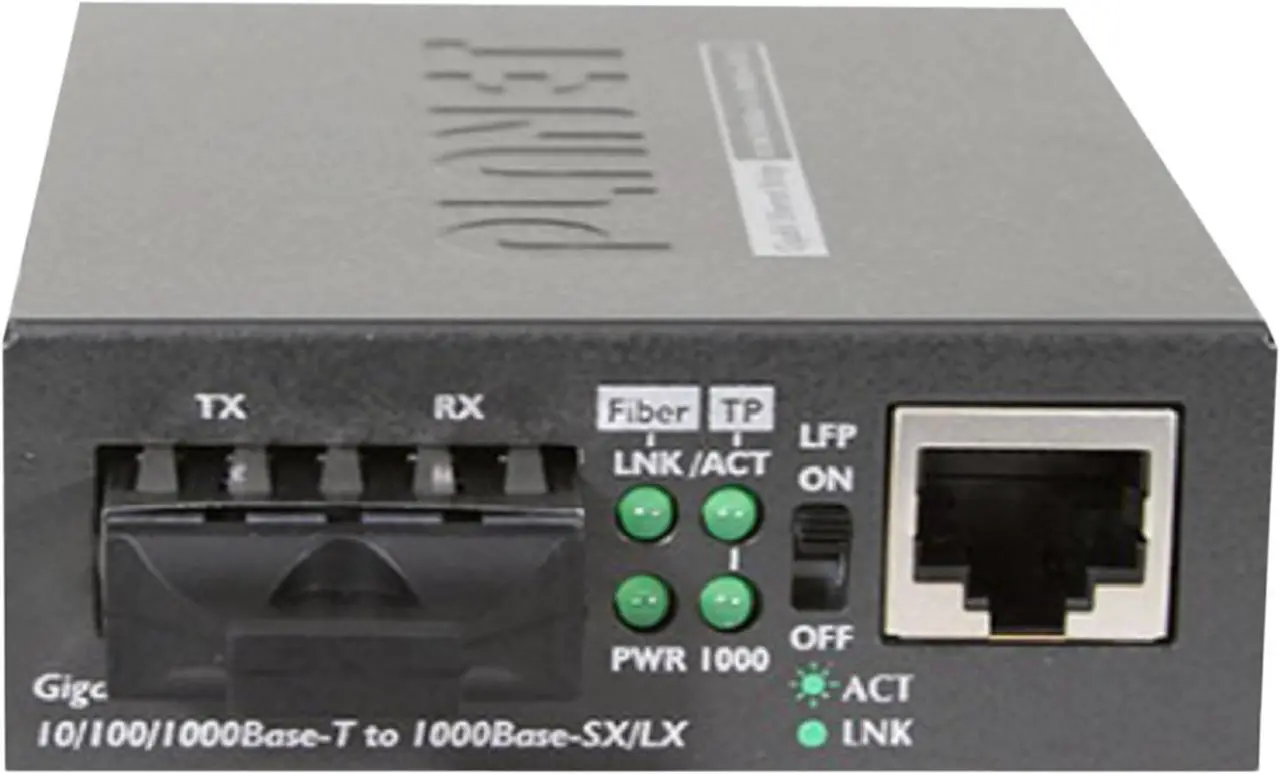

PLANET GT-802 10/100/1000Base-T to 1000SX Gigabit Media Converter (MM, SC, 550m)

The PLANET GT-80x Series Gigabit Media Converter is the perfect solution for building fiber-optic networking for ISPs, enterprises and homes. It accepts various types of Ethernet media via an RJ-45 port and offers highly stable Gigabit fiber performance. It supports conversion between 10/100/1000Base-T and 1000Base-LX/SX network. There are SC/SFP/WDM connectors with single-mode or multi-mode media as required. The advanced smart management features make it easier than ever to remotely control and monitor the network. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively. Plus, it’s easy to install.

Features

Distance Extension with High Performance and Steady Network Communications

PLANET GT-80x series extends communications distance with highly Gigabit performance via fiber optic cable. The GT-80x series provides media conversion between 10/100/1000Base-T and 1000Base-SX/LX interfaces such as multi-mode LC/SC connectors (220m / 550m), single-mode LC/SC connectors (10/20/30/40/50/70/120km) and single fiber connectors (WDM, 15/60km) for various fiber optic applications.

Enhanced Smart Management Features

The GT-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Pass through function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR). LLCF/LLR can immediately alert administrators to the problem of the link media and provide efficient solution to monitoring the net. The DIP switch can disable or enable the LFP function. The LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmission. The LLR (Link Loss Return) means when a device connected to the converter and the fiber line loses the link, the converter’s fiber will disconnect the link of transmission. Both can immediately alert administrators to the problem of the link media and provide efficient solution to monitoring the net.

Moreover, Even the web UI is not available on GT-80x, the network manager still can remotely control and monitor GT-80X by OAM TS-1000 terminal function such as remote failure indication, loop back test, port status, performance monitoring and troubleshooting.

Easy Installation

The GT-80x series allows two types of the segment to connect easily. The GT-80x series can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch 7-/15-slot media converter chassis (MC-700/MC-1500/ MC-1500R / MC-1500R48)*. These media chassis can assist in producing the power for the GT-80x to maintain the fiber-optic network at one location. As the Gigabit Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the Gigabit media conversion installation is quite quick and easy with its plug and play feature. The GT-80x also supports flow control and back pressure in half-duplex to eliminate packet loss.

* Sold separately.

Applications

Fiber-optic Networking for ISPs, Enterprises, and Homes

With high-performance data transmission and easy installation, the GT-80x can build the ISP network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) or FTTB (Fiber to the Building), for ISPs and small office network environment of enterprises.

Available in Multiple Models
