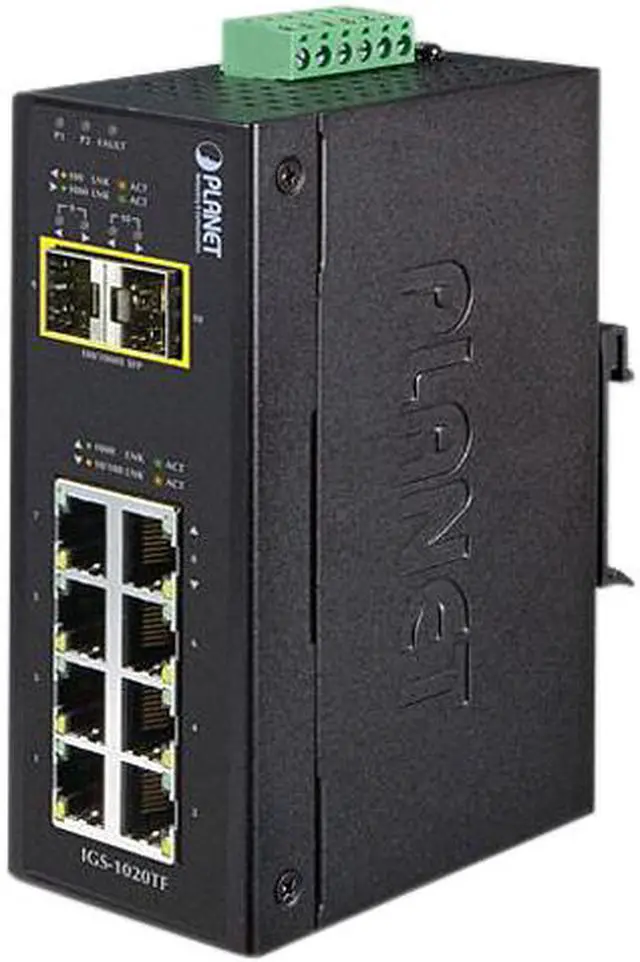

    PLANET IGS-1020TF Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch (-40~75 Degrees C)

    Be the first to review this product...
    • 8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
    • 2 x SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver type auto-detection
    • IP30 metal case protection
    • DIN rail and wall mount design
    • Supports 6000V DC Ethernet ESD protection
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the PLANET IGS-1020TF

    Model
    Brand PLANET
    Model IGS-1020TF
    Format & Standards
    Format DIN Rail and Wall Mount Design
    Standards IEEE 802.3 Ethernet/10BASE-T
    IEEE 802.3u Fast Ethernet/100BASE-TX
    IEEE 802.3ab Gigabit Ethernet/1000BASE-T
    IEEE 802.3z Gigabit Ethernet/1000BASE-SX/LX
    IEEE 802.3x Full-Duplex Flow Control
    IEEE 802.3az Energy Efficient Ethernet (EEE)
    IEEE 802.1p Cos
    Network Management Type Unmanaged
    Ports & Interface
    Primary Ports 8 x RJ45 + 2 x SFP
    Primary Port Speed 10/100/1000Mbps
    Data Transmission
    MAC Address Table 4K
    Switching Method Store and Forward
    Jumbo Frames 9216 bytes
    Details
    LEDs 3 x LED for System and Power:
    Green: DC Power 1
    Green: DC Power 2
    Red: Power Fault

    2 x LED for Per Copper Port (Port-1~Port-8):
    Green: 1000 LNK/ACT
    Orange:100 LNK/ACT

    2 x LED for Per Mini-GBIC Interface (Port-9 and Port-10):
    Green: 1000 LNK/ACT
    Orange:100 LNK/ACT
    Power DC 12 - 48V or AC 24V
    Redundant power with polarity reverses protection function
    8.7 watts / 29.69BTU
    Features
    Features Physical Port:
    8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
    2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver type auto-detection

    Industrial Case and Installation
    IP30 metal case protection
    DIN rail and wall mount design
    Redundant Power Design:
    12 to 48V DC, redundant power with polarity reverse protect function
    AC 24V power adapter acceptable
    Supports 6000V DC Ethernet ESD protection
    -40 to 75 degrees C operating temperature
    Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
    Dimensions & Weight
    Dimensions 5.31" x 2.20" x 3.43"
    Weight 1.19 lbs.
    Environmental
    Temperature -40 - 75 degree Celsius
    Humidity 5% - 95%, Non-condensing
    Additional Information
    First Listed on Newegg September 05, 2017

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 2 years
    • Limited Warranty period (labor): 2 years
