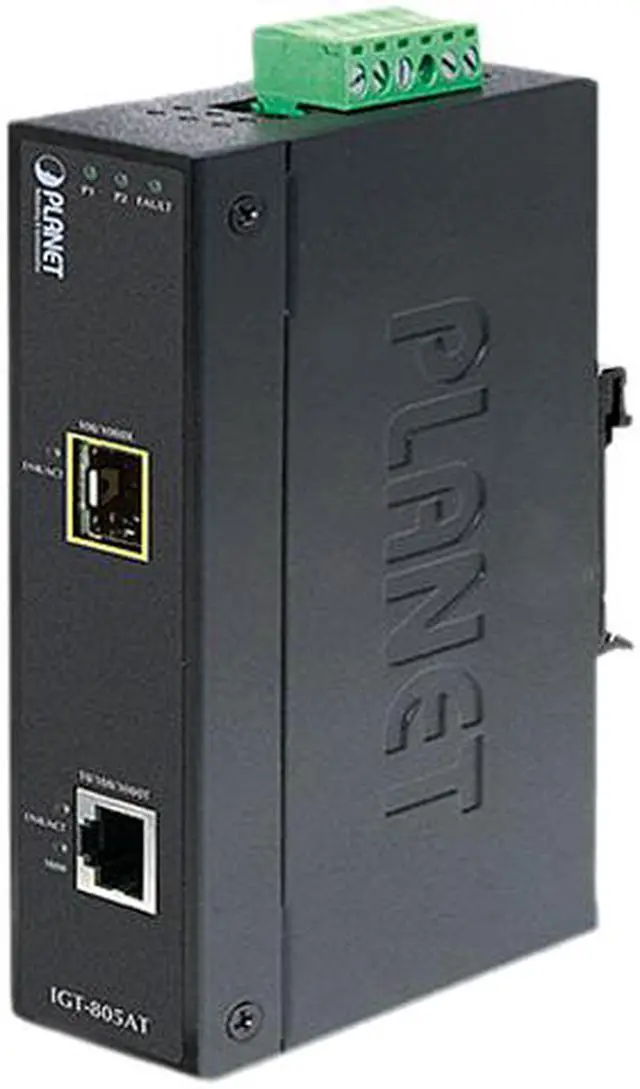

    PLANET IGT-805AT Industrial 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

    Be the first to review this product...
    • 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
    • 1 x SFP interface, 100/1000BASE-X dual mode (auto detection)
    • IEEE 802.3 / 802.3u / 802.3ab / 802.3z Ethernet standard compliant
    • Supports auto-negotiation and 10/100 Mbps half / full duplex and 1000 Mbps full duplex mode
    • Slim-type IP30 metal case
    • DIN rail and wall-mount design
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the PLANET IGT-805AT

    Model
    Brand PLANET
    Model IGT-805AT
    Details
    Device Type Converter
    Media Conversion RJ45 - SFP
    Standards IEEE 802.3 Ethernet
    IEEE 802.3u Fast Ethernet
    IEEE 802.3ab Gigabit Ethernet
    IEEE 802.3z Gigabit Ethernet
    IEEE 802.3x full-duplex flow control
    Ports 1 x 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
    1 x SFP interface, 100/1000BASE-X dual mode (auto detection)
    LEDs 3 x LED for System and Power:
    Green: DC Power 1
    Green: DC Power 2
    Green: Power Fault

    2 x LED for Per Copper Port:
    Green: LNK/ACT
    Green:1000

    1 x LED for Per Mini-GBIC Interface
    Green: LNK/ACT
    Power Adapter DC 12 - 48V, redundant power with polarity reverse protection function.
    AC 24V power adapter
    3.3 watts / 11 BTU
    Environmental
    Temperature -40 - 75 degree Celsius
    Humidity 5-95% (non-condensing)
    Features
    Feature Physical Port:
    1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
    1 SFP interface, 100/1000BASE-X dual mode (auto detection)

    Layer 2 Features:
    IEEE 802.3 / 802.3u / 802.3ab / 802.3z Ethernet standard compliant
    Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
    Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
    9K jumbo frame size support
    LFP function support
    Automatic address learning and address aging

    Industrial Case / Installation:
    Slim-type IP30 metal case
    DIN rail and wall-mount design
    Redundant power design:
    12 to 48V DC, redundant power with polarity reverse protect function
    AC 24V power adapter acceptable
    Supports EFT protection for 6000 VDC for power line
    Supports 6000 VDC Ethernet ESD protection
    -40 to 75 degrees C operating temperature
    Dimensions & Weight
    Dimensions 1.26" x 5.31" x 3.43"
    Weight 1.01 lbs.
    Additional Information
    First Listed on Newegg June 09, 2022
