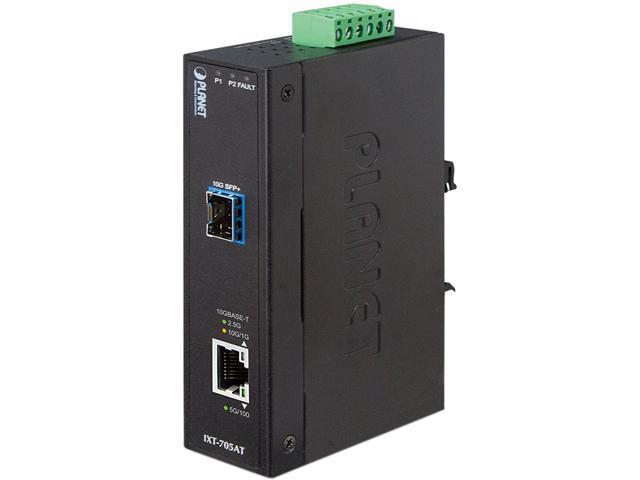

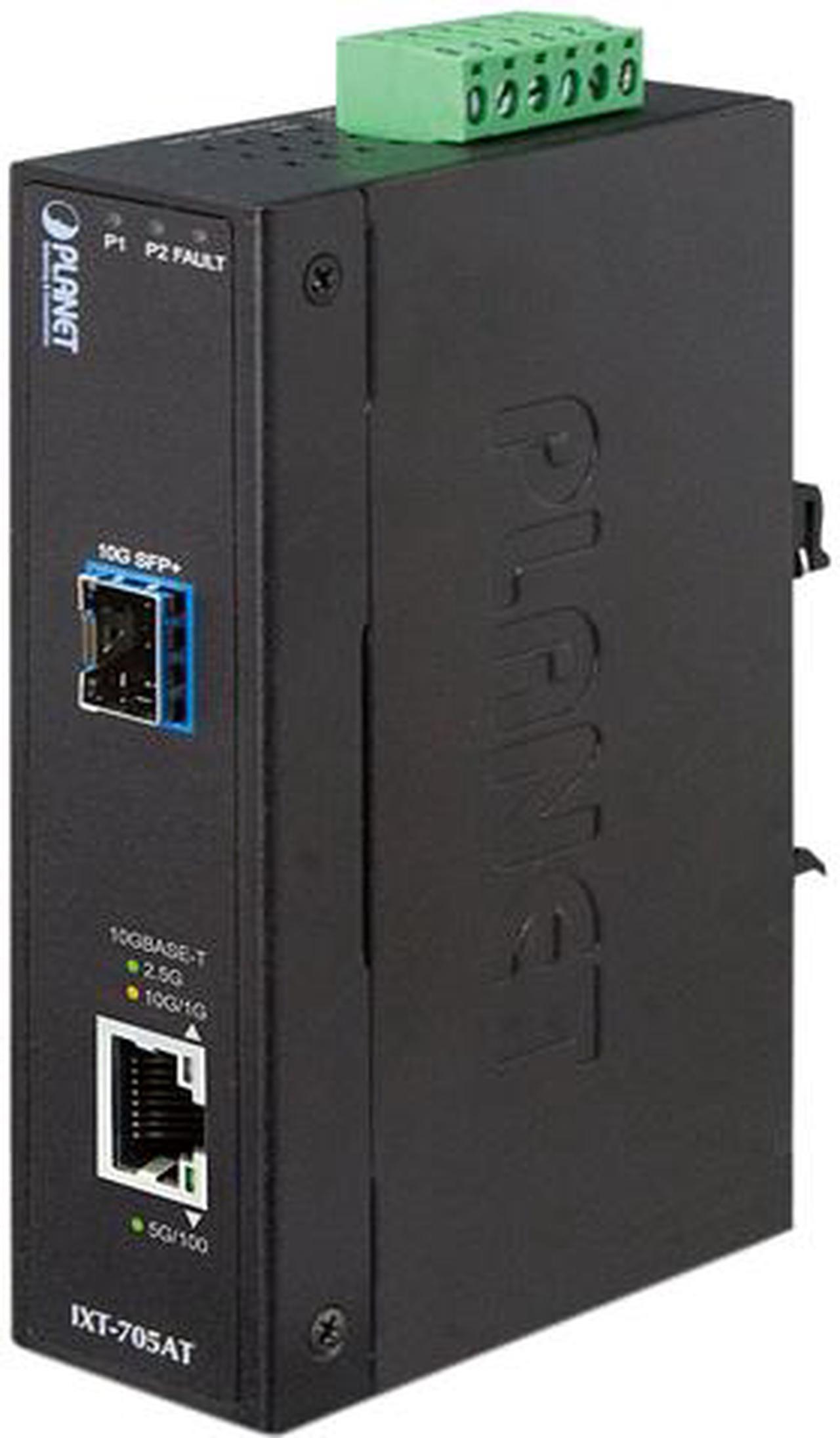

    PLANET IXT-705AT Industrial 10G / 5G / 2.5G / 1G / 100M Copper to 10GBASE-X SFP+ Media Converter

    Be the first to review this product...
    +
    +
    Specs
    Reviews

    Learn more about the PLANET IXT-705AT

    Model
    Brand PLANET
    Model IXT-705AT
    Details
    Device Type Converter
    Standards IEEE 802.3u 100BASE-TX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3bz 2.5G / 5GBASE-T
    IEEE 802.3an 10GBASE-T
    IEEE 802.3ae 10Gbps Ethernet
    IEEE 802.3x full-duplex flow control
    LEDs System: Fault Alert (Red), PWR (Green)
    10000/5000/2500/1000/100 BASE-T RJ45 Interfaces:
    1/10G LNK(Orange)
    5000/2500/100M LNK (Green)
    Power Adapter Power Requirements: DC 12~48V or 24V AC
    Environmental
    Temperature Operating Temperature: -40 ~ 75 degree Celsius
    Storage Temperature: -40 ~ 75 degree Celsius
    Humidity Operating Humidity: 5% ~ 95% non-condensing
    Storage Humidity: 5% ~ 95% non-condensing
    Features
    Feature Physical Port:
    1-port 10000/5000/2500/1000/100BASE-T RJ45 interface with auto MDI/MDI-X function
    1-port 10GBASE-X SFP+ slot interface

    Layer 2 Features:
    IEEE 802.3u / 802.3ab / 802.3bz / 802.3ae Ethernet standard compliant
    Supports auto-negotiation and 100 Mbps half / full duplex and 1/2.5/5/10Gbps full duplex mode
    Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
    16K jumbo frame size support
    Automatic address learning and address aging

    Industrial Case and Installation:
    Slim-type IP30 metal case
    DIN rail and wall-mount design
    Redundant power design
    - 12 to 48V DC, redundant power with polarity reverse protect function
    - AC 24V power adapter acceptable
    Supports 6000 VDC Ethernet ESD protection
    100 meters over Cat 6A at 10Gbps
    -40 to 75 degrees C operating temperature
    Plug and Play installation
    Dimensions & Weight
    Dimensions 5.31" x 1.26" x 3.43"
    Weight 1.01 lbs.
    Additional Information
    Date First Available February 19, 2025
