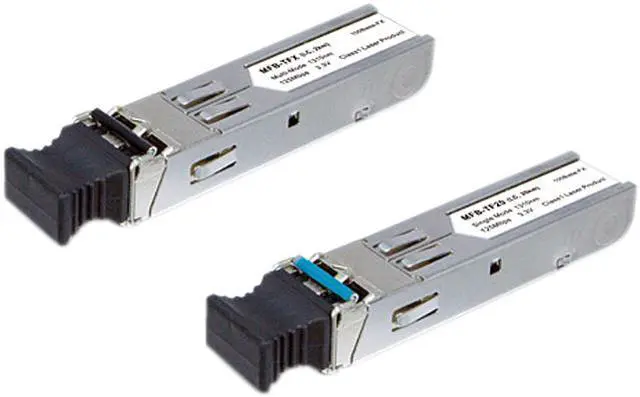

Planet MFB-TFX SFP-Port 100Base-FX Transceiver (1310 nm) - 2 km (-40 ~ 75 Degree C)
- SFP Multi-Source Agreement compliant
- 125Mbps IEEE 802.3u 100Base-FX compliant
- Industry standard small form pluggable (SFP) package (for model MFB-TFX / MFB-TF20 )
- 125Mbps FDDI ISO / IEC 9314-1 compliant
- Serial ID functionality support
- AC-coupled differential inputs and outputs
- Class 1 laser safety standard IEC 825 compliant
- 2km link on a multimode fiber and 20km to 60km on a single mode fiber
- Low power dissipation
- 0 to 60 °C operating temperature for MFB-FX / MFB-F20 / MFB-F40 / MFB-F60 / MFB-FA20 / MFB-FB20
- -40 to 75 °C operating temperature for MFB-TFX / MFB-TF20
+
+
Learn more about the PLANET MFB-TFX
| Brand | PLANET |
|---|---|
| Model | MFB-TFX |
| Device Type | Transceiver |
|---|---|
| Wavelength | 1310nm |
| Fiber Cable | Multi-Mode |
| Ports | LC |
| Max Distance | 2 km |
| Transfer Rate | 100Base-FX |
| Temperature | Operating Temperature: -40 ~ 75 degree Celsius |
|---|
| Feature | SFP Multi-Source Agreement compliant 125 Mbps IEEE 802.3u 100Base-FX compliant 125 Mbps FDDI ISO / IEC 9314-1 compliant Serial ID functionality support AC-coupled differential inputs and outputs Class 1 laser safety standard IEC 825 compliant Low power dissipation |
|---|
| First Listed on Newegg | December 28, 2018 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 2 years
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 800-989-2797
- Support Email: sales@planetechusa.com
- Support Website
- View other products from PLANET
LOADING...
The PLANET MFB-TFX is a 1310 nm, LC-port SFP transceiver for 100Base-FX links up to 2 km over multimode fiber, suited to network operators adding or replacing compatible fiber links in equipment that supports this SFP.
Recommended For
- Network technicians replacing an existing 100BASE-FX multimode link who need a 1310 nm SFP for a compatible host and a link distance of up to 2 km.
- Industrial network installers working in locations with wide temperature swings who need a 100BASE-FX SFP rated for extended-temperature operation.
- Facilities teams maintaining older switches, controllers, or other equipment with native 100BASE-FX SFP ports that need a like-for-like multimode fiber replacement.
- IT teams linking compatible 100BASE-FX equipment over multimode fiber when a 100 Mbps fiber connection meets the network’s throughput needs.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Connecting multimode fiber links over distances up to 2 km in 100Base-FX networks using an SFP transceiver |
| Network And Fiber Compatibility | 100Base-FX transceiver for multimode fiber, with a 1310 nm wavelength and LC ports |
| Standards And Features | SFP Multi-Source Agreement compliant; supports 125 Mbps IEEE 802.3u 100Base-FX and FDDI ISO / IEC 9314-1, serial ID functionality, and AC-coupled differential inputs and outputs; meets Class 1 laser safety standard IEC 825 and has low power dissipation |
| Operating Environment | Operating temperature range of -40 to 75 °C |
| Model Identifiers | PLANET MFB-TFX |
