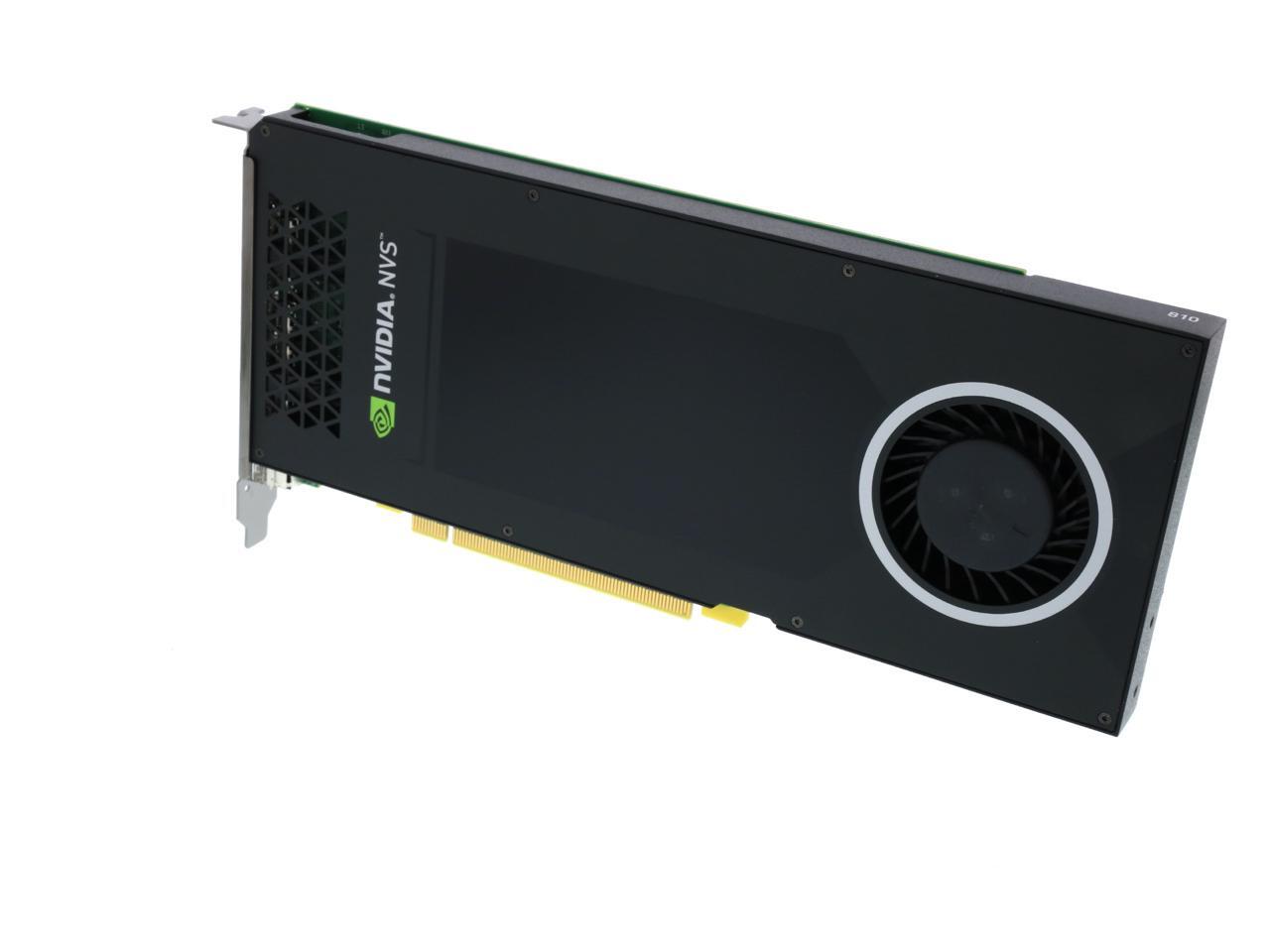

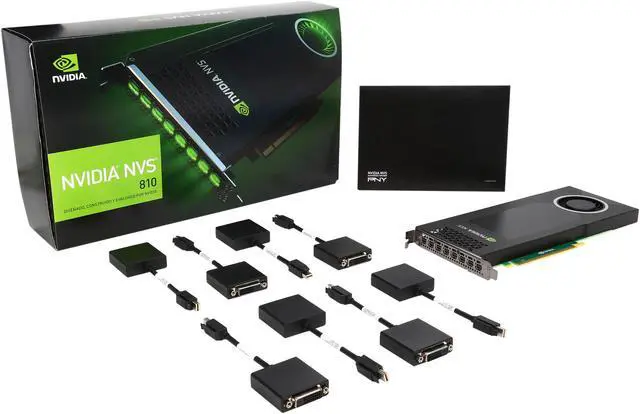

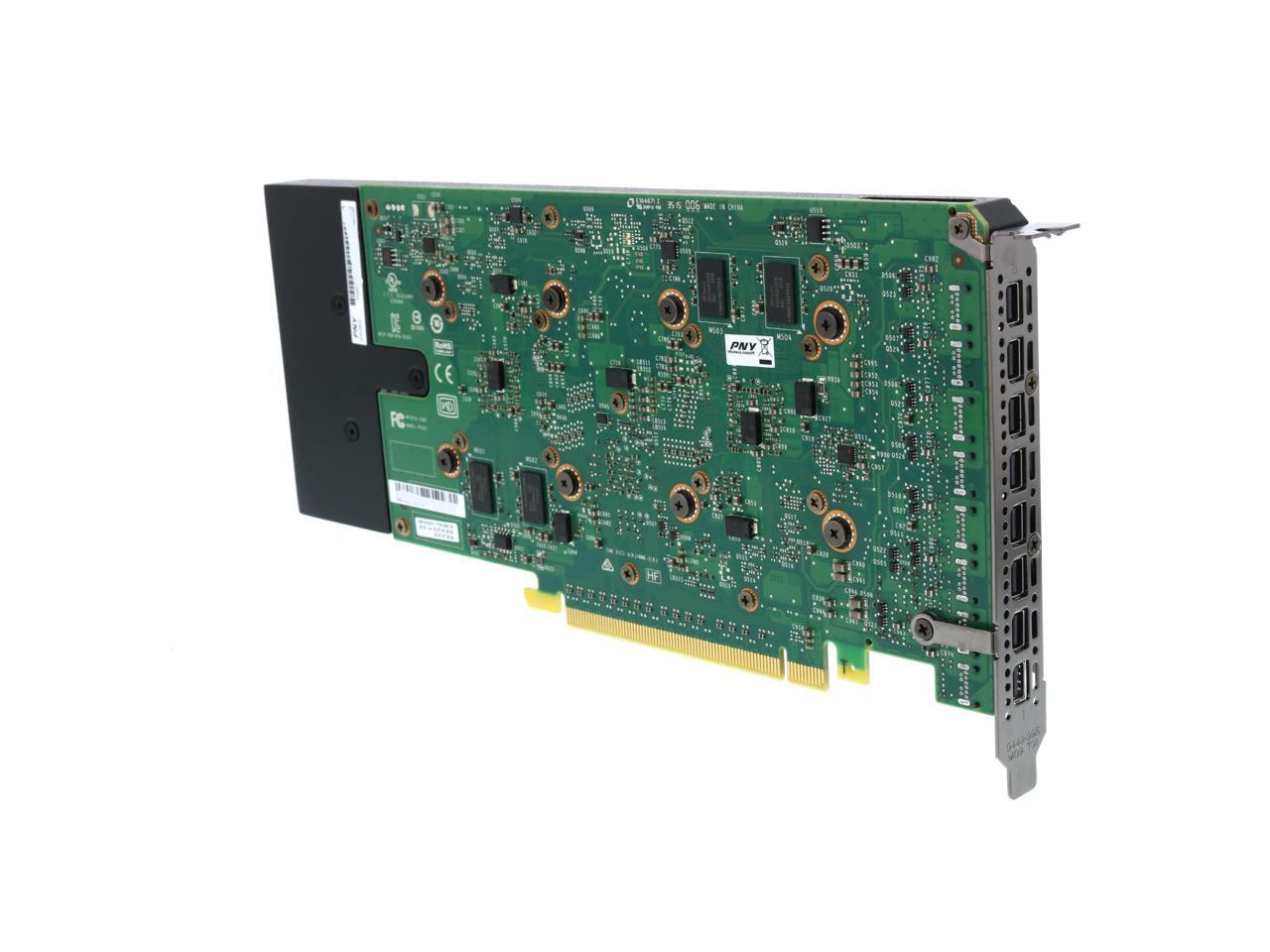

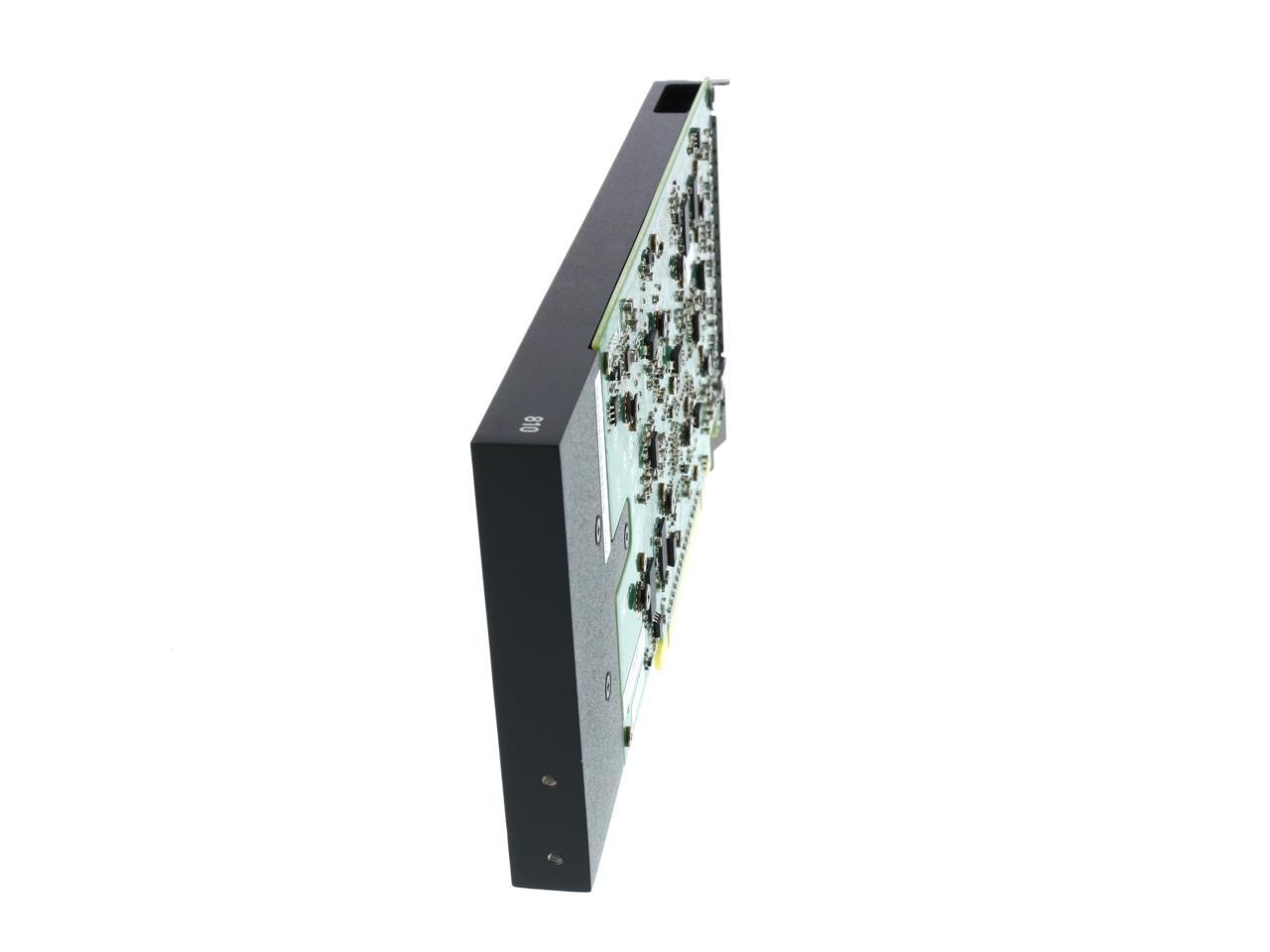

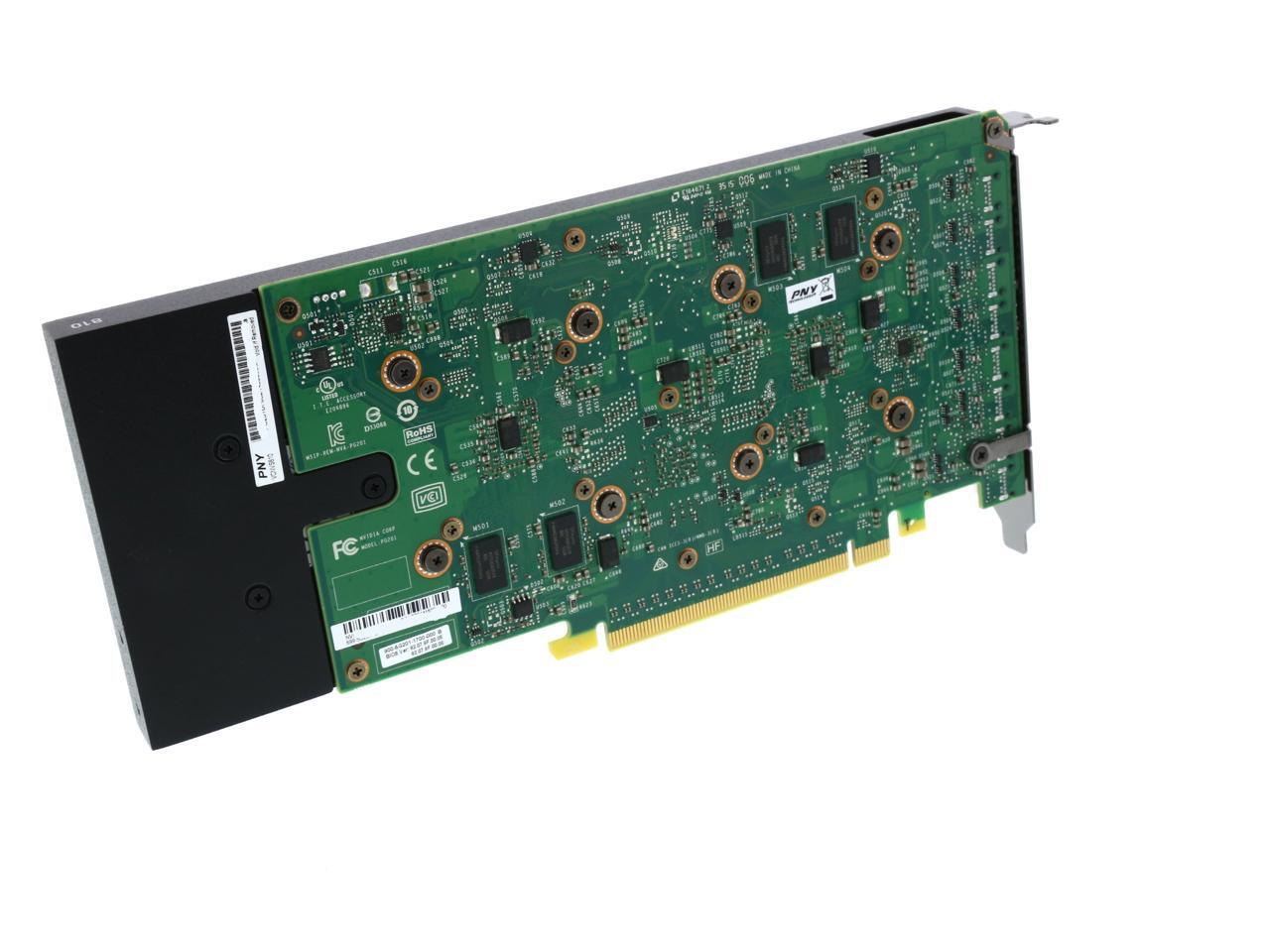

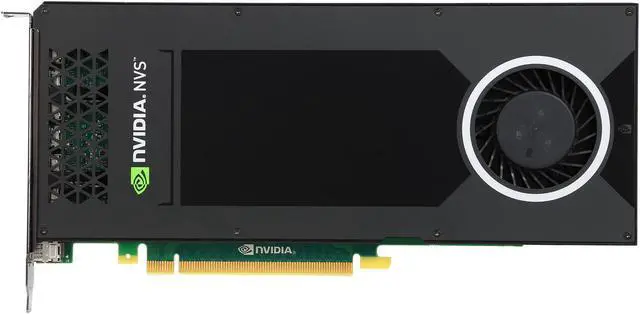

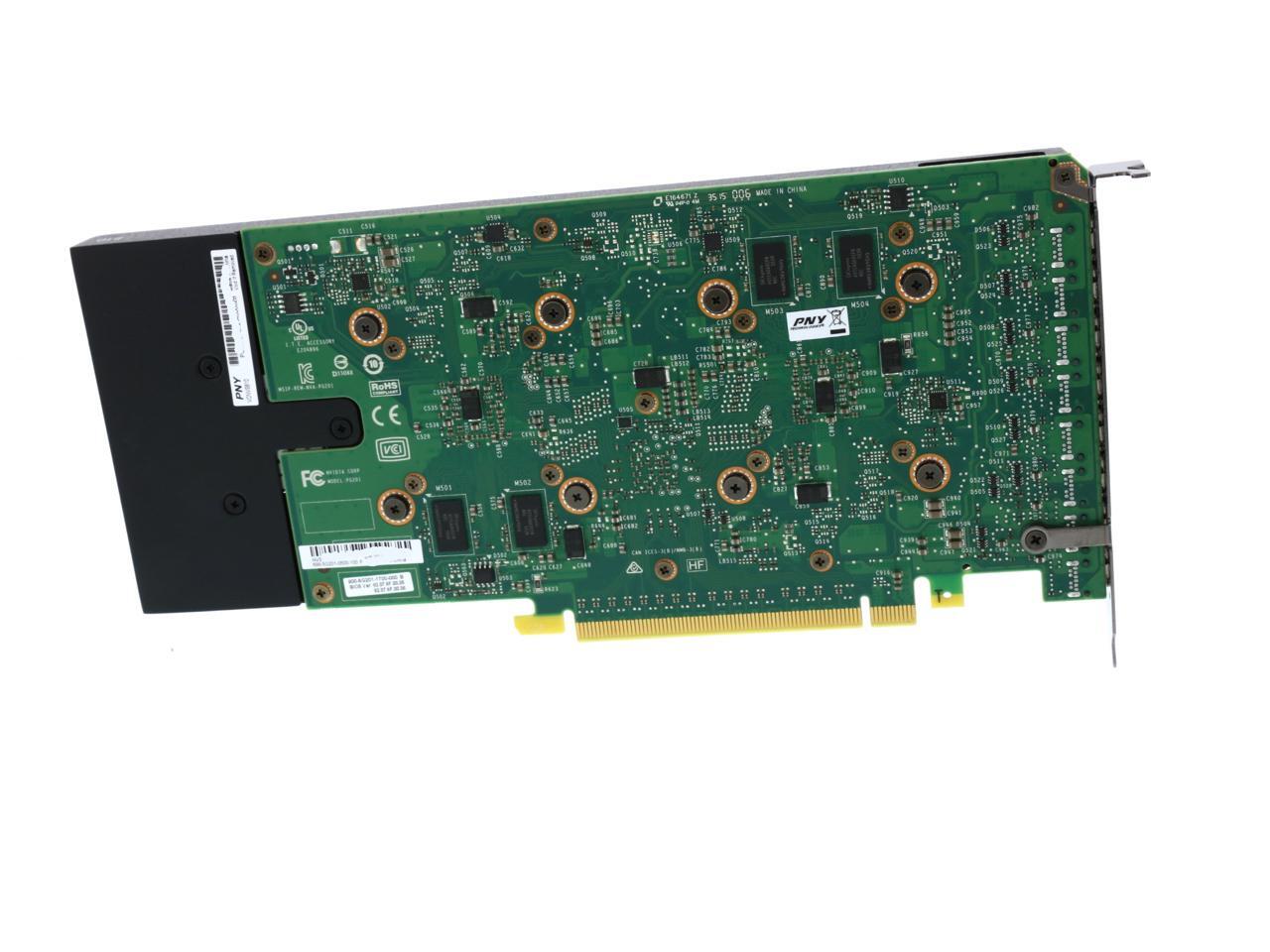

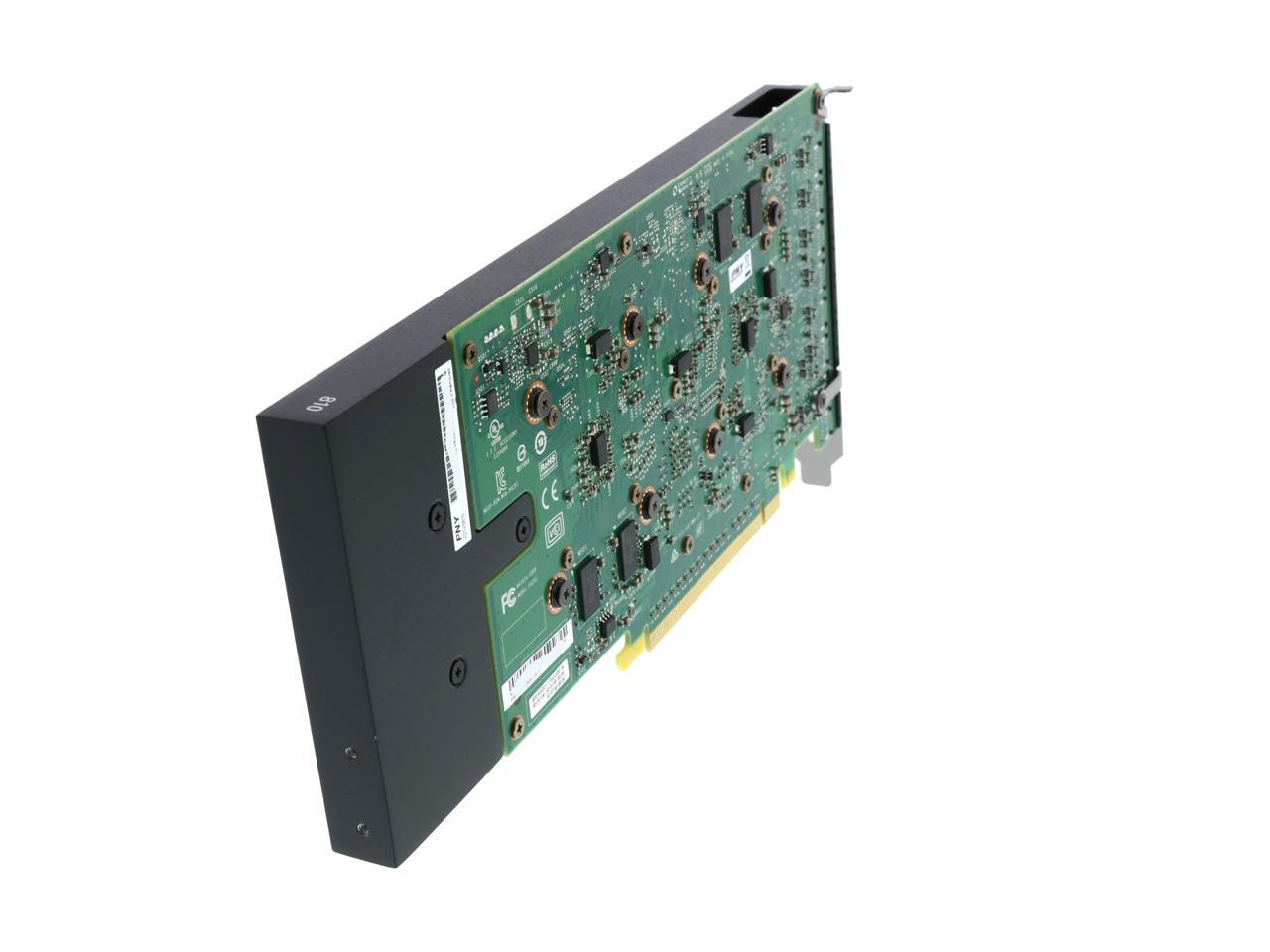

NVIDIA NVS810 PCIE X 16 DP, 8 mDP to DVI Adapters, ENG, 4GB DDR3
Learn more about the PNY Technologies, Inc. VCNVS810DVI-PB
Model
Brand
PNY
Model
VCNVS810DVI-PB
Interface
Interface
PCI Express 3.0 x16
Chipset
Chipset Manufacturer
NVIDIA
GPU
NVS 810
CUDA Cores
1024 (512 per GPU)
Memory
Memory Size
4GB
Memory Interface
128-bit
Memory Type
DDR3
Ports
DisplayPort

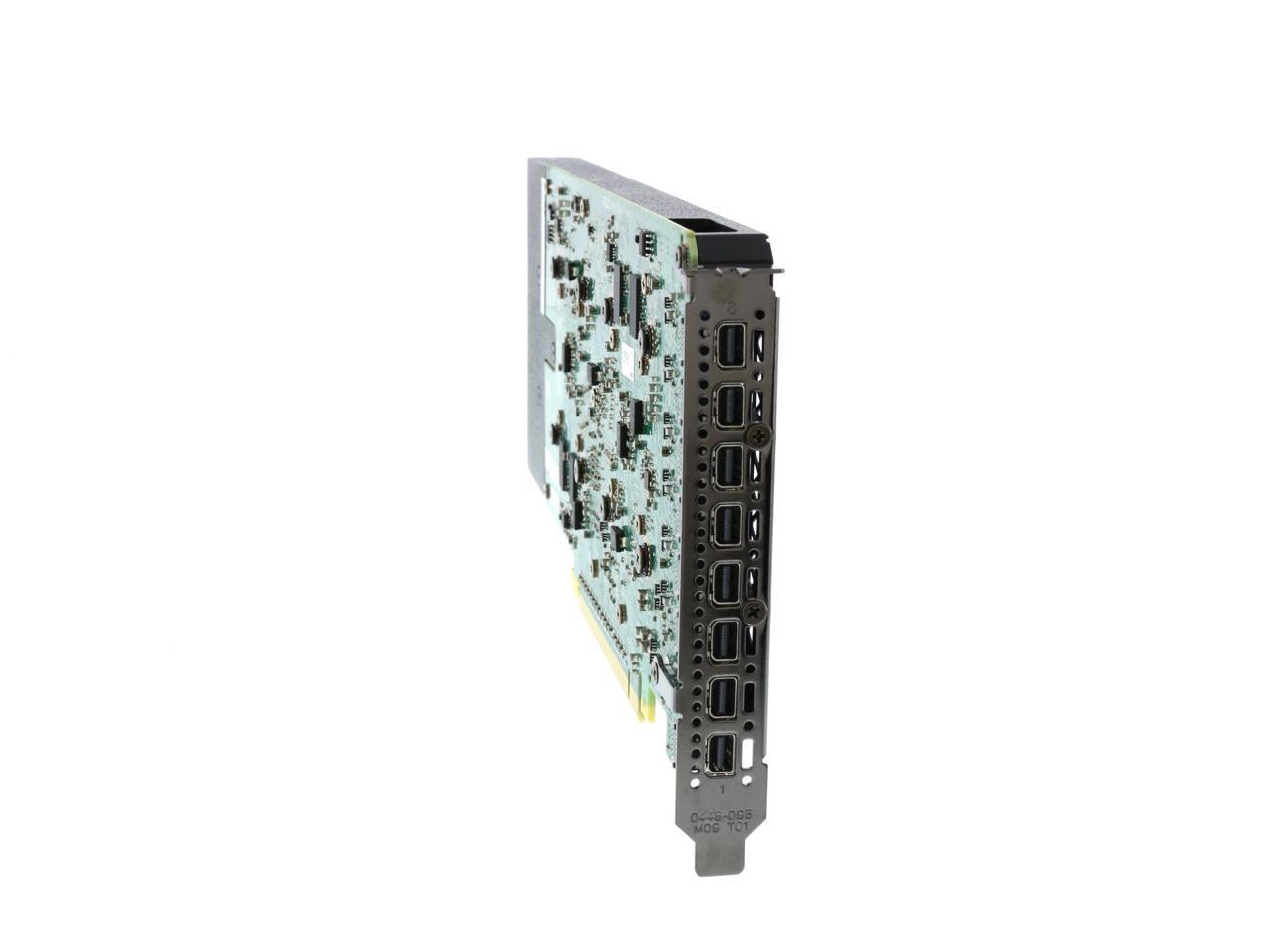

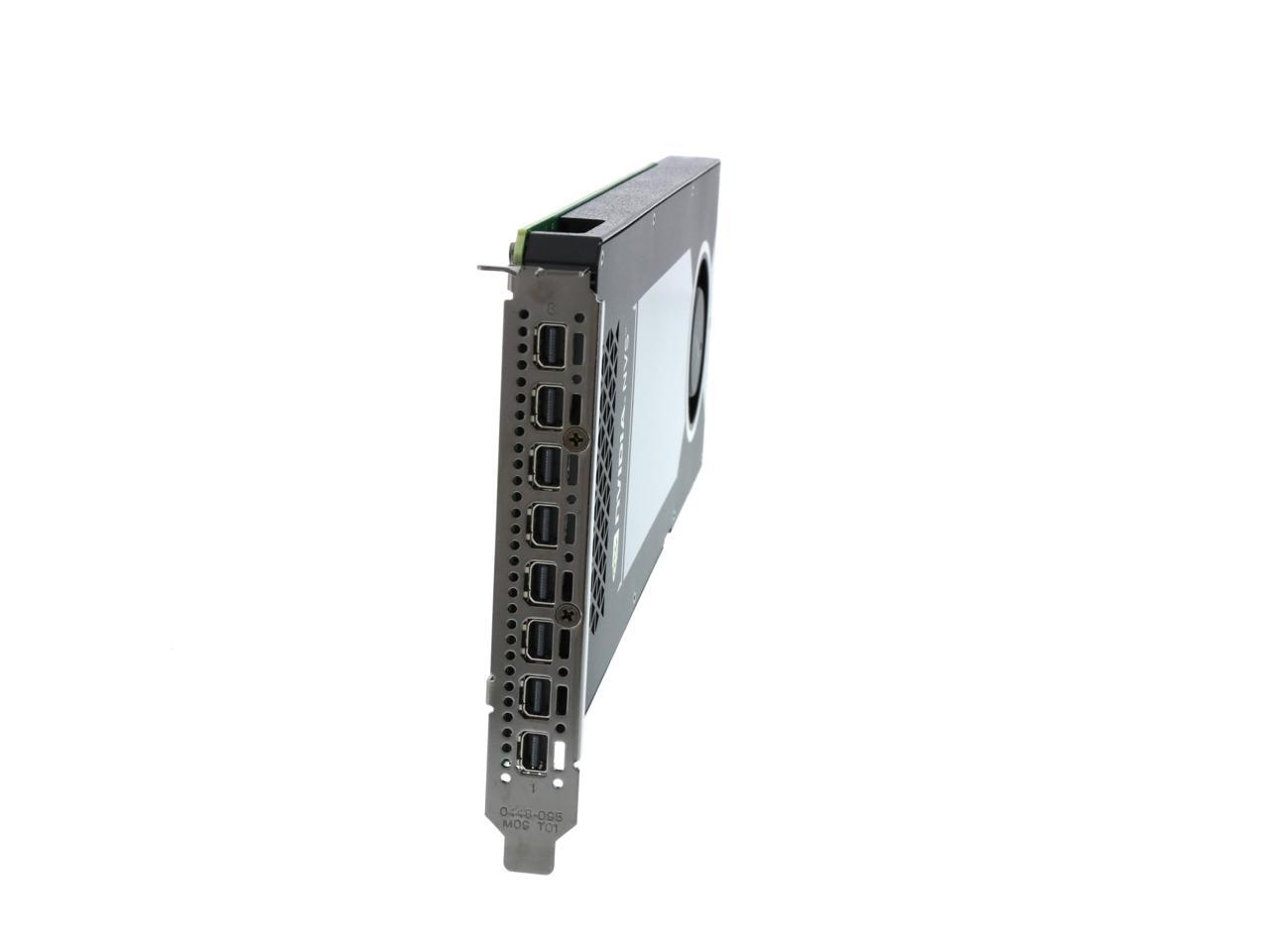

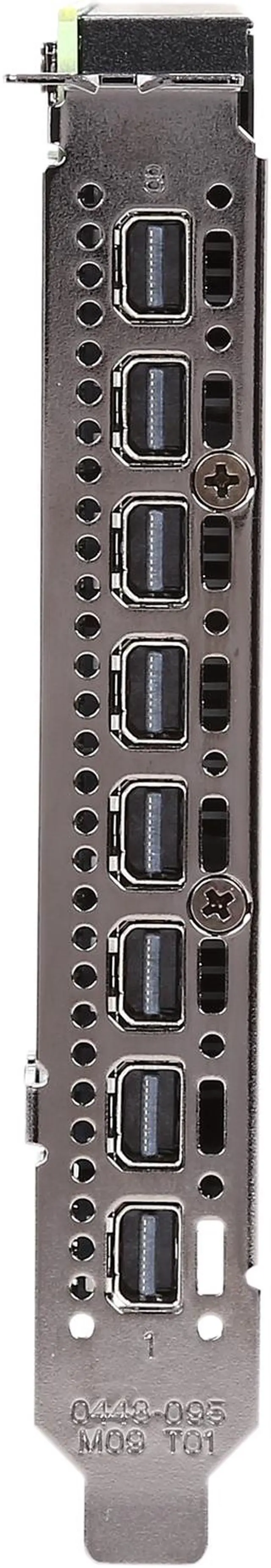

8 x mini DisplayPort 1.2
Details
Digital Resolution
4096 x 2160
Analog Resolution
1920 x 1200
Max Displays Per Board
Max Display Support: 8 x 4096 x 2160 at 30Hz, 4 x 4096 x 2160 at 60Hz
Max DVI Display Support: 8 x 1920 x 2160 at 60Hz
3D Vision Pro
For Windows & Linux
Cooler
Active
Operating Systems Supported
Microsoft Windows 10 (64-bit and 32-bit) Microsoft Windows 8.1 (64-bit and 32-bit) Microsoft Windows 7 (64-bit and 32-bit) Linux- Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit and 32-bit)
System Requirements
Max Power Consumption: 68W
Features
Features
Eight Display Outputs The NVS 810 leverages a dual GPU design to offer eight mini-DisplayPort 1.2 connectors capable of driving true 4K displays at 30 Hz. Plus, it provides advanced features like multi-streaming and stream cloning that enable extremely efficient cable management in complex installations.
Extreme Scalability The NVS 810 gives you the best mix of performance, single-slot form factor, quiet operation, and power efficiency. Simply combine multiple NVS 810 cards in a single system to create cost-effective, massive signage walls with extreme screen resolution.
Advanced Image Management Tap into the NVIDIA DesignWorks suite of powerful tools to manage images on complex multi-display configurations. Technologies like NVIDIA Mosaic and Warp & Blend help you achieve even the most demanding display configurations with ease.
Form Factor & Dimensions
Form Factor
ATX
Dimensions (L x H)
7.80" x 4.40"
Slot Width
Single Slot
Additional Information
First Listed on Newegg
December 17, 2015
