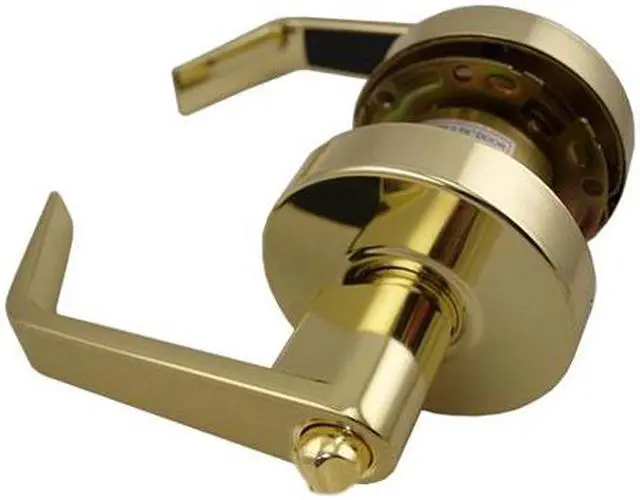

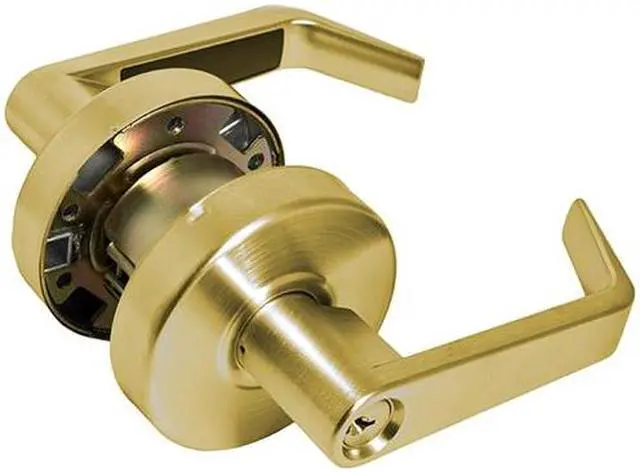

Em-D-Kay TSSL40003 Polished Brass US3 Entry Entrance Grade 2 Commercial Cylindrical ADA Angled Lever Lockset

Em-D-Kay TSSL40003 Polished Brass US3 Entry Entrance Grade 2 Commercial Cylindrical ADA Angled Lever Lockset, specially designed with a cushion on the lever, providing an extra comfortable handle, and it has no outside post construction for an easier instillation. This lever set is corrosion treated, and it has a heavy gauge cold roiled mechanism. The front is wrought brass or bronze 2-1/4" x 1-1/8", and the strike is wrought brass or bronze 4-1/8" x 1-1/4" standard. The latchbolt is made out of solid brass with a 1/2" throw, and it is reversible for RH or LH applications.

The adjustable front allows for flat or beveled doors 1-3/8" x 2". This lever features a 2-3/4" Backset, and Schlage SC4 keyway. This lever is rekeyable, and it will accept the following cylinders: Schlage, Arrow, Marks, AWI, Lori, Falcon, ASSA, and most Medeco. This lever fits wood or metal doors from 1-3/8" to 1-3/4" thick, and it is furnished with a 1-1/8" strike plate. The separate spring mechanism for the inside and outside lever, prevents arm sag from hold in horizontal position. This lever provides a barrier free application, and the lever travels up to 50 Degrees. Make sure to have a 2" clearance from lever to door surface, and the return of lever to 3/8" of the face of door. Easy installation, suitable for new construction and retrofit. The reinforced removable studs prevent twisting or turning of lock rosettes. This lever set is UL listed for "A" label (3 hours) single swing doors (4' x 8'), it has a concealed screw mount.

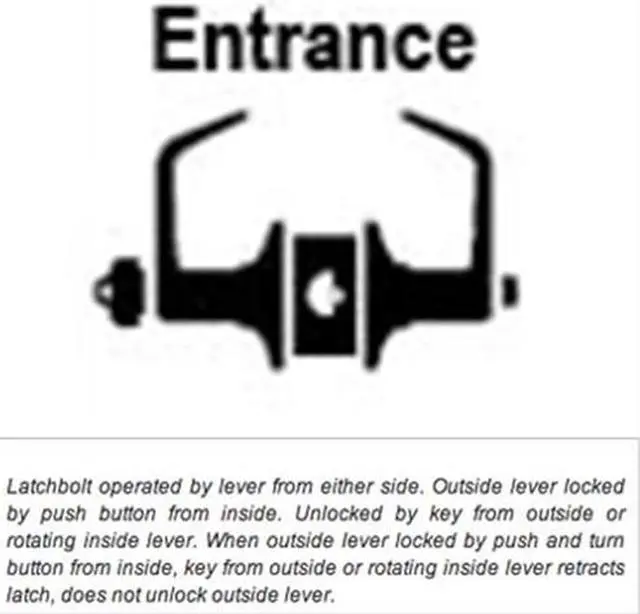

Entrance: Latchbolt operated by lever from either side. Outside lever locked by push button from inside. Unlocked by key from outside or rotating inside lever. When outside lever locked by push and turn button from inside, key from outside or rotating inside lever retracts latch, does not unlock outside lever.

• STYLE: Angled Lever.
• FINISH: Polished Brass US3.
• TYPE: Commercial

• GRADE: 2.
• BACKSET: 2-3/4"
• DOOR THICKNESS: 1-3/8" to 1-3/4"
• FUNCTION: Entry.
• Keyway: Schlage SC4.
• KEYING: Keyed Different, 2 keys per lock.
