|Model||AXR5 230 2GBK3-LHE|
|Interface||PCI Express 2.1|
|GPU Series||AMD Radeon R5 200 Series|
|GPU||Radeon R5 230|
|Core Clock||625 MHz|
|Stream Processors||160 Stream Processors|
|Effective Memory Clock||500 MHz x2|

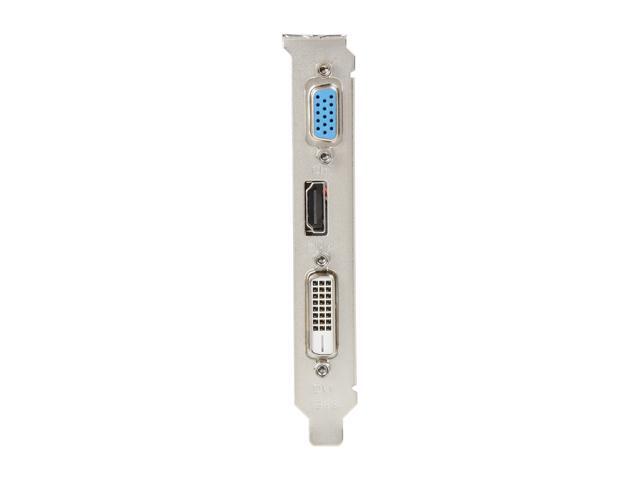

|HDMI||1 x HDMI|
|D-SUB||1 x D-SUB|
|DVI||1 x DL DVI-D|
|Max Resolution||2560 x 1600|
|System Requirements||Minimum System Power requirement: 400W|
|Dual-Link DVI Supported||Yes|
|Features||AMD Eyefinty Technology|
Run multiple displays from a single graphics board and expand your gaming field of view across all displays.
AMD App Acceleration
AMD App Accelerator creates a "co-processing" environment in which the compute processing potential in your AMD Radeon Graphics processor works together with the system central processor, to accelerate enabled applications.
AMD CrossFire Technology
Multi-GPU support offers superior scalability
Increase our gaming performance up to 2x with AMD CrossFire technology, 2.75x for TriFire configurations, or 3.75x with QuadFire configs.
Microsoft DirextX 11
Get intense gaming performance and unrivalled image quality with stunning 3D visual effects, realistic lighting and lifelike imagery.
AMD HD Media Accelerator
Assumes rendering responsibility for HD encode (VCE)/decode (MPEG-4 ASP, H.264. MVC, MPEG2, etc.) and conclusively enable superior video playback quality with advanced hardware post-processing algorithms.
AMD PowerPlay Technology
AMD PowerPlay Technology dynamically adjusts clockspeeds in response to GPU load, saving power for just when you need it.
Integrated high speed HDMI output with 1080p 120Hz 3D Stereoscopic support, and 4K resolution display support.
|Form Factor||Low Profile|
|Max GPU Length||160 mm|
|Card Dimensions (L x H)||6.30" x 4.72"|
|Slot Width||Single Slot|
|Date First Available||March 06, 2017|
