Question 1

Does anyone know if a 1000 watt power supply will be enough for two of these cards?

Accepted Answer

It "should" although I don't have the setup to confirm it.  But I do know that my machine as it stands, draws a max of 380 watts when in BF4.  My machine has a 850-watt PSU from Antec, has 2 SSDs and 1 regular HDD.  It has this PowerColor GPU, a Corsair H110 watercooler for the CPU, and 1 DVD/RW drive.  Overall if BF4 draws 380 watts system-wide with 1 GPU, I'd assume that with the 2nd GPU it cannot possibly double the usage.  Your 1000-watt should work (if rated for 80%+ efficiency).

Question 2

how many watts is this card ? i have a alienware x51 and want to upgrade the 660 that is in it , only has a 330w power supply

Accepted Answer

you need a minimum if 300 watts. I would not recommend putting that kinda power on at 330watt psu. You Bios would not even boot. you need to have head room with your PSU atleast 100 watts of the total wattage. With that said, a Motherboard/cpu/harddrive/fan will use at least 200 watts give or take. So i would recommend buying a 700 watt-ish PSU so the computers PSU stays healthy. So if the GPU needs 300watts, and the Motherboard ect needs 200, you have 500 watts that need powered. you dont want to stress out the PSU whatsoever. So 600-750 watt atleast.

Question 3

I have an HP 6616f PC with AMD Phenom 2 quad core CPU, RAM upgraded to 16GB and PSU upgraded to Corsair GS700 700 watts. Will this GPU be compatible with my setup, and will there be a problem with bottlenecking because of the CPU?

Accepted Answer

yes the system should work Just fine. But your trying to put this card in a store bought PC. There are going to be things to consider like if it'll even fit or not Lol and then you need to know that all of these crazy hybrid powercolor cards get really hot so you should make sure you have ample cooling and ventilation for this card if your gonna buy it.

Question 4

Anyone have optimized mining settings?

Accepted Answer

Average speed is around 723 KH/S with next:

start bat file:

DEL /F /S /Q /A "*.bin"
setx GPU_USE_SYNC_OBJECTS 1
setx GPU_MAX_ALLOC_PERCENT 100
cgminer.exe

This is the main part of config:

"intensity" : "13",
"vectors" : "1",
"worksize" : "256",
"kernel" : "scrypt",
"lookup-gap" : "0",
"thread-concurrency" : "8192",
"shaders" : "0",
"gpu-engine" : "1050-1050",
"gpu-fan" : "0-85",
"gpu-memclock" : "1500",
"gpu-memdiff" : "0",
"gpu-powertune" : "0",
"gpu-vddc" : "0.000",
"temp-cutoff" : "95",
"temp-overheat" : "85",
"temp-target" : "78",
"api-mcast-port" : "4028",
"api-port" : "4028",
"auto-fan" : true,
"expiry" : "120",
"gpu-dyninterval" : "7",
"gpu-platform" : "0",
"gpu-threads" : "2",
"hotplug" : "5",
"log" : "5",
"no-pool-disable" : true,
"queue" : "1",
"scan-time" : "30",
"scrypt" : true,
"temp-hysteresis" : "3",
"shares" : "0",
"kernel-path" : "/usr/local/bin"

Question 5

Is the card's core voltage locked?

Accepted Answer

No, I was able to under volt these using MSI Afterburner, of course that did not stay after a restart. But I was able to flash new BIOs and it worked great. With these cards and a lot of new cards now, they have dual BIOs so if you mess up the primary or the secondary, you always have a backup. I had 5 of these undervolted to 1.054v

Question 6

Will a 500W PSU work with this card?

Accepted Answer

Without knowing what is in your system it's hard to tell what size PSU you need.

This video card uses about 20A on the 12v fail so just keep that in mind. I have an old 650W PSU with a multi-rail setup (4 x 17v  I think) and it would crash when I stressed the system.

Question 7

Is this video card using Samsung or Hynix memory?

Accepted Answer

i dont know but i  bought 2 of them to mine bitcoins with and both with minimal overclocking both run stable for days at 845khs which is freaking amazing!

Question 8

Are the memory chips cooled by the heatsink? Some 280x's do not cool the memory chips and i was wondering if this one does.

There's no side reference picture ether to confirm this.

Accepted Answer

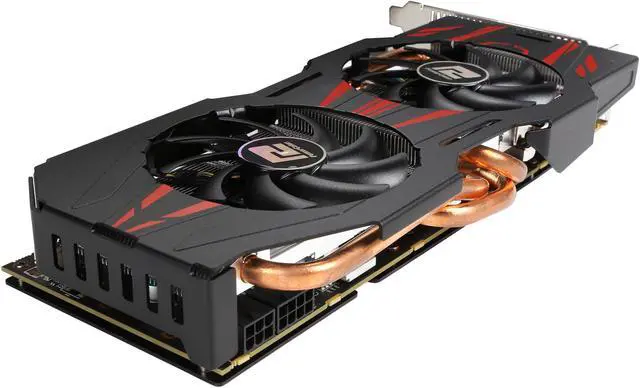

there is an additional smaller heat sink over the memory chips.  it's not directly connected to the main heat sink but the back fan will blow air on it thou the primary heat sink.

Question 9

I see complaints about two of these not fitting functionally on one board due to heat issues. I would like the option to buy a second later to use it's Crossfire ability. Will this not work?

My MOBO is a Gigabyte GA-Z97X-SLI ATX

Accepted Answer

I had 5 of these on 1 motherboard. And I am currently running 2 in crossfire. I have been able to overclock these very well, and they handle under voltage amazing also.

Yes you will be able to crossfire two of these with no problem. Just make sure that have 5 open expansion slots for these.

Question 10

I have a Sabertooth 990FX. Is this card compatible with it?

Accepted Answer

Yes, it is.  It is pretty much compatible with any PCI-e slot on any board. I have MoBos from 2010 that are still running this exact card.

Brand	PowerColor
Series	TurboDuo
Model	AXR9 280X 3GBD5-T2DHV2E/OC

Chipset Manufacturer	AMD
GPU Series	AMD Radeon R9 200 Series
GPU	Radeon R9 280X
Core Clock	880 MHz
Boost Clock	1030 MHz
Stream Processors	2048 Stream Processors

Effective Memory Clock	1500 MHz (6.0Gbps)
Memory Size	3GB
Memory Interface	384-Bit
Memory Type	GDDR5

DirectX	DirectX 11.2
OpenGL	OpenGL 4.2

HDMI	1 x HDMI
DisplayPort	2 x Mini DisplayPort
DVI	1 x DL DVI-I

Meet Your Seller

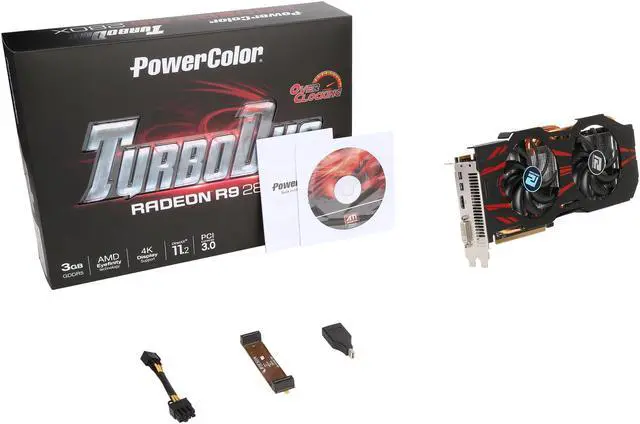

PowerColor TurboDuo Radeon R9 280X 3GB GDDR5 PCI Express 3.0 CrossFireX Support ATX Graphics Card AXR9 280X 3GBD5-T2DHV2E/OC

Learn more about the PowerColor AXR9 280X 3GBD5-T2DHV2E/OC

Customer Reviews of the PowerColor AXR9 280X 3GBD5-T2DHV2E/OC

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Max Resolution	VGA: 2048 x 1536 DVI: 2560 x 1600 DisplayPort: 4096 x 2160 HDMI: 4096 x 2160
Eyefinity Support	Yes
CrossFireX Support	Yes
Cooler	With Fan
Thermal Design Power	250W
System Requirements	Minimum System Power Requirement: 750W
Power Connector	1 x 6-Pin + 1 x 8-Pin
Dual-Link DVI Supported	Yes
HDCP Ready	Yes

Form Factor	ATX
Card Dimensions (L x H)	10.50" x 4.38"
Slot Width	2 Slots
