Powertek powertek500 500 W ATX12V Power Supply

(48) Write a Review
  • ATX12V
  • 115 / 230 V 50/60 Hz
  • +3.3V@30A, +5V@30A, +12V@34A, -12V@0.6A, +5VSB@2A
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (48)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Powertek powertek500

General
Brand Powertek
Model powertek500
Details
Type ATX12V
Maximum Power 500 W
Fans 1 x 120mm silent fan
PFC No
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector No
SLI No
CrossFire No
Modular No
Power Good Signal 100-500ms
Hold-up Time 17ms at full load
Efficiency 70%
Over Voltage Protection +5V trip point < +6.5V, +3.3V trip point < +4.1V, +12V trip point < +14.3V
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 10A @ 115V, 5A @ 230V
Output +3.3V@30A, +5V@30A, +12V@34A, -12V@0.6A, +5VSB@2A
MTBF >80,000 Hours

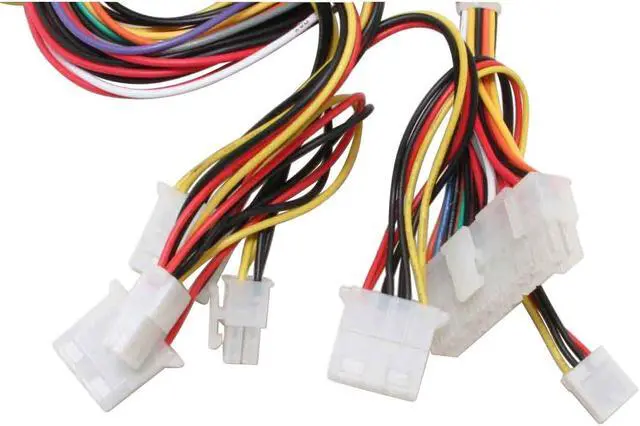

Connectors 1 x Main connector (20+4Pin)
1 x 12V (P4)
4 x peripheral
1 x Floppy
Additional Information
First Listed on Newegg September 28, 2006
