FEATUREs
- Charging 3-stage: constant current(MPPT), constant voltage(Absorption Voltage), floating charge
- Selectable battery type Vented / Sealed / Gel / NiCd / Lithium battery (default is Sealed) (defined voltage for other battery by user)
- Soft start time =1S, Dynamic response and recovery time 100us
- Max efficiency =98.1%, PV utilization =99%
- In order to reduce the cost of electricity caused by high current, PV and battery each have two terminals
- MULTIPLE ELECTRONIC PROTECTIONS
- Short-circuting
- Reverse-current
- Overcharging
- Overload
- Over-discharging
- Reverse polarity protection

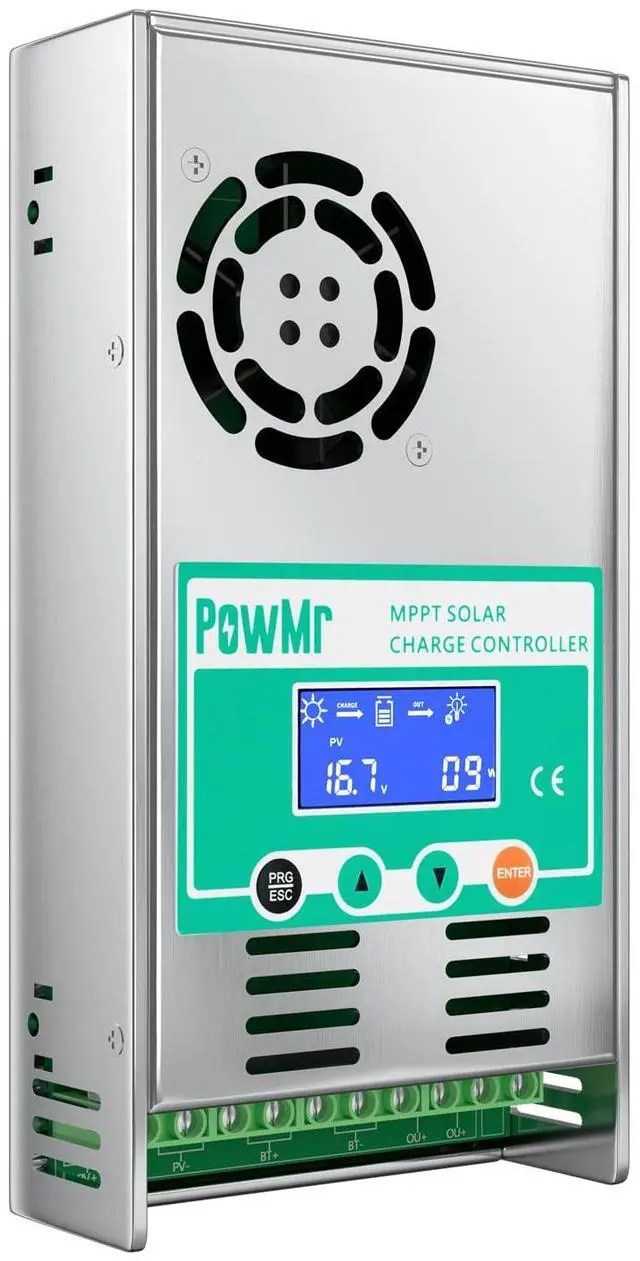

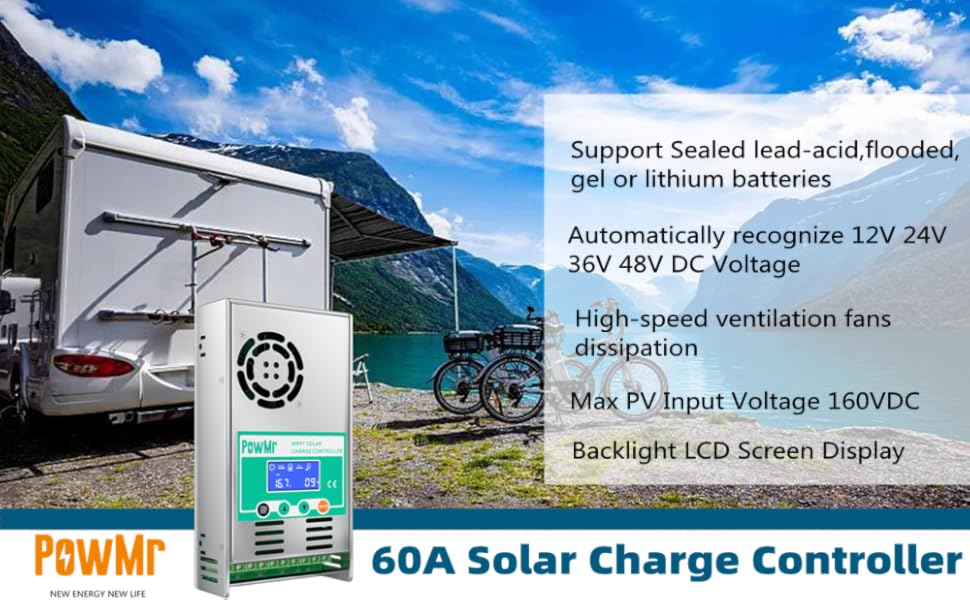

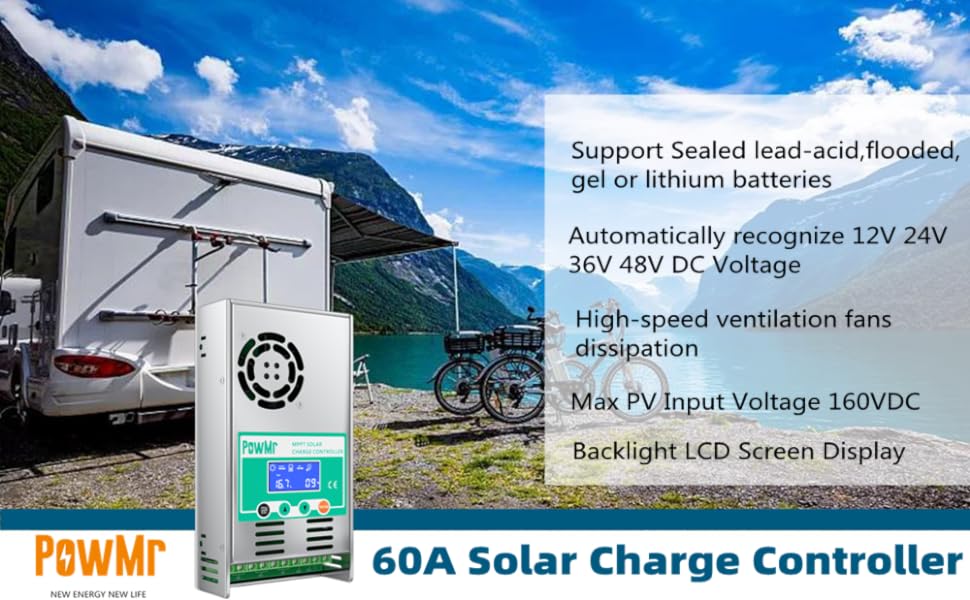

Positive Ground 60A MPPT Charge Controller
12V/24V/36V/48V System Voltage Automatic Identify
For sealed lead acid Vented gel And Lithium battery
Battery System Voltage:
- DC9V~DC15V (12V)
- DC18V~DC30V (24V)
- DC32V~DC40V (36V)
- DC42V~DC60V (48V)
Max. Solar Panels Input Power
The maximum PV input voltage (Voc): DC160V
Max Input Power:
- DC20V ~ DC80V (12V)
- DC37V ~ DC105V (24V)
- DC50V ~ DC160V (36V)
- DC72V ~ DC160V (48V)

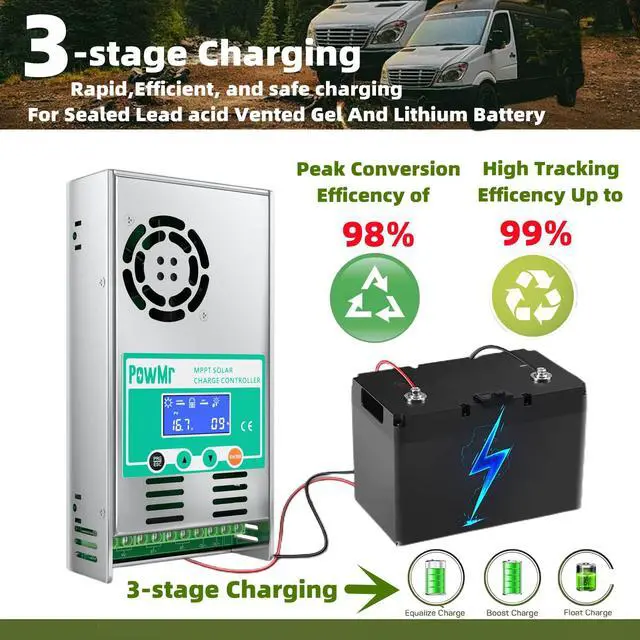

Intelligent Charging Protection
Rated charge current: 60A / discharge current: 5A
Powmr MPPT charge controller provides 3-stage charging (constant current(MPPT), constant voltage(Absorption Voltage), floating charge) ,offer Rapid,Efficient, and safe charging
Advanced Ultra Fast Maximum Power Point Tracking
Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%. Even in cloudy environments where the max power point of the solar panels will fluctuate all day.
OUR DESIGN FOR YOU

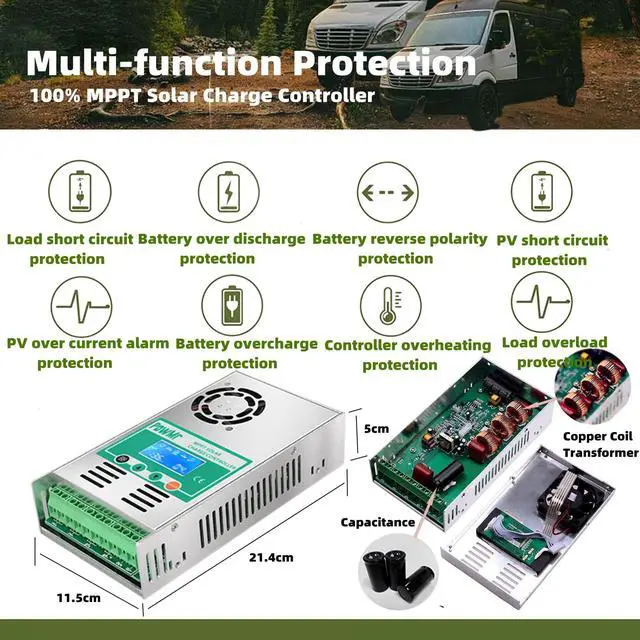

COPPER COILS
True MPPT controller, The Three copper coils play a step-down roles to make your system work more stable.
TRANSFORMER
Three Electronic transformer, more safe
MULTIPLE ELECTRONIC PROTECTIONS:
- Short-circuting
- Reverse-current
- Overcharging
- Overload
- Over-discharging
- Reverse polarity protection

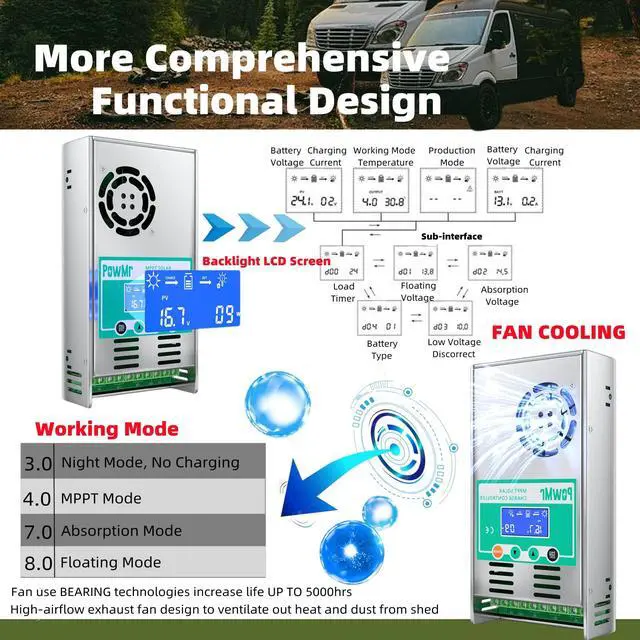

FAN COOLING
- Good Heat dissipation
- Intelligence Fan-on temperature >45? and off < 40? , let your controller feel cooling.
- Fan use BEARING technologies increase life UP TO 5000hrs in normal use.
PORTS DESIGN
we consider that the larger diameter of the wire will be greater cost for customers, so we designed two connectors for each pos and negs on solar and batteries connectors
Wide Application

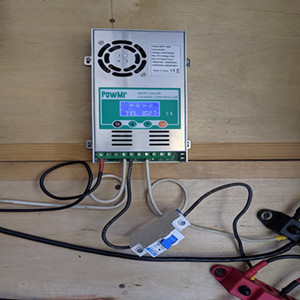

Work Independently
Recommend connecting a fuse directly to the battery to protect any short circuit at the battery wiring (Fuse value:100A )

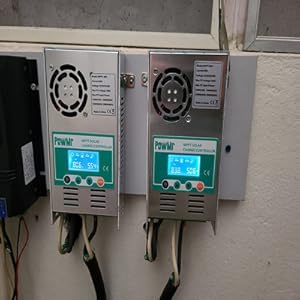

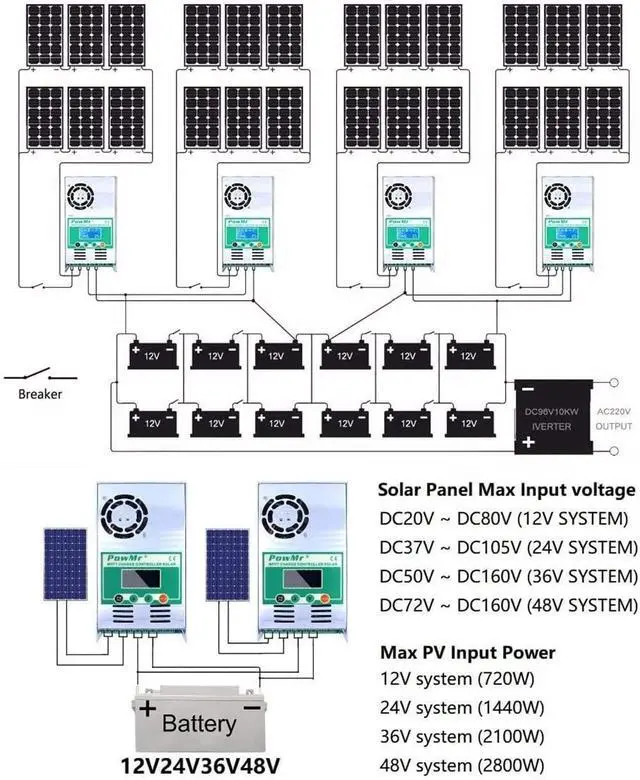

Support Parallel
Example: Two 60A Controller Connect in parallel to 120A

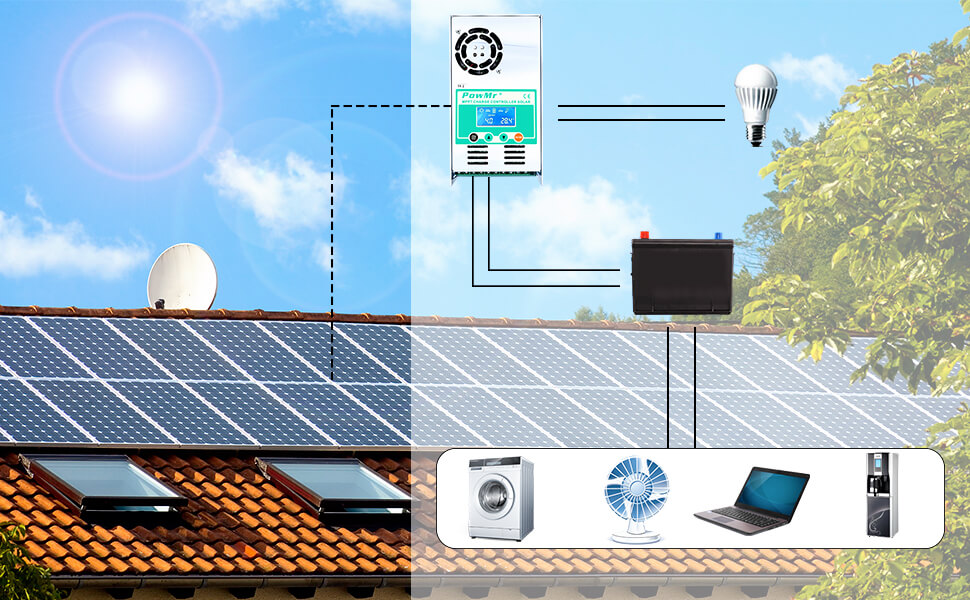

Work with Inverter
Through the inverter to power for the AC Load (Refrigerator/ Fan/ Washing machine/ computer and so on)

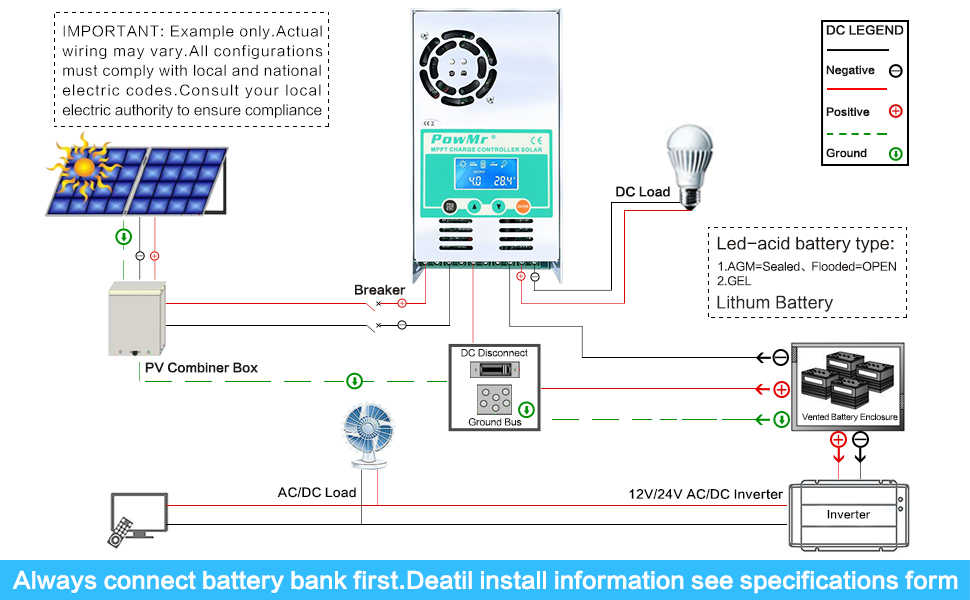

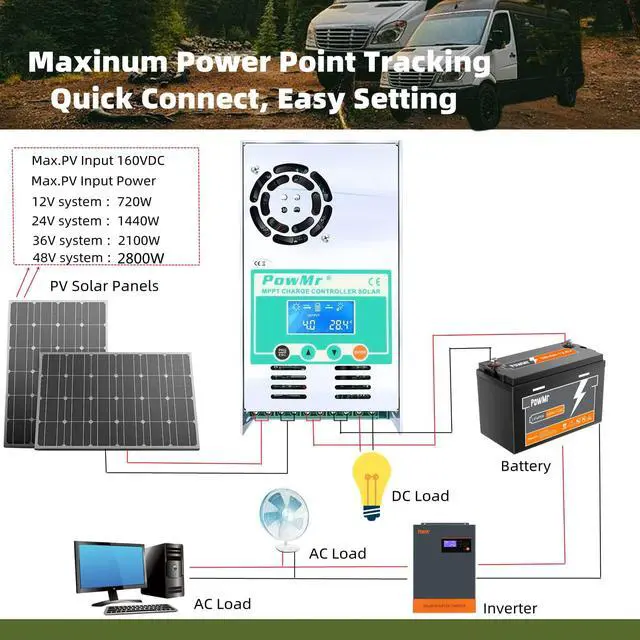

CONNECTION DIAGRAM
TIPs
- Always connect battery first!!! Make sure enough batteries’ voltage let controller recognize the right system voltage. The disassembly sequence is contrary to the wiring order. NEVER connect the solar panel array to the controller without a battery
- DO NOT connect any Inverter/ wind/ Alternator or Charger into the charge controller! connect the Inverter directly to the battery.
- Ensures solar input voltage higher 3V or more than batteries’ voltage and total input power in the range. if input power is too low for max input power, it may be appears to have been discontinued., the charging current almost be zero when controller is floating charge.
- Parameter Setting Rules:Floating voltage > Low voltage reconnect > Low voltage discharge.
- The solar controller will stop output when the battery under 10.7V. The LCD will be blank when the battery under 8V and it will re-output when the battery up to the 12.6V (adjustable).
- Install the Charger controller to the battery as close as possible. Tighten the wire, Carefully read battery manuals before operation.
- When controller makes buzzing sound because of It's working hard to dissipate heat for your controller. Rest your heart, it will be stop when temperature return to normal.
- Remove all the debris around the controller ( leaving a space of approx. 5.91in ).Make sure all connections going into and from the controller are tight. Do NOT let the positive (+) and negative (-) terminals of the battery touch each other.
