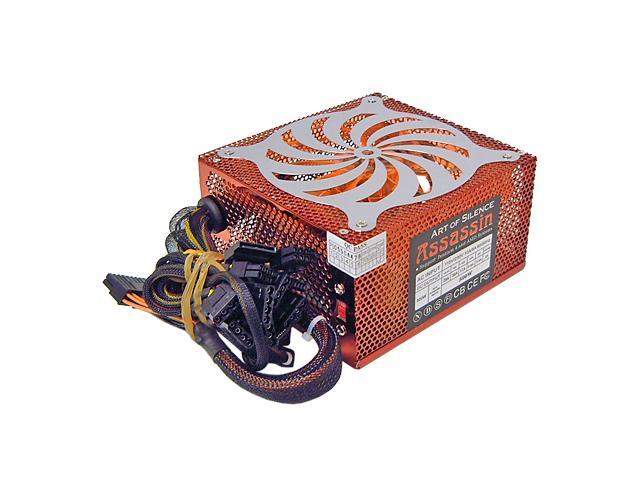

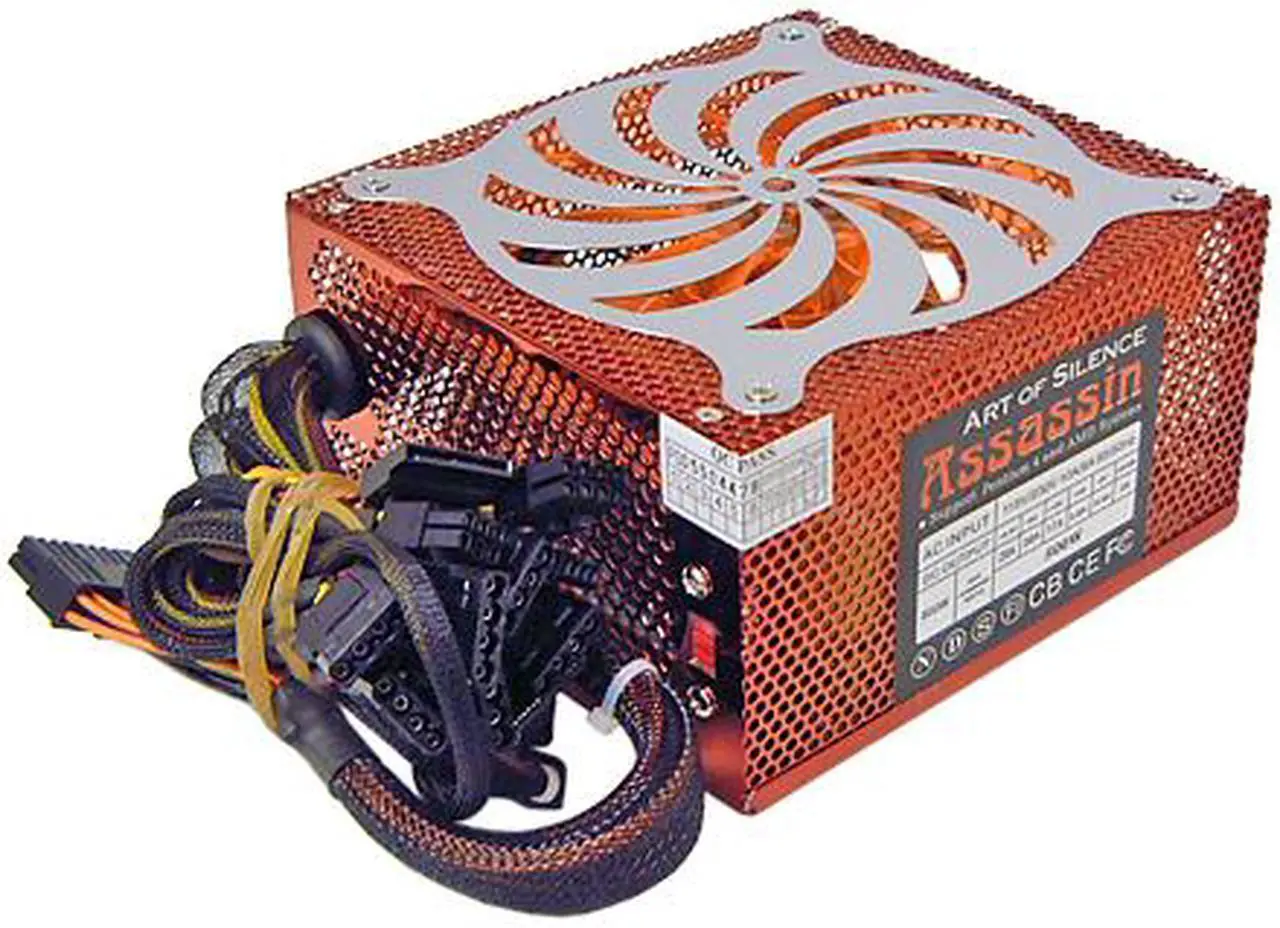

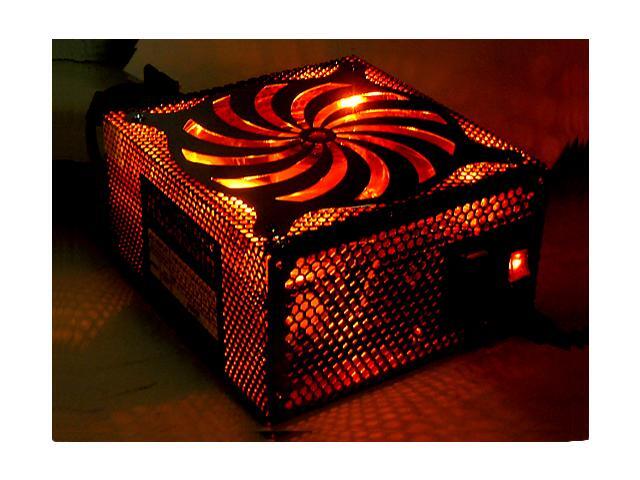

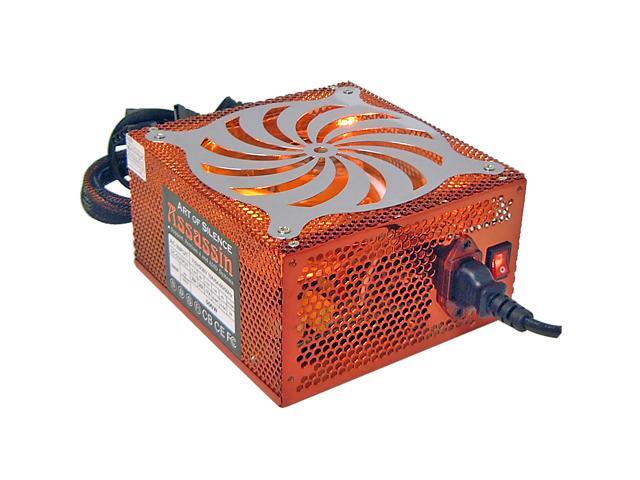

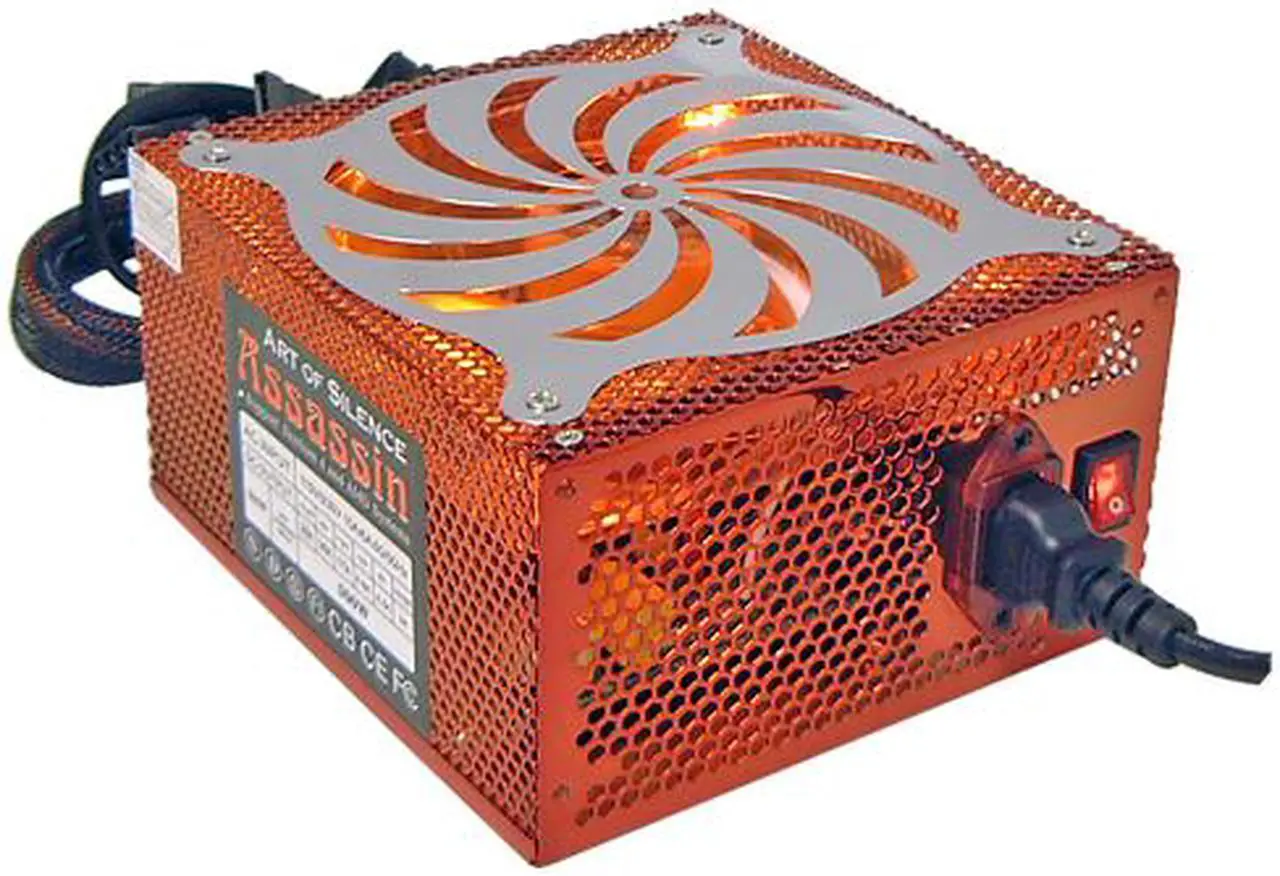

Brand | POWMAX |
---|---|
Series | Assassin |
Model | PSAS-RD |
Type | ATX12V |
---|---|
Maximum Power | 500 W |
Fans | 15cm Super Ultra Silent Fan |
PFC | No |

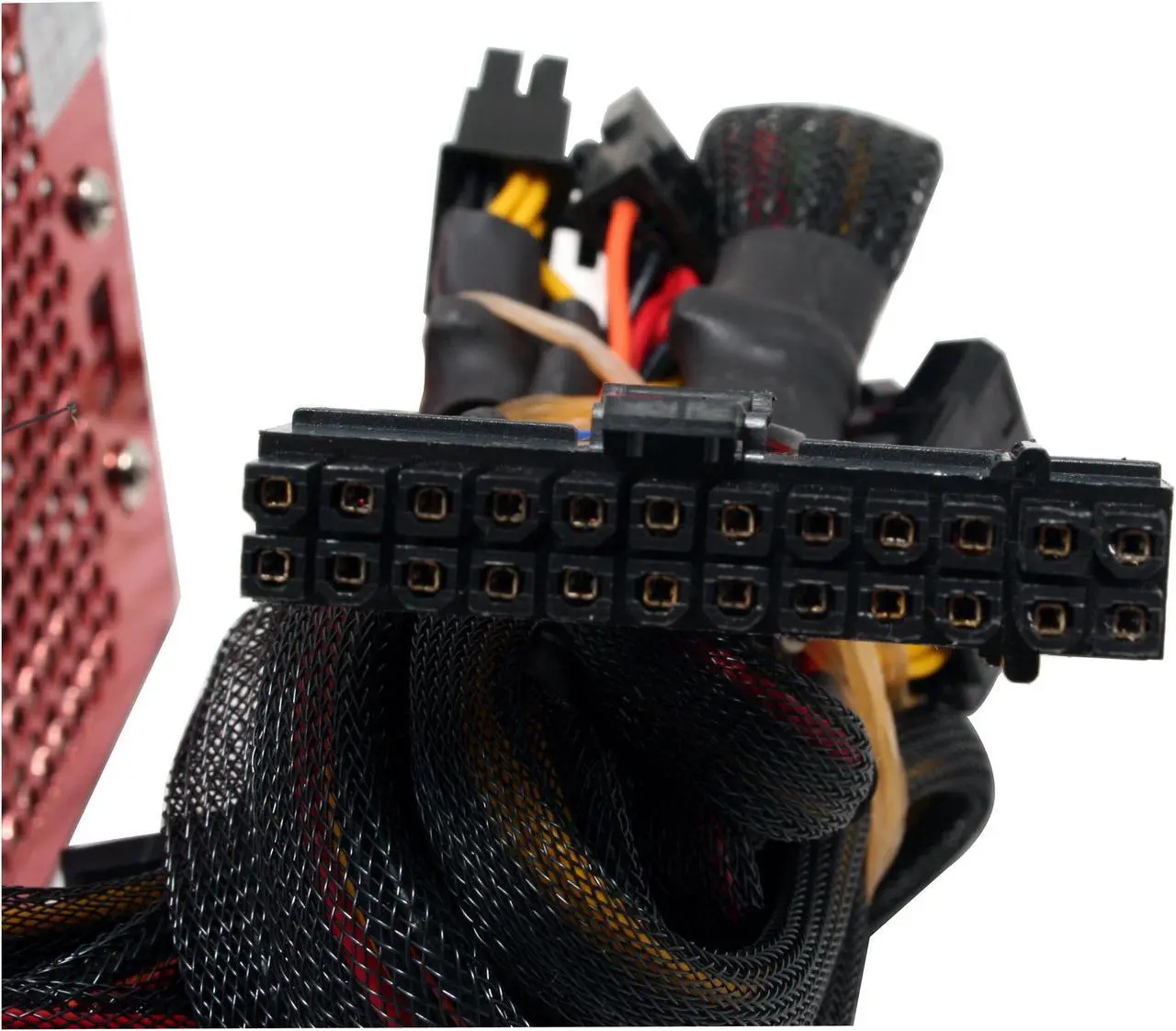

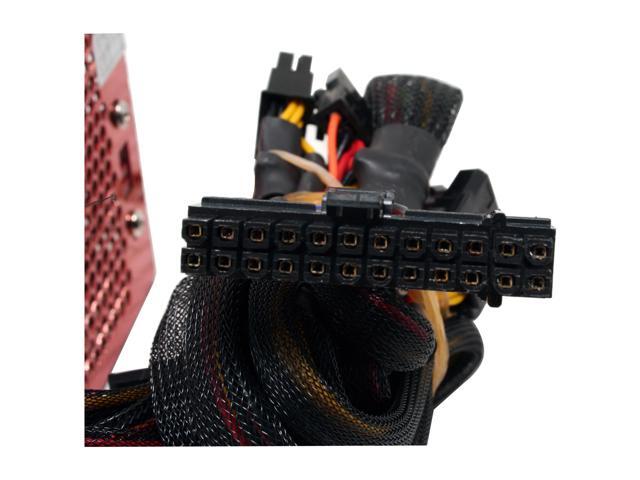

Main Connector | 20+4Pin |
+12V Rails | Single |
PCI-Express Connector | 1 x 6-Pin |
SLI | No |
Modular | No |
Efficiency | 70% Min. at full load |
Over Voltage Protection | Yes |
Overload Protection | Yes |
Input Voltage | 115 / 230 V |
Input Frequency Range | 50/60 Hz |
Input Current | 10A @ 115V, 6A @ 230V |

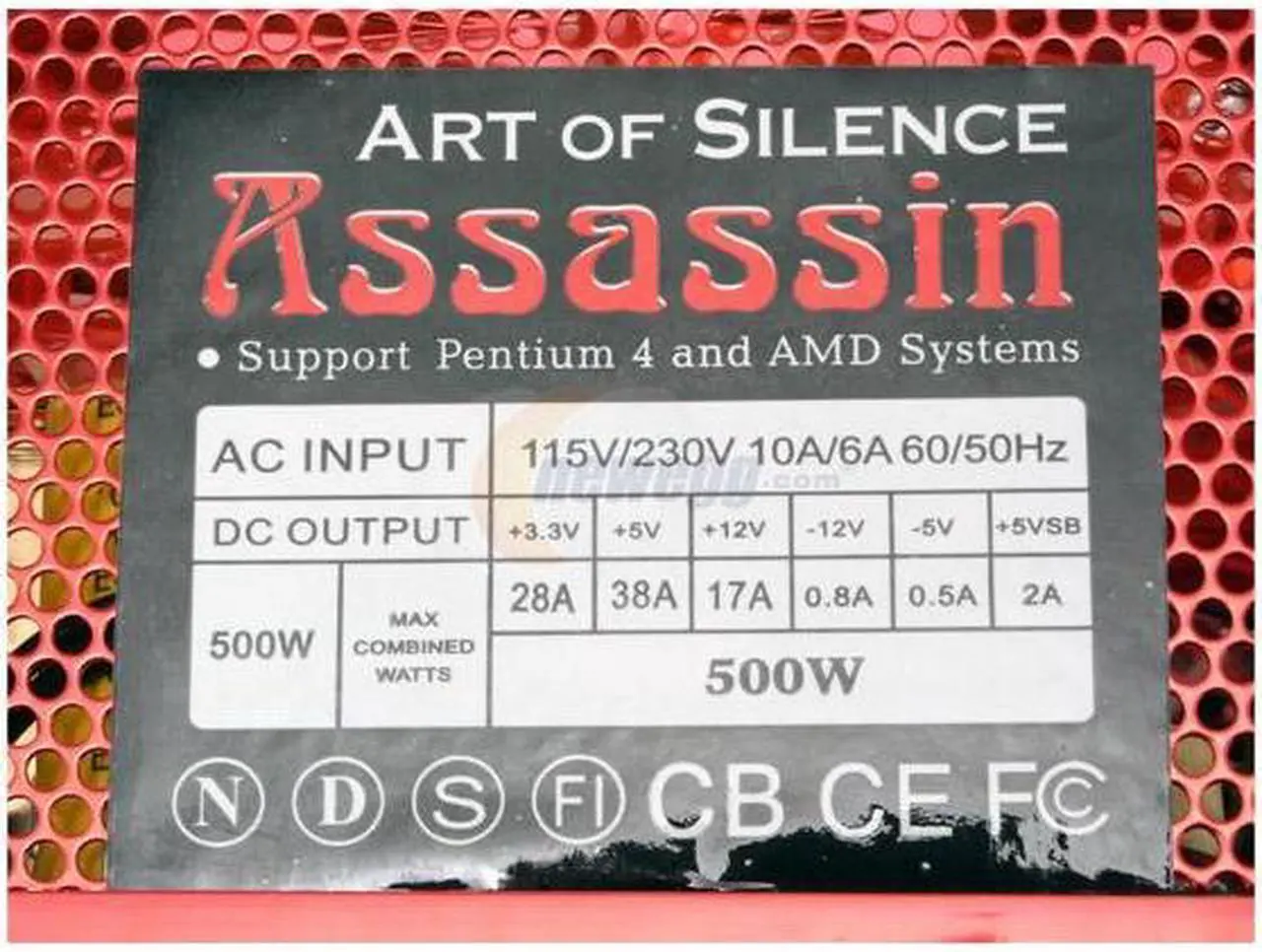

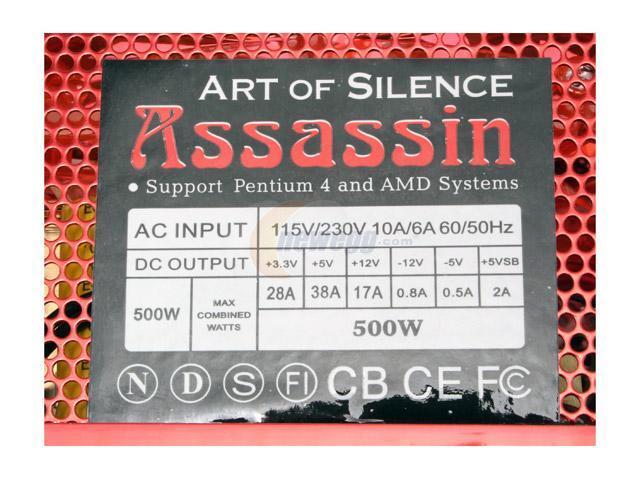

Output | +3.3V@28A,+5V@38A,+12V@17A, [email protected],[email protected] |
MTBF | 100K hrs at 25°C ambient conditions |
Approvals | UL, CB, CE, TUV, FCC |

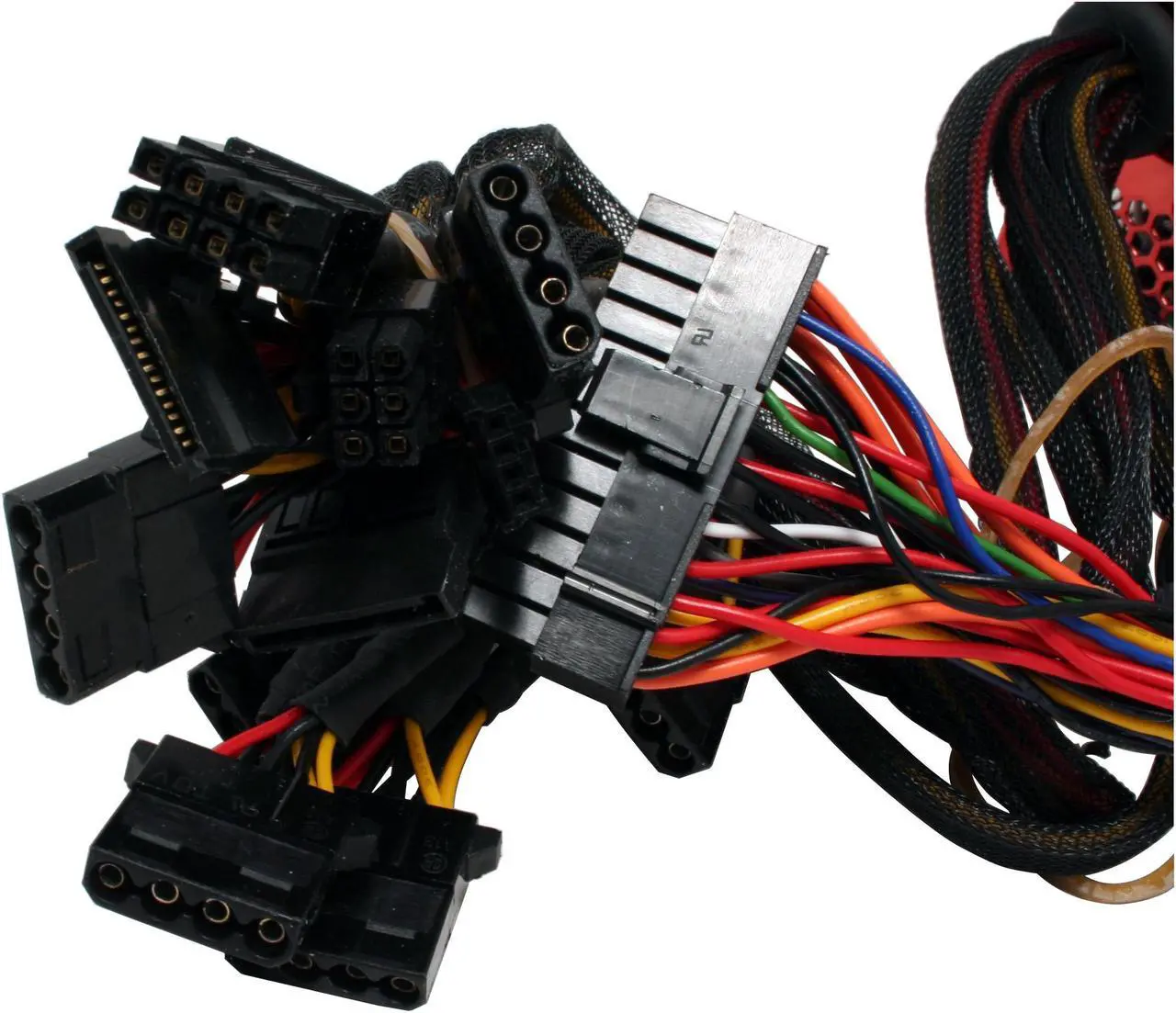

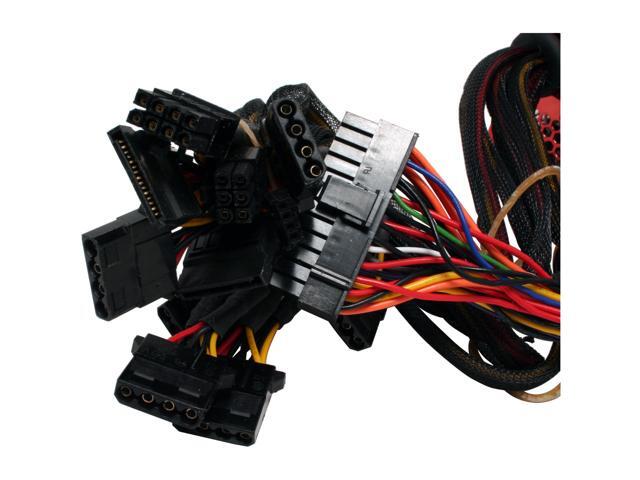

Connectors | 1 x Main connector (20+4Pin) 1 x 12V (P4) 1 x 12V (8Pin) 6 x peripheral 2 x SATA 2 x Floppy 1 x PCI-E |

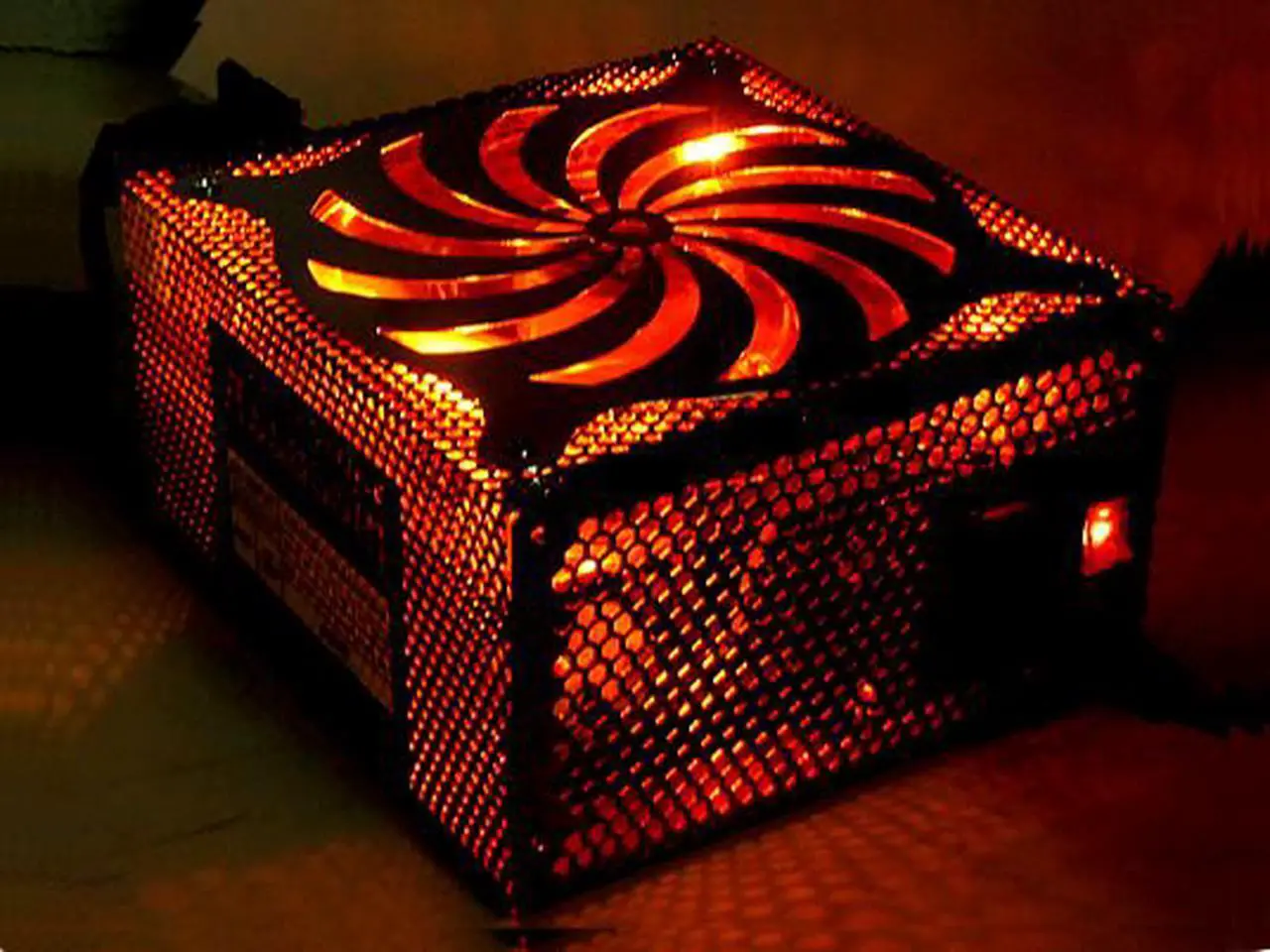

Features | Excellent Heat Dissipation by Honey Comb Structure Built-in Voltage Overload Protection Colored Heat-sink and LED On/Off switch Shielded Tube and Black Connectors Complies with ATX 2.03 and ATX12V 1.3 |
---|
Date First Available | December 12, 2005 |
---|
