PROLINK TV-USB-BOX4 PixelView PLAY TV BOX 4 (Stand alone & USB TV tuner)

(10) Write a Review
  • NTSC
  • USB 2.0 Interface
  • S-Video In Composite Video In Audio L&R In 5V Power In
  • Remote Included
Specs
Reviews (10)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Prolink TV-USB-BOX4

Model
Brand PROLINK
Model TV-USB-BOX4
Details
Type External TV Tuner Box
Others CD-ROM 8X speed or above
5400RPM or above (7200RPM prefered) Hard Disk
Sound Card
Specifications TV Watching on LCD/CRT monitor. No PC required.
Use it when play your TV gamer, like PS / PS2 / XBOX.
Support 1280 x 1024 /1024 x 768/ 800 x 600 resolution. 16:9 Wide screen display (1280 x 768).
Transparent made allows image behind the small screen show through.
Stand-alone without turn on PC. No software drivers required!! or with PC to record full motion of video.
Auto-scan air/cable TV channels.
Video Input and Output. Component Video Input and Output.
Touch button in the front panel..
Favorite Channel Setting.
TV
TV Tuner Analog Tuner
TV Standards NTSC
Remote Control Remote Included
Tuner
Interface USB 2.0
Video System Up to 720 x 480 x 30 fps
FM Tuner No
Video Format MPEG-2(DVD)/MPEG-1(VCD)

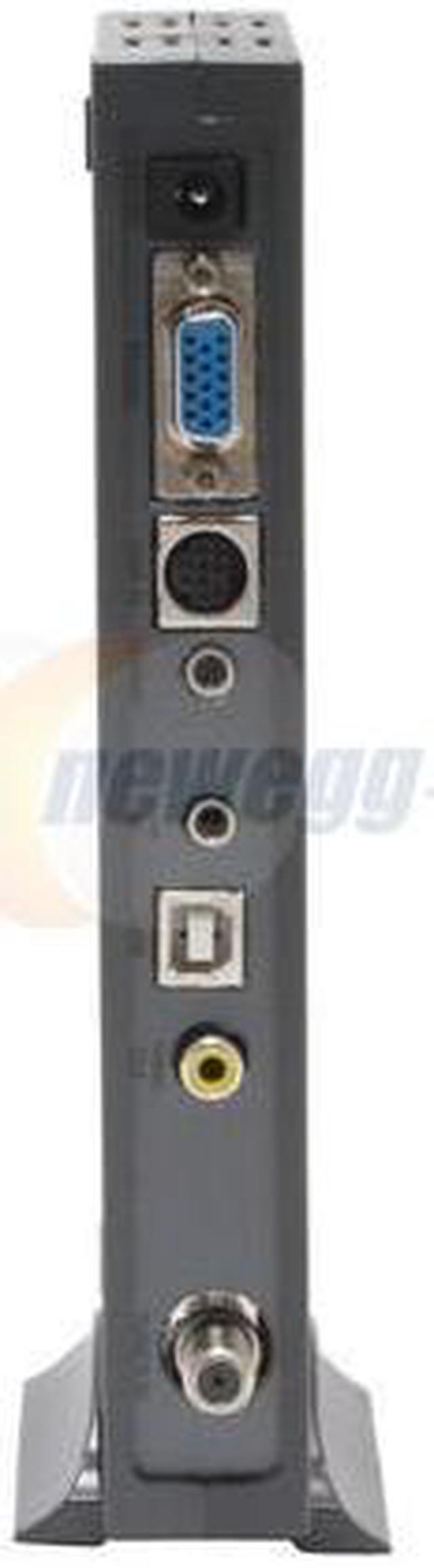

Ports In S-Video In
Composite Video In
Audio L&R In
5V Power In
Ports Out Speaker Sound Out
D-15 Pin Monitor RGB Out
Output to VGA card
output to USB
System
Processor Full D1 MPEG2 - P4 2.4GHz or above;
DVD 720 x 480 MPEG2 - P4 2.0GHz or above;
VCD 352 x 288 MPEG1 - P3 1.5GHz
Memory 128MB RAM (256MB prefered)
Available Slot USB 2.0 port
Operating Systems Supported Windows XP
Features
Features Stand Alone TV Box Mode:
3D Progressive Scan (De-interlacing): easily converts the conventional TV interlaced (scanned every other lines) signals into progressive ones (scanned every line).
The line flickering is reduced a lot, it detects motion based on user programmable thresholds, and the aliasing problem is greatly reduced.
it adopts new technologies like gamma correction, non-linear scaling, luminance/color transient improvement, sharpness enhancement.
Channel Auto-tuning: when you search TV channels, it will auto-tne the air or cable TV channels.
Multi-input Connections: lets you use your PC monitor to watch TV program, video or you DVD player, VCR & Game Console with or without your PC switched on.
supports 16:9 wide-screen mode
Watch TV program with timer to be switched off automatically.

USB TV capture Mode:
full-screen Video resolution Input: with USB 2.0 it offers a full screen resolution up to 720 x 480 x 30 fps.
WDM compatible, it works with all AP software compatible with WDM standard.
USB 2.0 supported: with up to 480Mbps, it brings your video resolution up to the DVD quality.
Multi-Input connections: Multi-input Connections: lets you use your PC monitor to watch and record the full motion of TV program, video or you DVD player, VCR & Game Console.
IR remote Control. VGA output Mode up to 1280 x 1024(SXGA)@60Hz; 1024 x 768 @ 85Hz

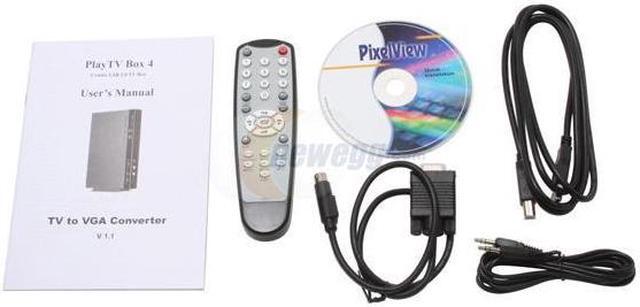

Package Contents
Package Contents TV-USB-BOX4
Driver Disk
User Manual

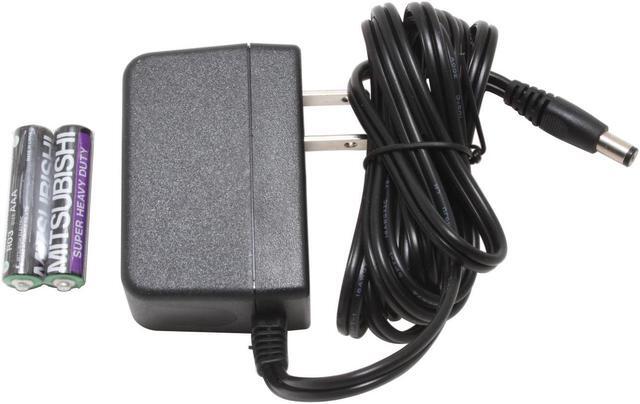

Power Adapter
Remote Control
Audio Cable
USB Cable
Video Cable
Battery
Consumer Alert
Consumer Alert This television receiver has only an analog broadcast tuner and will require a converter box after February 17, 2009, to receive over-the-air broadcasts with an antenna because of the Nation's transition to digital broadcasting. Analog-only TVs should continue to work as before with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products. For more information, call the Federal Communications Commission at 1-888-225-5322 (TTY: 1-888-835-5322) or visit the Commission's digital television website at: www.dtv.gov
Additional Information
Date First Available January 18, 2006
