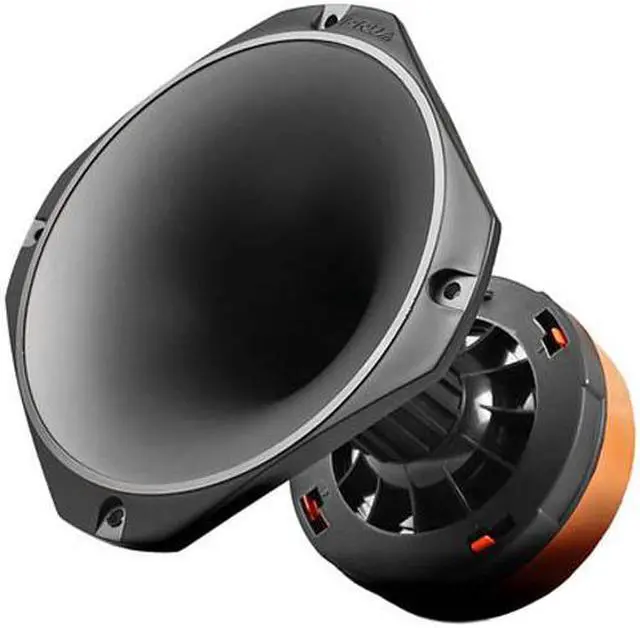

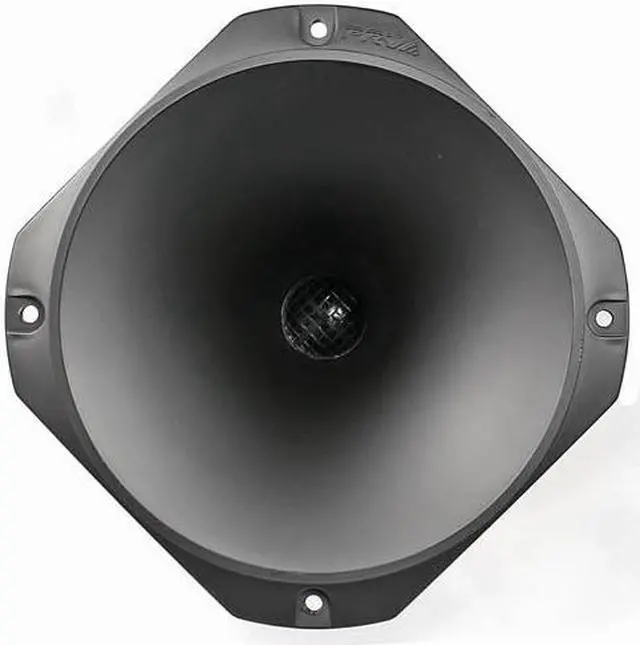

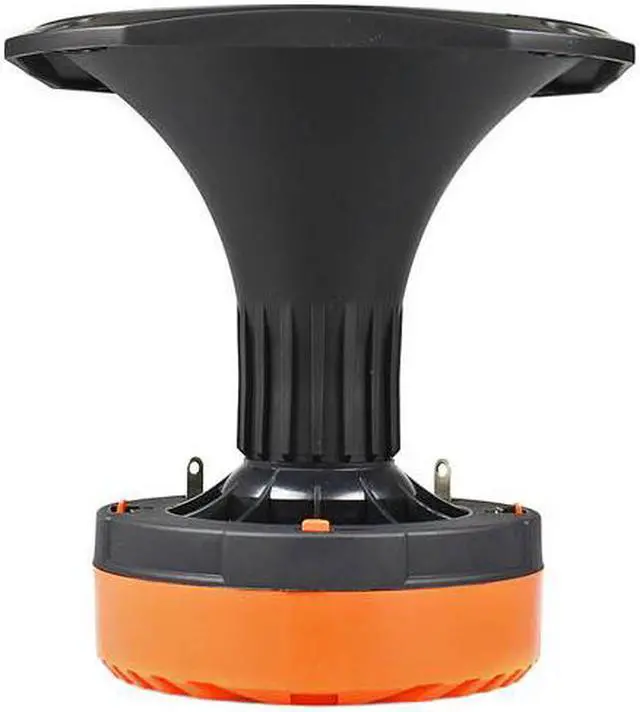

PRV Audio SPL 1" Phenolic Compression Driver with 6 x 6" Horn Combo WGP275Ph
- Exit Throat Diameter: 1 (25.4mm)
- Nominal impedance: 8 Ohms
- Power Handling (RMS): 100 Watts
- Program Power: 200 Watts
- Sensitivity 2.83V at 1m: 106 dB
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PRV High SPL 1" Phenolic Compression Driver with 6 x 6" Horn Combo WGP275PH
The WG275Ph combo is all about Mid Range vocal reproduction at low distortion. Built to last with its phenolic diaphragm and copper voice coil, that is designed to produce high-quality audio for your sound system. This combo is all about high output, low distortion vocal reproduction, and is the perfect solution for use in high output PA systems. This Compression driver has a 2" Voice coil and an RMS Power Rating of 100 Watts.
Features
Exit Throat Diameter: 1 ( 25.4 mm)
Nominal impedance: 8 Ohms
Power Handling (RMS): 100 Watts
Program Power: 200 Watts
Sensitivity 2.83V at 1m: 106 dB
Frequency Response at -10dB: 600 7, 000 Hz
Voice Coil Diameter: 2 (51 mm)
Voice Coil Wire: Copper
Voice Coil Former Material: Kapton
Diaphragm Material: Phenolic Resin
Flux Density: 1.1 T
Magnet Material: Ferrite
Physical
Overall Depth: 6.53 (166 mm)
Mounting Depth: 6.14 (156 mm)
Overall Width: 6.17 ( 154.7 mm)
Overall Height: 6.17 ( 154.7 mm)
The WG275Ph combo is all about Mid Range vocal reproduction at low distortion. Built to last with its phenolic diaphragm and copper voice coil, that is designed to produce high-quality audio for your sound system. This combo is all about high output, low distortion vocal reproduction, and is the perfect solution for use in high output PA systems. This Compression driver has a 2" Voice coil and an RMS Power Rating of 100 Watts.
Features
Exit Throat Diameter: 1 ( 25.4 mm)
Nominal impedance: 8 Ohms
Power Handling (RMS): 100 Watts
Program Power: 200 Watts
Sensitivity 2.83V at 1m: 106 dB
Frequency Response at -10dB: 600 7, 000 Hz
Voice Coil Diameter: 2 (51 mm)
Voice Coil Wire: Copper
Voice Coil Former Material: Kapton
Diaphragm Material: Phenolic Resin
Flux Density: 1.1 T
Magnet Material: Ferrite
Physical
Specifications
:Overall Depth: 6.53 (166 mm)
Mounting Depth: 6.14 (156 mm)
Overall Width: 6.17 ( 154.7 mm)
Overall Height: 6.17 ( 154.7 mm)
