3X ABI 3W LED Puck Light Kit for Kitchen Bookshelf Showcase, Cool White 6000K

ABI 3W LED puck lights install under cabinets and elsewhere to provide years of bright cool white light. Machined aluminum housing provides an up-scale look, cool operation, and excellent durability. This listing is for a three puck kit and includes everything that you need to get up and running.

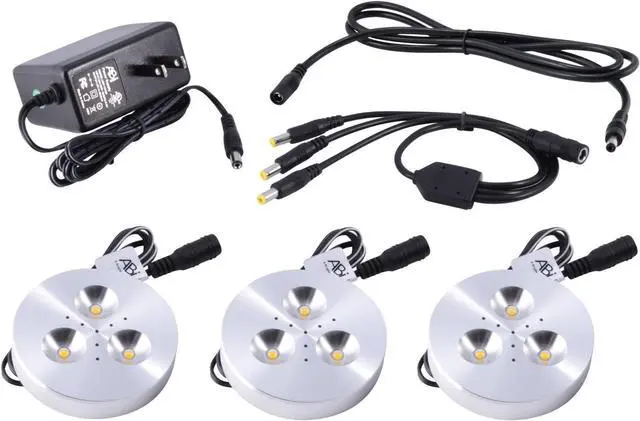

Package Contents:
3x ABI 3W Cool White LED Pucks
1x Power Adapter
1x Power Splitter Cable
1x 5 Foot DC Extension Cable

Installation

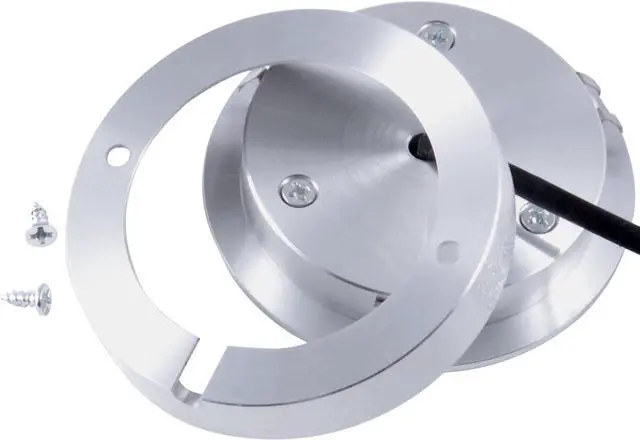

1. Separate the puck from the outer ring.

2. Mount the outer ring with the two included wood screws while keeping the wire routed under the notch.

3. Pull the wire through the notch, and snap the puck into the ring.

4. Connect the included power adapter.

Note
Use of the included 5 foot DC extension cable is optional. It can be used to add distance between one of the pucks and the splitter or between the splitter and the power adapter.

Specifications

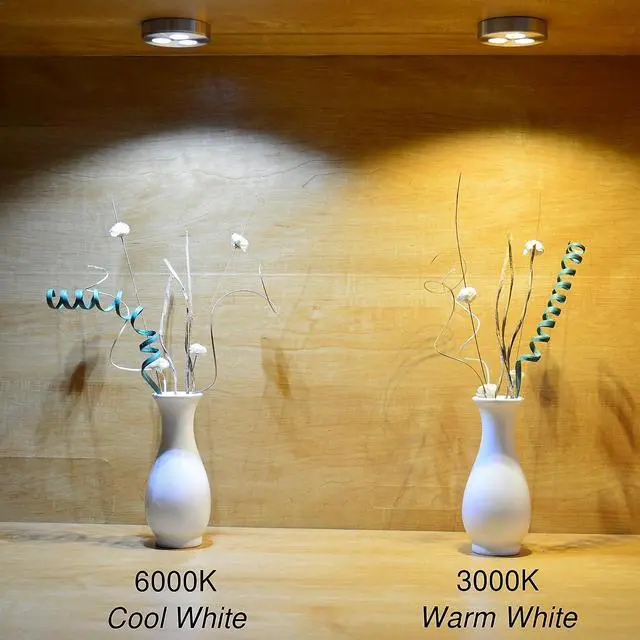

Color Temperature: Cool White 6000K
Power Consumption: 3W/ea
Light Output: 240 Lumens/ea
Halogen Equivalent: 25W/ea
Puck Dimensions: 70x15mm
Puck Cord Length: 1 Meter / 3 Feet
Adapter Cord Length: 1.5 Meter / 5 Feet
DC Extension Cord Length: 1.5 Meters / 5 Feet
AC Adapter Input: 100-240V (worldwide use)
AC Adapter Output: 12V DC 2A Max
DC Connectors: 5.5 x 2.1 mm
