Question 1

I'm connecting TR-004 directly to my PC running Windows 10 using USB 3.0 cable. The QNAP External RAID Manager could not detect the enclosure. It always says "No devices found". However, Windows 10 File Explorer finds all 4 drives.  I do want to run External RAID Manager to manage all my drives and update firmware from time to time. Does anyone know what's going on here? Thanks.

Accepted Answer

i have the TR-004 connected to my windows 10 PC with the Raid mgr. but didnt  have that problem... seems like the prob is with the manager maybe you could try deleting the mgr and re-downloading....  the serial number should show up in the "select device" box of the manager

Question 2

Can this be connected directly to a PC  via a USB C cable as a RAID 1 external storage device?

Accepted Answer

Yes it can and also the Mac computers as well. You can get more info on the Qnap website .  Do a  search for TR-004.  There’s a lot of info.

Question 3

I have a dead 4 bay raid, can I set this for raid 5 and install my discs without data loss?

Accepted Answer

If you were already in the qnap tr-004, then yes you can swap from an old unit to a new unit.  If it was not qnap...the odds go down.  Couldn't say for certain though

Question 4

Does this work with the Raspberry Pi OS Lite version of Linux?

Accepted Answer

This can be set up one of two ways for ease of use (I've tried both).
One is on the router's USB port (if the router can do storage), and then you can permission out the different directories as network shares.
One is on a desktop's USB port, and share one/more directories so other hosts can access them as network shares.

I've  not used it directly on Raspberry PI, but it is accessible as network shares using CentOS or Ubuntu OS.

Hope this helps.

Question 5

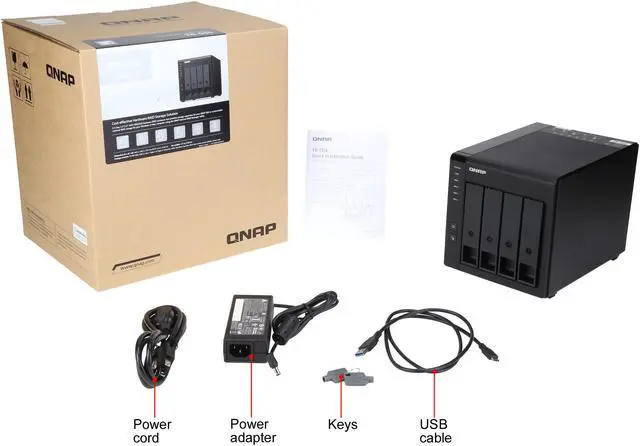

how long is the USB 3 type C cable that comes with the nas?

Accepted Answer

3.3 ft long...

Question 6

what is max storage capacity?

Accepted Answer

At the moment the largest drive compatible with it is 14TB.  So, theoretically if you went with the largest drives possible and used no drive redundancy to protect against a drive failure you could get up to 56 TBs.  I think a more common scenario would be maybe 6TB or 8TB drives in a RAID 5 giving 18TB or 24TB respectively.

Question 7

Can I connect the NAS QNAP TR-004-US R directly to my computer?

Accepted Answer

Yes, the QNAP TR-004-US can be directly attached to a computer via its USB Type-C 3.0 connection.

Question 8

1. Does it support USB 3.0, 3.5-inch SATA III (6Gb/s) and 20tb HDDs (Seagate Exos X20 20TB ST20000NM007D}.

2. If it is on in a non-raid mode and the power goes out, what happens when the power comes back on? does it turns back on or does it stay off, if it stay's off is there a way to make turn back on?

Accepted Answer

1. Yes, it supports USB 3.0 and 3.5-inch SATA III (6Gb/s) HDDs. The maximum capacity is 80TB. Specific compatibility with the Seagate Exos X20 20TB ST20000NM007D is not mentioned.

2. Information about the behavior of the device in non-raid mode after a power outage is not provided.

Question 9

this unit tr-004 does not have RJ-45 LAN port. how do i connect to my router?

Accepted Answer

IT is Direct Attached storage not a NAS, it either connects as an expansion to your existing NAS or Directly to a PC as external storage.

Question 10

Can this be plugged into another QNAP NAS directly (e.g., TVS-627XT which has plenty of USB 3.2 slots) and be used as a backup device for it taking advantage of the 5Gbps?  Would I control the storage as a separate device or as attached storage to the main NAS and configure some sort of backup or sync?

Accepted Answer

Yes, the QNAP TR-004-US can be plugged into another QNAP NAS directly and be used as a backup device. It uses a USB Type-C 3.0 connection and supports hardware RAID. The product is compatible with QNAP NAS running QTS 4.3.6 and later.

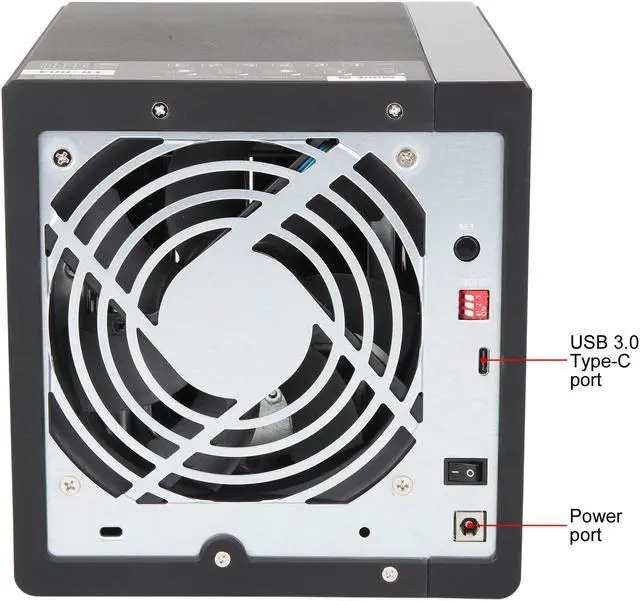

Ports	1 x USB 3.2 Gen 2 Type-C
Port USB	1 x Type-C USB 3.2 Gen 1
HDD Interface	4 x SATA (4 x Bay)

Form Factor	4-Bay
Operating System	Minimum operating system requirements: QNAP NAS: QTS 4.3.6 and later Windows: Windows 8.1 and later Mac: macOS X 10.11 and later
Processor	Micro processor with hardware RAID

Included HDD Capacity	Diskless System
Max Capacity	80TB
Drive Compatibility	3.5" SATA 6Gb/s, 3Gb/s HDD 2.5" SATA 6Gb/s, 3Gb/s HDD 2.5" SATA 6Gb/s, 3Gb/s SSD

Power	External Power Adapter, 65W, 100-240V 4.17W (HDD Sleep Mode), 18.21W (Operating Mode, Typical) With drives fully populated
Power Consumption	18.21 W (Access) 4.17 W (HDD Hibernation)

Temperature	0 - 40°C (32°F - 104°F)
Humidity	5~95% RH non-condensing, wet bulb: 27°C (80.6°F)

Best Sellers

Sponsored Products

QNAP TR-004-US 4 Bay Type-C Direct Attached Storage DAS Expansion with Hardware RAID (Diskless)

Learn more about the Qnap TR-004-US

Customer Reviews of the Qnap TR-004-US

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Model
Brand	QNAP
Model	TR-004-US
Type	Desktop NAS

Dimensions & Weight
Dimensions	6.63" x 6.31" x 8.62"
Weight	4.08 lbs.
