Question 1

Could someone please tell me if both of the fans have dust filters with them? Also if I wanted to add another fan, are there an existing dust filters in the case or would I need to figure out a way to put dust filters behind them?

Thanks

Accepted Answer

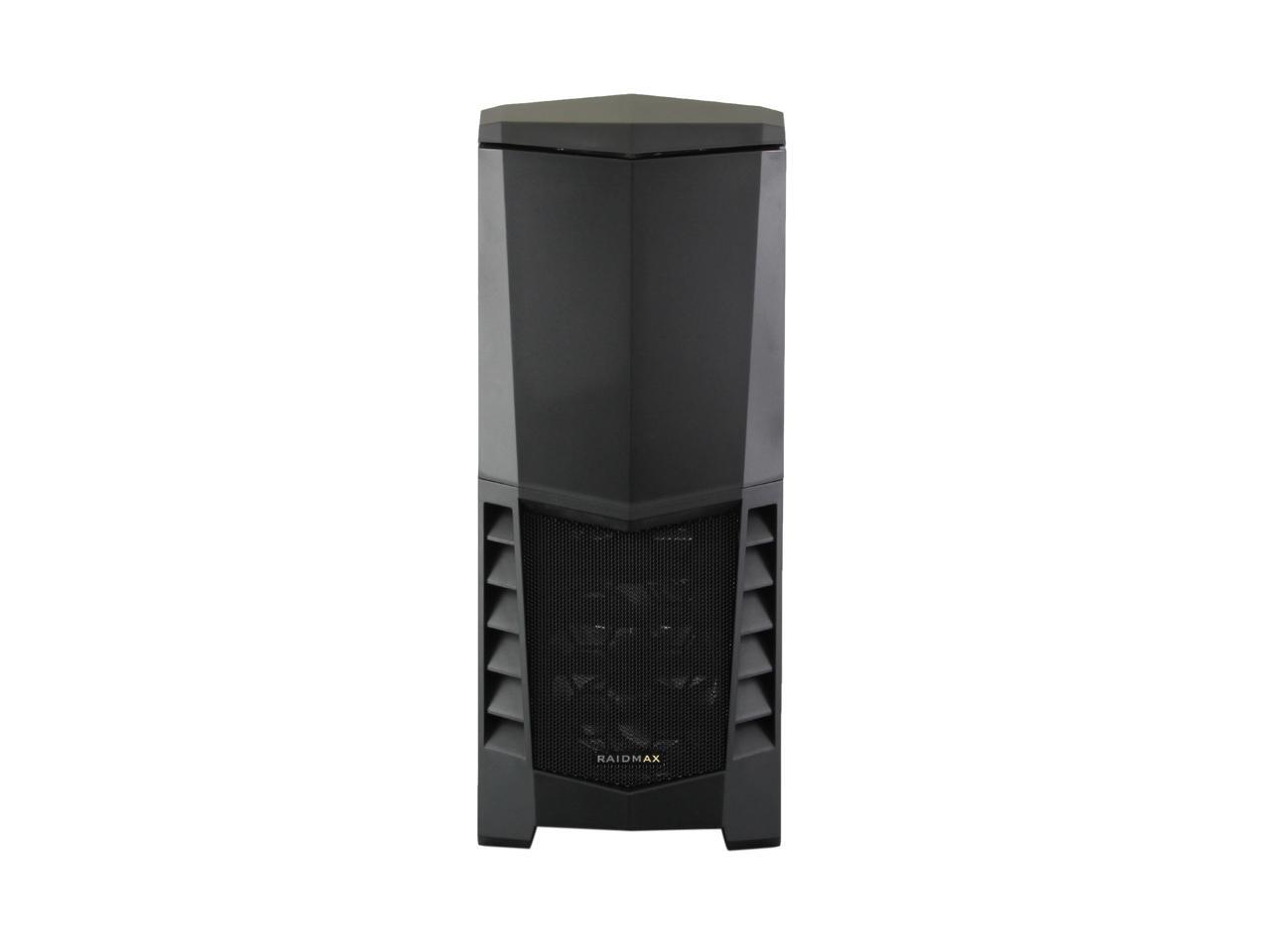

There are removable dust filters on the bottom of the case, but the front fan has only a non-removable thin black foam affixed to the front case (for looks/function/both, presumably can be cleaned with a wet wipe or compressor but haven't tried yet). The back fan doesn't really have a filter at all. Probably would be best to have all your bases covered with new fan installation.

Question 2

Will a H105 in push/pull fit in the top?

Accepted Answer

To be honest all I can say is it might. I don't have experience with water coolers, but I figure if your using a water cooler you won't need a heatsink. So yea I think it's doable. The only problem I think you would run into it getting long enough screw's to go through the fans and the heatsink itself. The radiator probably won't fit in the compartment with the top on it though. Maybe I'm just over thinking it, but best of luck!

Question 3

i could be stupid but does this come with fans??

Accepted Answer

It comes with a front and rear fan only. Fans in the top or bottom must be purchased and installed separately. It is a nice case and I can highly recommend it.

Question 4

Where would one put a wifi antenna in here I can't see it in the pictures?

Accepted Answer

It depends on the type of antenna but the case has rubber protected ports for external sata, which you could use to run wires from inside to outside of the case. It might use a pci slot though if it is on a card. It really depends on what kind of wifi you have.

Question 5

Will the ASRock H97M Pro4 MotherBoard work with this case?

Accepted Answer

I put an MSI Z87-G45 gaming mobo into this case and it was awesome. Just Note: my power button and reset button headers were reversed (mislabeled). This may save you a lot of time. Hope this helps in comparison.

Question 6

Could I fit a ASRock 970 EXTREME4 in here? iI looks big enough but I
want to make sure.

Accepted Answer

I measured 12 ,75 inches for the graphics slot, without getting serious and movinmg connectors

Question 7

What size PSU does this hold?

Accepted Answer

Yes.

Question 8

How big exactly is the case?

Accepted Answer

go to the apeva website for all specs.

Basic Specifications
External Drive Bays:	3 X 5.25"

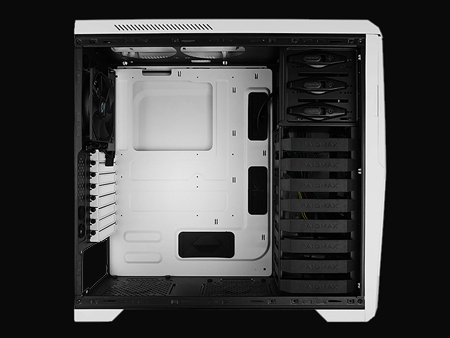

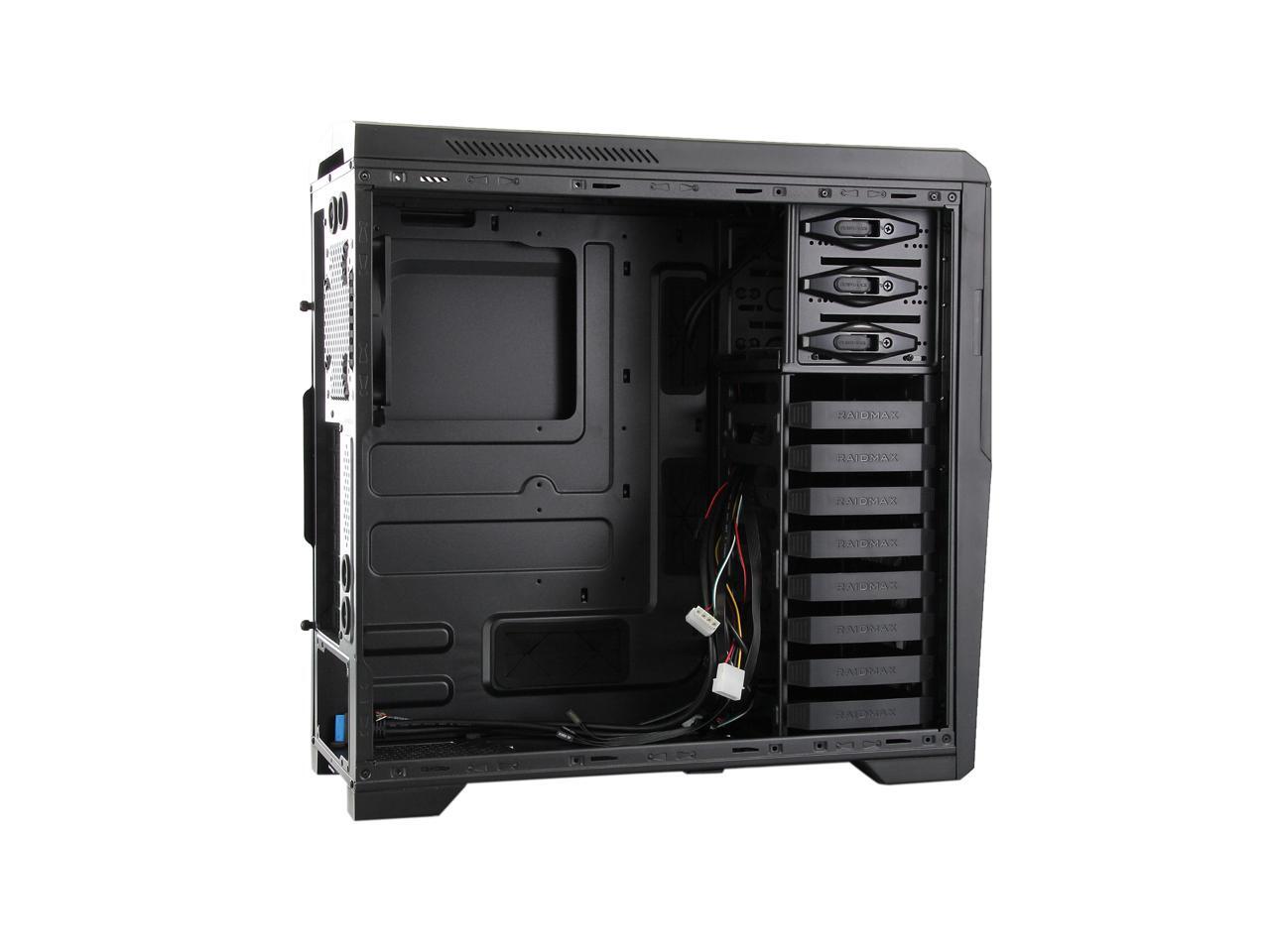

Internal Drive Bays:	8 X 3.5" H.D. or 8 X 2.5" SSD
Top Ports:	1 X 2.5" HDD Hot Swap
System Board:	ATX / MICRO ATX / MINI-ITX / EATX
Expansion Slots:	8 Slots
I/O Ports:	2 X USB 2.0 / 2 x HD Audio / 2 x USB 3.0
Dimensions (L x W x H):	19.6 x 8.3 x 19.6 inches (500 x 212 x 500mm)

Cooling System
Front:	1 X 120mm LED fan
Side:	None (optional)

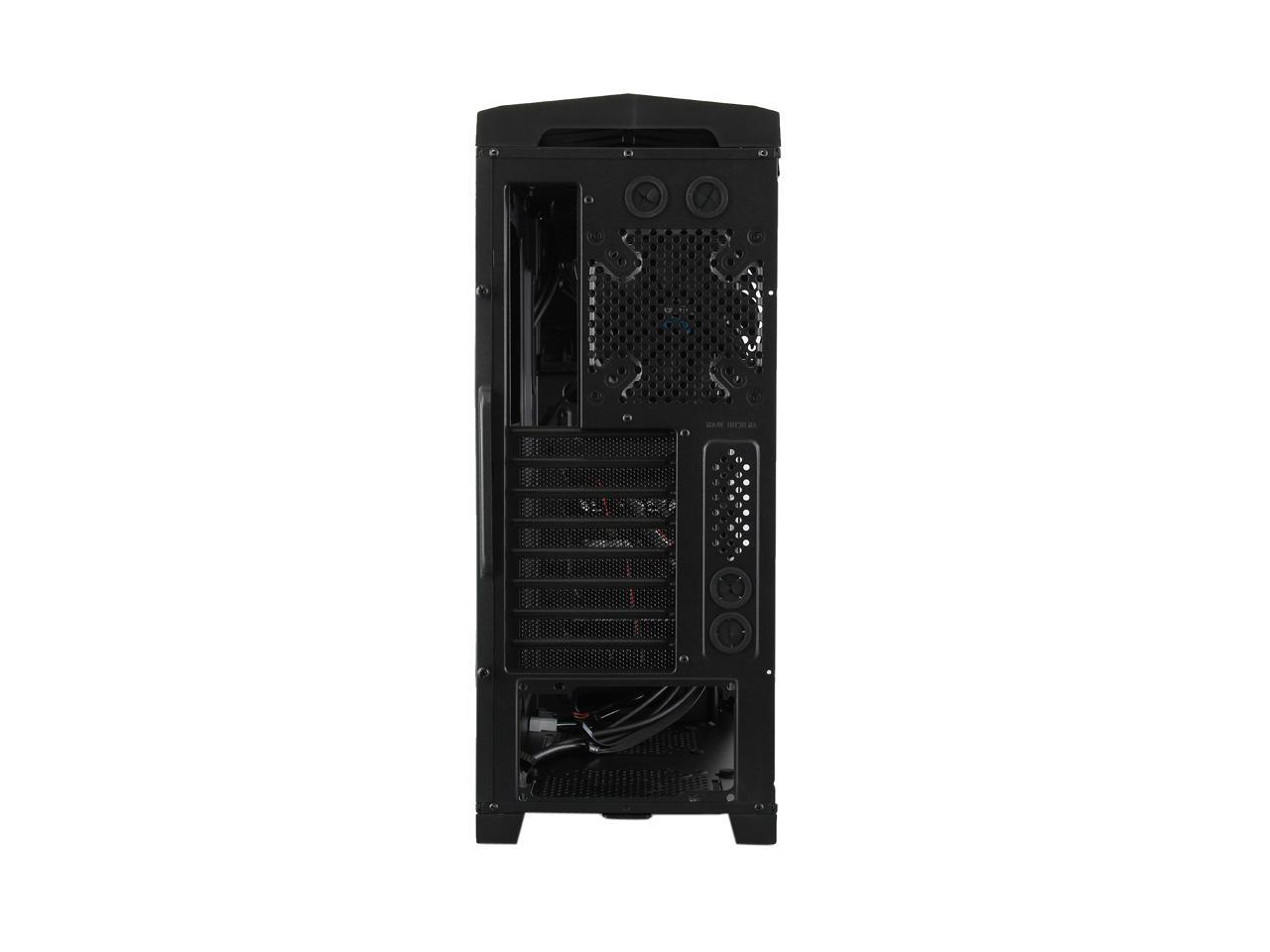

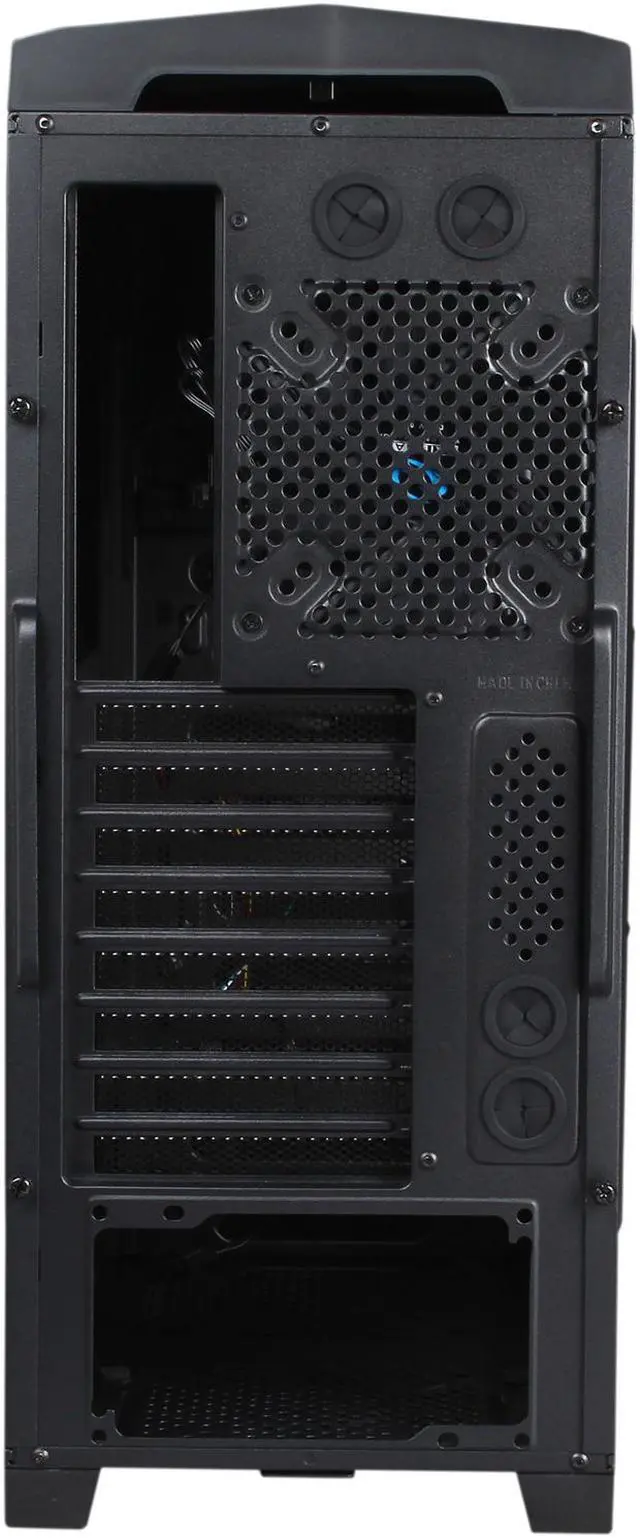

Back:	1 x 120mm Black fan
Top:	2 X 120mm fan (optional)
Bottom:	1 X 120mm fan (optional)

Brand	RAIDMAX
Series	Scorpio V
Model	ATX-503WB

Type	ATX Mid Tower
Color	Black
Case Material	Steel / Plastic
With Power Supply	No
Power Supply Mounted	Bottom
Motherboard Compatibility	Micro ATX / ATX / Mini-ITX

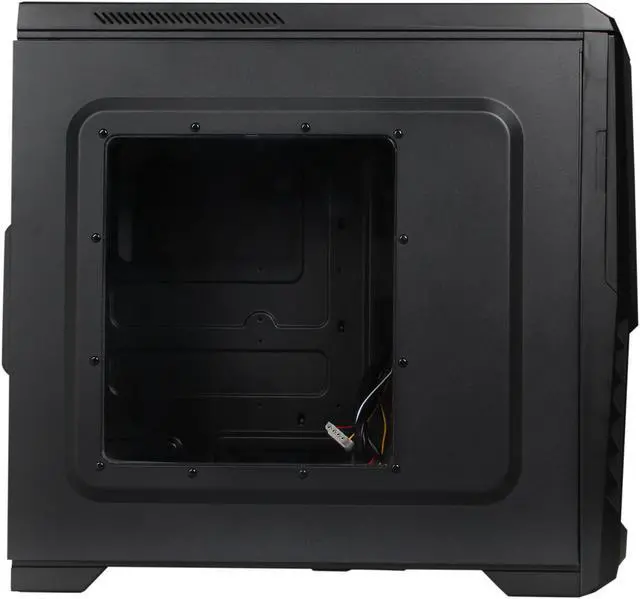

Side Panel	with Side Window
Dust Filters	Yes

External 5.25" Drive Bays	3
External 3.5" Drive Bays	1 convert from 5.25” external drive bay
Internal 3.5" Drive Bays	8 compatible with 2.5”
Internal 2.5" Drive Bays	8 compatible with SSD (convert from 3.5” HDD rack)
Expansion Slots	8

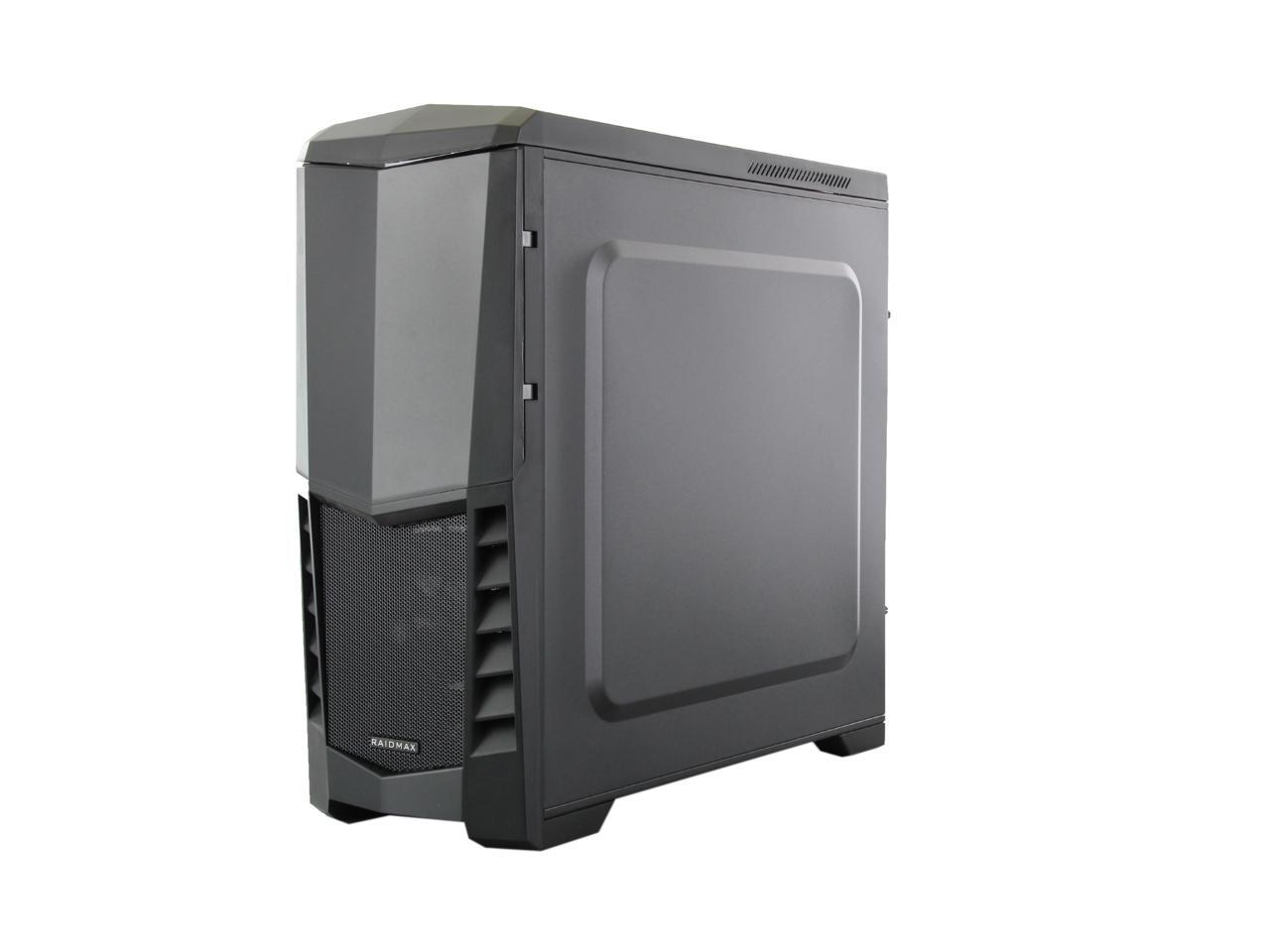

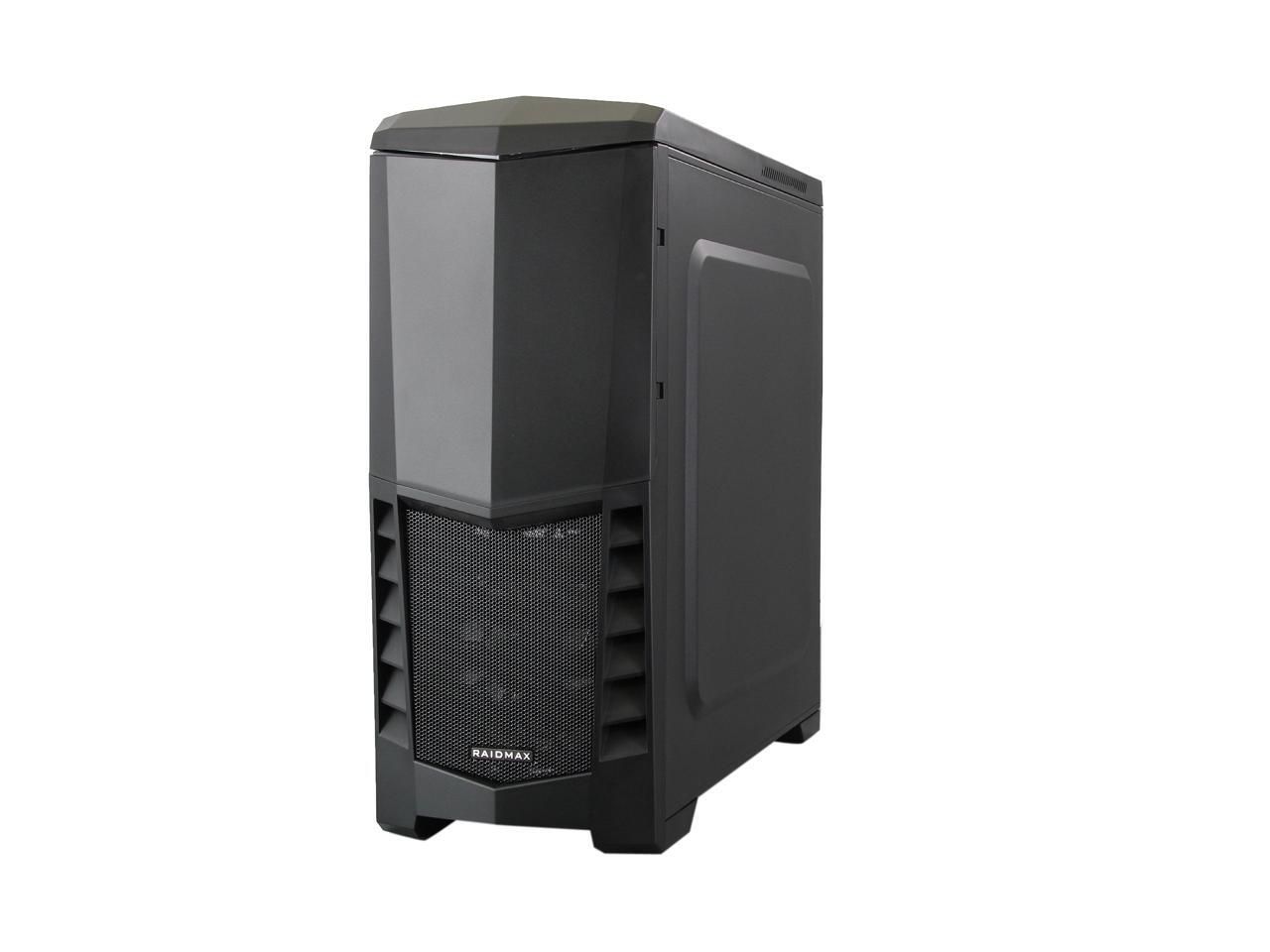

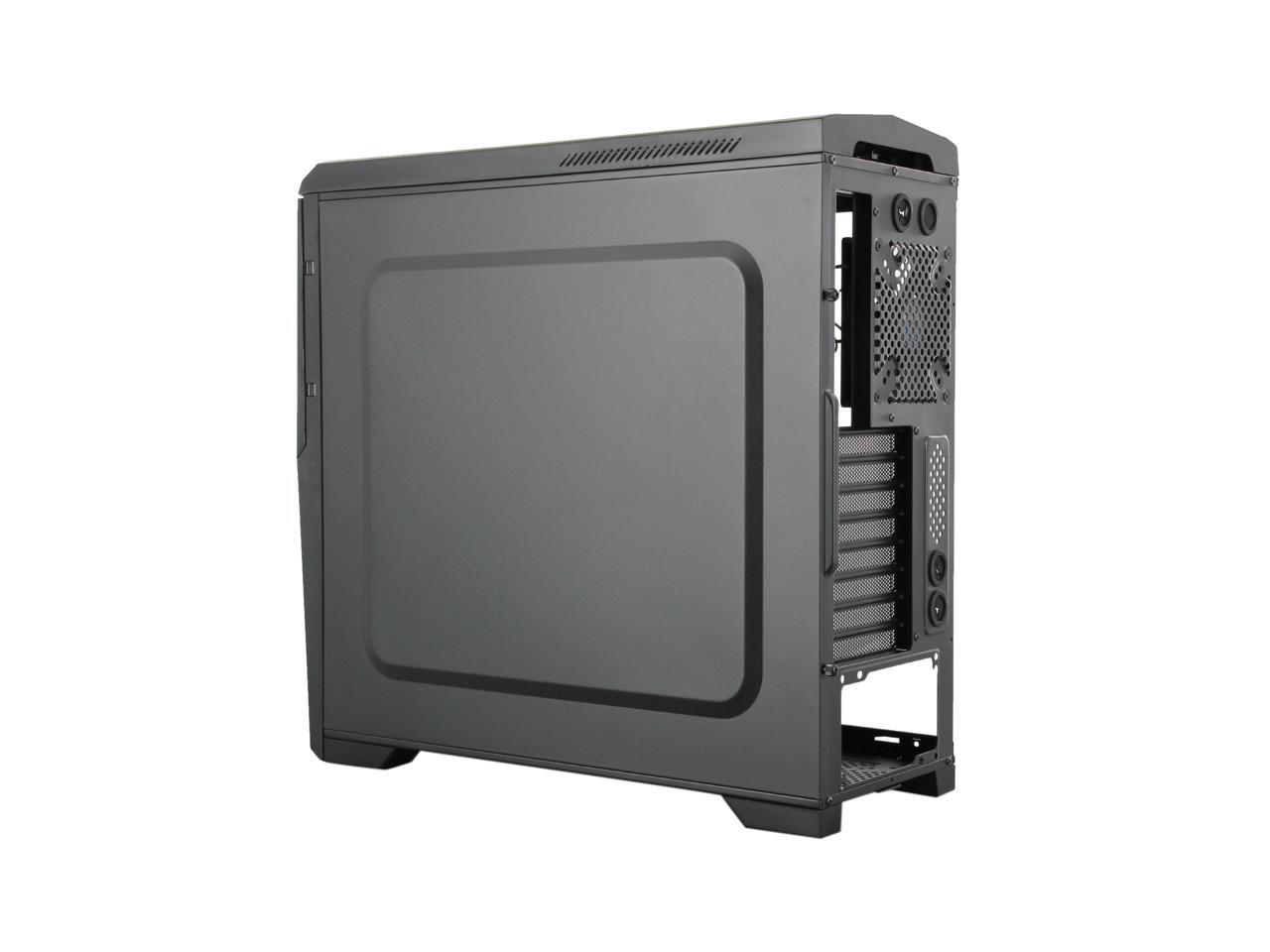

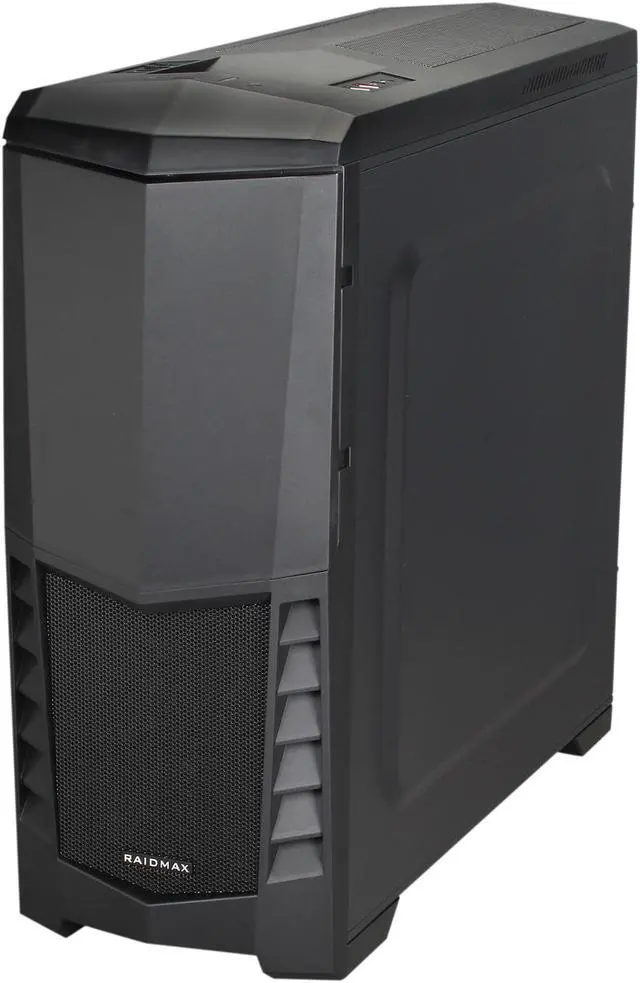

RAIDMAX Scorpio V ATX-503WB Black Steel / Plastic ATX Mid Tower Computer Case

Features

Basic Specifications

Cooling System

Colors

Learn more about the Raidmax ATX-503WB

Customer Reviews of the Raidmax ATX-503WB

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Dimensions & Weight
Dimensions	20.25" x 8.25" x 20.00"
Weight	17.00 lbs.

Item#: N82E16811156304
