RAIDMAX RX-600AF 600 W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Power Supply
- ATX12V / EPS12V
- 80 PLUS BRONZE Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@24A, +5V@24A, +12V1@22A, +12V2@22A, [email protected] ,[email protected]
Overview
Specs
Reviews (50)
Any questions? Our AI beta will help you find out quickly.
Try me now
Raidmax' RX-600AF PSU is designed with the value-conscious user in mind. Certified 80 PLUS Bronze, this unit runs at up to 85% (or higher) while delivering a 50% load, so you know that you're saving energy and money on your power bills month after month.

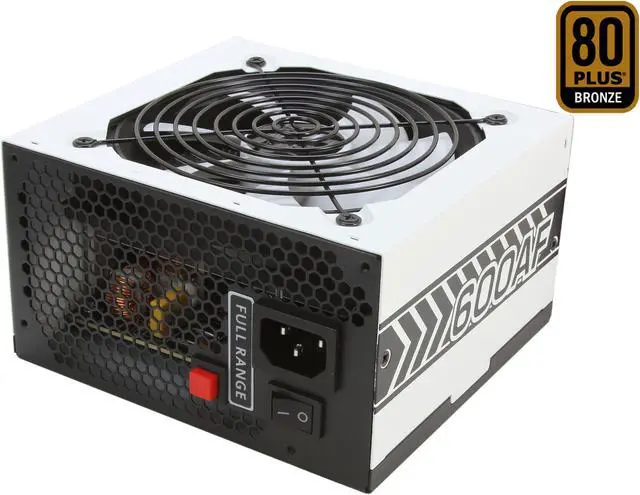

Cooling is handled by a 120mm fan with blue LEDs. A hexagonal grid pattern on the back panel ensures that the components will get plenty of airflow. It is equipped with one 6-pin and one 6 + 2-pin PCIe connectors to power high end graphics cards. There are three Molex and six SATA connectors for your high speed drives and other peripherals. A floppy drive connector is also included, just in case you need one.
Video
Features
- Environmentally friendly technology reduces the loss of electricity and save your money on facility bill and High Efficiency
- Elegant eco-friendly white fan with the best thermal control efficiency
- ATX 12V: Supports ATX 12V2.2 version
- Industrial grade protection circuitry prevents damage resulting from SCP, OVP and OPP
- Pure classical look with unabated performance
- Newly electrical engineering design
- INTEL & AMD listed Power Supply series
- Turbo fan controller - Enforce cooling anytime

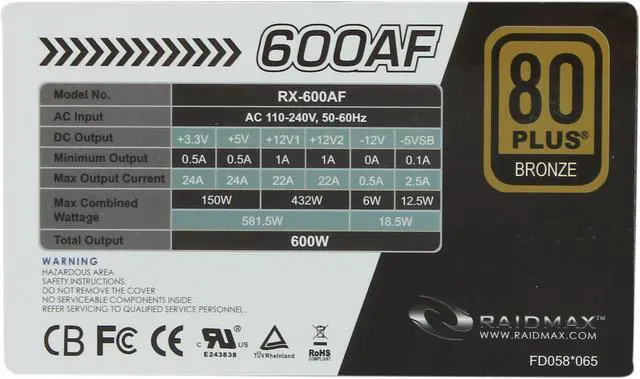

SPECIFICATIONS
MODEL |
RX-600AF |
|||||
DC Output: |
+3.3V |
+5V |
+12V1 |
+12V2 |
-12V |
+5VSB |
Max. Output Current: |
24A |
24A |
22A |
22A |
0.5A |
2.5A |
Max. Combined Power: |
150W | 432W | 6W |
12.5W |
||
Total Power: |
600W | |||||

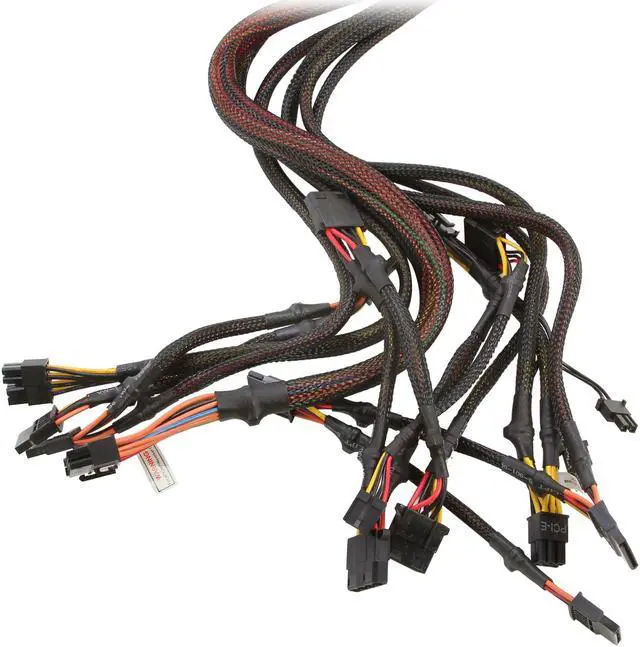

CONNECTORS
MB 20 + 4-Pin
x 1
CPU 4 + 4-Pin
x 1
PCI-E 6 + 2-Pin
x 2
SATA
x 6
Molex 4-Pin
x 4
Aux.
x 1
Gallery

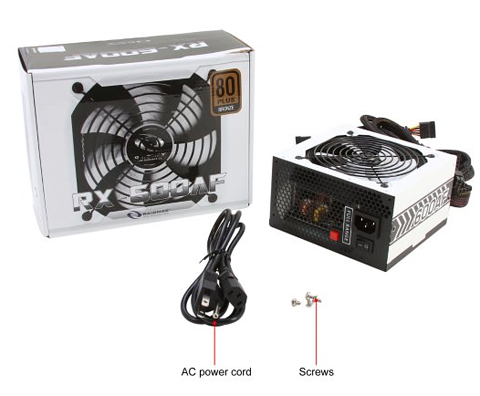

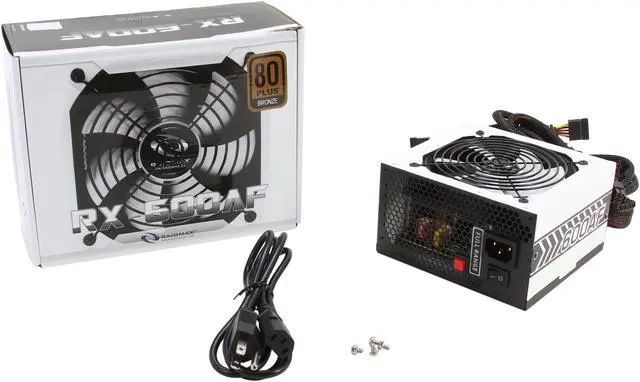

What's in the Box
Raidmax' RX-600AF PSU is designed with the value-conscious user in mind. Certified 80 PLUS Bronze, this unit runs at up to 85% (or higher) while delivering a 50% load, so you know that you're saving energy and money on your power bills month after month.
Cooling is handled by a 120mm fan with blue LEDs. A hexagonal grid pattern on the back panel ensures that the components will get plenty of airflow. It is equipped with one 6-pin and one 6+2-pin PCIe connectors to power high end graphics cards. There are 3 Molex and 6 SATA connectors for your high speed drives and other peripherals. A floppy drive connector is also included, just in case you need one.
Cooling is handled by a 120mm fan with blue LEDs. A hexagonal grid pattern on the back panel ensures that the components will get plenty of airflow. It is equipped with one 6-pin and one 6+2-pin PCIe connectors to power high end graphics cards. There are 3 Molex and 6 SATA connectors for your high speed drives and other peripherals. A floppy drive connector is also included, just in case you need one.
