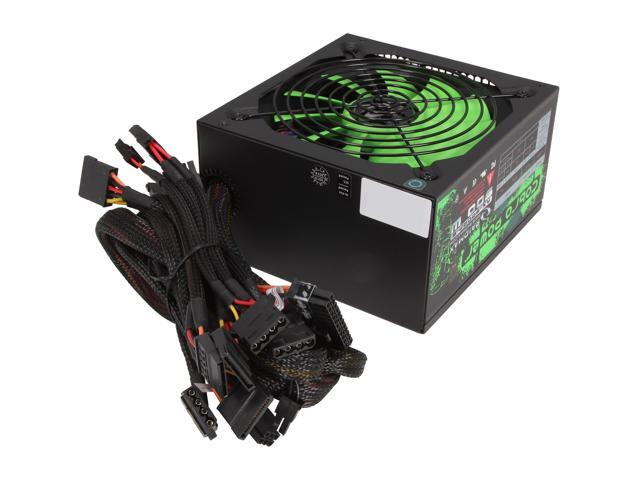

RAIDMAX Cobra RX-700AC-B Continuous 700 watts ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Non-Modular Power Supply
- ATX12V / EPS12V
- Non-Modular
- 80 PLUS BRONZE Certified
- 110 - 240 V 47 - 63 Hz
- +3.3V@22A, +5V@22A, +12V@46A, [email protected] ,[email protected]
Overview
Specs
Reviews (130)
Features
- Haswell Ready.
- 80 PLUS® Bronze certification guarantees more than 85% efficiency at typical loads.
- Stable voltage, low-noise levels by thermal controlled 13.5cm fan.
- Low noise and voltage regulate DC output quality perfectly.
- A strong, single +12V rail for high-end system heavy load configuration provides stable and highly compatibility.
- The COBRA series offers complete electric protection by OVP, UVP, OPP, and SCP.
- Compliance with the latest EU ErP Direction.
- Fully safety certificate with CE, FCC, TUV, and UL.
Specifications
| Model | RX-700AC-B | ||||
|---|---|---|---|---|---|
| DC Output: | +3.3V | +5V | +12V | -12V | +5VSB |
| Max. Output Current: | 22A | 22A | 46A | 0.5A | 2.5A |
| Max. Combined Power: | 130W | 552W | 6W | 12.5W | |
| Total Power: | 700W | ||||

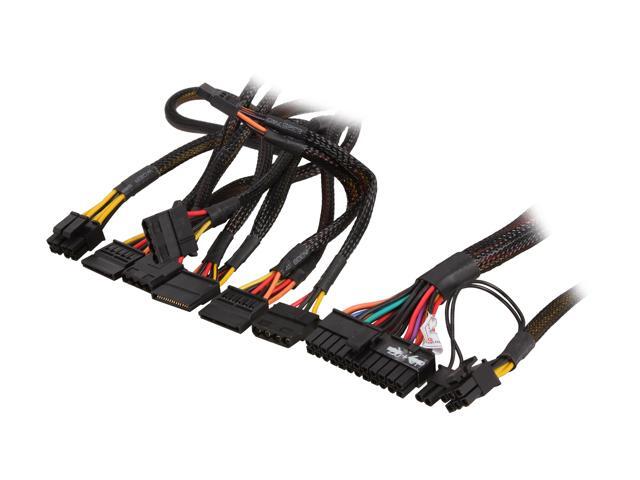

Connectors
 |
 |
 |
 |
 |
 |
| MB 20 + 4-Pin | CPU 4 + 4-Pin | PCI-E 6 + 2-Pin | SATA | Molex 4-Pin | Aux. |
| x 1 | x 1 | x 4 | x 5 | x 4 | x 1 |
Safety Approvals

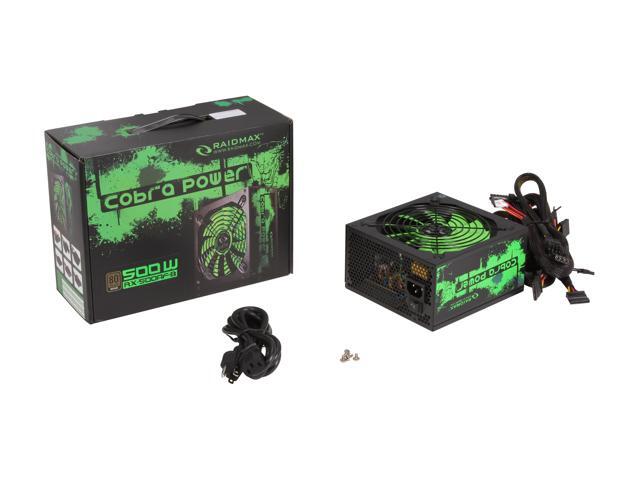

What's in the Box
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 2 years
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-909-623-6789
- Support Website
