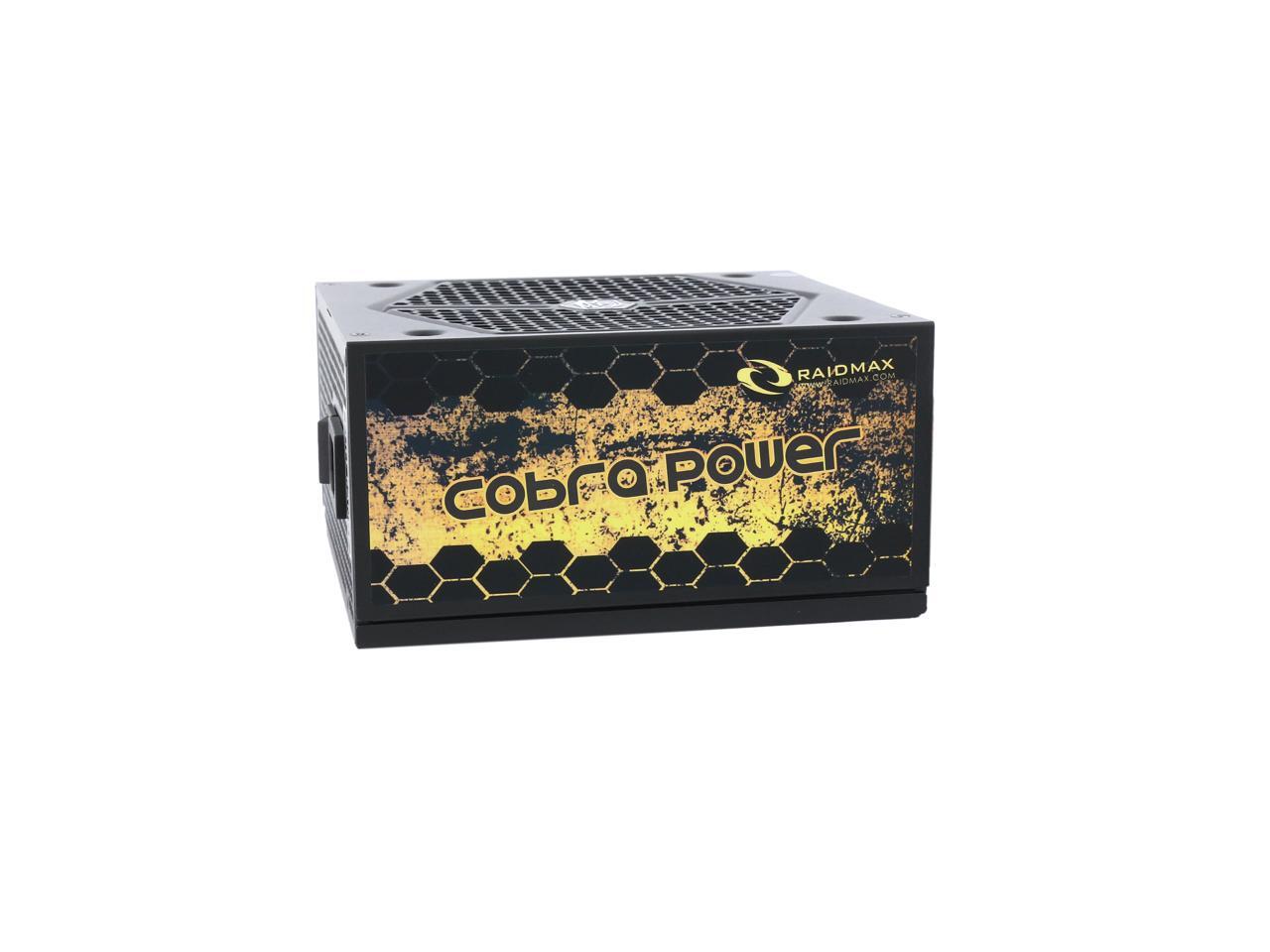

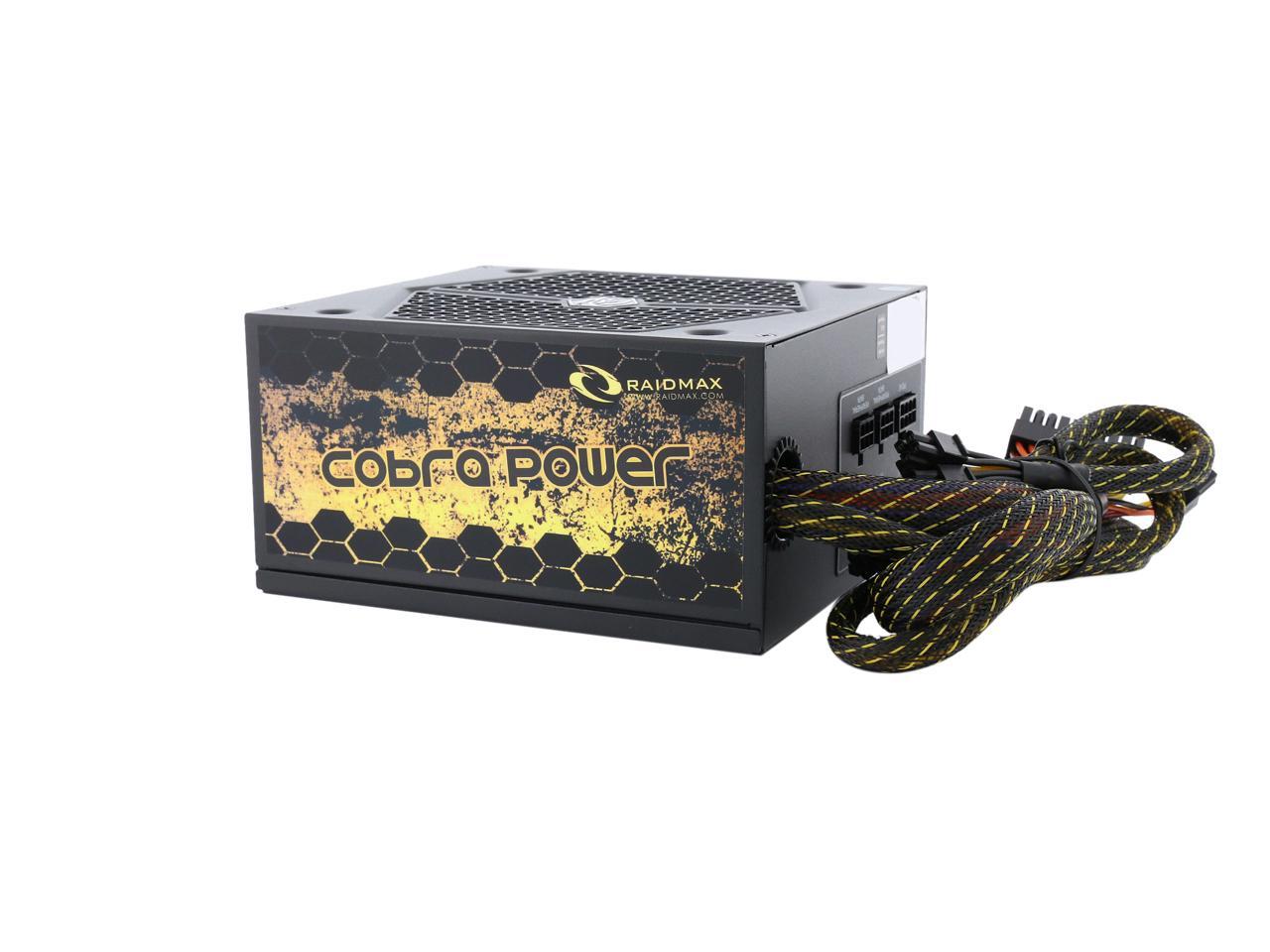

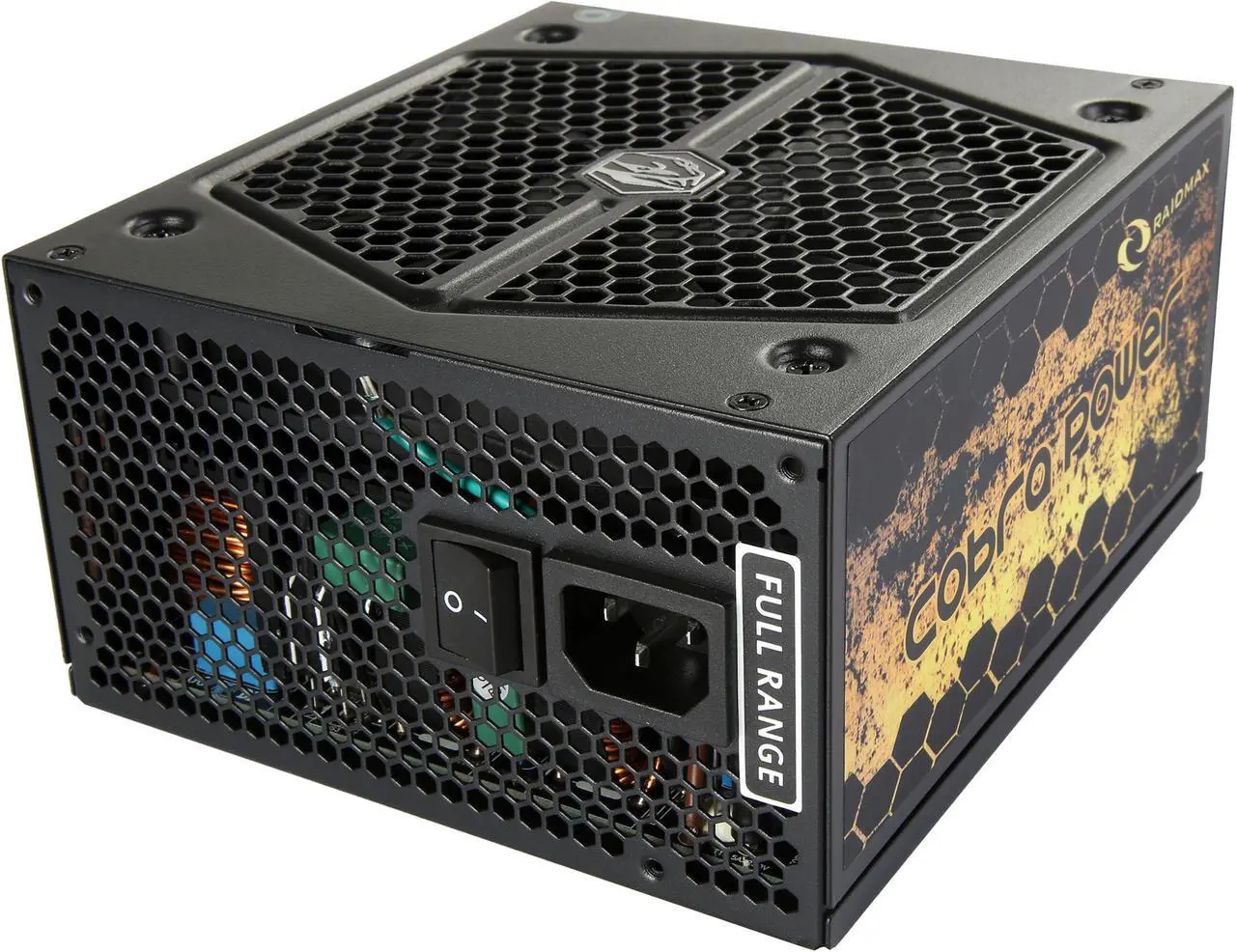

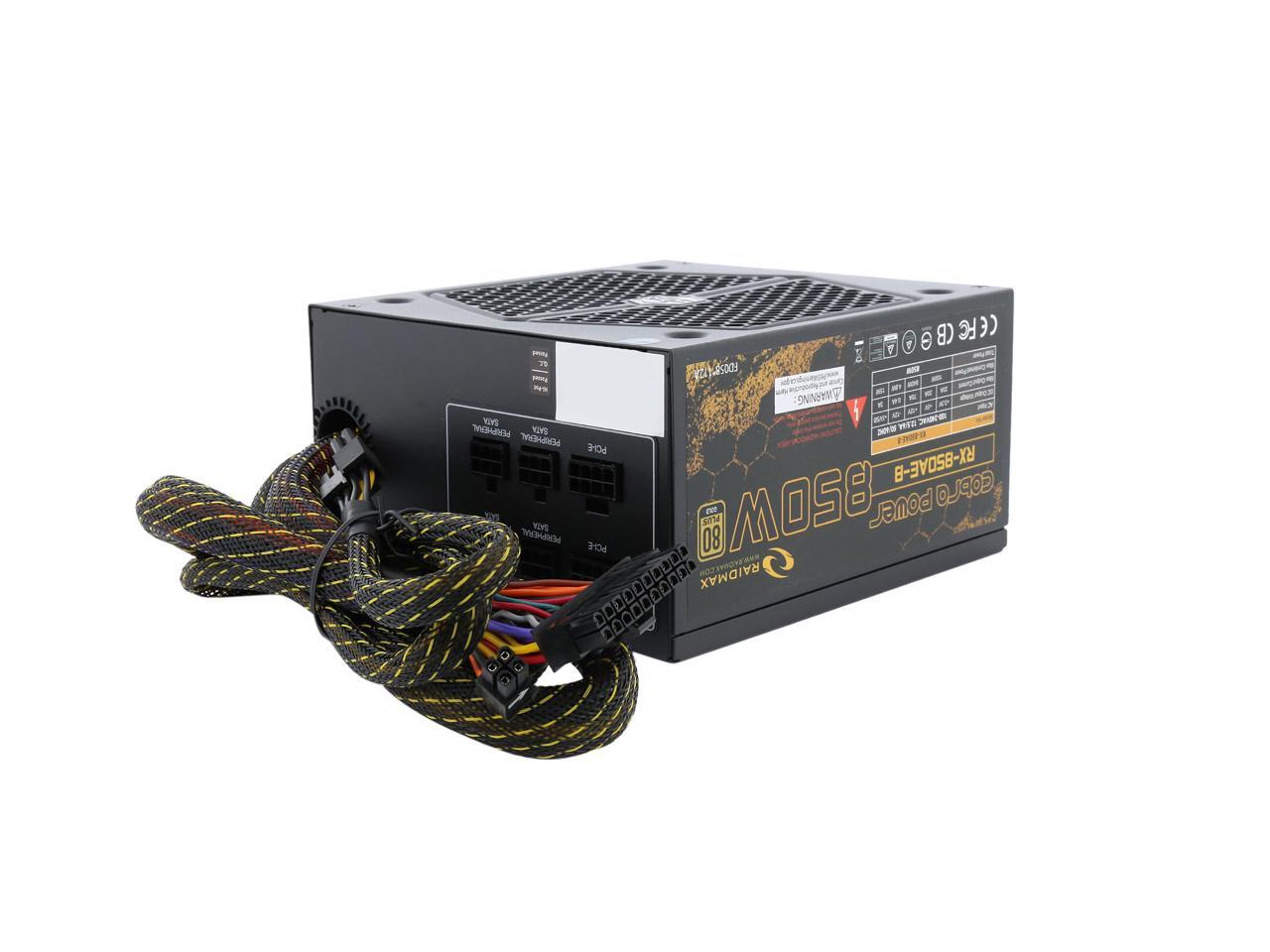

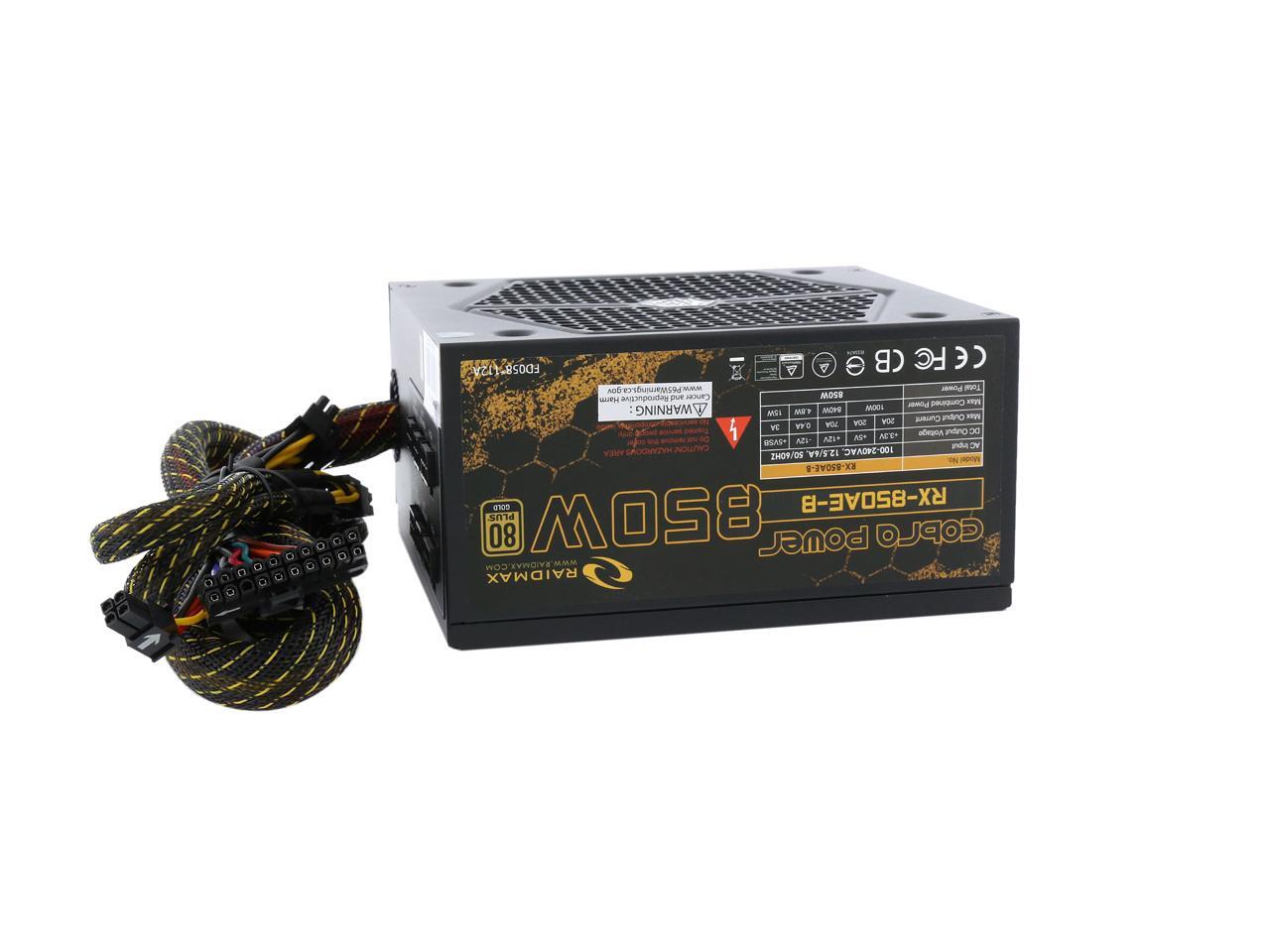

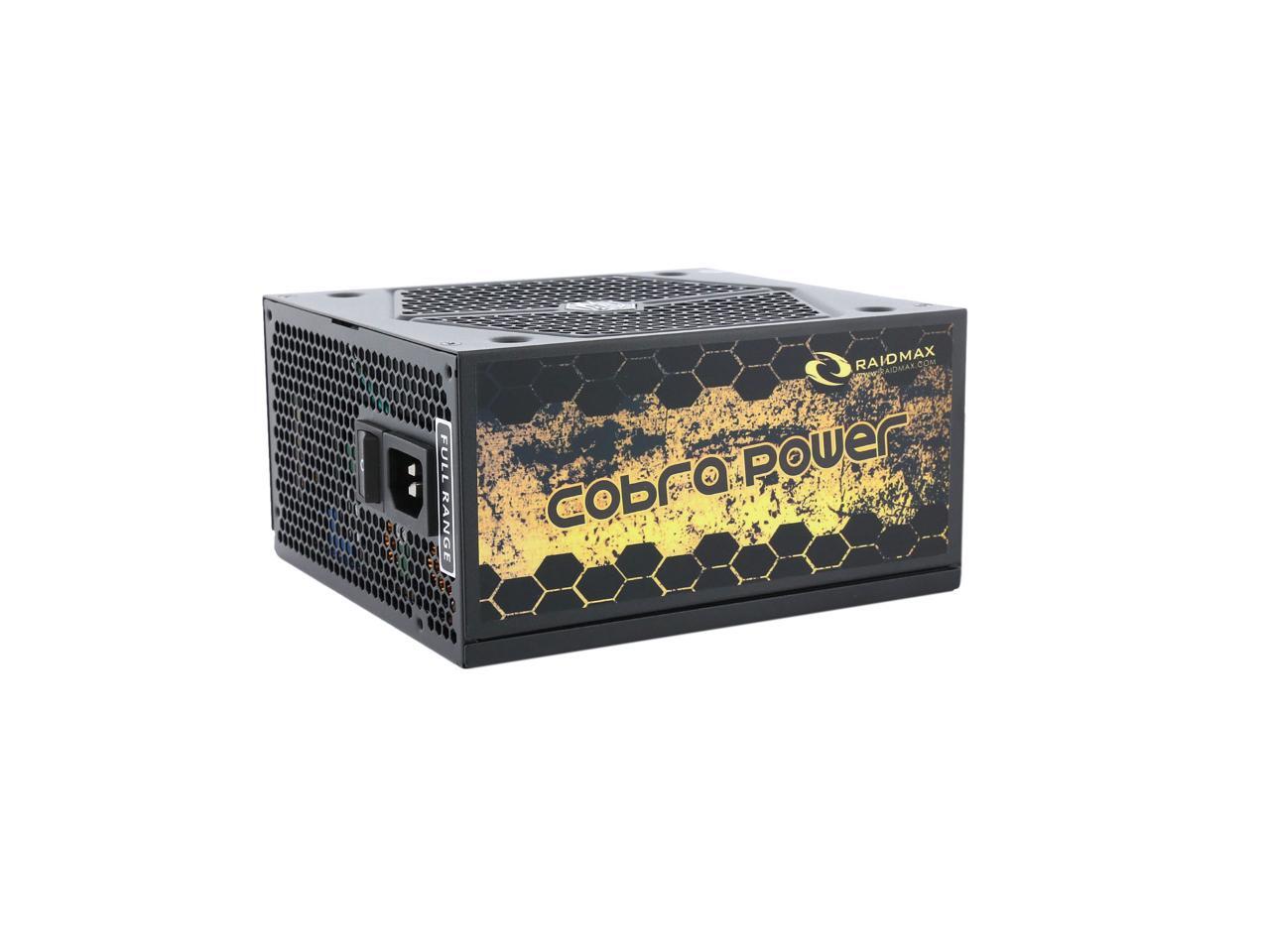

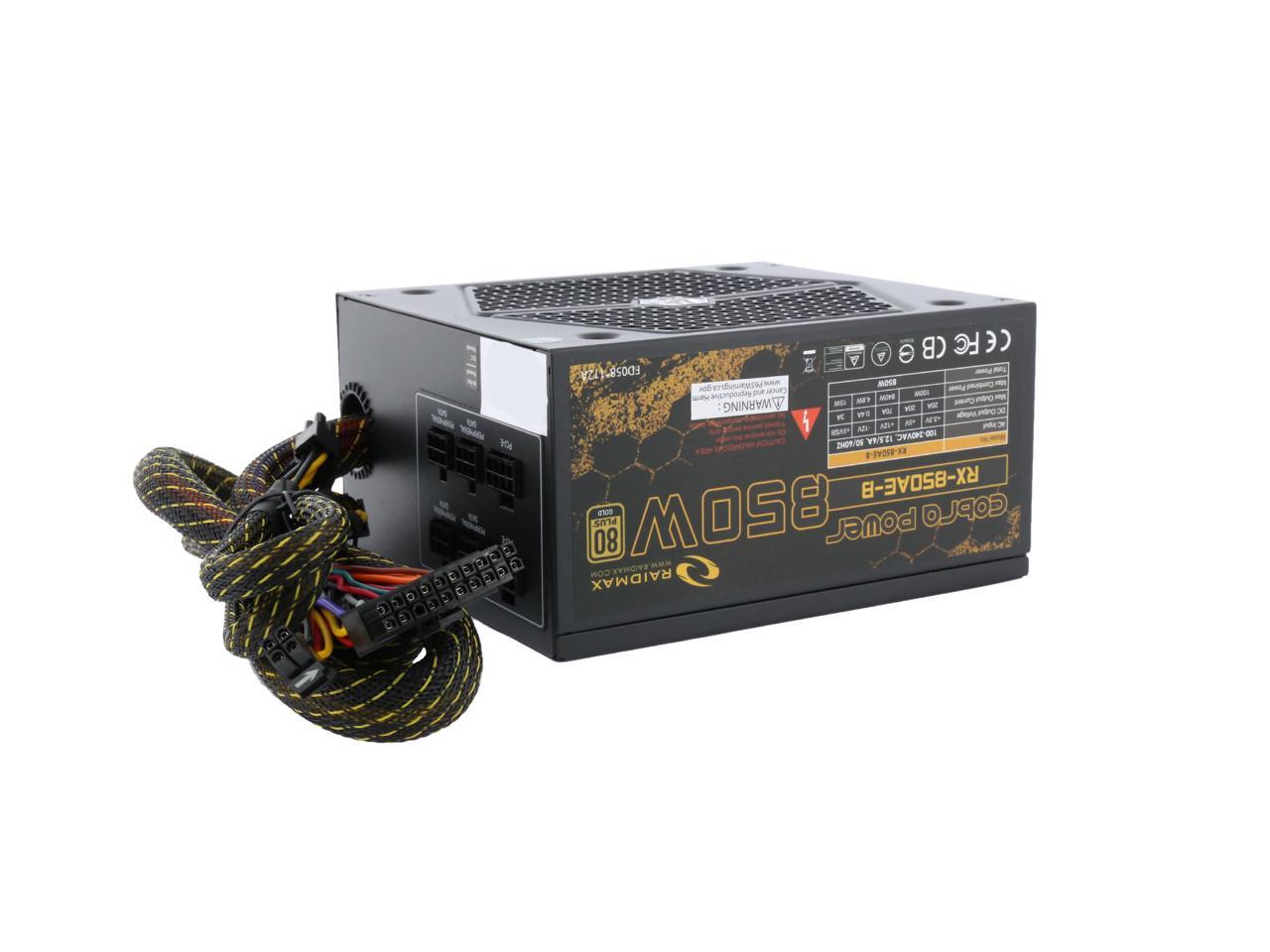

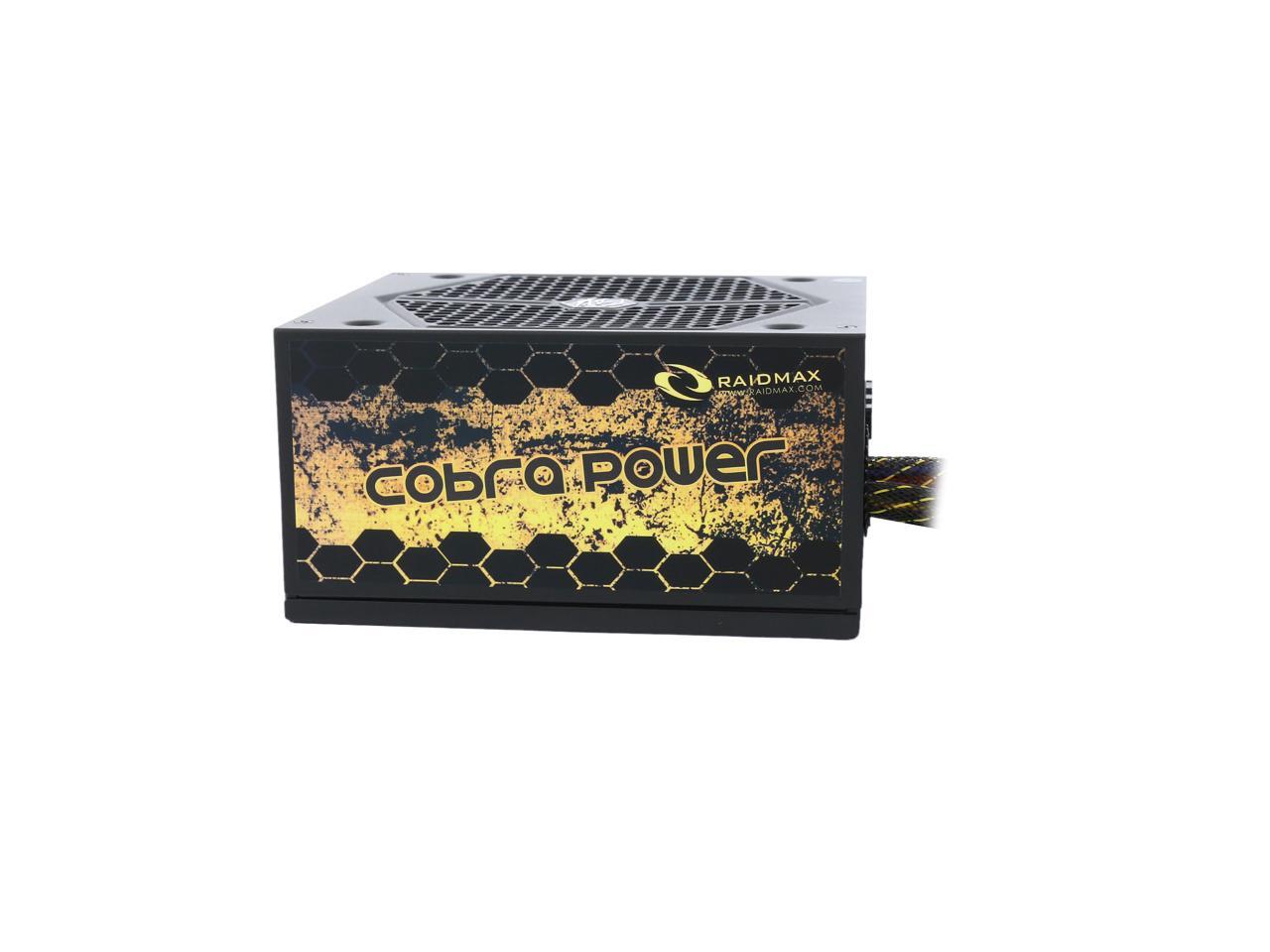

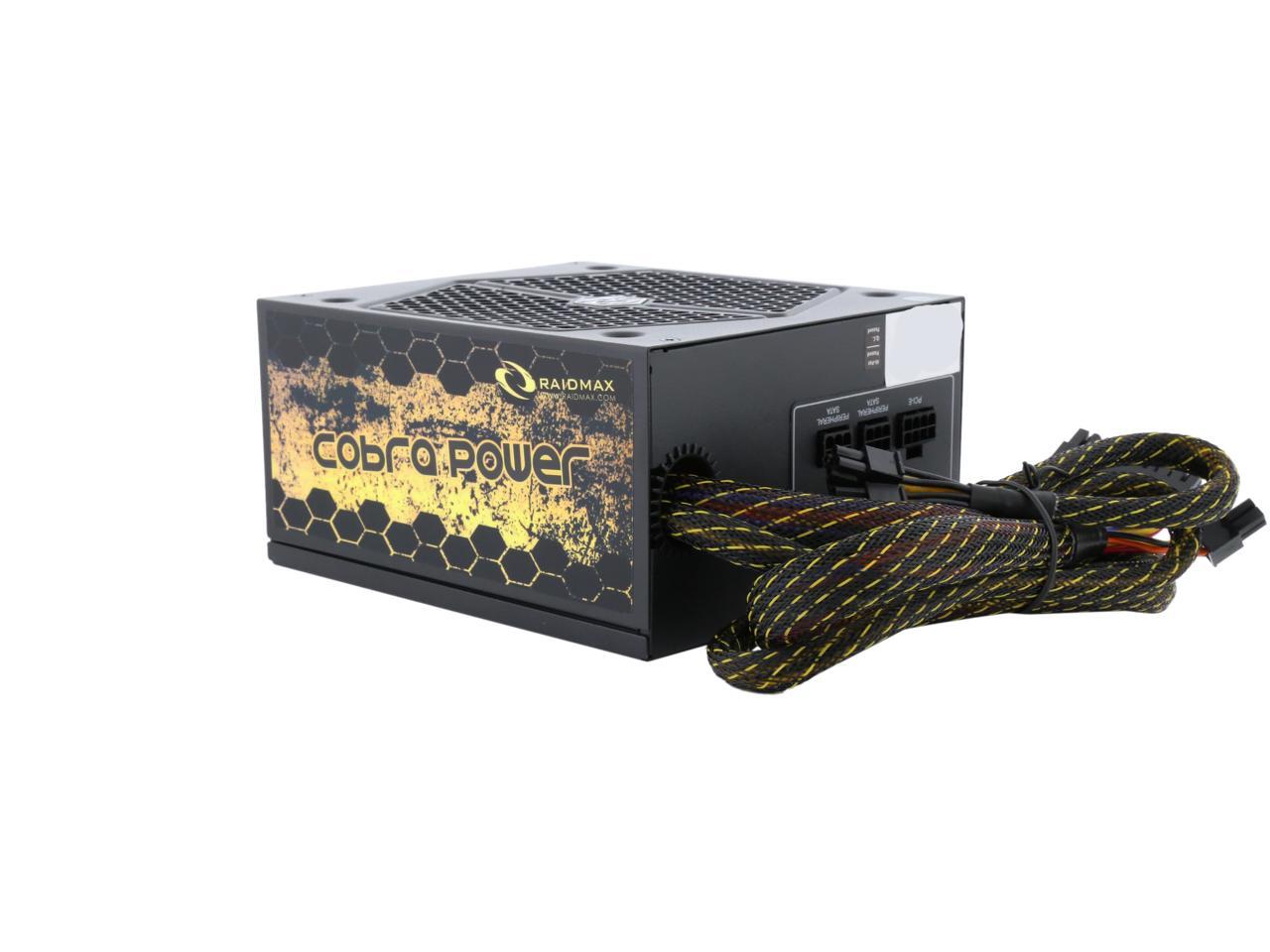

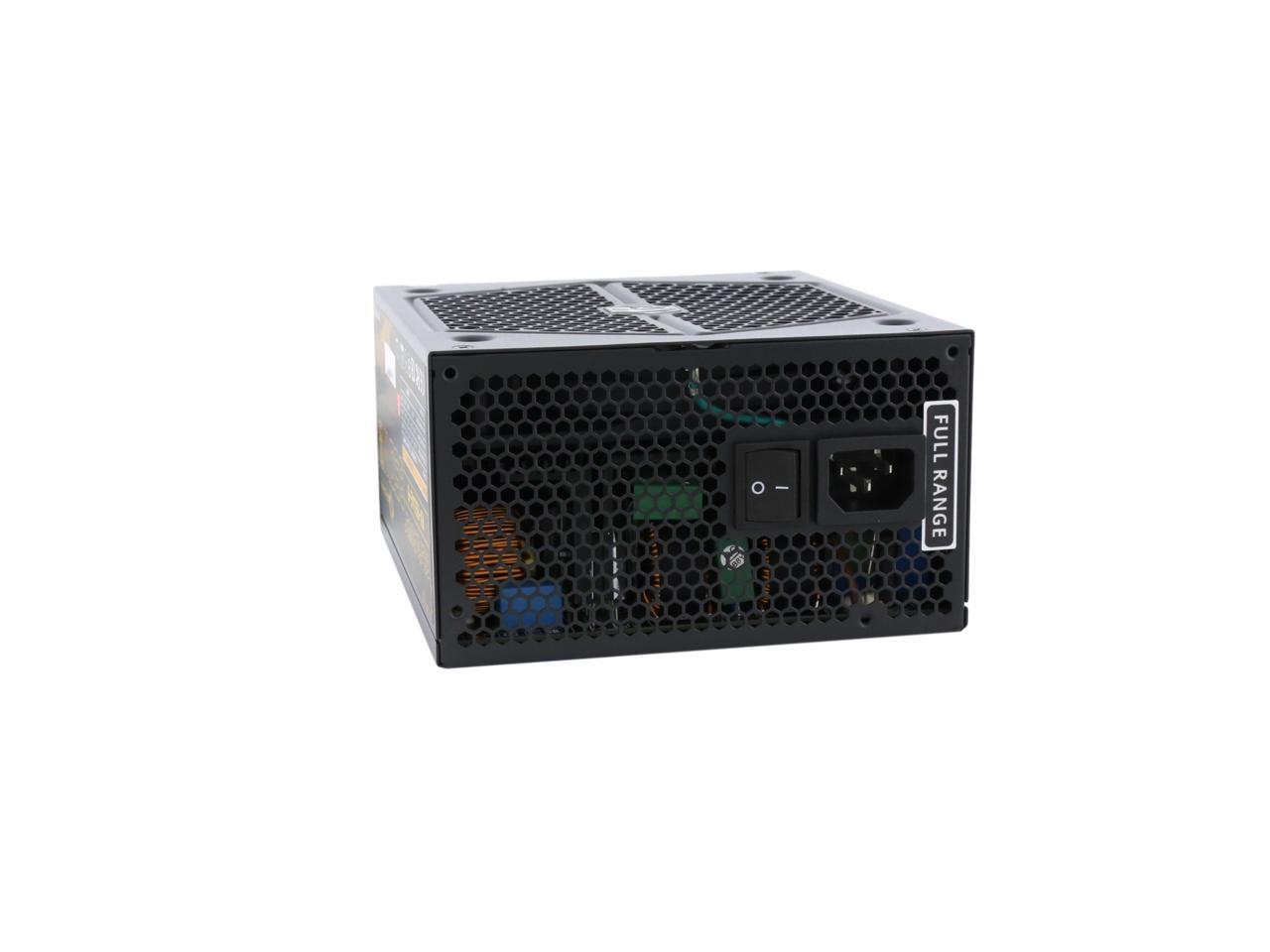

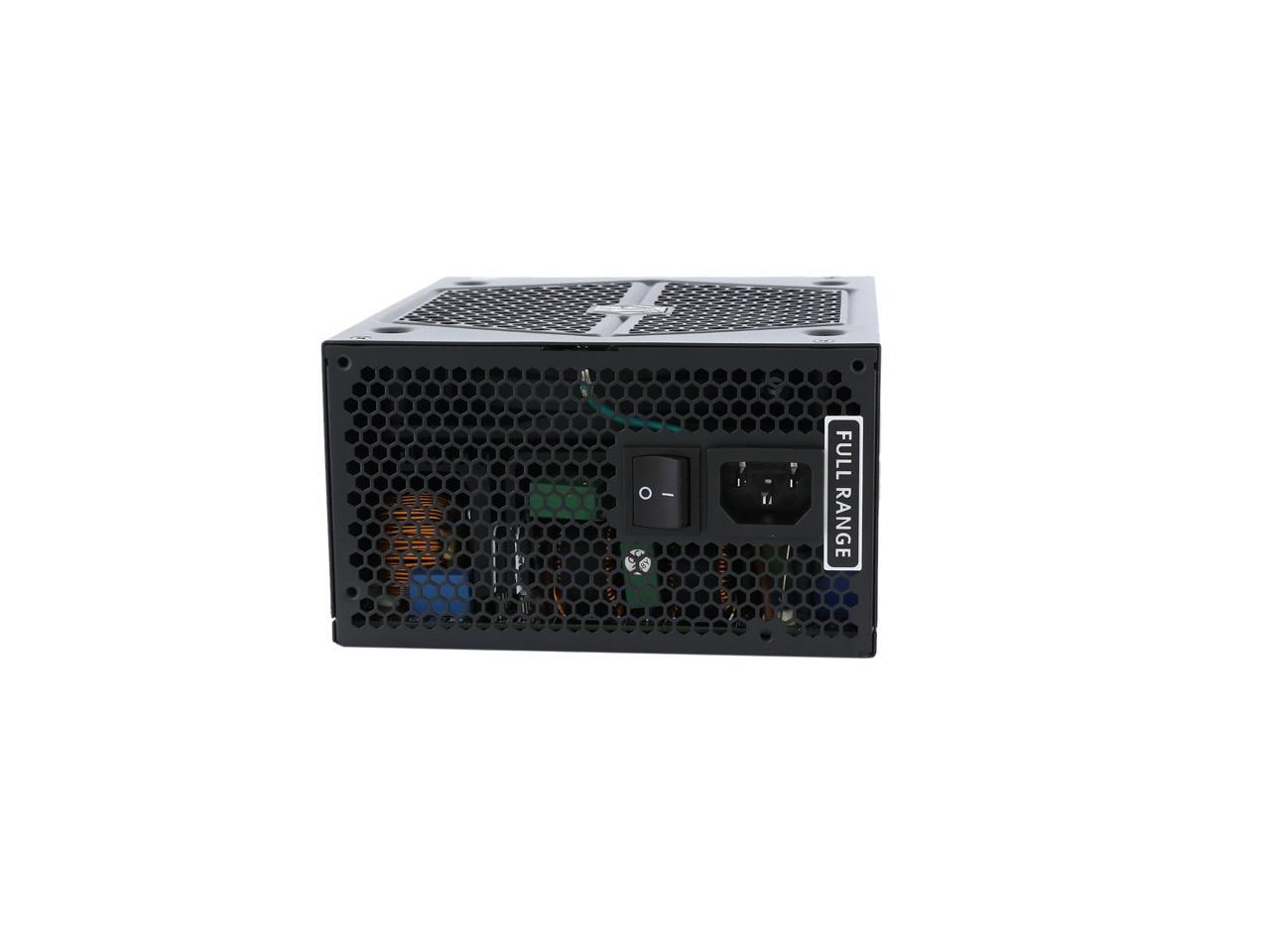

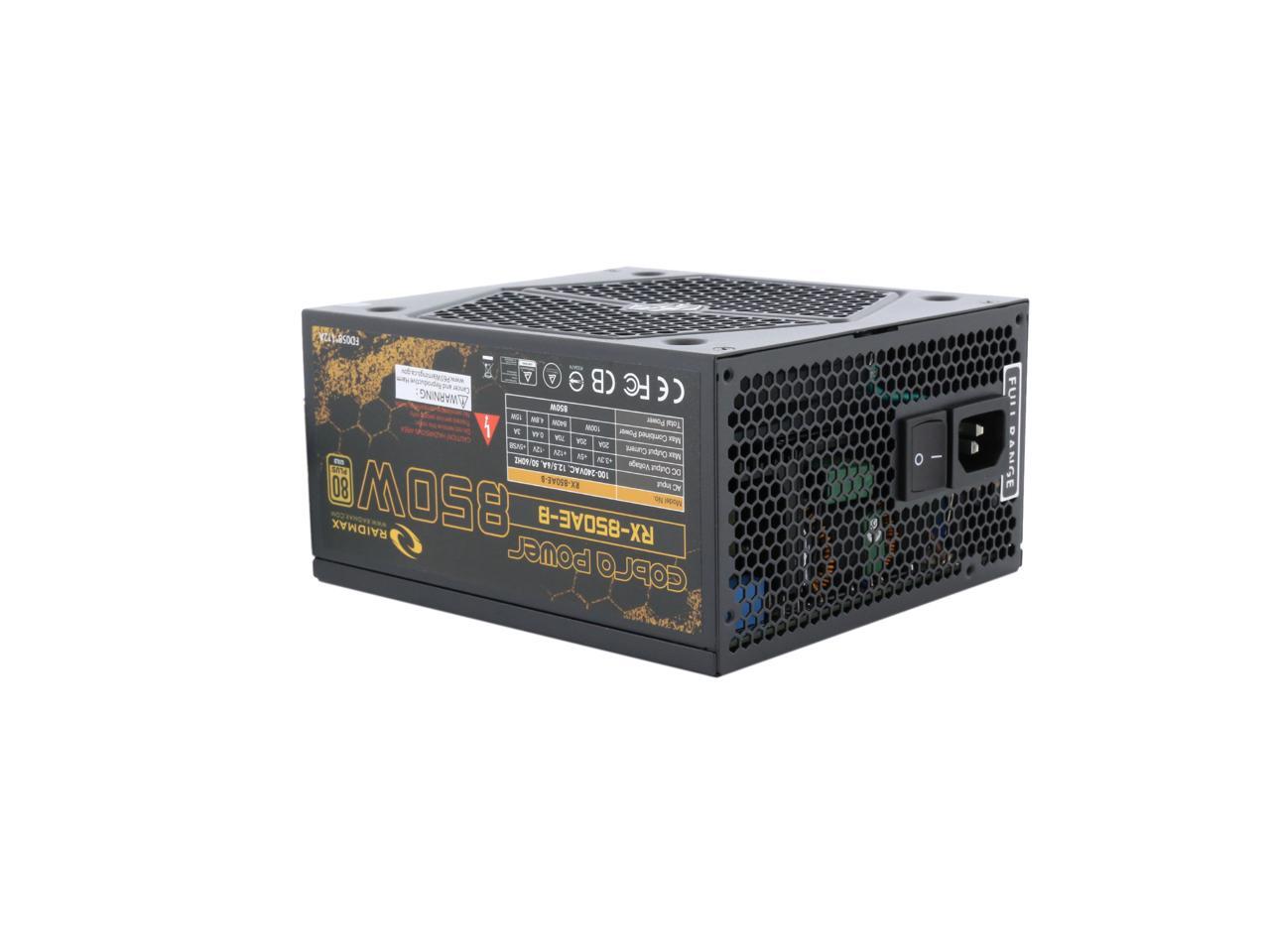

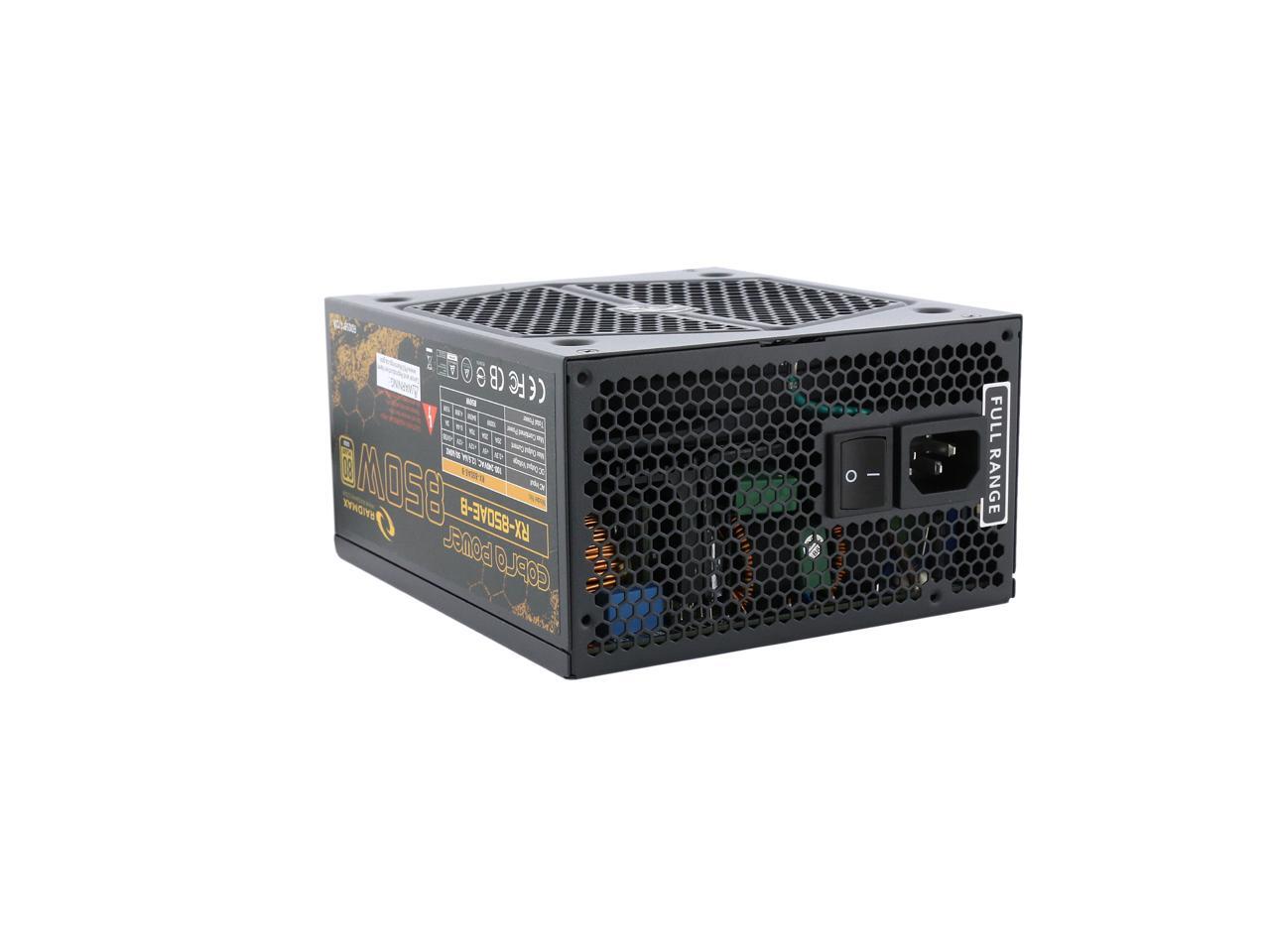

RAIDMAX Cobra series RX-850AE-B 850 W ATX 12V v2.3 / EPS 12V SLI Ready CrossFire Ready 80 PLUS GOLD Certified Modular Power Supply
- ATX 12V v2.3 / EPS 12V
- Modular
- 80 PLUS GOLD Certified
- 110 - 240 V 50/60 Hz
- +3.3V@20A, +5V@20A, +12V@70A, [email protected] ,5VSB@3A
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Raidmax RX-850AE-B
| Brand | RAIDMAX |
|---|---|
| Series | Cobra series |
| Model | RX-850AE-B |
| Type | ATX 12V v2.3 / EPS 12V |
|---|---|
| Maximum Power | 850 W |

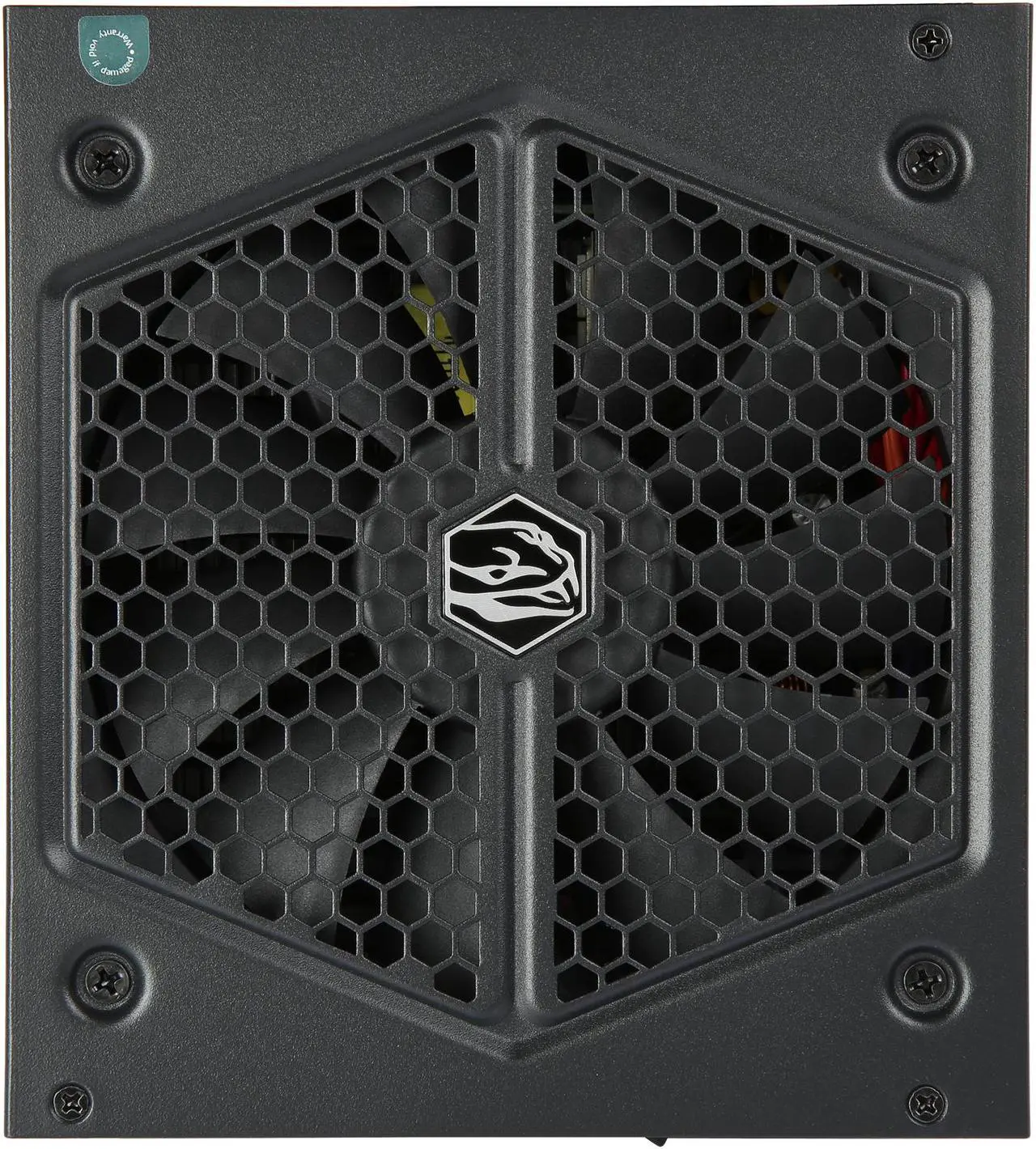

| Fans | 135mm Fan |
| PFC | No |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 9 |
| SLI | SLI Ready |
| Haswell Support | Ready |
| CrossFire | CrossFire Ready |

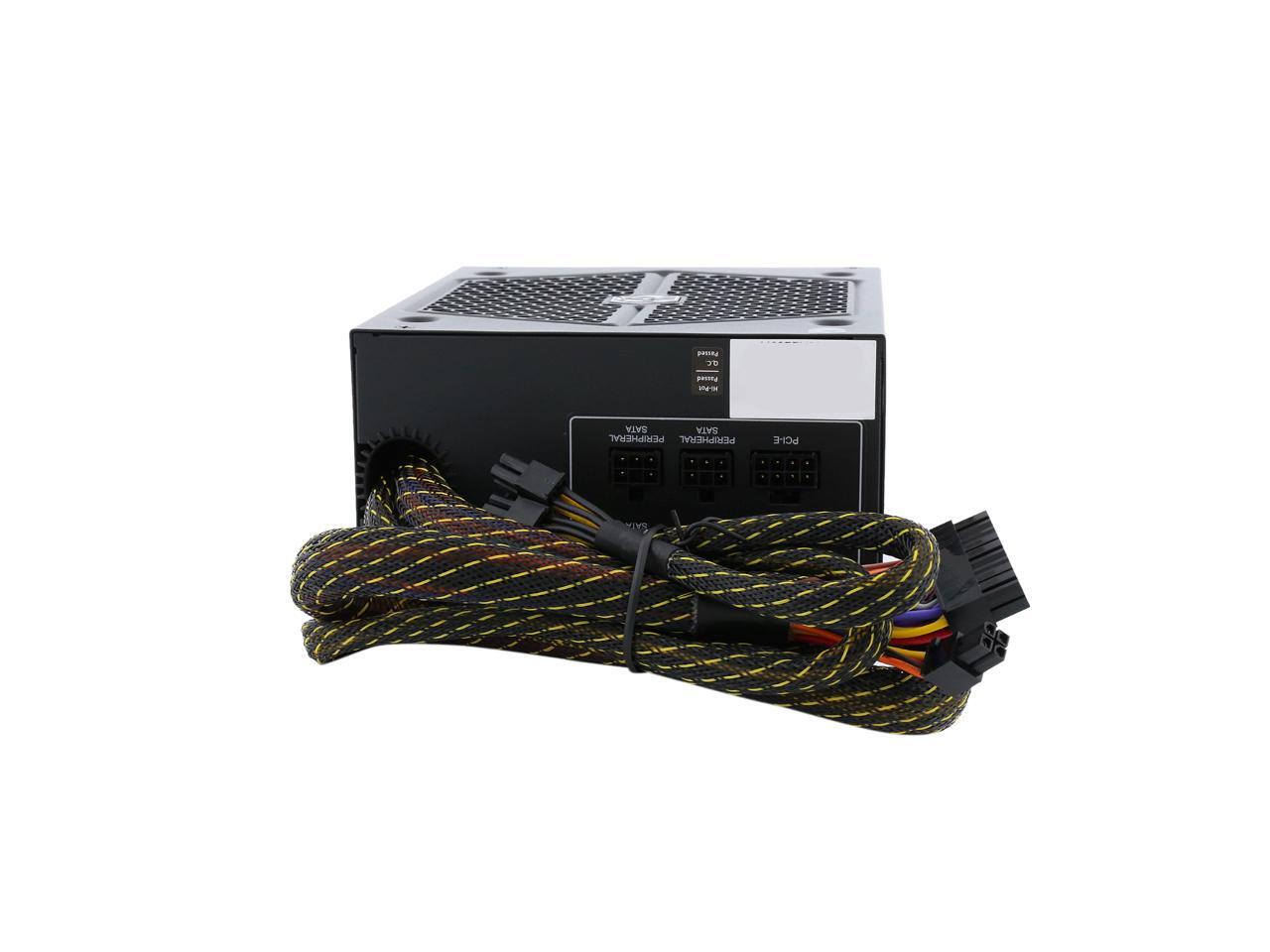

| Modular | Modular |
| Efficiency | up to 89.54% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |

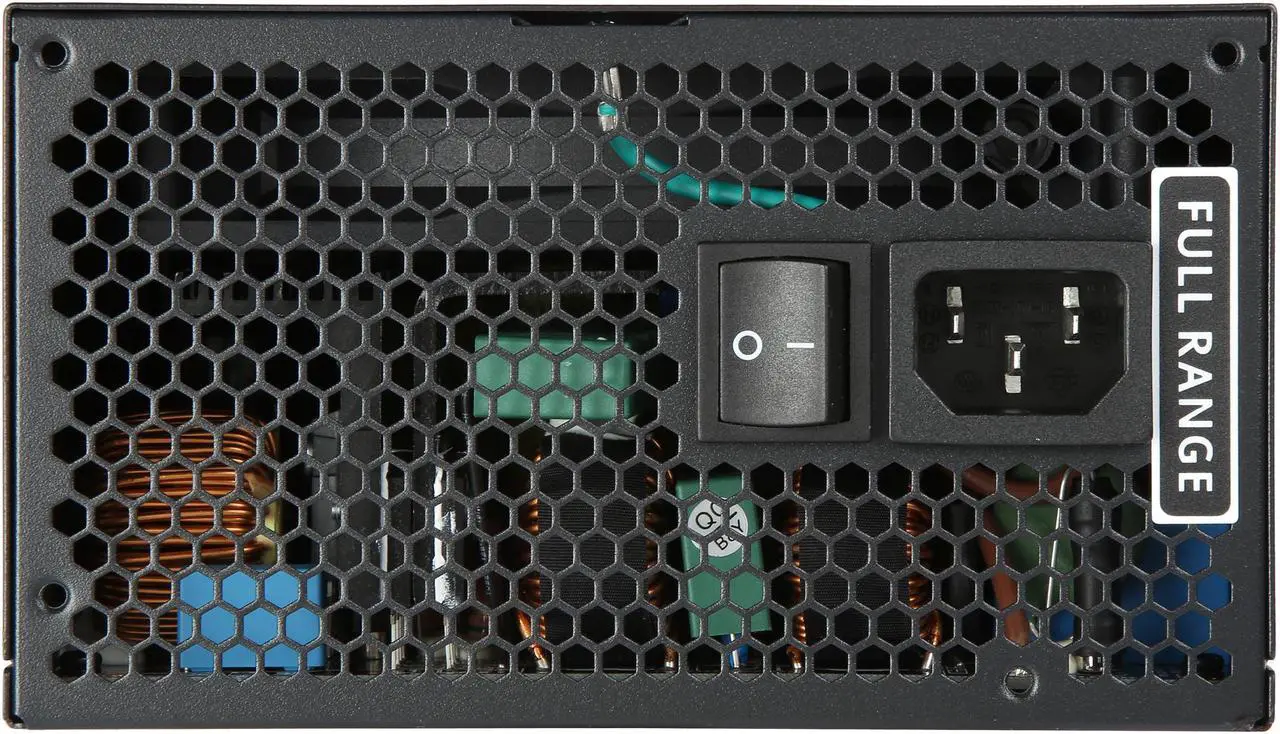

| Input Voltage | 110 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 15A |

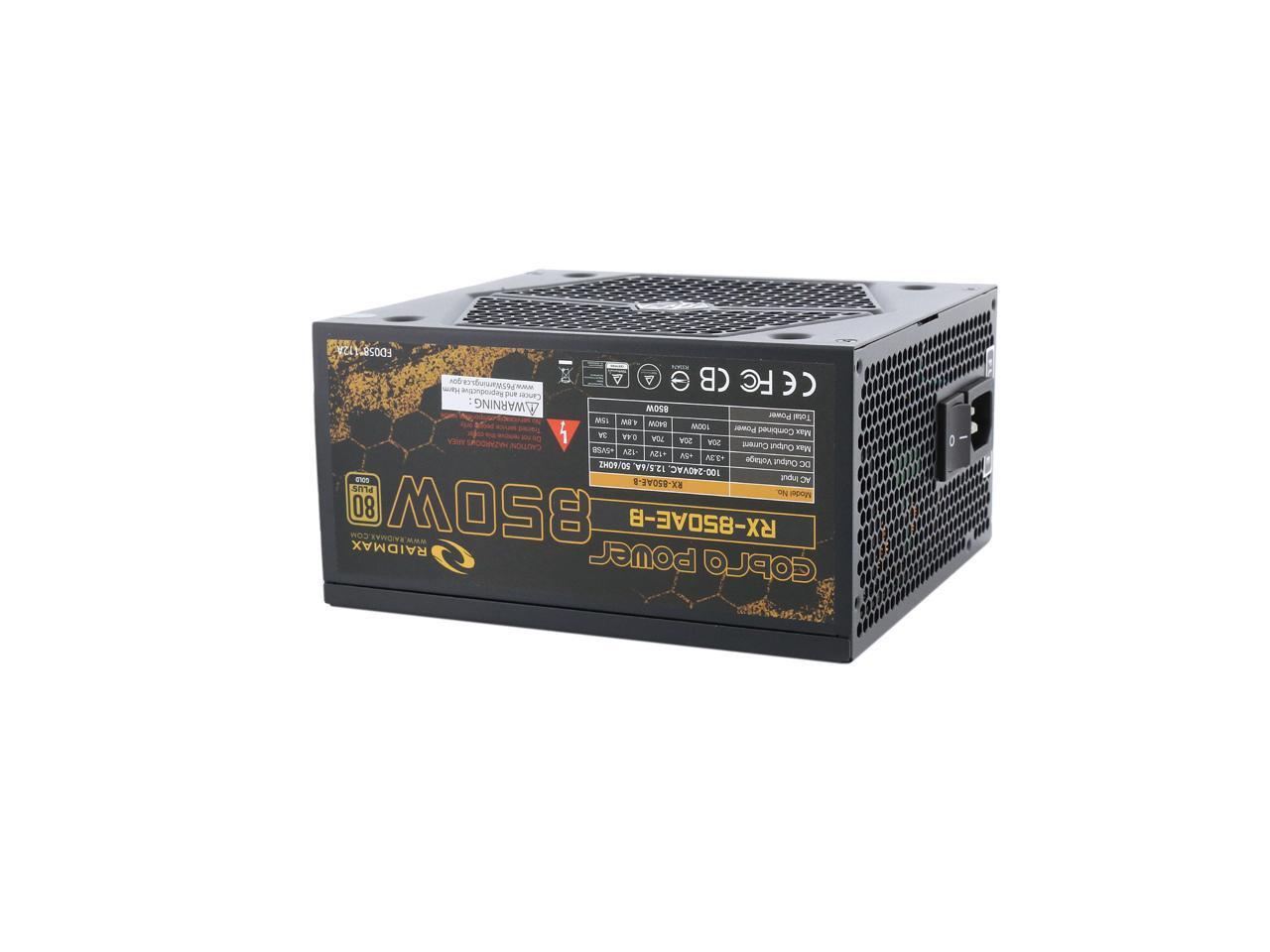

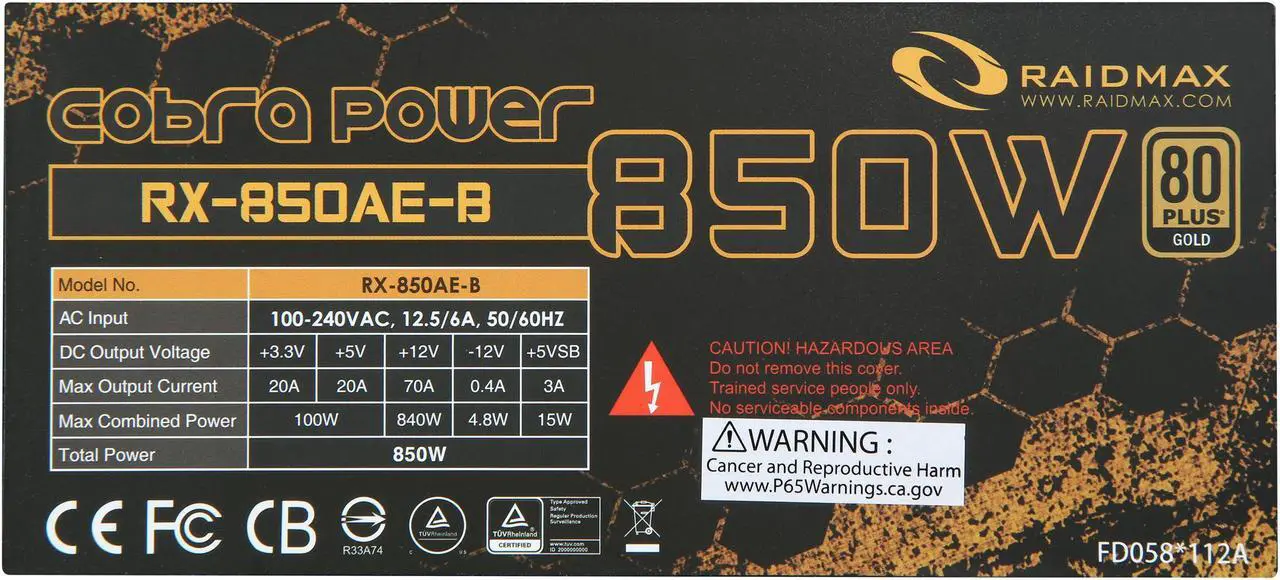

| Output | +3.3V@20A, +5V@20A, +12V@70A, [email protected] ,5VSB@3A |
| MTBF | >100,000 Hours |
| Approvals | FCC, CE, CB, BSMI, TUV, cTUVus |

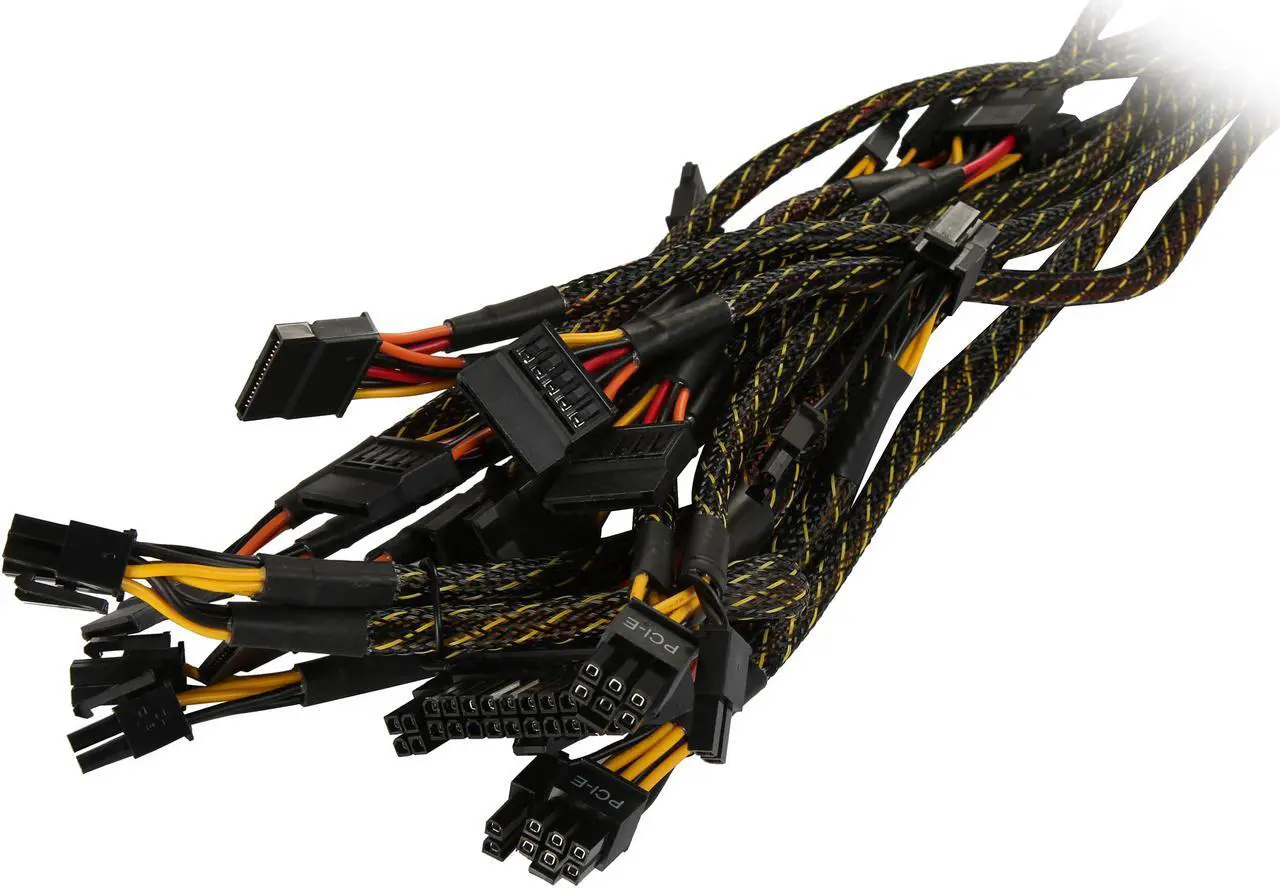

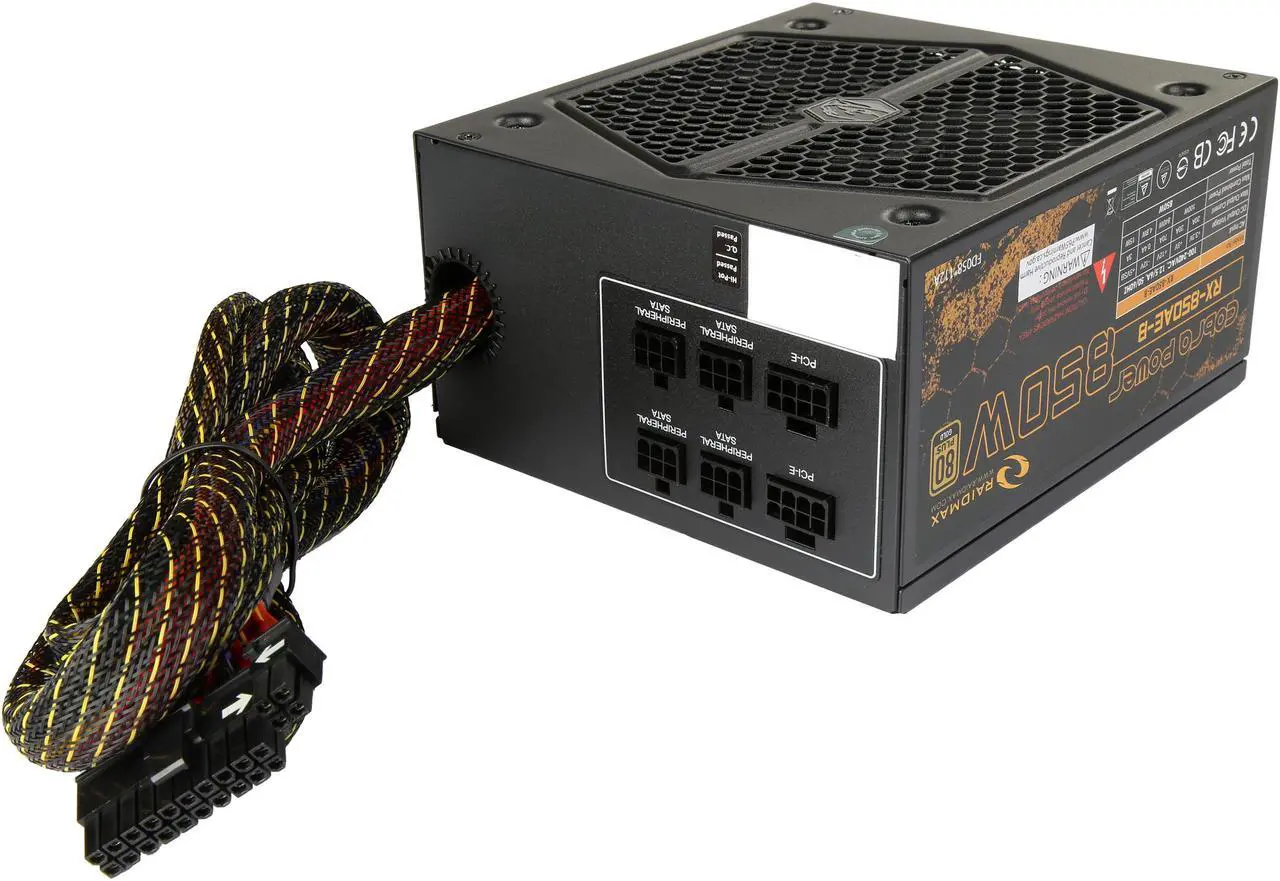

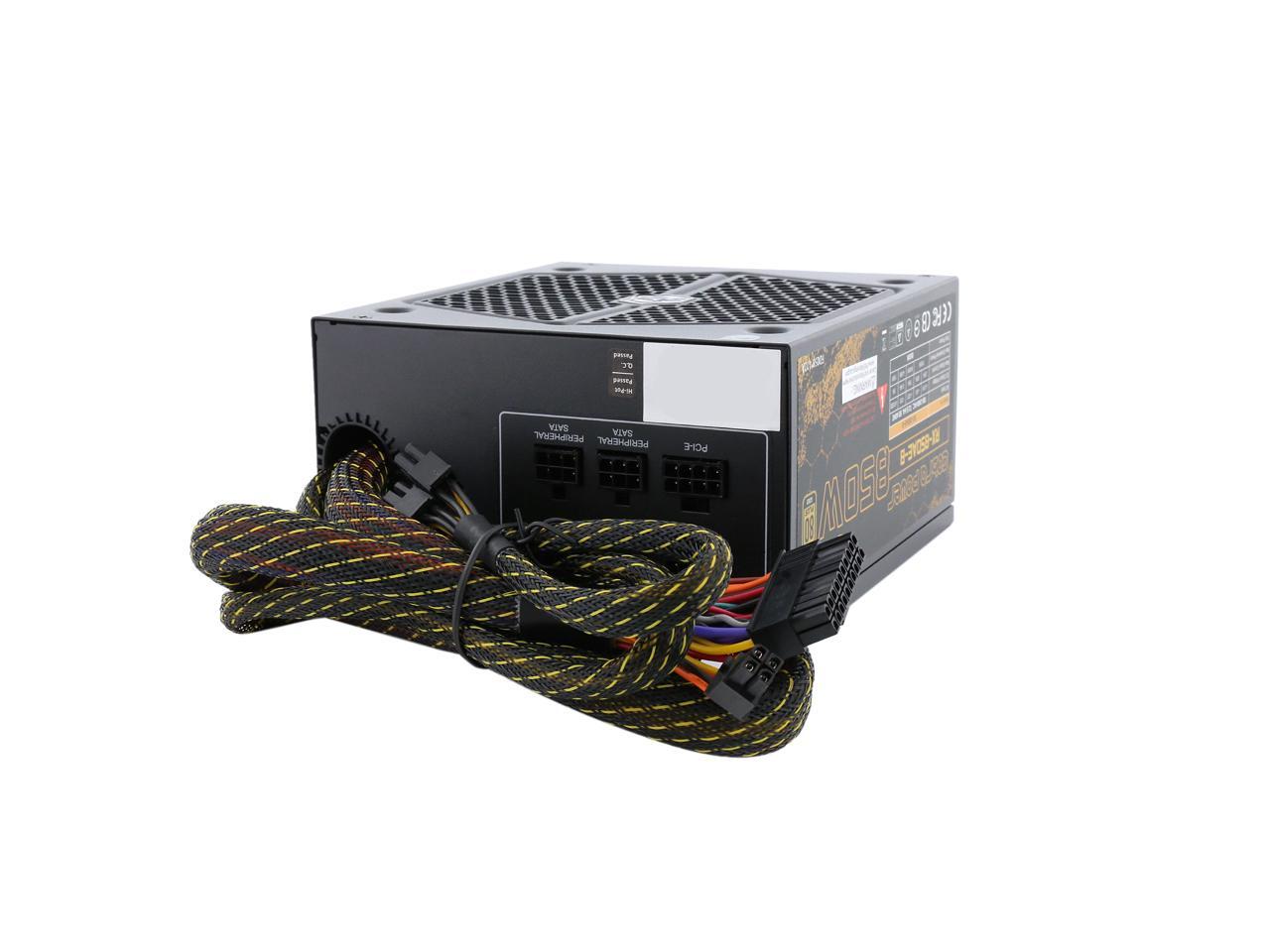

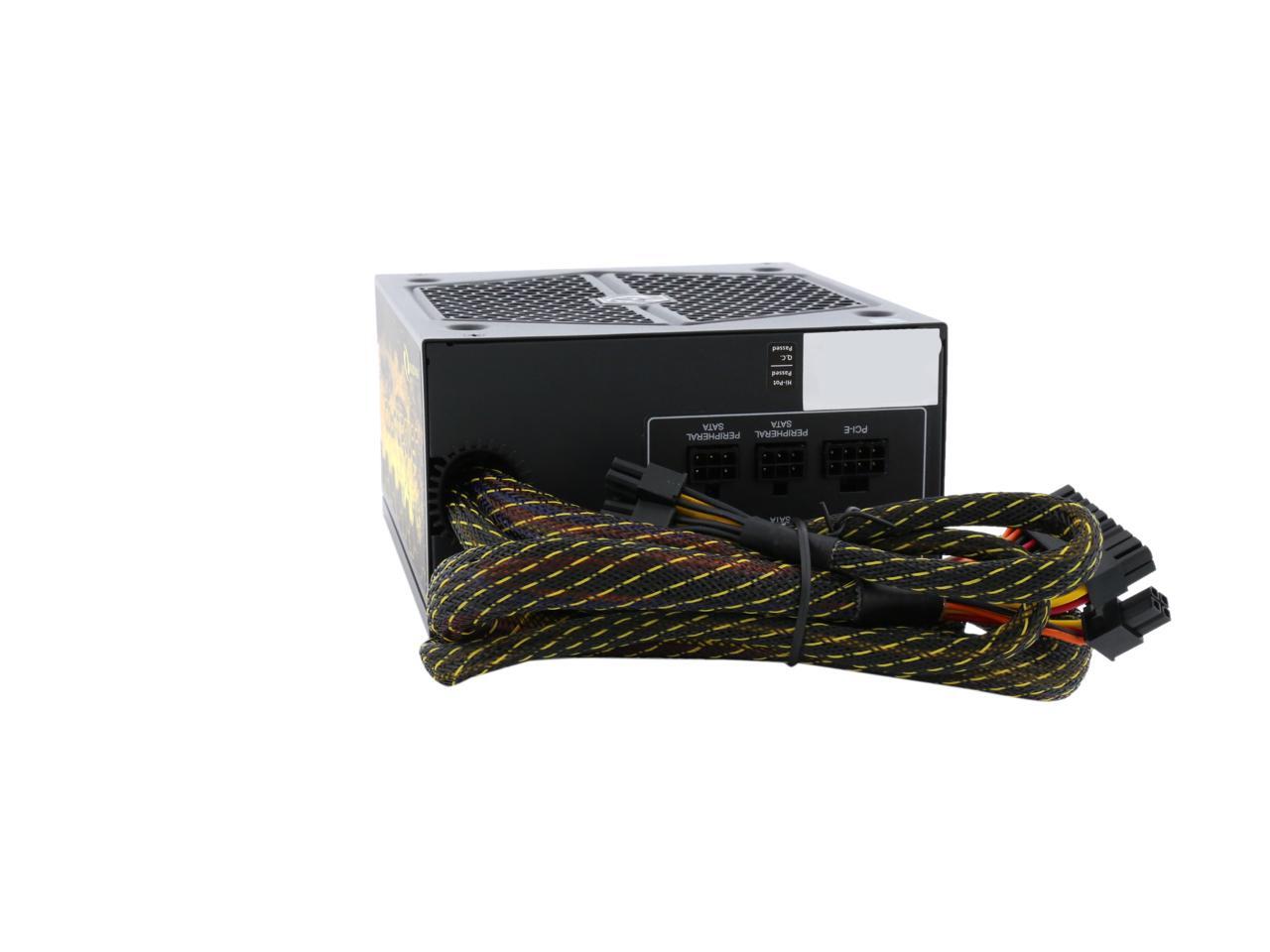

| Connectors | 1x 20+4-Pin Main Connector 1x 4+4-Pin ATX12V/EPS12V Connector 4 x 6+2-Pin PCI-E Connector 9 x 5-Pin SATA Connector 6 x 4-Pin Peripheral Connector 1 x 4-Pin Floppy Connector |
| Features | A strong single +12Vrail for high end system heavy load configuration provides stable and highly compatibility Modularized Cable design for easy cable management and improved airflow inside the case Honeycomb ventilation design for optimal heat dissipation 80 Plus Gold Certification guarantees more than 85% efficiency at typical loads Compliance with the latest EU ErP Direction Haswell Ready Stable voltage, low noise levels by thermal controlled 13.5 cm fan Low noise and voltage regulate DC output quality perfectly Industrial grade protection circuitry prevents damage resulting from SCP, OCP, OVP, UVP and OPP. |
|---|

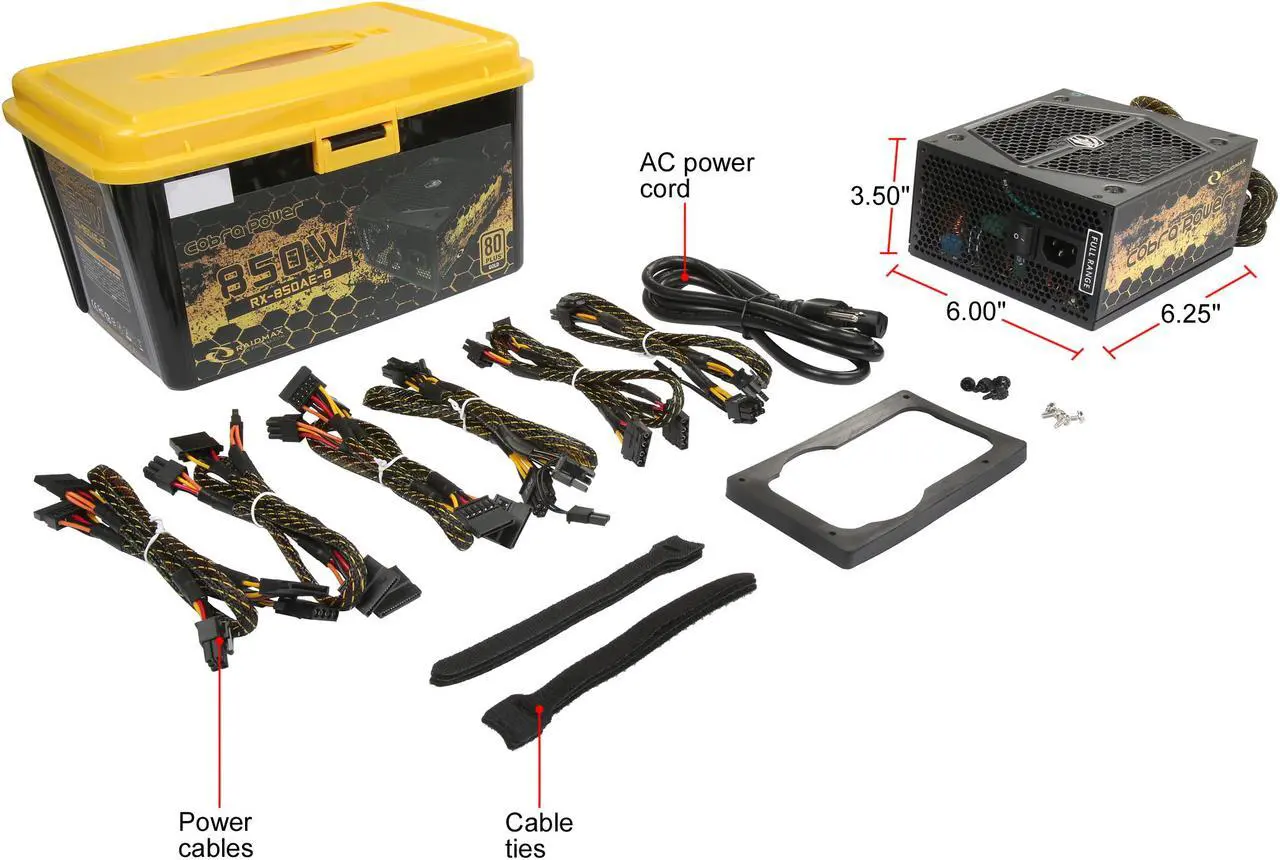

| Dimensions | 6.00" x 3.50" x 6.25" |
|---|---|
| Weight | 5.94 lbs. |
| Date First Available | October 24, 2017 |
|---|
