Question 1

Exactly how modular is this PSU? from the pictures, it looks like there are quite a few cables that cannot be removed

Accepted Answer

The motherboard power, molex, and satas are all seperate. I had some trouble with the satas because my case is tall and my parts are spread out, but it still works with a little slack.  The molex was fine though with extra slots and slack in it.

I'm not sure if any are removable but all the cables are together and it ends up being neat and easy to manage.  As you can see they just clip to the side of the psu to easily "store" them away.

Question 2

Is this compatible with a Dell Inspiron 560?

Accepted Answer

Yes, the Inspiron 560 is a standard ATC form factor, so any ATX power supply will be compatible.

Question 3

I took it right out of the box, plugged it in, flipped the switch, and nothing happened.  Expected?

Accepted Answer

Has it been installed and connected to the computer ?  I've never plugged in a PS, right out of the box,  You can lay it to the side, and make the necessary connection  , mother board, cpu, fans and test it.

Question 4

doe's it come with a red led ?

Accepted Answer

Negative. Blue LED only. The LED can be turned on/off independently.

Question 5

My son is wanting to run the Sapphire Nitro R7 370 with an I5 2400 (to be upgraded later) with this PS.  Will the PCI/e provide enough watts for the card, which is rated at 75W?

Accepted Answer

Thank you for the responses.  I think we're okay power wise.  He'll only have the CPU, 2 sticks memory and a SSD, besides the card.  I am trying to figure this part out:  the side of the case lists 514 watts for one set of cables, and 16watts for another set, total 530.

Which set of cables is supposed to only be carrying 16watts?

One cable ends in a red connector, which matches a cable with red connectors marked PCIe.  I'm assuming this is powered from the main rail, since the new video cards pull so much power.

Thanks for all the responses.

Question 6

Will this fit in a NZXT Technologies Source 210 Computer Case with a 970A-D3P Motherboard?

Accepted Answer

This is a standard size PSU. If your power supply is about 6" x 3" x"3", it should fit. I used it in an HP minitower.

Question 7

I'm wondering if this thing is able to run a Intel i5 4760k with a mild overclock and a r9 270x with default overclock?

Accepted Answer

It will, not well though, go for 600 watt corsair or thermaltake or one of the other big guys, i recommend this for milder builds

Question 8

will this fit in my HP pavilion?

Accepted Answer

In a Laptop obviously not but for the Desktop line, in most cases it will fit just fine.  As I don't know what model you have one can't be 100% sure but the odds are it will fit.

Question 9

Will this work with BIOSTAR Hi-Fi A85S3 Micro ATX AMD Motherboard?

Accepted Answer

In the future just look for the main power connector type (24-pin) and match to your Mobo (most will do fine).

Question 10

My PC Pwer supply has model #EP-43057 and rating 115V and 10 Amp. Can this Raidmax RX-530SS 530 W replace my old power supply ?
pradip

Accepted Answer

I do not know, as I do not have your model EP-43057.
I was looking for a hybrid system that accommodate the new SATA and the old IDE. This is a Hybrid.

Brand	RAIDMAX
Series	Hybrid II series
Model	RX-530SS

Type	ATX 12V v2.3/EPS 12V
Maximum Power	530 W

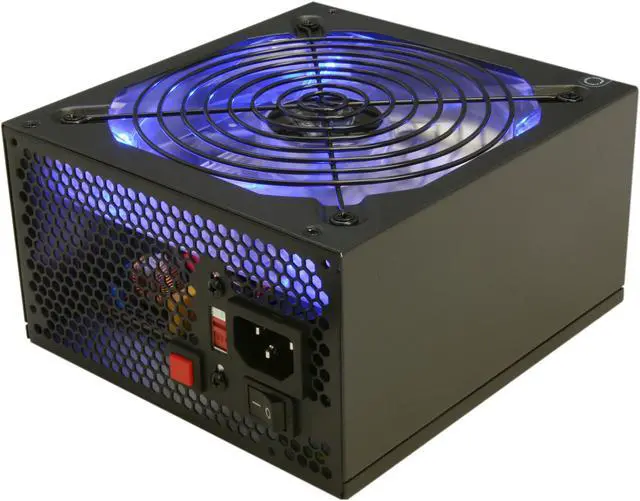

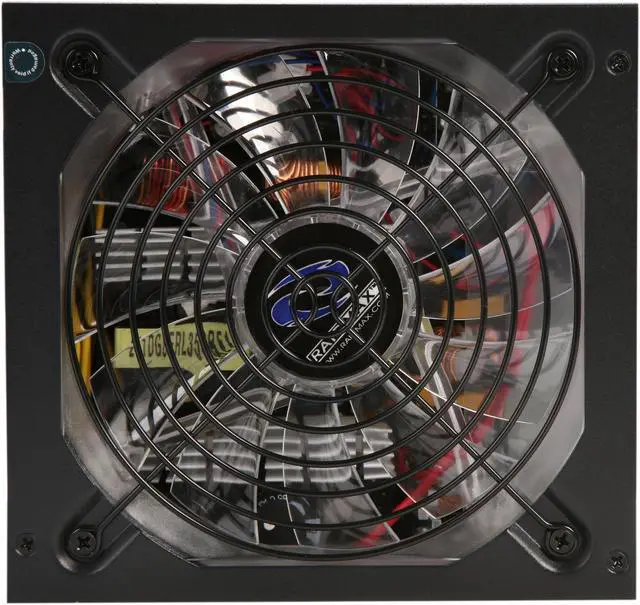

Fans	1 x 135mm Blue Glowing LED Fan
PFC	Active

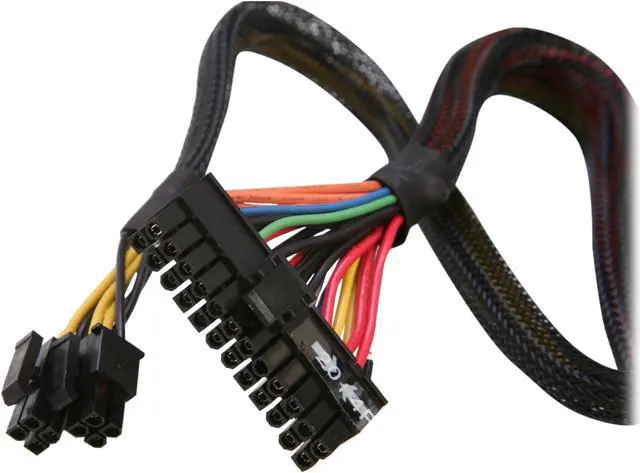

Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	6
SLI	SLI Ready
Haswell Support	Yes
CrossFire	CrossFire Ready
Max PSU Length	159 mm
Modular	Semi-Modular
Efficiency	up to 85.74%
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Overload Protection	Yes
Input Voltage	115 / 230 V
Input Frequency Range	47 - 63 Hz
Input Current	8 - 4 A
Output	+3.3V@20A, +5V@20A, +12V@38A, [email protected] , [email protected]
MTBF	>100,000 Hours
Approvals	FCC, CE, CB, BSMI, TUV, cTUVus

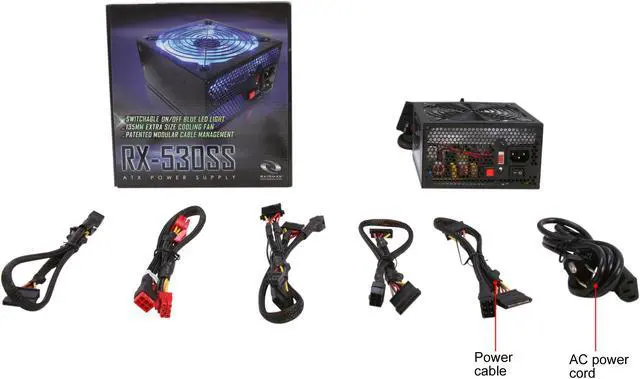

Connectors	1 x 20+4-Pin Main Connector 1 x 4+4-Pin ATX12V/EPS12V Connector 2 x 6+2-Pin PCI-E Connector 6 x 5-Pin SATA Connector 3 x 4-Pin Peripheral Connector 1 x 4-Pin Floppy Connector

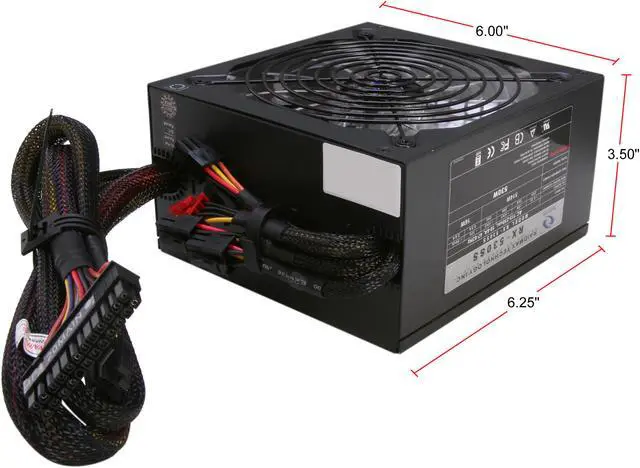

Dimensions	3.50" x 6.00" x 6.25"
Weight	5.94 lbs.

RAIDMAX HYBRID 2 RX-530SS 530W ATX12V V2.2/ EPS12V SLI Ready CrossFire Ready Modular Power Supply, New Version with Build-in LED Fan On/Off Switch

Raidmax RX-530SS 530W PSU

Features

Images

Learn more about the Raidmax RX-530SS

Customer Reviews of the Raidmax RX-530SS

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Item#: N82E16817152028
