RAIDMAX RX-535AP 535W ATX 12V v2.3/EPS 12V SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Modular Power Supply

OUT OF STOCK.
  • ATX 12V v2.3/EPS 12V
  • Modular
  • 80 PLUS BRONZE Certified
  • 110 - 240 V 47 - 63 Hz
  • +3.3V@16A, +5V@16A, +12V@36A, -12V@0.3A ,5VSB@2.5A
Overview
Specs
Reviews

The Raidmax RX-535AP Power Supply is ideal for value-conscious users. 80 PLUS Bronze certification ensures up to 87.55% power efficiency to reduce power consumption, and saves you money on your electric bill. The full modular design allows for easy cable management and keeps the interior of your case neat. The optimized 135mm blue LED fan ensures silent cooling. Two 6 + 2-pin PIC-E connectors allow you to install a high-end graphics card. Six five-pin SATA connectors are for your drives, and three four-pin peripheral connectors are for other peripherals. Industrial-grade protection circuitry prevents damage resulting from SCP, OVP, UVP, and OPP.

Features

RX-535AP


  • Modularized Cable design for easy cable management and improved airflow inside the case.
  • Environmentally friendly technology reduces the loss of electricity and saves you money on electricity bills while increasing efficiency

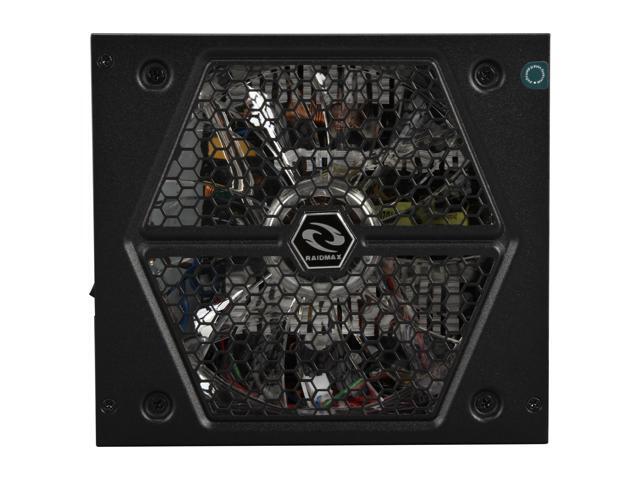

  • Optimized Silent Design 135mm Blue LED Fan maximizes the airflow and minimizes the noise.
  • Industrial grade protection circuitry prevents damage resulting from SCP, OVP, UVP, OPP.
  • 80 PLUS Bronze Certified for energy saving.

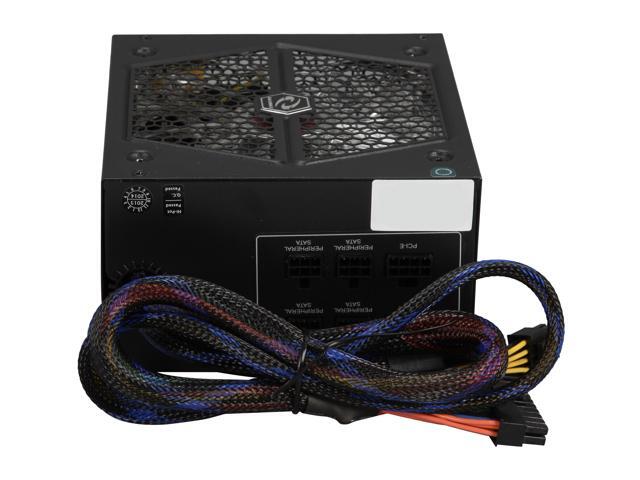

  • Black and blue color twisted fishnet cable.
SPECIFICATIONS

Model

RX-535AP

DC Output: +3.3V +5V +12V -12V +5VSB
Max. Output Current: 16A 16A 36A 0.3A 2.5A
Max. Combined Power: 100W 432W 3.6W 12.5W
Total Power: 535W
CONNECTORS
CONNECTORS

MB 20 + 4-Pin
x 1

CONNECTORS

CPU 4 + 4-Pin
x 1

CONNECTORS

PCI-E 6 + 2-Pin
x 2

CONNECTORS

SATA
x 6

CONNECTORS

Molex 4-Pin
x 3

CONNECTORS

Aux.
x 1
