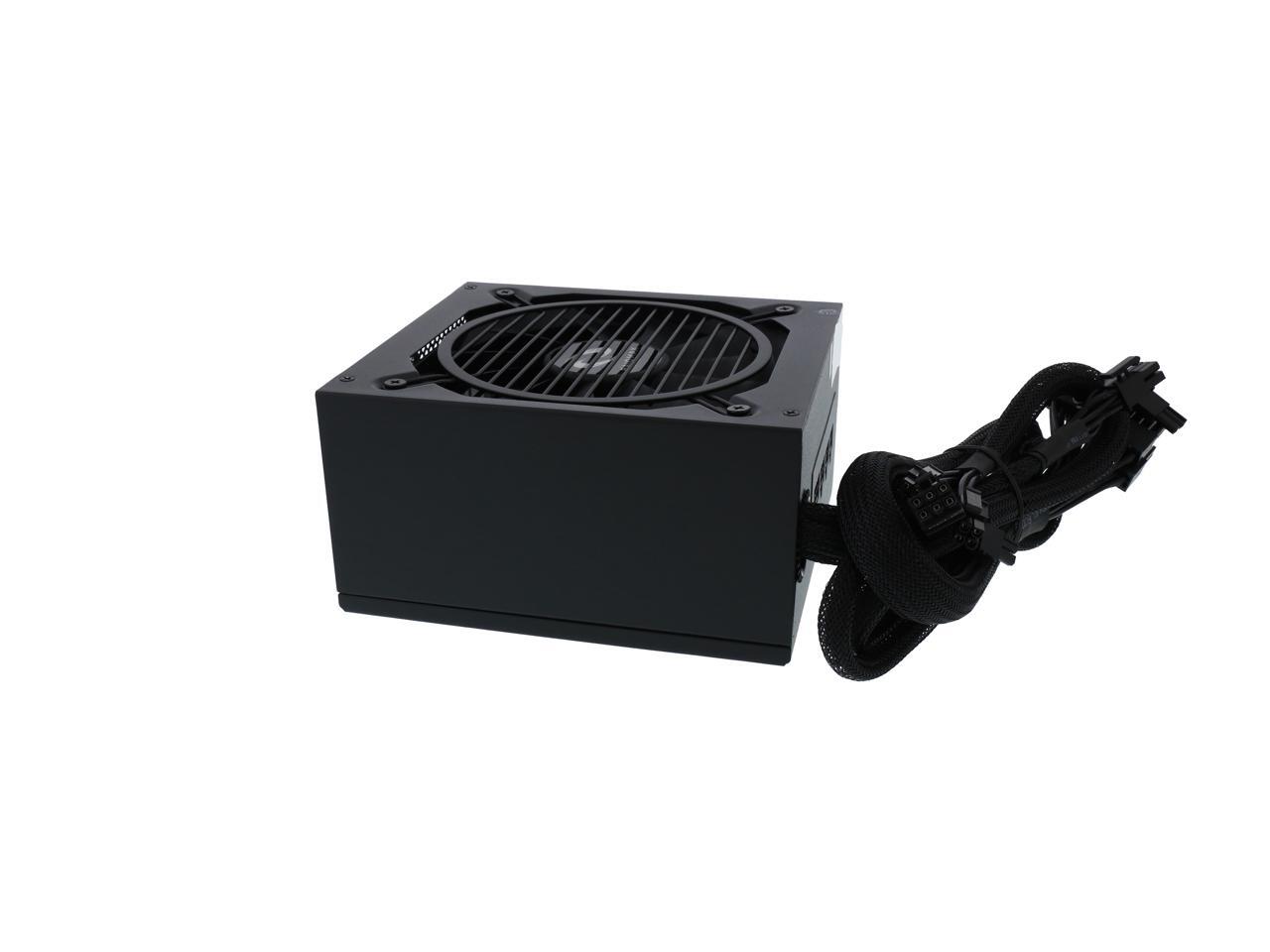

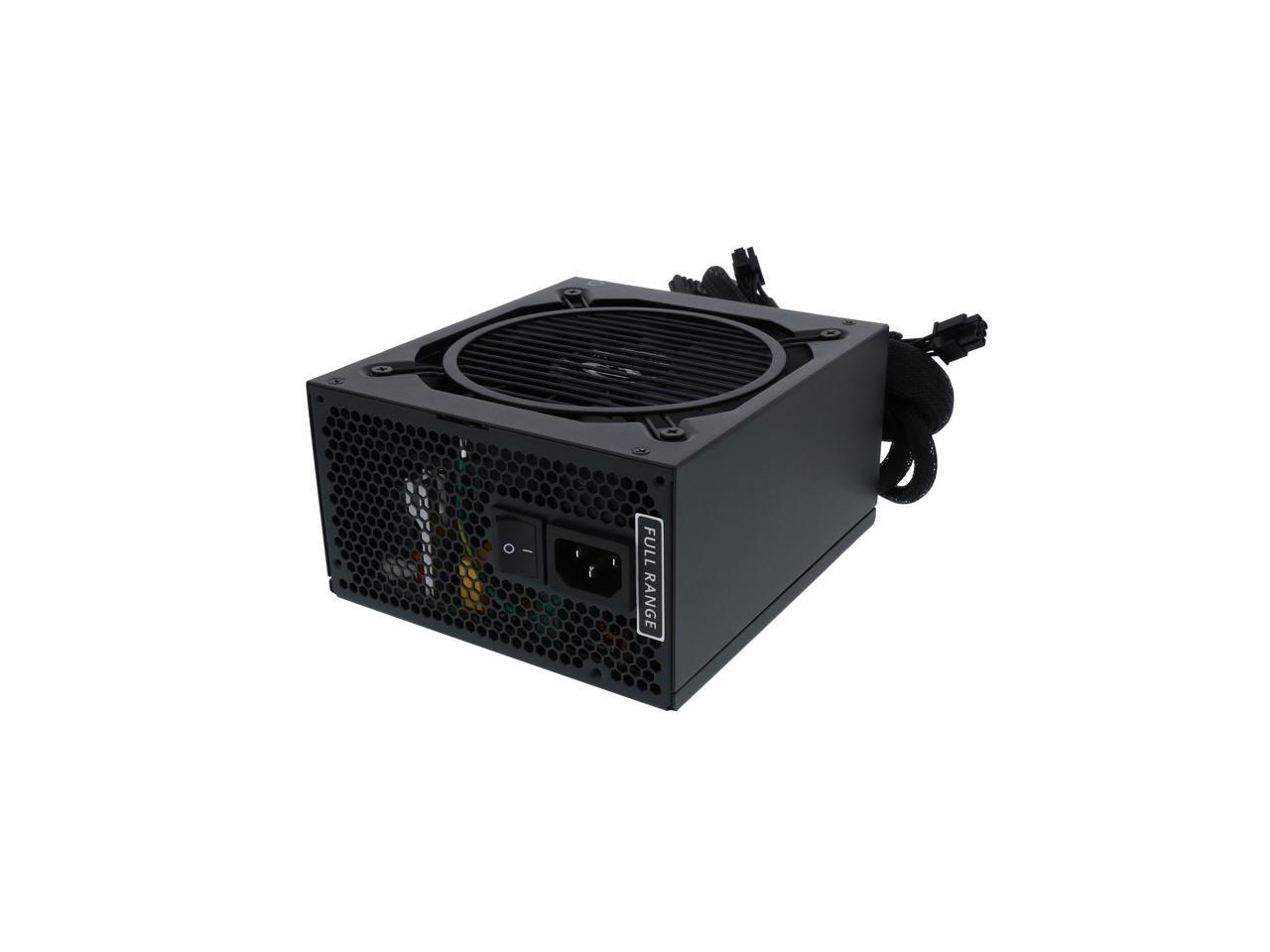

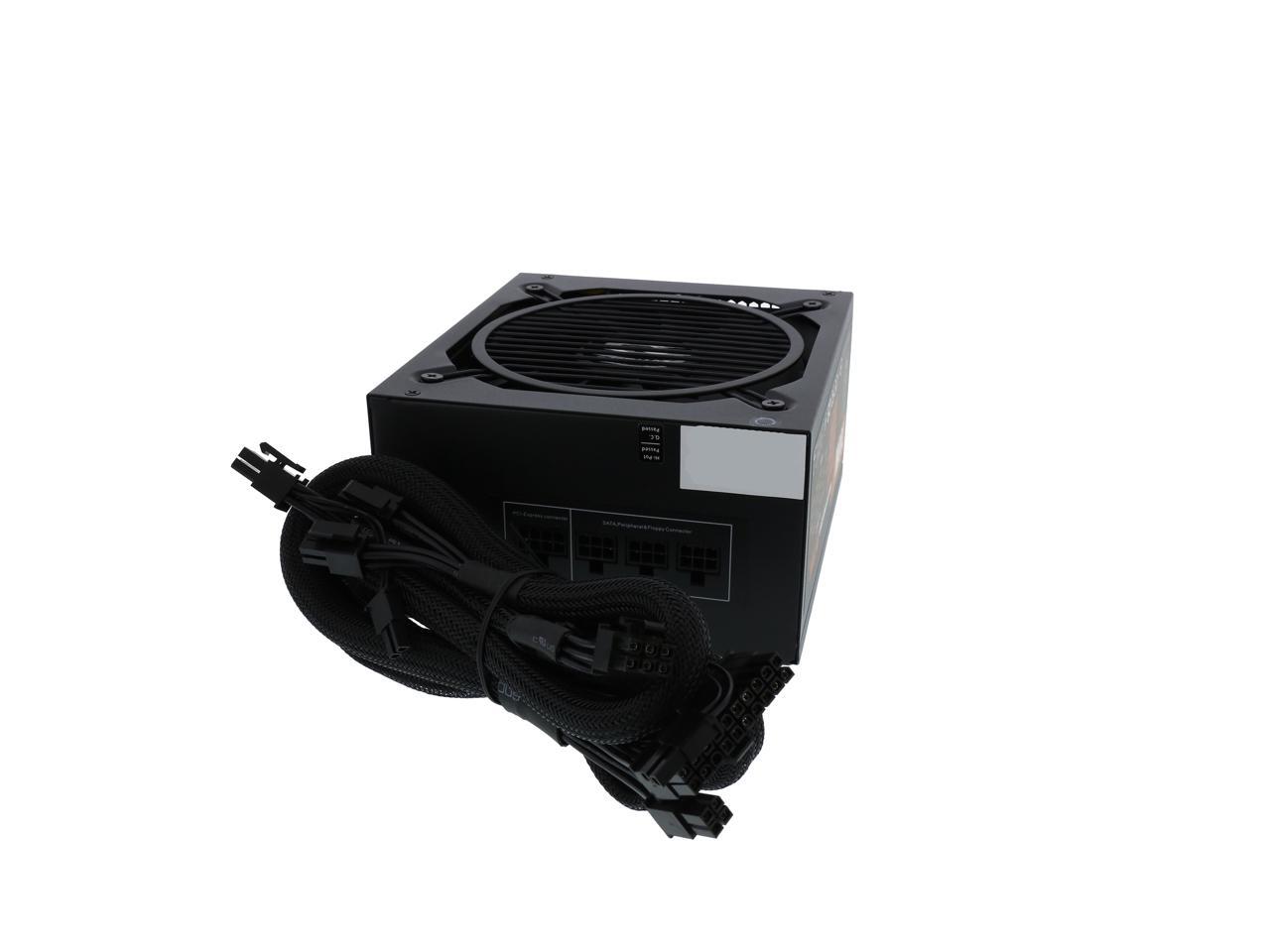

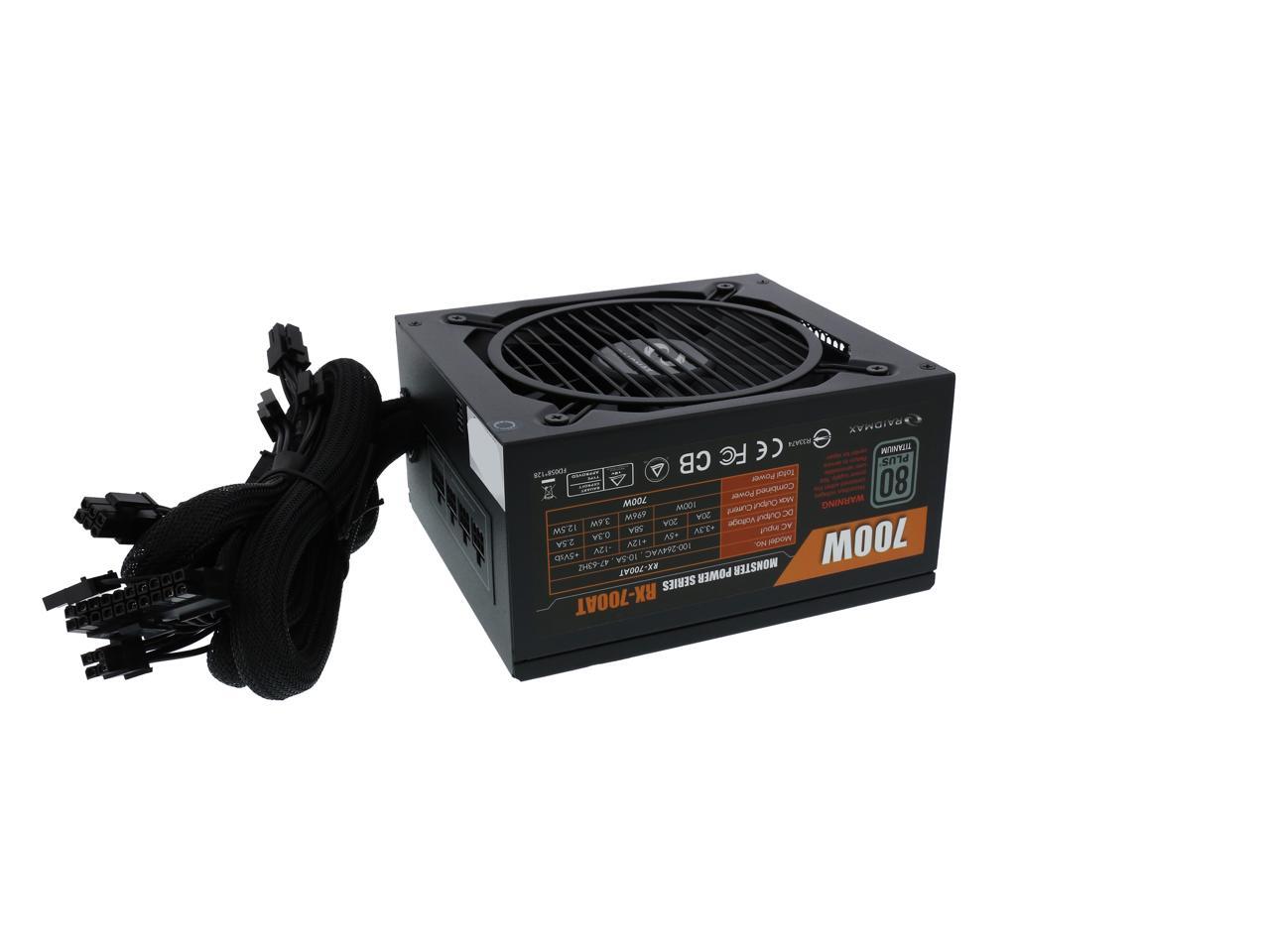

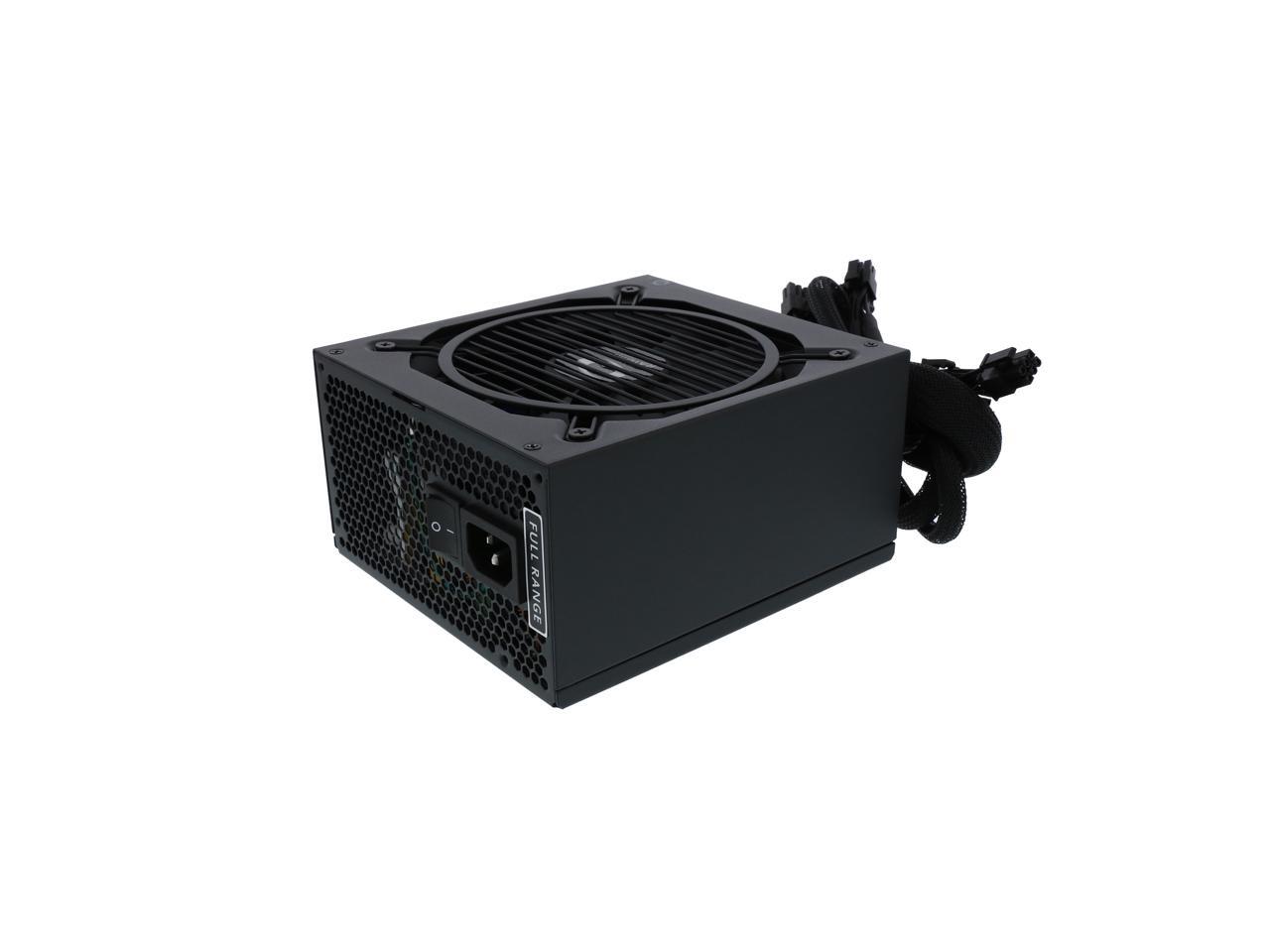

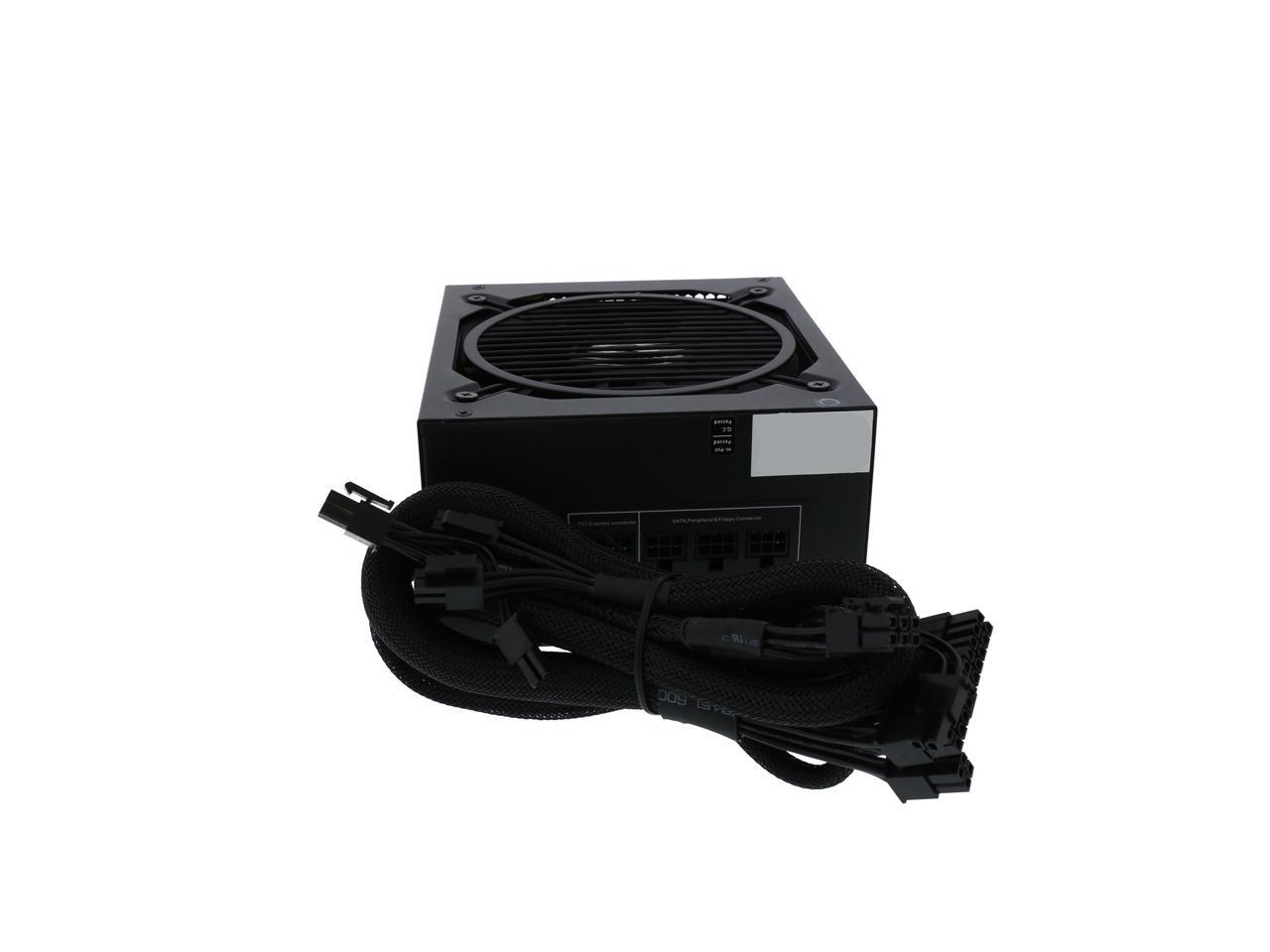

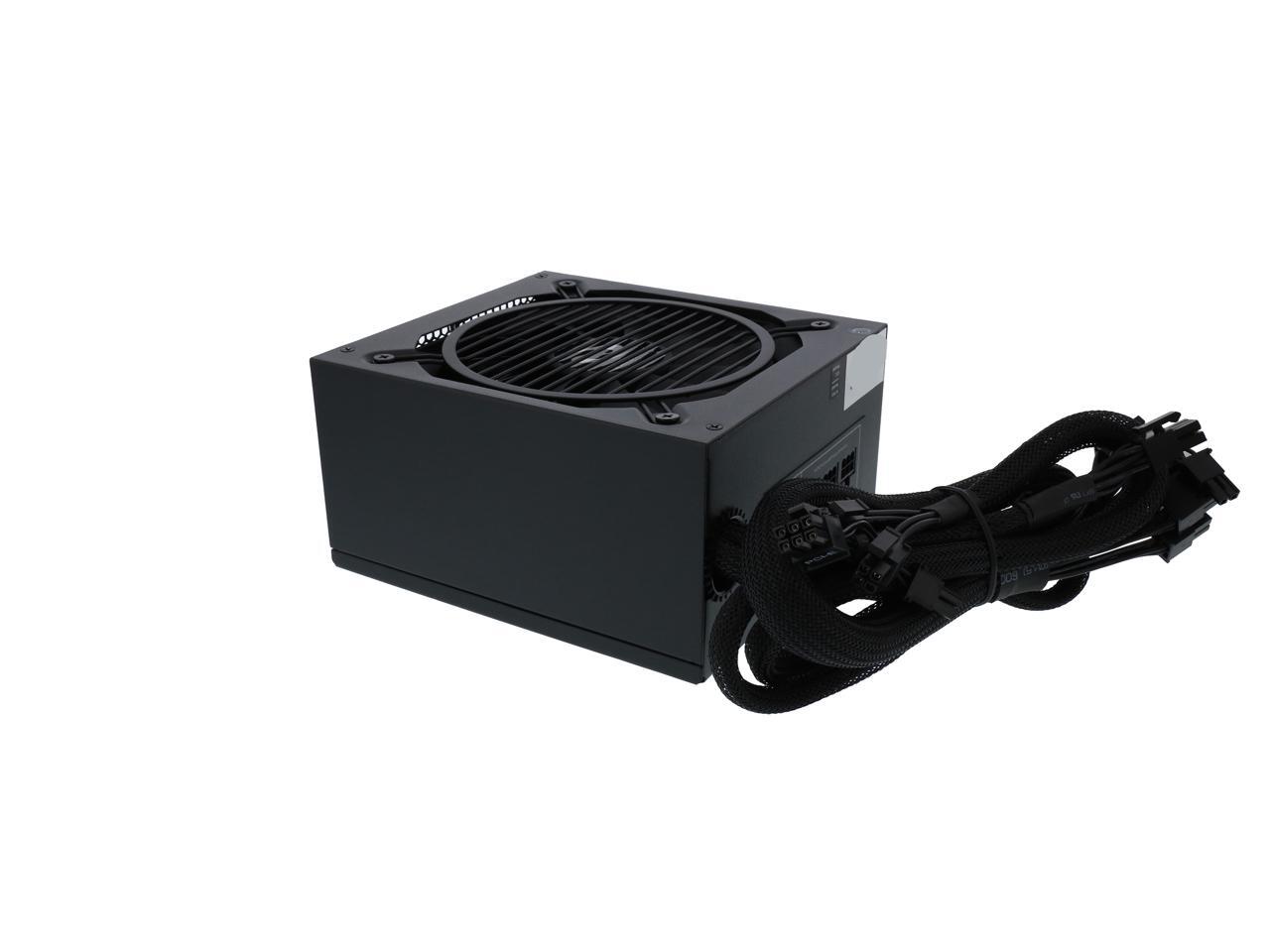

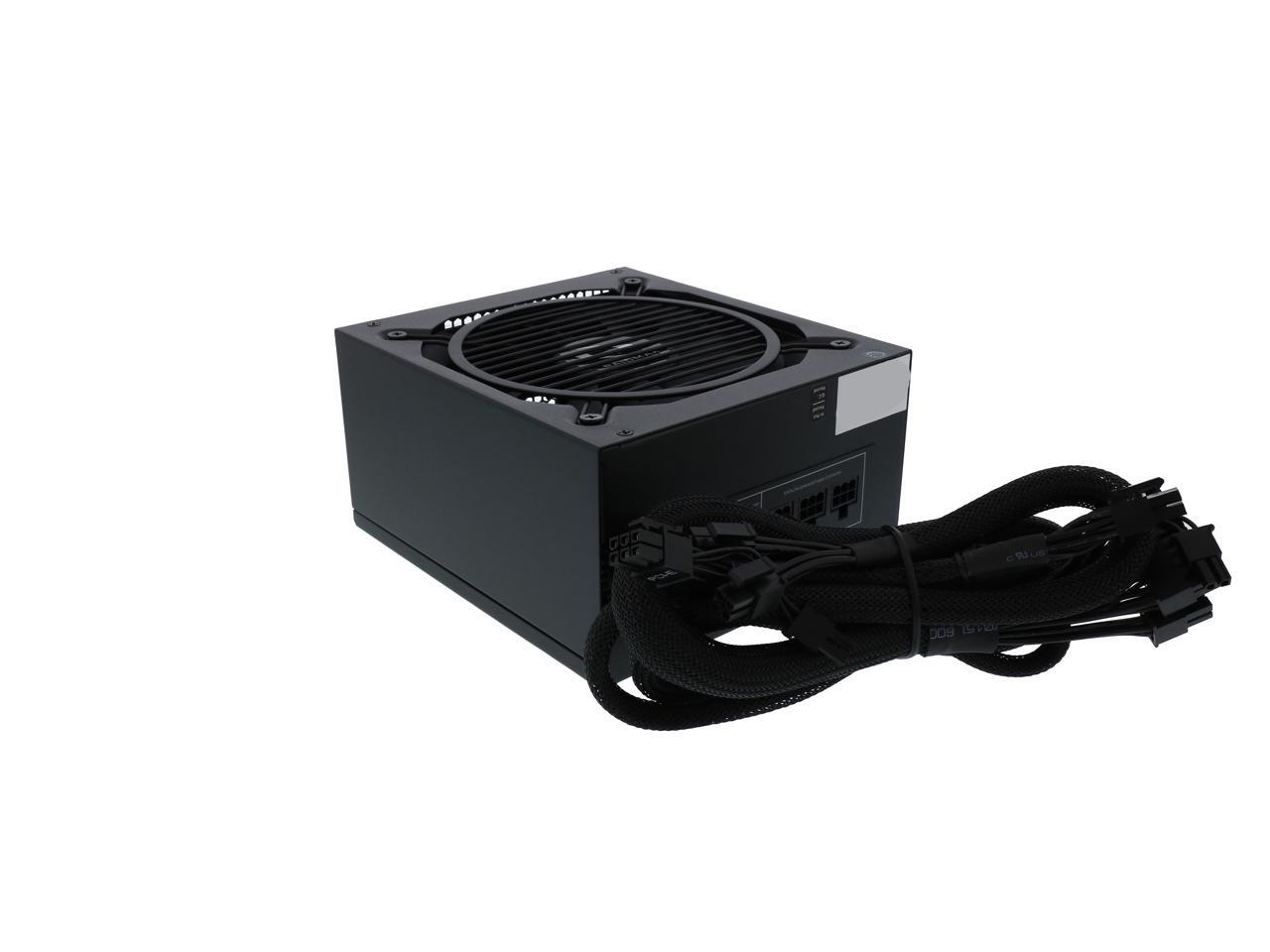

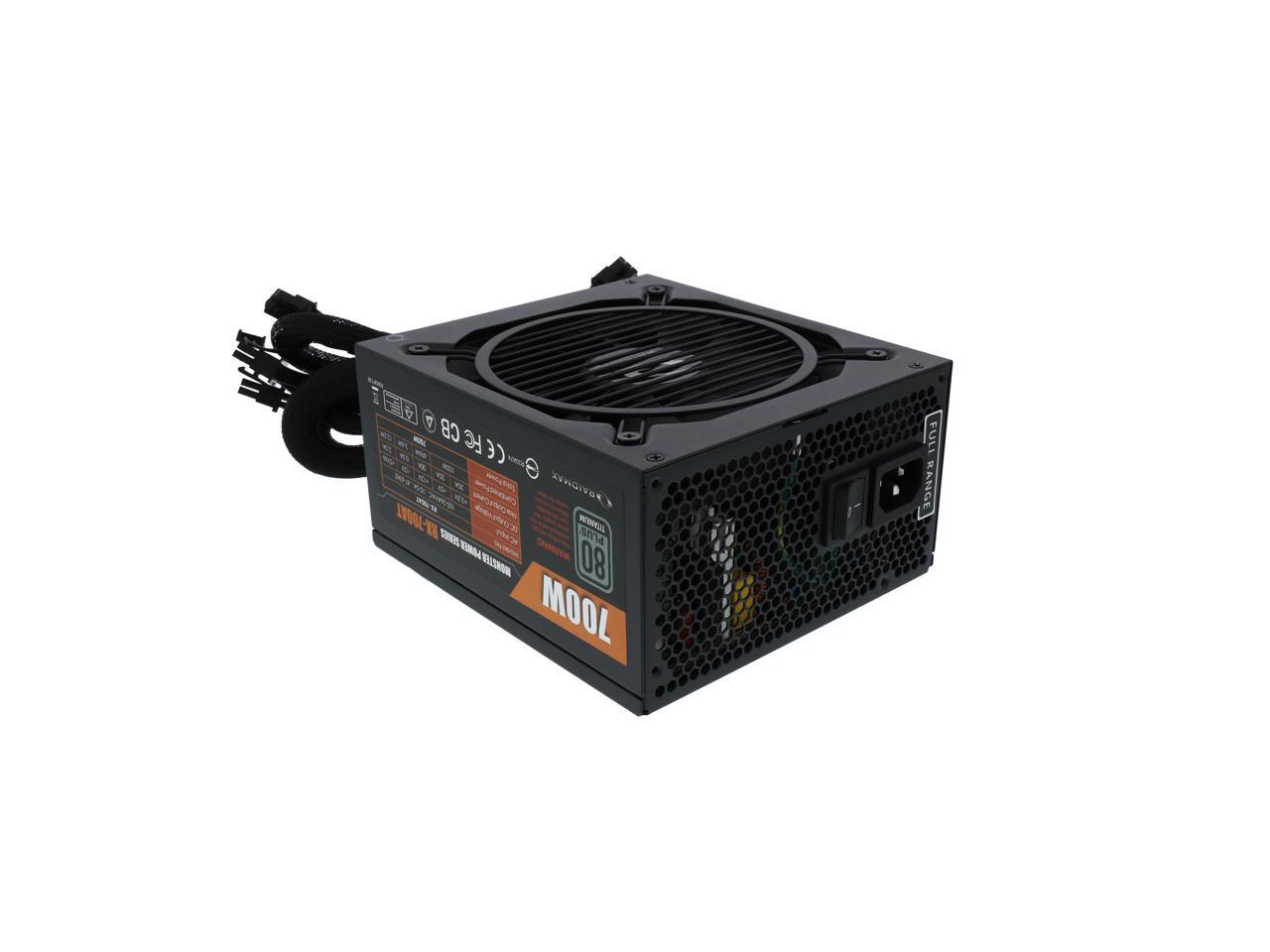

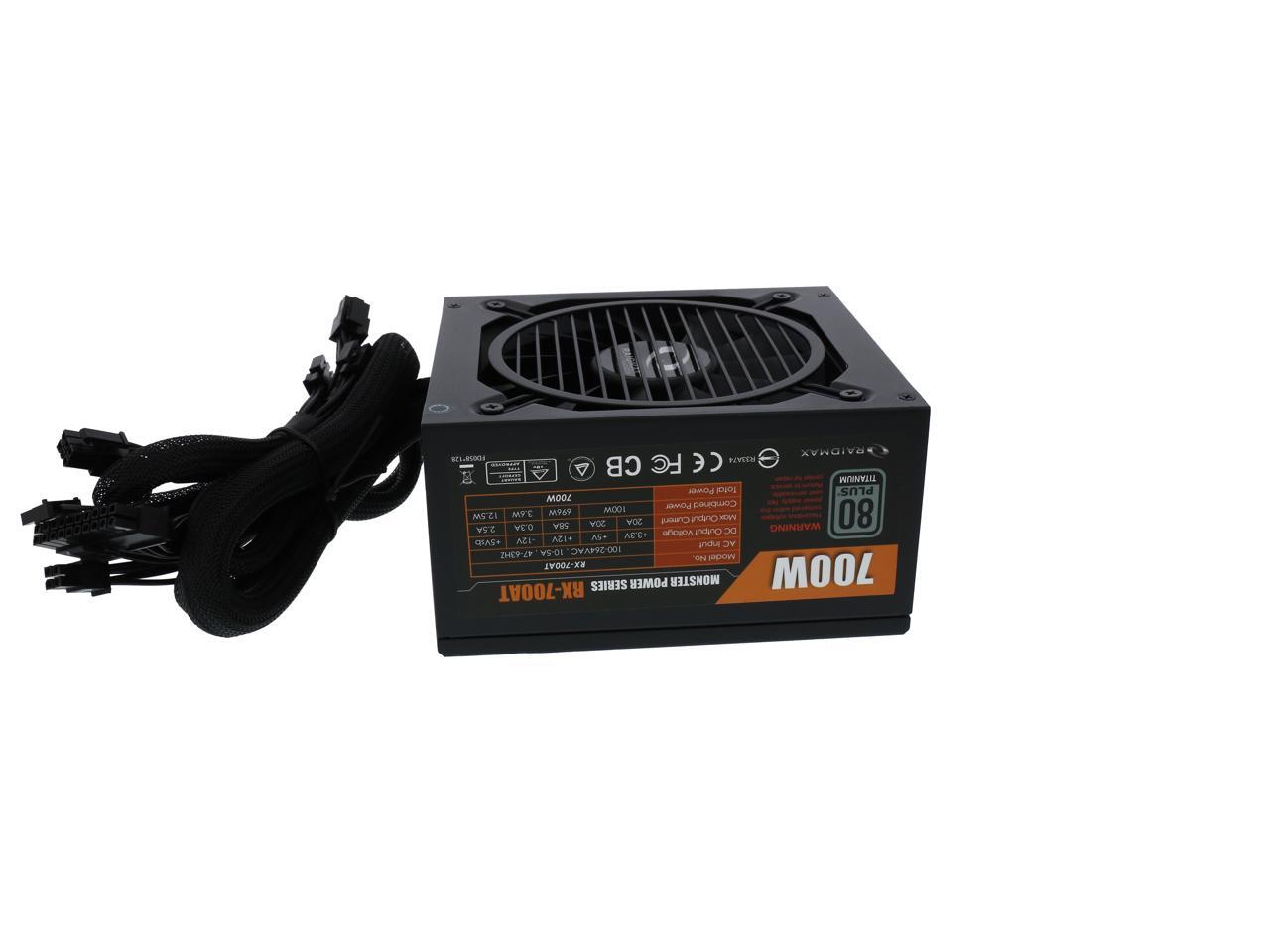

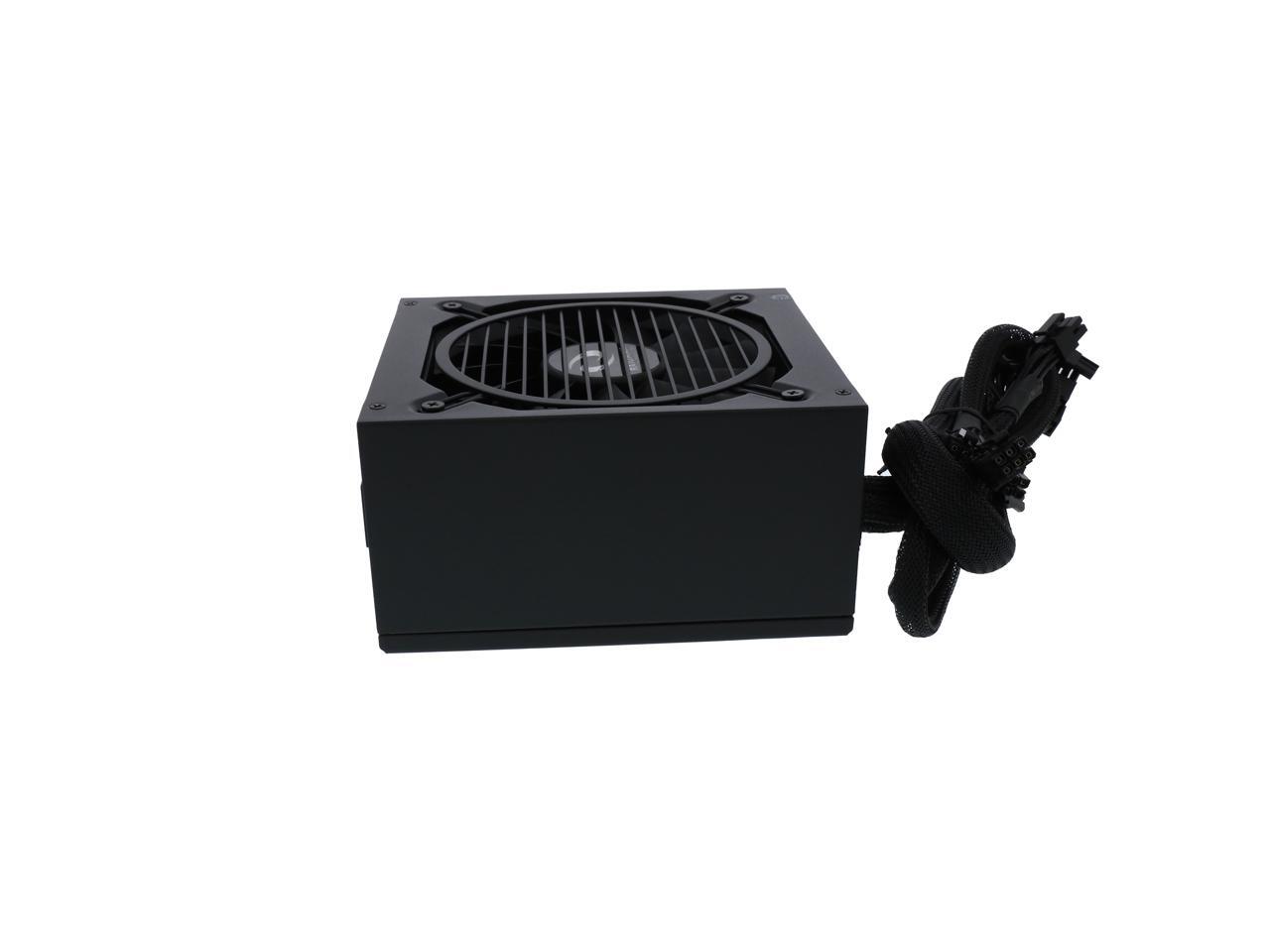

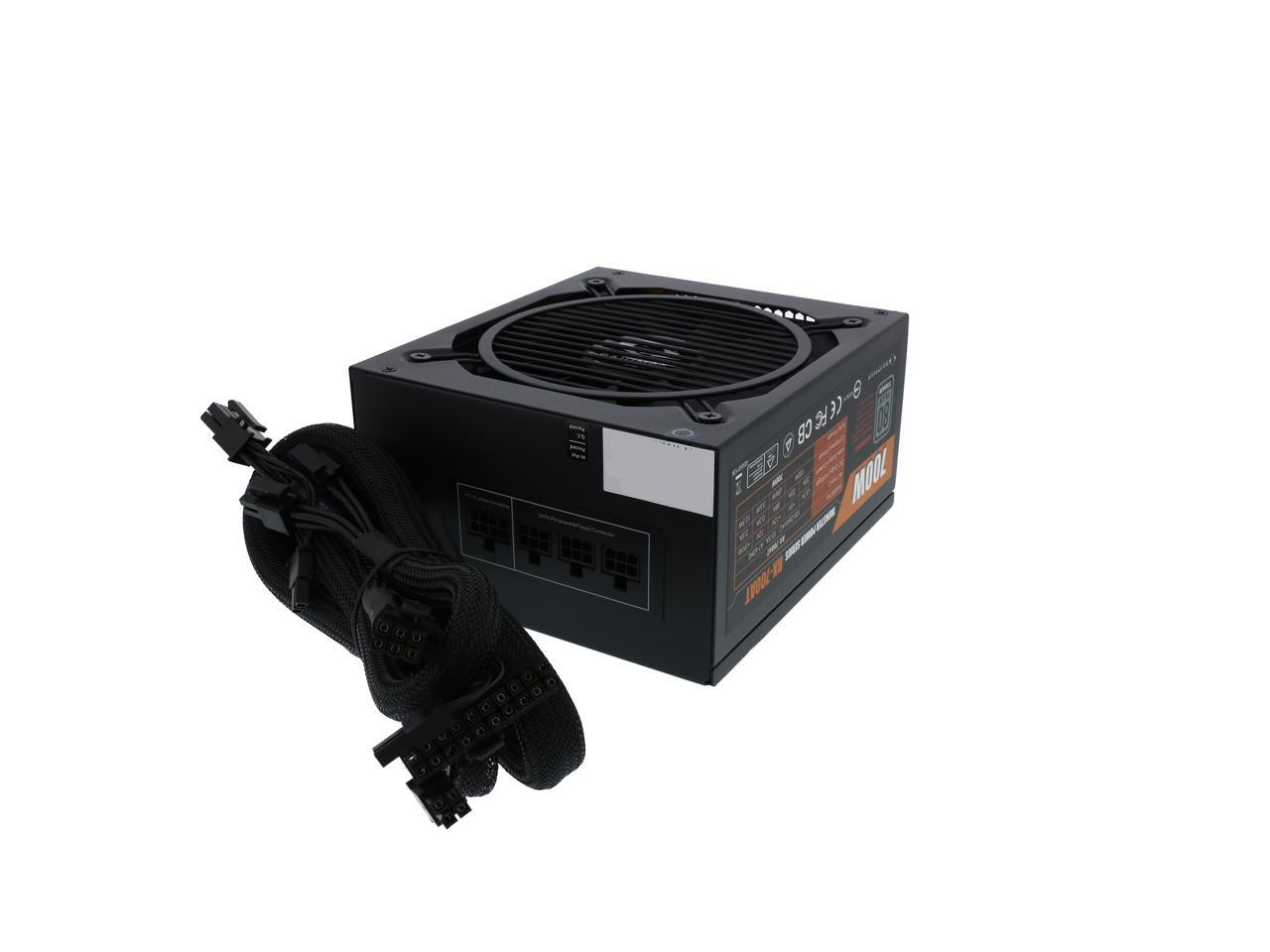

Main image of RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

100%

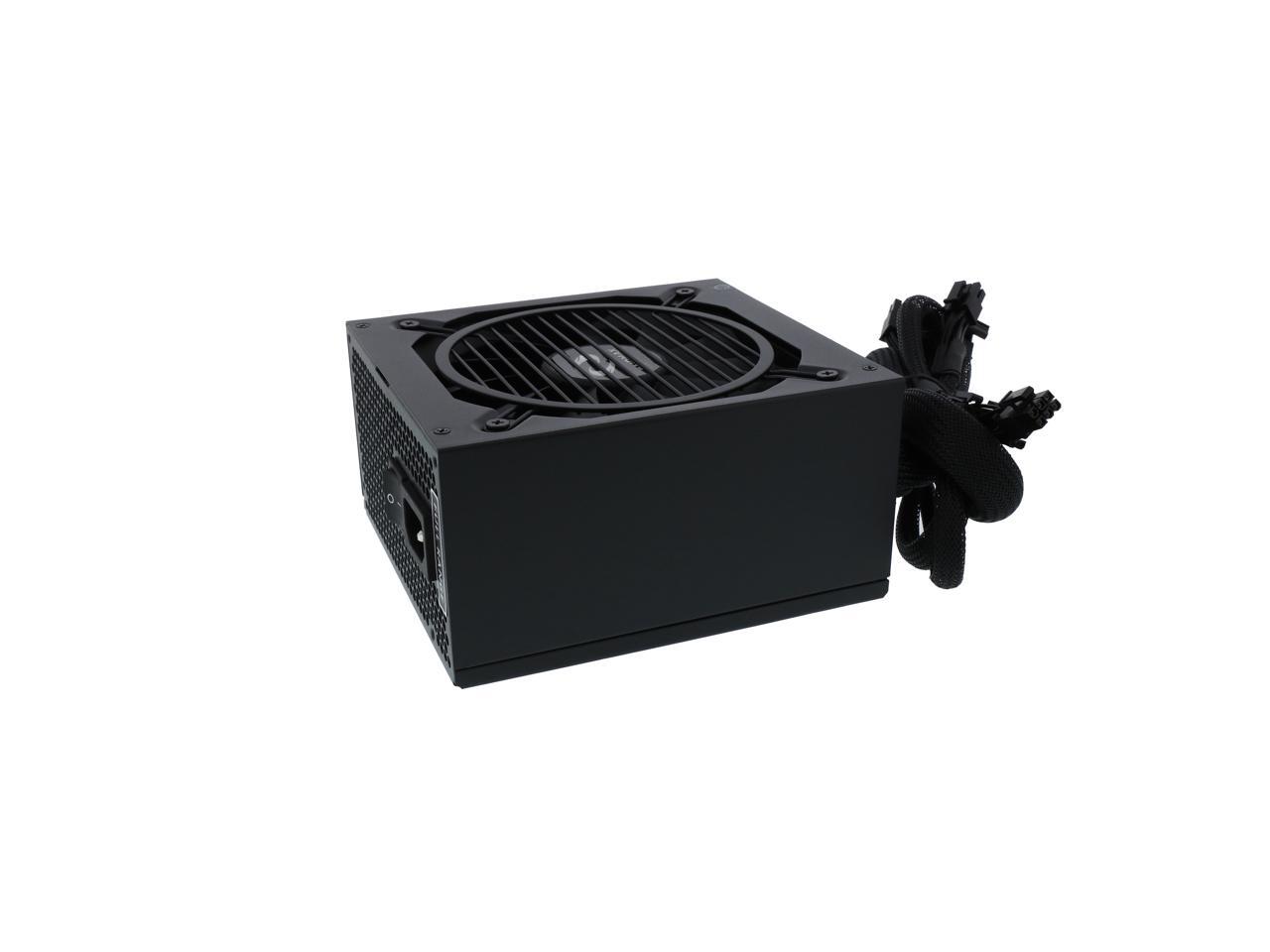

Alt view image 2 of 7 - RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

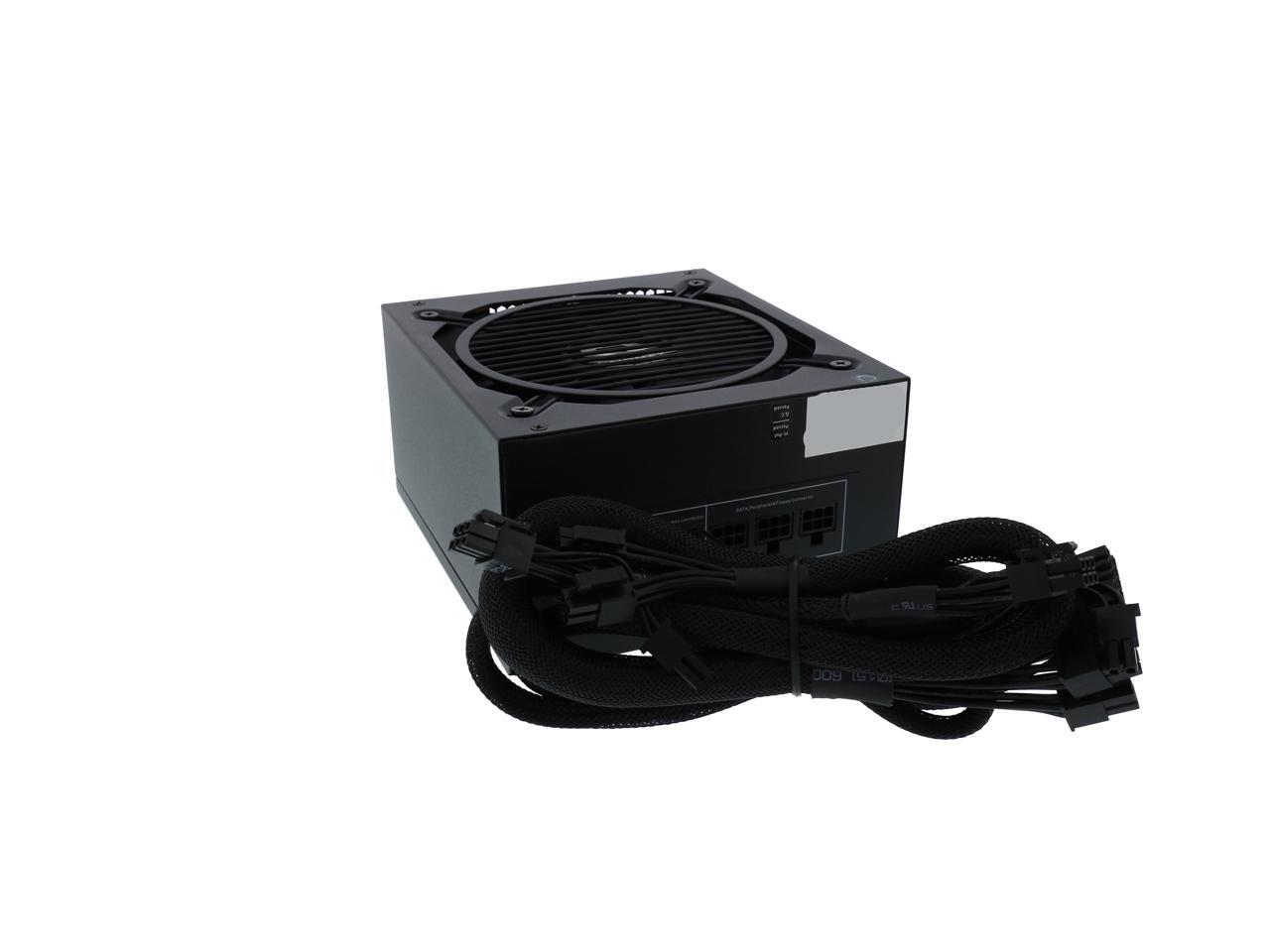

Alt view image 3 of 7 - RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

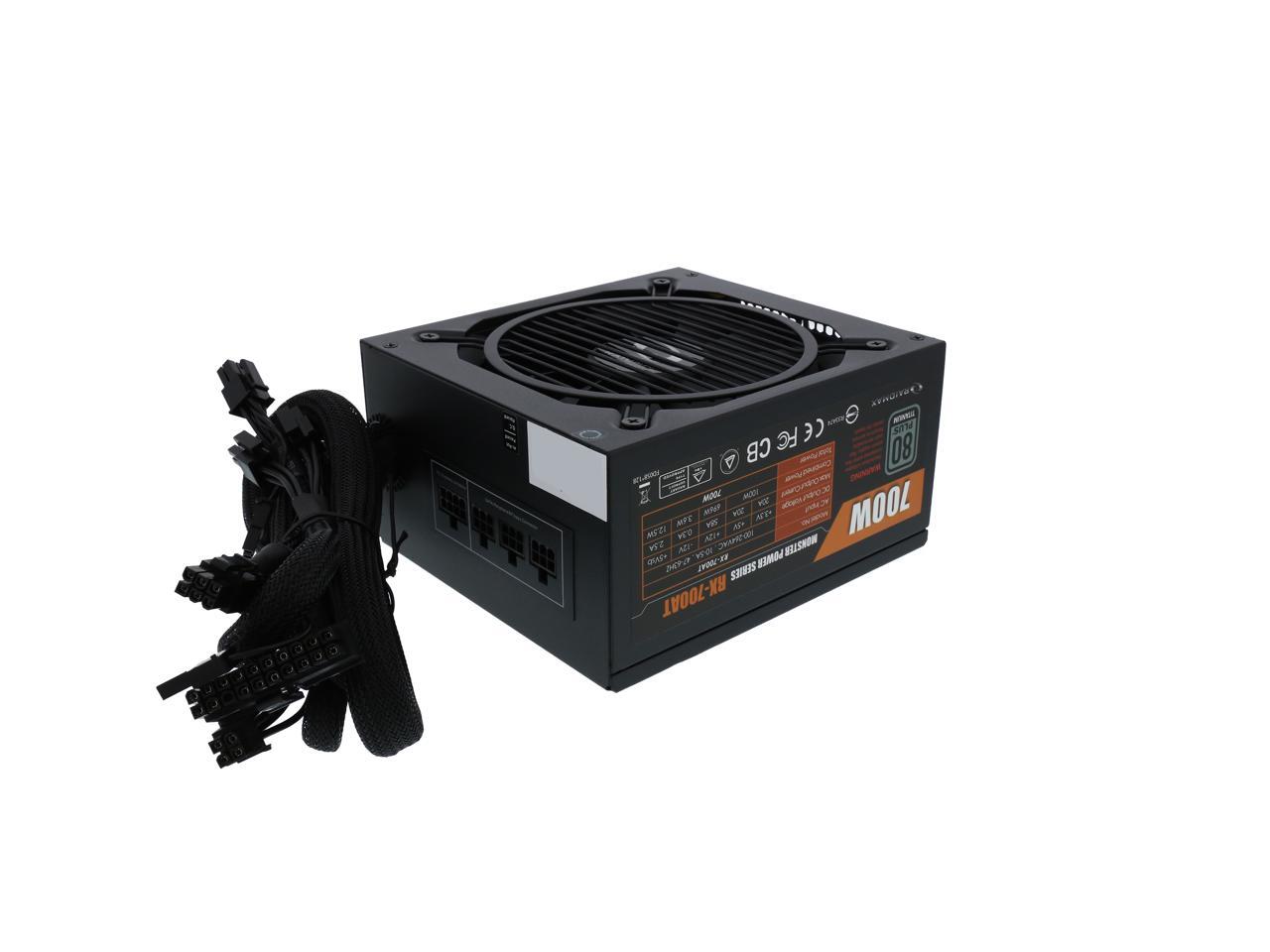

Alt view image 4 of 7 - RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

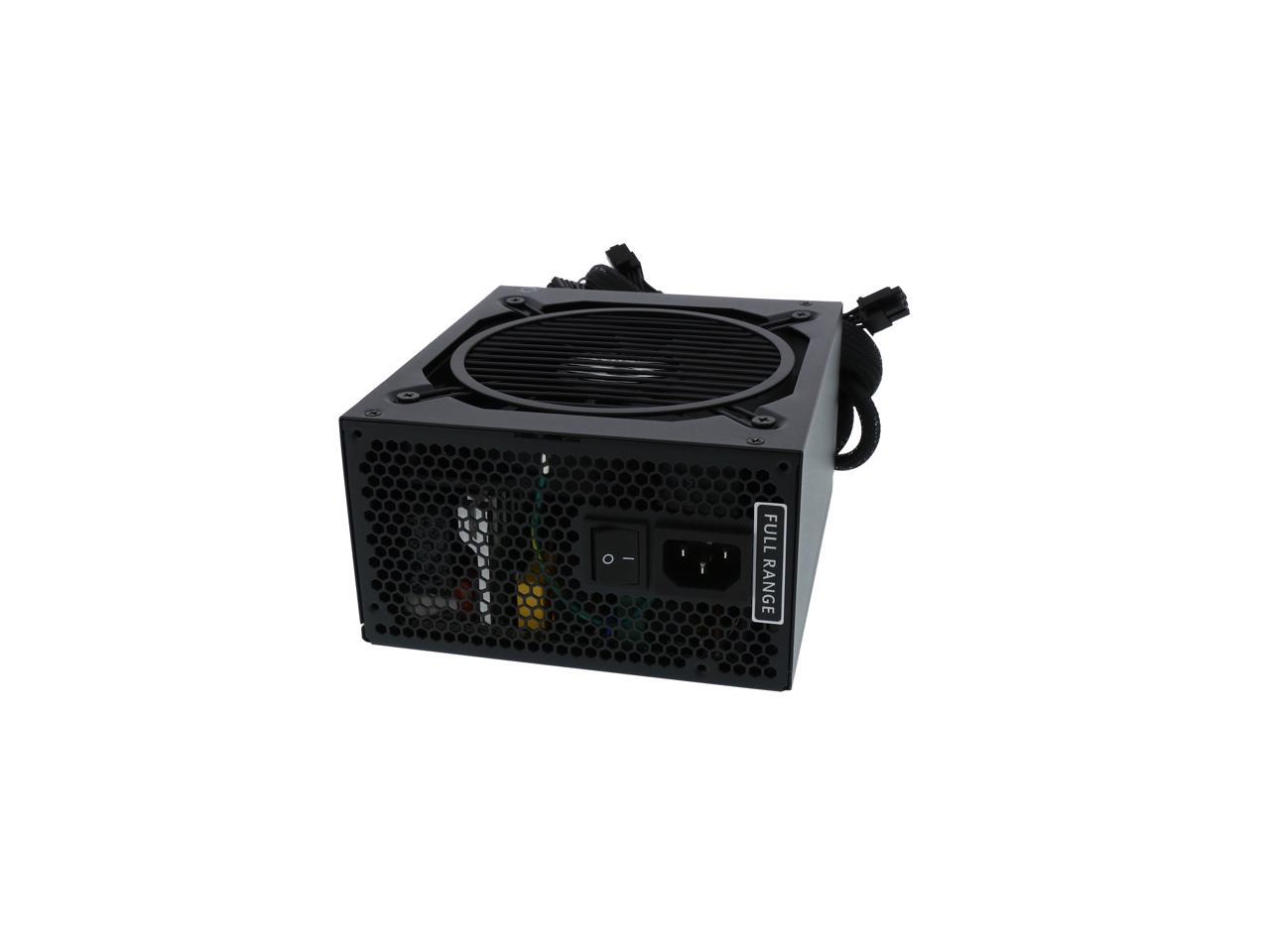

Alt view image 5 of 7 - RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

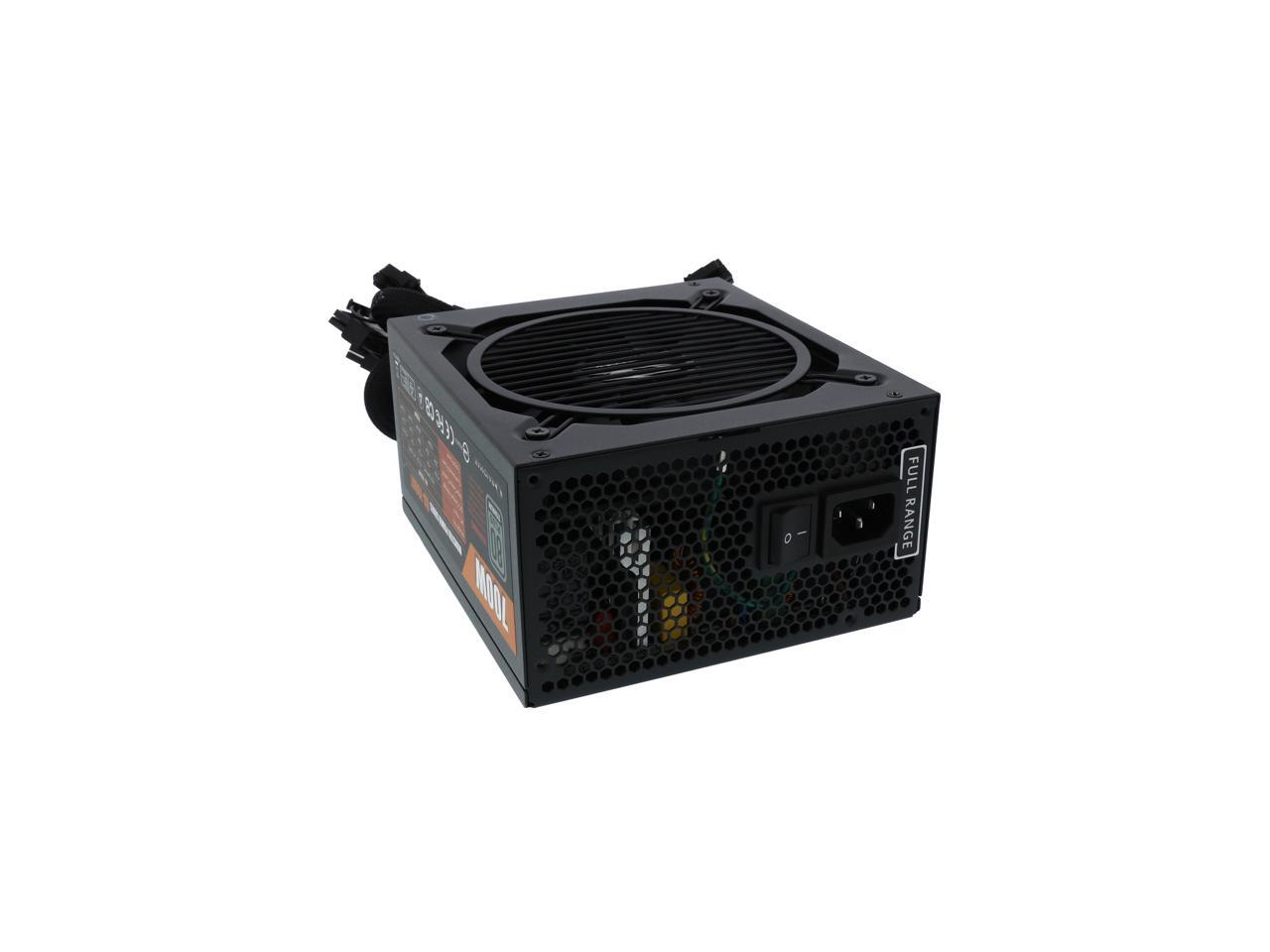

Alt view image 6 of 7 - RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

Alt view image 7 of 7 - RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

360^°

Shop All Raidmax Products

RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

(11) Write a Review

Modular
80 PLUS TITANIUM Certified
100 - 264 V 47 - 63 Hz
+3.3V@20A, +5V@20A, +12V@58A, [email protected], [email protected]

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (11)

Any questions? Our AI mode will help you find out quickly.

Try me now

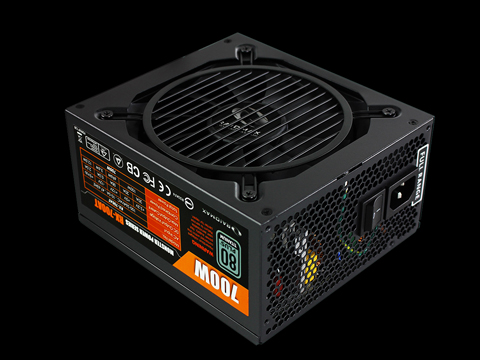

MONSTER POWER
RX-700AT

SPECIFICATIONS

BASIC SPECIFICATION
MODEL	RX-700AT
AC INPUT	100-264VAC, 10-5A, 47-63Hz
DC OUTPUT VOLTAGE	+3.3V	+5V	+12V	-12V	+5VSB
MAX OUTPUT CURRENT	20A	20A	58A	0.3A	2.5A
COMBINED POWER	100W		696W	3.6W	12.5W
TOTAL POWER	700W
CONNECTORS
M/B 20+4 PIN	1
CPU 4+4 PIN	1
PCI-E 6+2 PIN	4
SATA	8
MOLEX 4 PIN	4
FLOPPY	1
DIMENSIONS
165(L) X 150(W) X 86(H)MM

General
Brand	RAIDMAX
Model	RX-700AT

Details
Maximum Power	700 W
Fans	1
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	8
Modular	Modular
Energy-Efficient	80 PLUS TITANIUM Certified
Input Voltage	100 - 264 V
Input Frequency Range	47 - 63 Hz
Input Current	10-5A
Output	+3.3V@20A, +5V@20A, +12V@58A, [email protected], [email protected]
Connectors	1 x M/B 20+4-PIN 1 x CPU 4+4-PIN 4 x PCI-E 6+2-PIN 8 x SATA 4 x MOLEX 4-PIN 1 x FLOPPY

Protection
Over Voltage Protection	Yes
Short Circuit Protection	Yes
Under Voltage Protection	Yes
Over Current Protection	Yes
Over Power Protection	Yes

Additional Information
First Listed on Newegg	May 02, 2016
