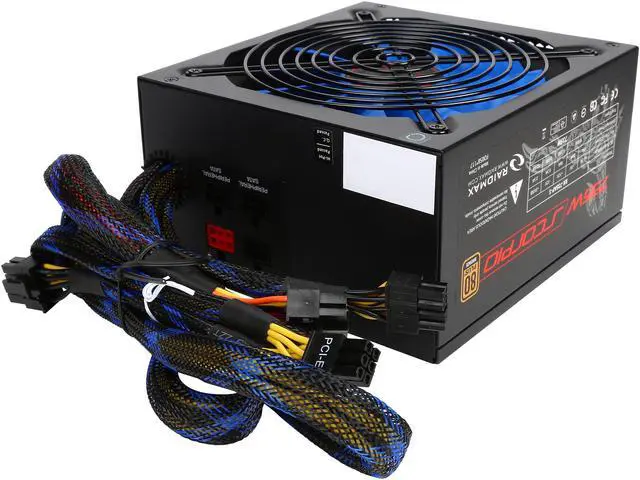

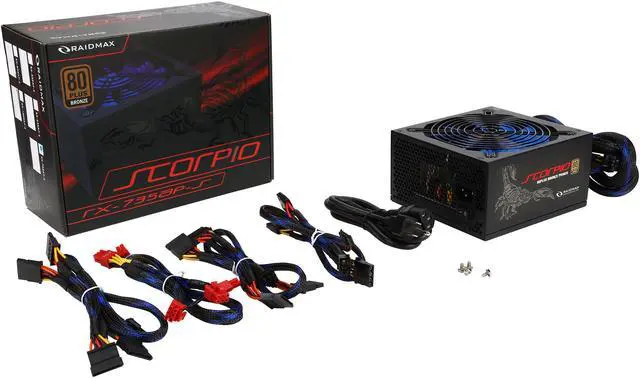

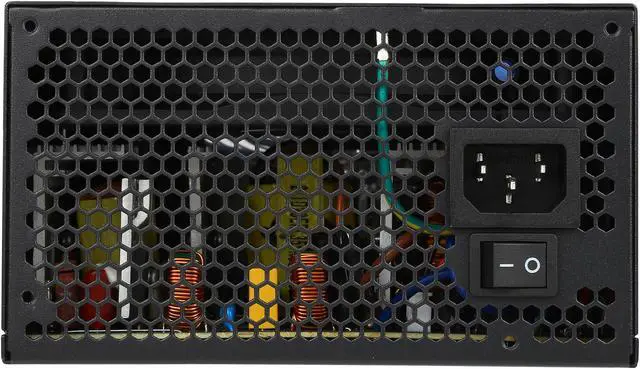

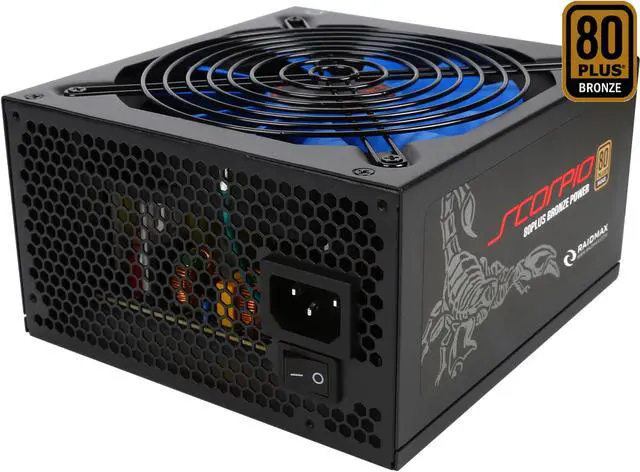

RAIDMAX Scorpio series RX-735AP-S 735 W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Semi-Modular Power Supply

  • ATX12V / EPS12V
  • Semi-Modular
  • 80 PLUS BRONZE Certified
  • 110 - 240 V 50/60 Hz
  • +3.3V@20A, +5V@20A, +12V@56A, -12V@0.3A ,5VSB@2.5A
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Overview
Specs
Reviews (12)
SCORPIO Series
RAIDMAX Scorpio Series Semi-Modular Power Supply

RAIDMAX Scorpio series semi-modular power supply gives your high power system strong and unremitting power with high efficiency. Semi-modular design helps reduce cable clutter and improve airflow. Built with silent fan and comprehensive protections, it ensures power delivery is whisper quiet and safe.

RX-735AP-SRX-735AP-S
FEATURES
RX-735AP-S
  • Haswell Ready.

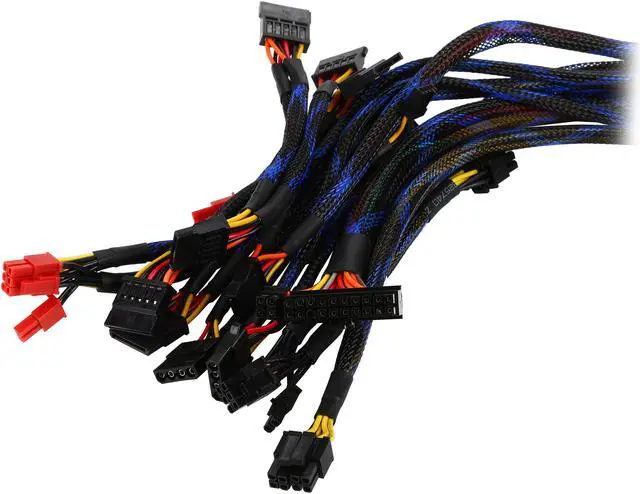

  • Modularized cable design with labeled back plate makes easy installation and clean look.
  • 80PLUS®Bronze certification guarantees more than 85% efficiency at typical loads.
  • Compliance with the latest EU ErP Direction.
  • A strong single +12V rail for high-end system heavy load configuration provides stable and highly compatibility.

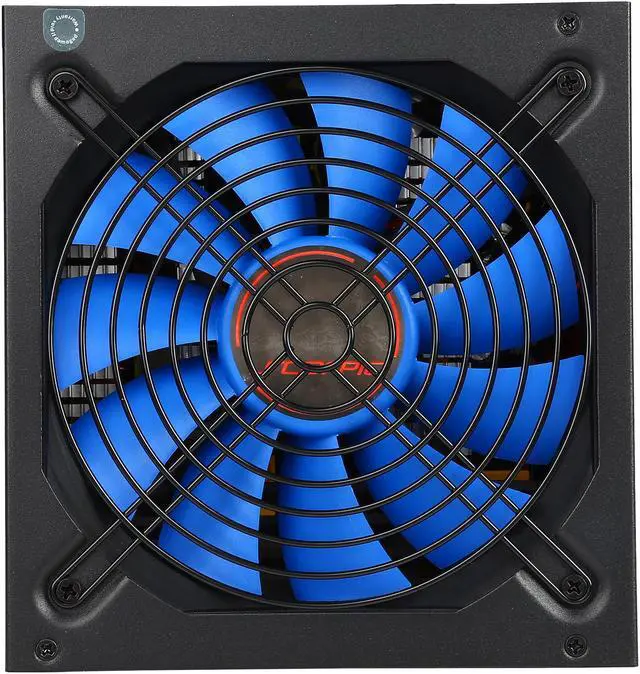

  • Stable voltage, low-noise levels by thermal controlled 13.5cm fan.
  • Low noise and voltage regulate DC output quality perfectly.
  • Industrial grade protection circuitry prevents damage resulting from SCP, OVP, UVP, and OPP.
  • Fully safety certificate with CE, FCC, CB, BSMI, TUV, and cTUVus.
  • The intelligent fan control technology is designed for better thermal solution.
  • AP-S PSUs are equipped with an extra long 12V ("P4"=600mm) connector cable, which accommodates bottom-mounted-PSU chassis.

PCI-E POWER CONNECTOR RECOMMENDATION
For high power consumption graphics cards (i.e. > 225 watts), please use only single connector per PCI-E cable.

RX-735AP-S
SPECIFICATIONS

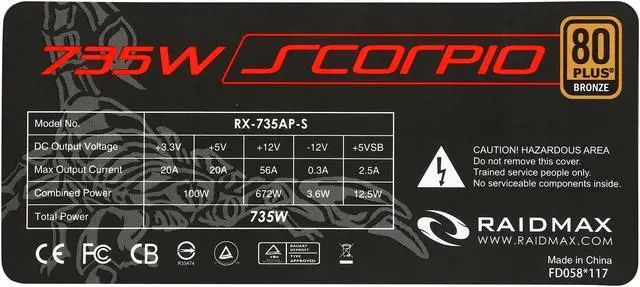

BASIC SPECIFICATION
MODEL RX-735AP-S
DC OUTPUT +3.3V +5V +12V -12V +5VSB
MAX OUTPUT CURRENT 20A 20A 56A 0.3A 2.5A
MAX COMBINED POWER 100W 572W 3.6W 12.5W
TOTAL POWER 735W
CONNECTORS
M/B 20+4 PIN 1
CPU 4+4 PIN 1
PCI-E 6+2 PIN 4
SATA 8
MOLEX 4 PIN 3
FLOPPY 1
DIMENSIONS
3.50" x 6.00" x 6.25"
