RAIDMAX Vampire RX-1000GH Continuous 1000 watts ATX12V / EPS12V SLI CrossFire 80 PLUS GOLD Certified Modular PFC Power Supply Intel Haswell Platform Ready

(43) Write a Review
  • 80+ Gold Certified
  • Modular
  • ATX12V / EPS12V SLI CrossFire Ready
  • Intel Haswell Platform Ready
  • Maximum 1000W
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Overview
Specs
Reviews (43)
Specifications
Features:
80 Plus Gold Certified
Compatible with Latest PC Technology
Supports the newest specifications of ATX12V
Created for usage with current and next-generation multi-core CPU platforms
Intel Haswell platform ready
Support Multi-GPU Technology
Supports PCI Express 2.0 next-generation graphic card with PCI-E connector
Active Power Factor Correction (Active PFC)
PF Value up to 99%- provides clean and reliable power
Ultra-Quiet & Temperature-Controlled fan
Temperature-controlled design adapts its rotating speed to the PSU temperature. Even on its highest rotating level- the fan is still quiet enough to be barely noticeable
5VSB OVP design
Provide full protection for your USB devices
Full protections with SCP- OVP- UVP and OPP
Maximum Power: 1000 W
Input:
Voltage: 110 - 240 V
Current: 15 A
Frequency Range: 50 - 60 Hz
Type: ATX12V v2.3 / EPS12V
Power Factor Correction: Active PFC
Efficiency: Up to 91.18%
Fan: 1x 135mm Fan
MTBF: >100-000 Hours
Output: +3.3V @ 25A- +5V @ 25A- +12V1 @ 60A- +12V2 @ 60A- -12V @ 0.8A- 5VSB @ 3A
Connectors: 1x 20+4pin Main Connector; 1x 4+4pin ATX12V/EPS12V Connector- 6x 6+2pin PCI-Express Connectors- 8x 5pin SATA Connectors- 6x 4pin Peripheral Connectors- 2x 4pin Floppy Connectors
Safety Approval: UL- CUL- FCC- TUV- CE
Dimensions (WxDxH): 6.0 x 6.5 x 3.5 inch
Weight: 6.86 Ibs

RAIDMAX Vampire 80 PLUS GOLD Certified Modular PFC Power Supply

FEATURES

  1. 80-Plus Gold Certified
  2. Compatible with Latest PC-Technology
    • Supports the newest specifications of ATX 12V
    • Created for usage with current and next-generation multi-core CPU platforms
    • Intel Haswell platform ready
  3. Supports Multi-GPU Technology
    • Supports PCI Express 2.0 next-generation graphic card with PCI-E connector
  4. Active Power Factor Correction (Active PFC)
    • PF value up to 99%, provides clean and reliable power
  5. Ultra-Quiet & Temperature-Controlled Fan
    • Temperature-controlled design adapts its rotating speed to the PSU temperature. Even on its highest rotating level the fan is still quiet enough to be barely noticeable.
  6. 5VSB OVP Design
    • Provide full protection for your USB devices
  7. Full Protections with SCP, OVP, UVP, OPP
    • Active PFC, Quad+12v Rails. Design supports all HIGH-END Multi-Core GPU graphics cards.

Basic Specifications

Model RX-1000GH
AC Input AC: 100 ~ 240V, 15A, 50 - 60HZ
DC Output 3.3V 5V 12V1 12V2 -12V 5VSB
Max Output Current 25A 25A 60A 60A 0.8A 4A
Max Combined Power 160W 972W 9.6W 20W
Total Power 1000W

Connectors

M/B 20 + 4-Pin 1
CPU 4 + 4-Pin 1
PCI-E 6 + 2-Pin 8
SATA 8
MOLEX 4-Pin 6
Aux. 1

Dimensions (L x W x H)

5.9 x 6.5 x 3.3 inches (150 x 165 x 86mm)

RAIDMAX Power Supply

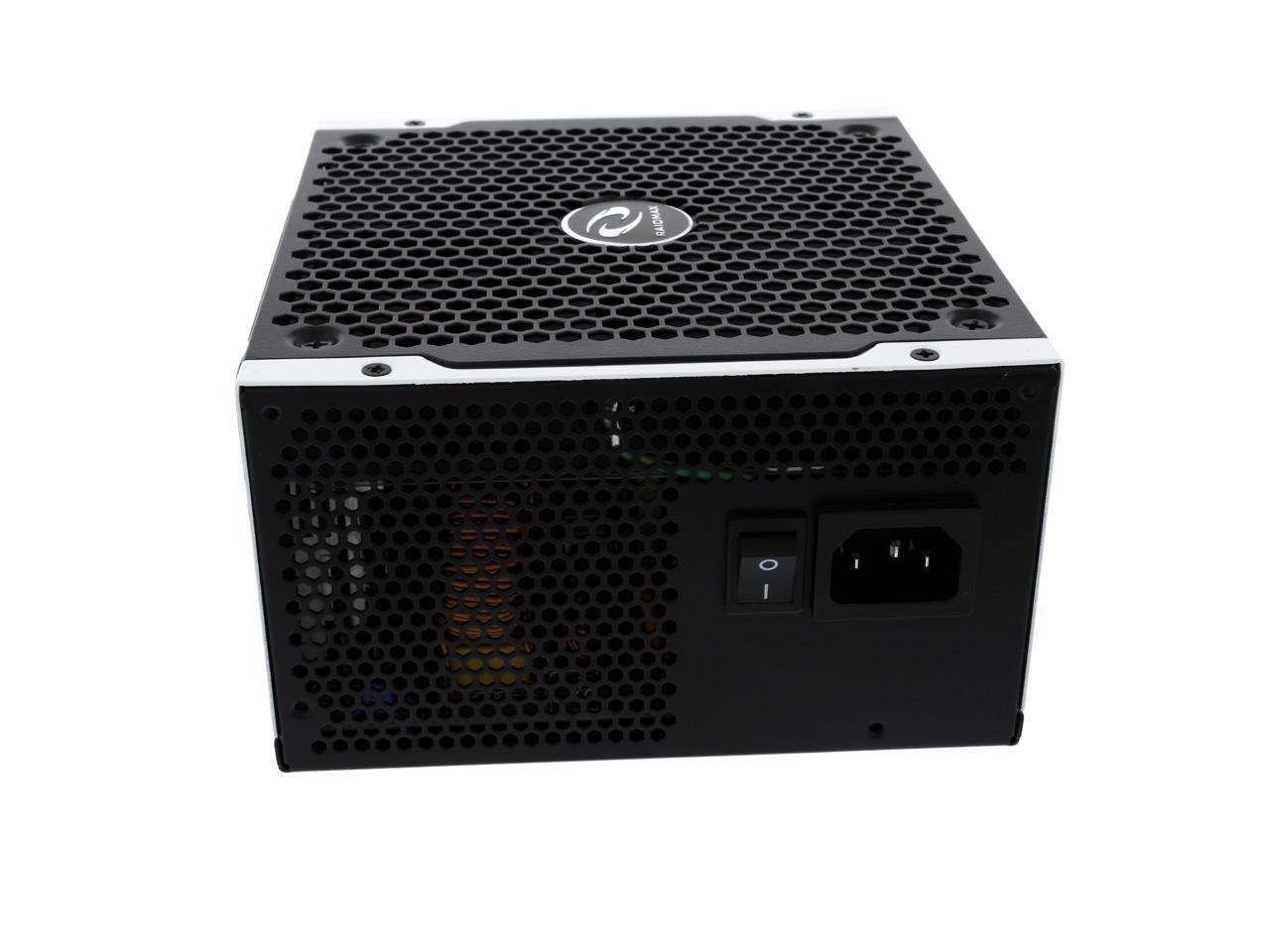

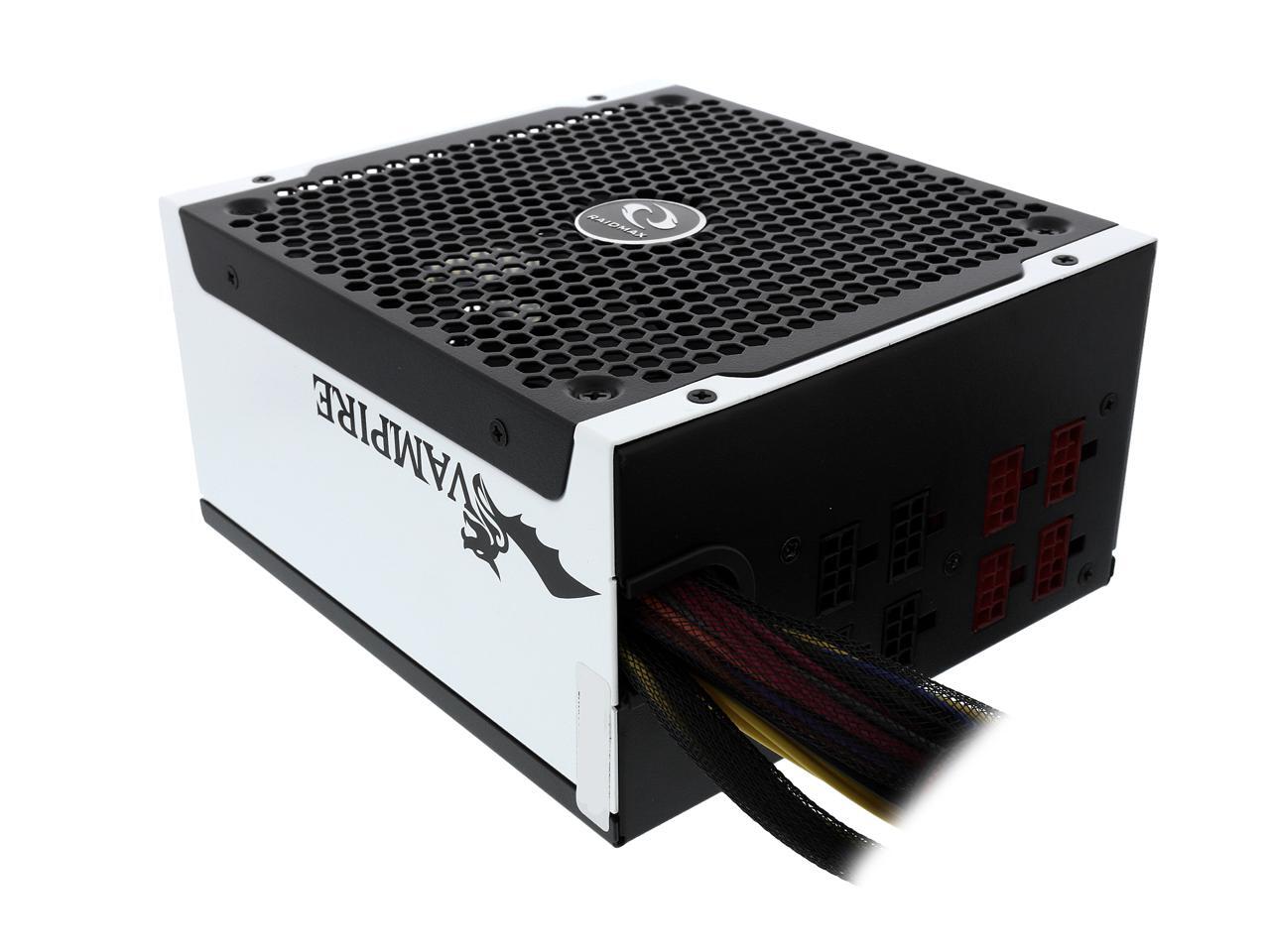

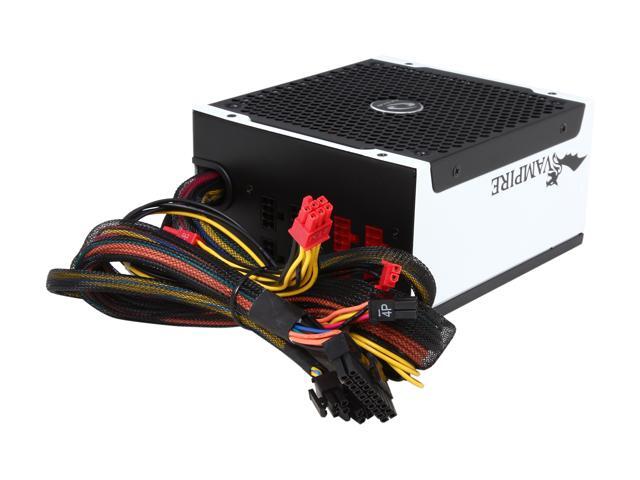

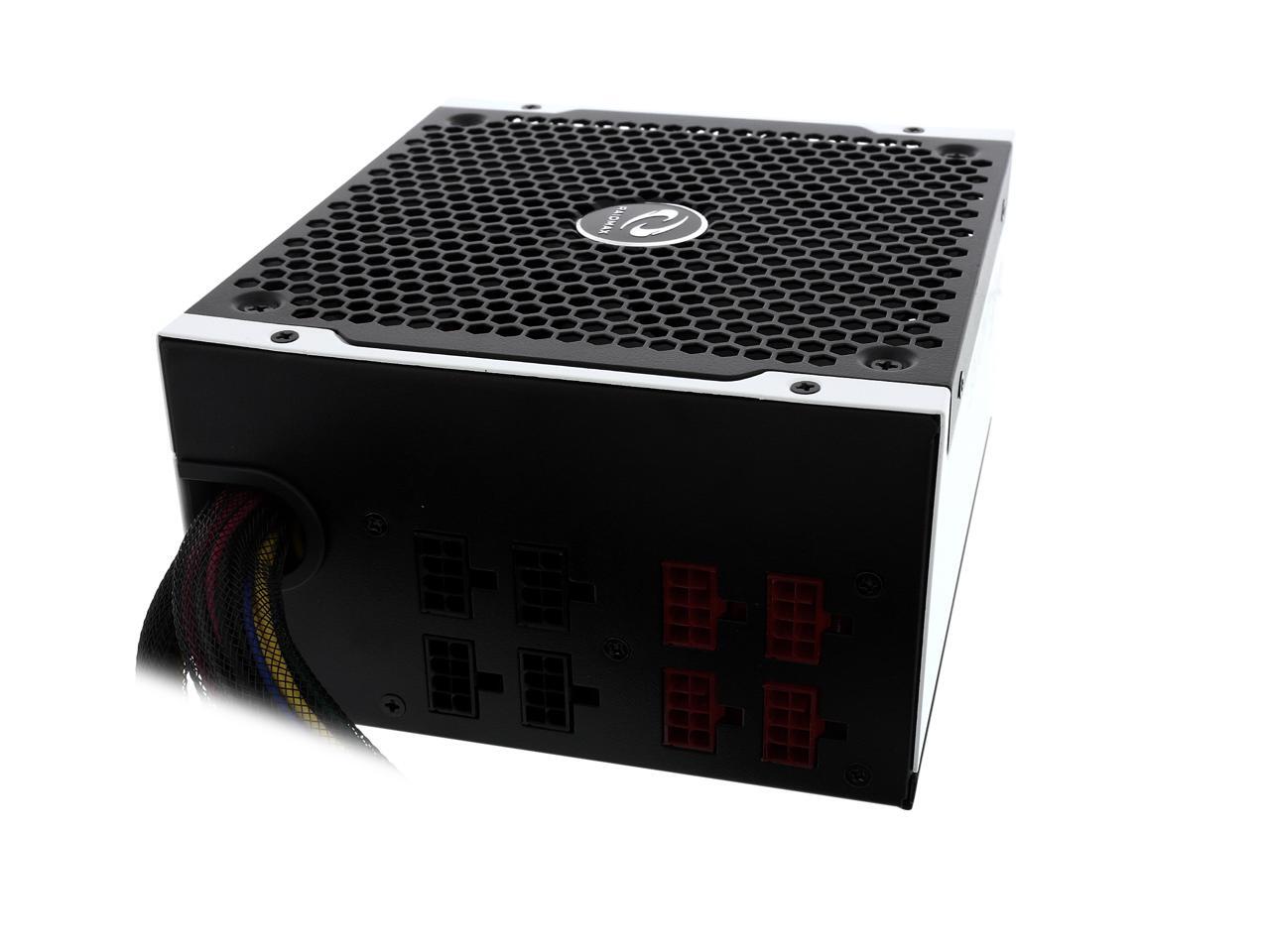

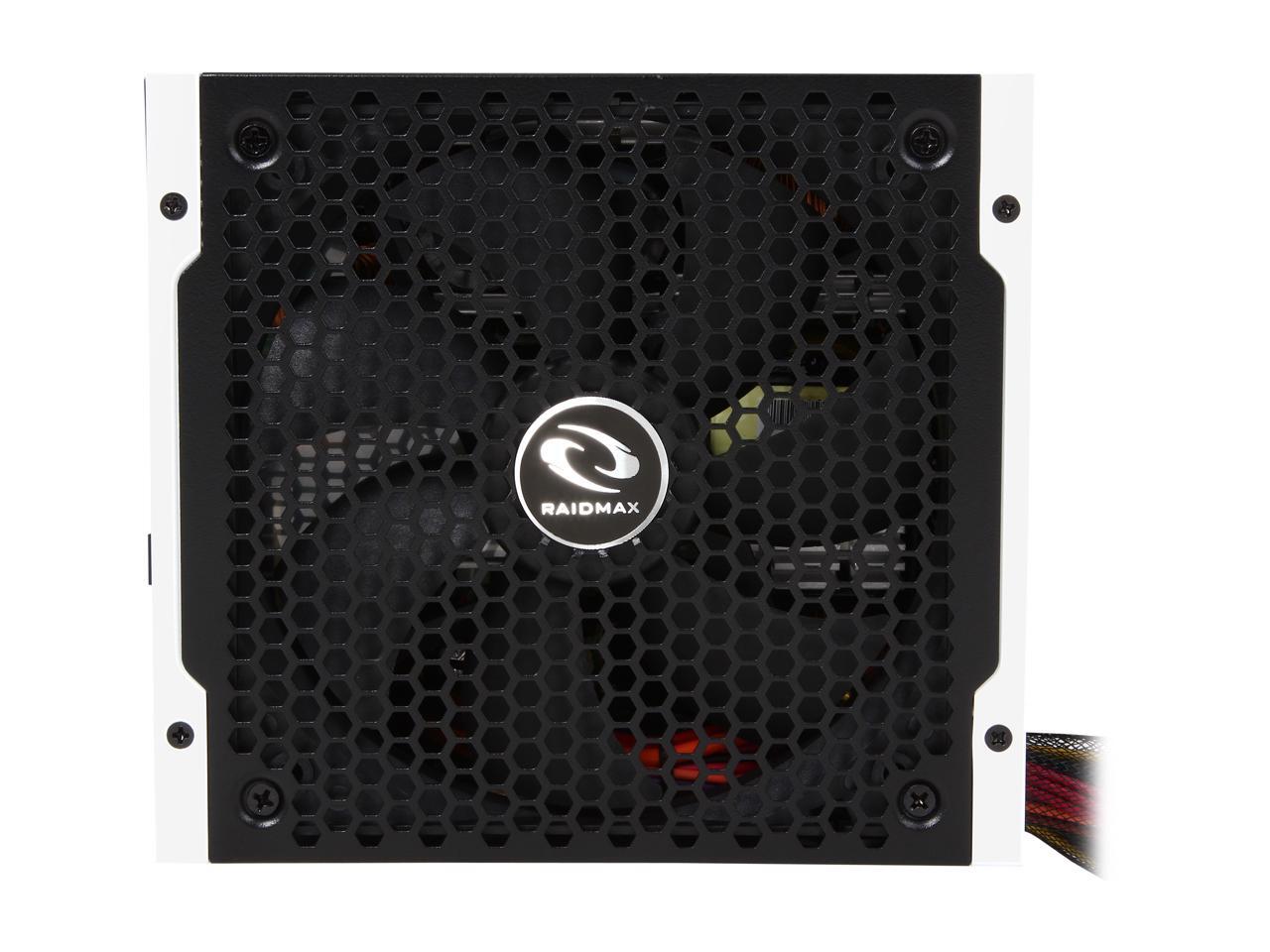

Gallery

RAIDMAX Power SupplyRAIDMAX Power SupplyRAIDMAX Power SupplyRAIDMAX Power Supply

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details

Return Policies
