Question 1

Should this be sufficient for most basic builds that DO NOT have a dedicated video card? Building a couple Minecraft rigs for my children and using the onboard video of the AMD A8-9600 proc with a basic socket AM4 mobo. Thanks!

Accepted Answer

Definitely.  I have a high end dedicated Video Card, which draws more power, and have never had a problem.  This is an excellent power supply, and it's quiet too.

Just in case you're worried, I've used it with a motherboard that had an onboard video chip and it was fine then too.

Question 2

Does this PSU have a 6Pin (or a 4+2) for GPU's?

Accepted Answer

Sorry Dan, No, Raidmax RX-300XT power supply does not have any plugs for graphics cards. Not 4, 6, or 8. I'm very familiar with those since I've built so many computers. I keep these in stock for clients that bring me really old computers. They are well built, quiet, cheap, and get the job done. Awesome discount for buying several. To be honest, I would never have use a 300 watt power supply to drive a gaming rig with a graphics card. I'd recommend closer to 500 watts, which often have them, even for under $40.

Question 3

HOW MANY PORTS?

Accepted Answer

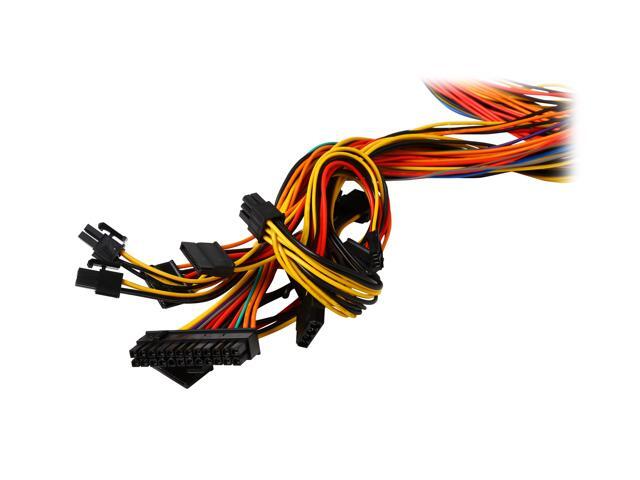

1 x 20+4-Pin Main Connector
1 x 4+4-Pin ATX12V/EPS12V Connector
4 x 5-Pin SATA Connector
2 x 4-Pin Peripheral Connector
1 x 4-Pin Floppy Connector

Question 4

does this have a 4 pin connector?

Accepted Answer

I think you are wanting to know about the cpu power connector.  Under the specs it shows
1 x 4+4-Pin ATX12V/EPS12V Connector
This would work with either a 4 or 8 pin CPU connector.

Question 5

Does this power supply have 2 molex connectors?

Accepted Answer

Yes it does.

Question 6

I have been given a Gigabyte Motherboard GA-EP45-UD3R. The power supply I have doesn't have the proper connector plugs to mate with the board. Is this the power supply I would need?

Accepted Answer

Based on the spec sheet from Gigabyte, your motherboard is ATX so yes, this power supply would work.

BASIC SPECIFICATION
MODEL	RX-300XT
AC INPUT	115/230VAC, 3.5/7A , 50-60HZ
DC OUTPUT	3.3V	5V	12V1	-12V	5VSB
MAX OUTPUT CURRENT	14A	15A	21A	0.5A	2.5A
MAX COMBINED POWER	100W		252W	6W	12.5W
TOTAL POWER	300W
CONNECTORS
M/B 20+4 PIN	1
CPU 4+4 PIN	1
PCI-E 6+2 PIN	--
PCI-E 6 PIN	--
SATA	4
MOLEX 4 PIN	2
FLOPPY	1
DIMENSIONS
150(L) X 140(W) X 86(H)mm

Brand	RAIDMAX
Series	XT series
Model	RX-300XT

Type	ATX12V / EPS12V
Maximum Power	300 W
Fans	1 x 120 mm Fan
PFC	No
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	No
SATA Power Connector	4
SLI	No
CrossFire	No
Modular	No
Efficiency	up to 78%
Over Voltage Protection	Yes
Overload Protection	Yes
Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz
Input Current	3.5 / 7 A
Output	+3.3V@14A, +5V@15A, +12@21A, [email protected] ,[email protected]
MTBF	>100,000 Hours
Approvals	FCC, CE
Connectors	1 x 20+4-Pin Main Connector 1 x 4+4-Pin ATX12V/EPS12V Connector 4 x 5-Pin SATA Connector 2 x 4-Pin Peripheral Connector 1 x 4-Pin Floppy Connector

Dimensions	3.50" x 6.00" x 5.75"
Weight	2.54 lbs.

RAIDMAX XT series RX-300XT 300 W ATX12V / EPS12V Power Supply
