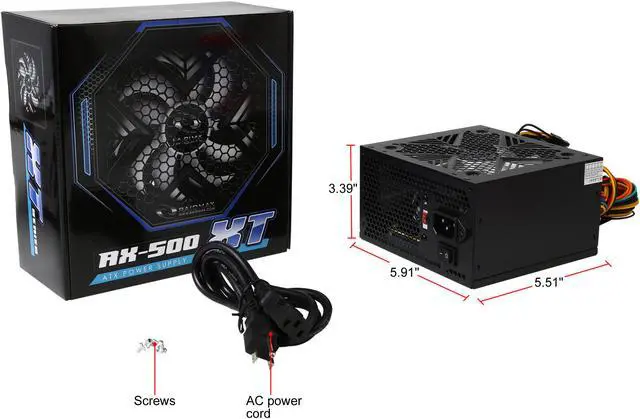

Images from RETAIL item, box contents may vary.

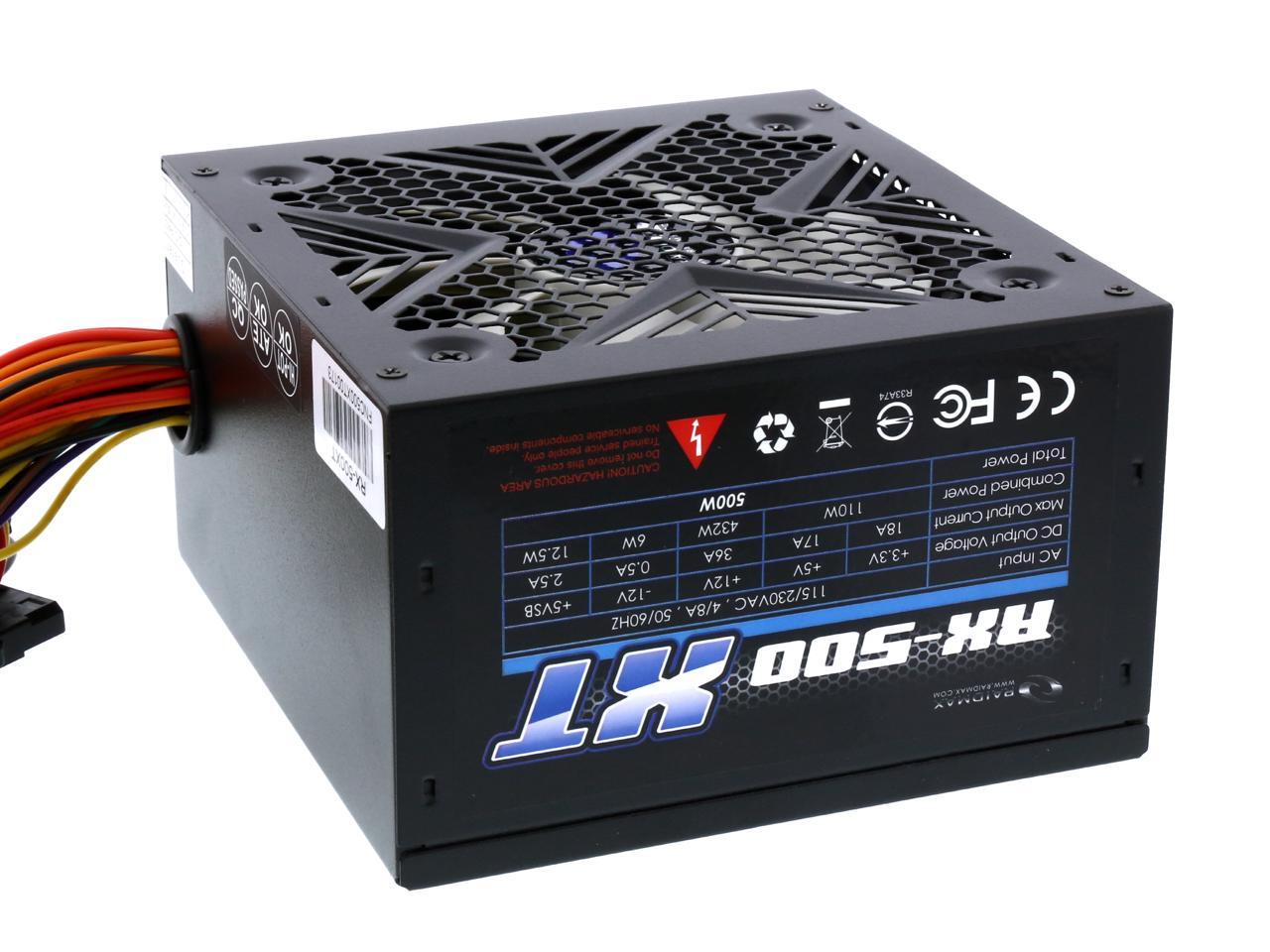

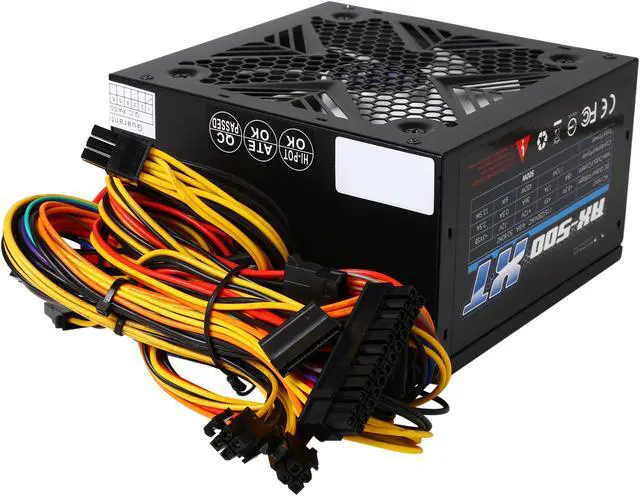

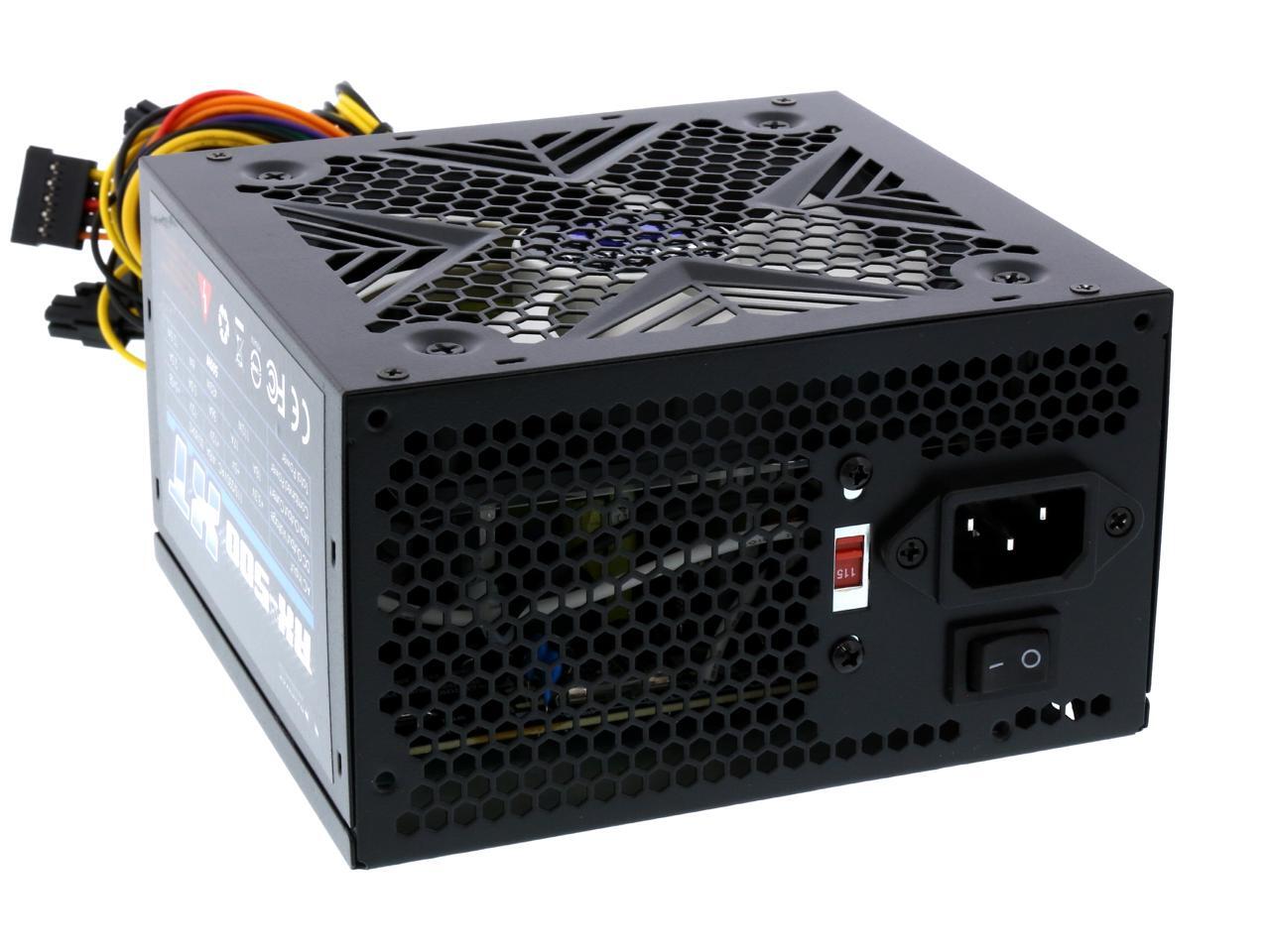

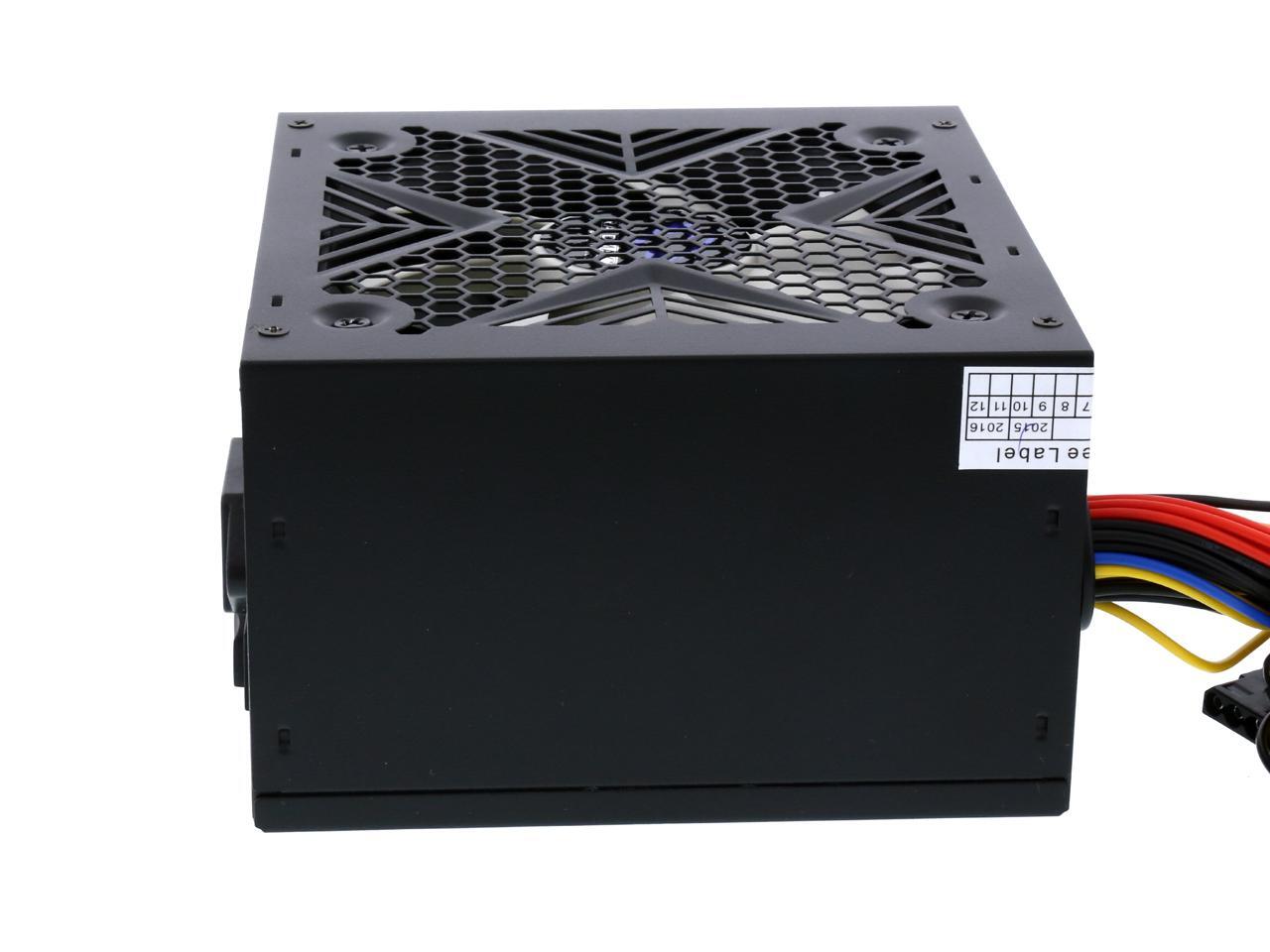

RAIDMAX XT Series RX-500XT 500 W Intel ATX12V V2.3 Power Supply

OPEN BOX

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Raidmax RX-500XT

Details
Type	Intel ATX12V V2.3
Maximum Power	500 W

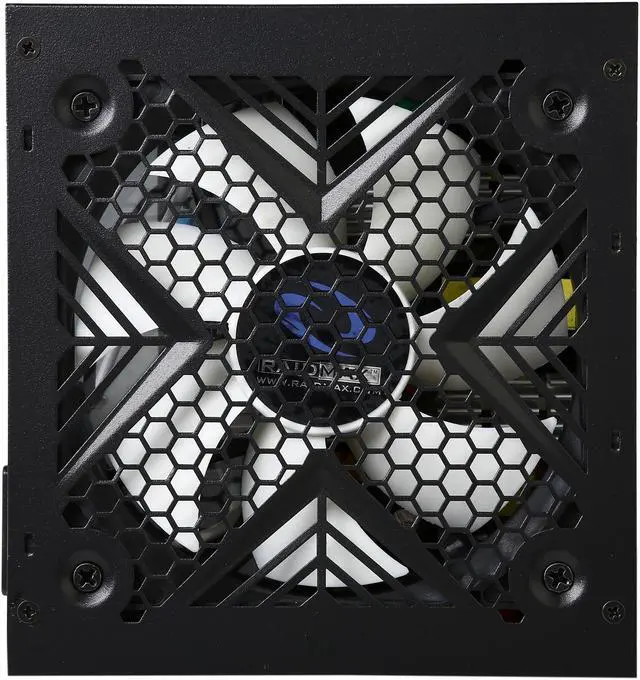

Fans	1 x 120 mm Fan
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector	5
Haswell Support	Ready
Max PSU Length	140 mm
Modular	No
Efficiency	up to 78%
Over Voltage Protection	Yes
Overload Protection	Yes

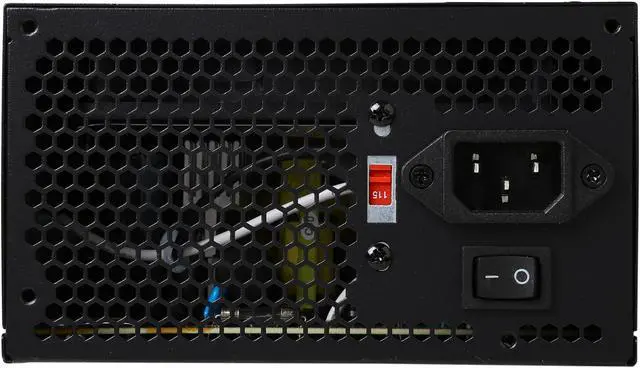

Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz
Input Current	4 / 8 A

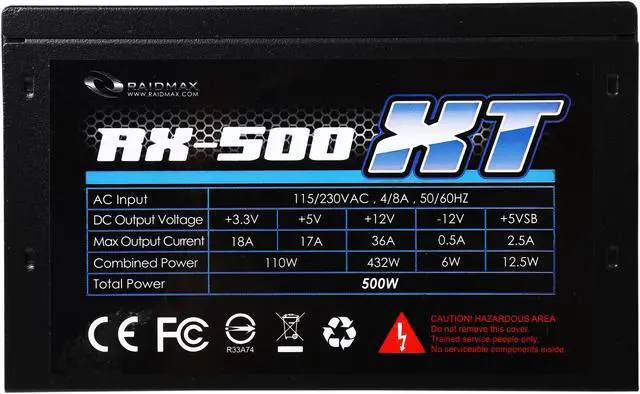

Output	+3.3V@18A, +5V@17A, +12V@36A, [email protected] ,[email protected]
MTBF	>100,000 Hours
Approvals	FCC, CE

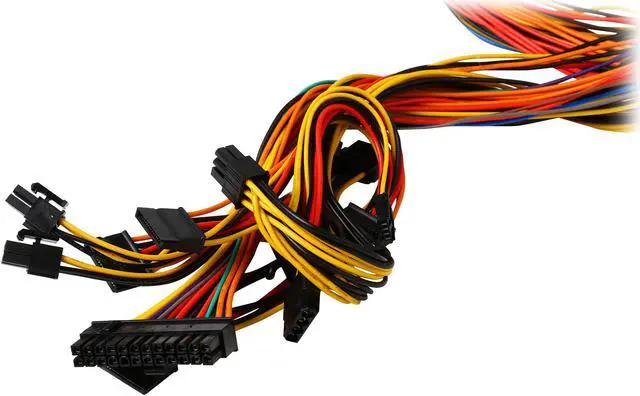

Connectors	1 x 20+4-Pin Main Connector 1 x 4+4-Pin ATX12V/EPS12V Connector 1 x 6+2-Pin PCI-E Connector 1 x 6 pin PCI-E Connector 5 x 5-Pin SATA Connector 2 x 4-Pin Peripheral Connector 1 x 4-Pin Floppy Connector

Features
Features	Support SINGLE +12V output for higher power usage Honeycomb ventilation design for optimal heat dissipation Up to 4 or 5 SATA connectors supports multiple of hard drives Support C6/C7 power saving mode on intel Haswell CPU Compatible with Intel ATX12V V2.3 120 mm Silent fan with smart thermal fan speed contrl circuit Full protections with SCP, OVP and OPP.

Dimension & Weight
Dimensions	3.39" x 5.91" x 5.51"
Weight	3.24 lbs.

Additional Information
First Listed on Newegg	October 09, 2019
