INTRODUCTION

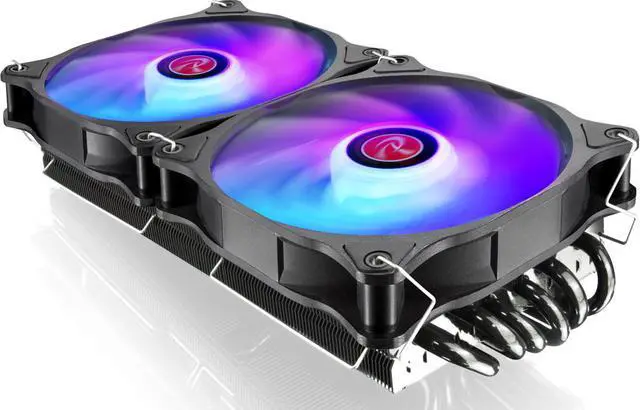

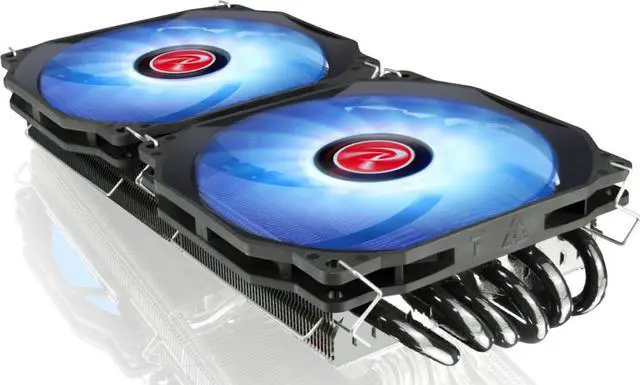

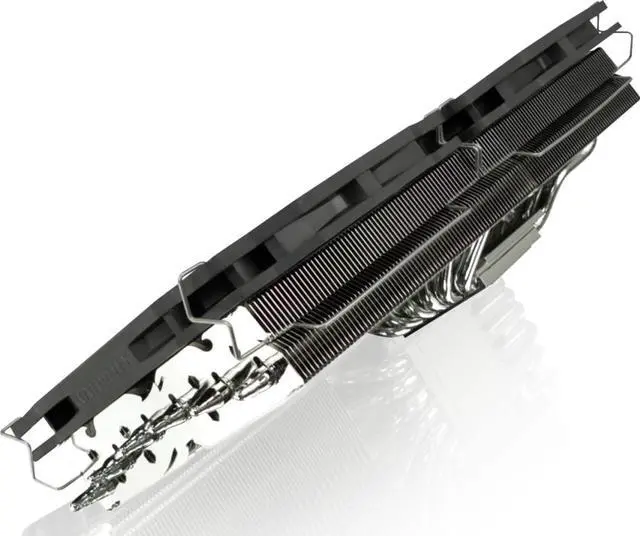

MORPHEUS 8057, whole heatsink black coated, a superior high-end VGA cooler, designed to meet cooling capacity up to 360 Watts of TDP. Morpheus 8057 comes with 12 copper heat-pipes, 129 fins, mirror copper base, and the option to install 2×120mm fans; those outstanding combination and design provide best acceleration of heat dissipation process to assure your VGA board running under optimal temperature. Additionally, Morpheus comes with 3pcs copper & 8pcs aluminum heat-sink for cooling chips efficiently. Moreover, Morpheus 8057 is multi-compatible with most modern nVIDIA & AMD GPU's.
FEATURE
- Cooling capacity up to 360 watts TDP

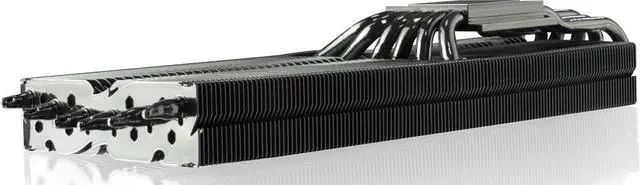

- 12 pcs copper heat-pipes and 129 pcs fins for efficient heat dissipation

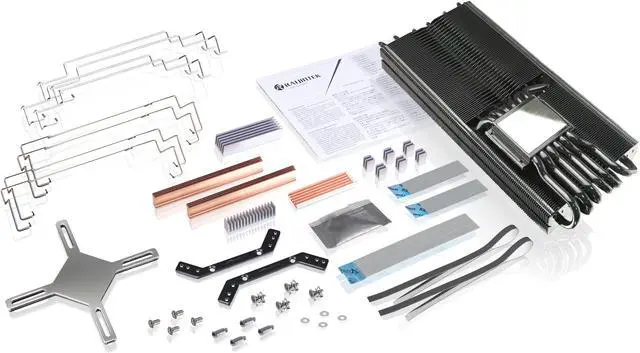

- 3pcs copper & 8pcs aluminum heat-sink for cooling chips efficiently
- Thermal adhesive to lower RAM and VRM temperature significantly and assure proper bond
- Compatible with AMD RADEON RX5700/XT/RADEON RX5600/XT
- Compatible with nVIDIA GeForce RTX2080/2080Ti/super/GeForce RTX2070/Super/RTX2060/super
- Supports two 120mm fans (8 fan clips: 4pcs for 12015, 4pcs for 12013)
- Whole heatsink black coated
Pros: Drastically Lowers the temps of both the GPU and the VRM(S). Looks awesome with the black nickel plating and provides much quieter operations.
Cons: Really Really BIG. Once you attach a couple of fans, you will be occupying about 4 PCI slots. Would recommend a backplate or something to hold the card from slouching.
Overall Review: The cooler doesnt come with fans so you will need to provide 2 120mm fans for the cooler. I used a couple of Corsair SP120L I had laying around, found a PWM splitter and now let the motherboard take care of cooling the card with Corsair's Link software. Its well worth considering this product if you have a reference 290(X) It cooled the card from the following temps Stock cooler: Idle- 68C Load- 98C VRMS: Idle- 72C Load-102C Morpheus: Idle - 35C Load- 54C VRMS: Idle- 37C Load- 72C Also to note my card was suffering from really bad coil whine, but since I installed the cooler, the coil whine is completely gone. Well worth every penny.
