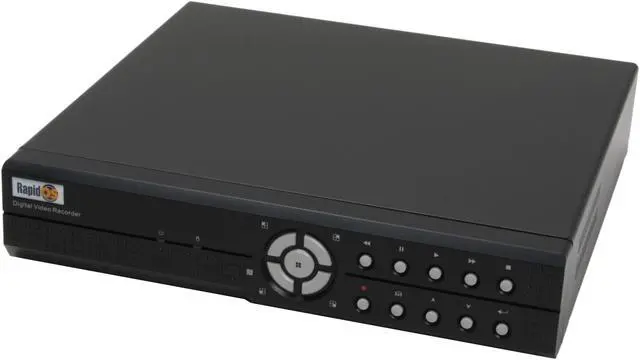

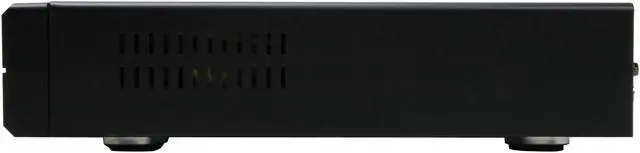

RapidOS RS-3060SV 4 Channel MJPEG recording/ MPEG4 Networking DVR Equipment

(3) Write a Review
  • BNC x 4
  • MJPEG recording/ MPEG4 Networking
  • IDE or SATA HDD interface (option); Max: 1TB
  • 4 Channel
Specs
Reviews (3)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the RapidOS RS-3060SV

Model
Brand RapidOS
Model RS-3060SV
Details
Type Standalone DVR
Camera inputs 4 Channel

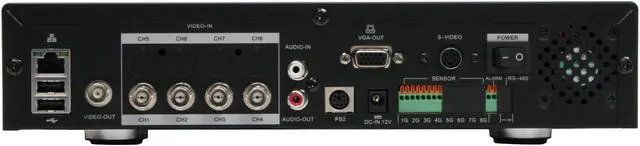

Video Input BNC x 4
Video Output BNC x 1, S-Video x 1, VGA x 1 (Option)
Audio Input 1
Audio Output 1
Resolution Display 640 x 448/ 640 x 544
Display Frame Rate NTSC(120 fps) / PAL(100 fps) / Mode: Auto
Resolution Recording 640x 214/ 640 x272
Recording Frame Rate NTSC(60 fps) / PAL(50 fps)
Recording Mode Continuous/ Schedule/Motion Detection/ Sensor
Recording Compression MJPEG recording/ MPEG4 Networking
Storage Capacity IDE or SATA HDD interface (option); Max: 1TB
Backup Device USB Stick/ CD-RW/ DVD±RW (option)
Serial Connectors USB 2.0 x2, PS2 Port x 1 , RS485 x1 (option)
Network
Network Connection 10/ 100 Ethernet (RJ-45)
Network Protocol TCP/ IP, Static IP, DHCP, PPPOE, DDNS (Though Rounter)
Network Remote Remote Client Software and IE browser
Features
Features True triplex functionality Simultaneously (Playback, Record, Network, and USB/CD-RW media Back-up).
Supports 60fps (frame per second) under NTSC (50fps/PAL) for recording.
Individual record frame adjustment for each channel.
Video Color Adjustment & Event List.
RS-485 interface for PTZ Camera control. (Optional)
Firmware Upgrade via USB.
Multi-user network monitoring and remote DVR controlling (up to 4 users).
Fast CD-RW (avg. 2MB/sec) & Host USB (avg. 300KB/sec) drive.
Optional SATA HDDs support.
Audio Recording.
Power Supply Input: AC100~240V 50/60 Hz, Output : DC 12V/ 5A
Packaging
Package Contents RS-3060SV
User Manual
Driver Disk

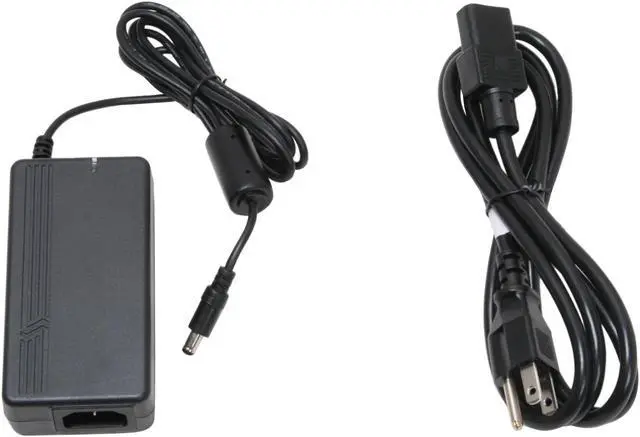

Power Adapter
Power Cord
Additional Information
First Listed on Newegg April 04, 2008
