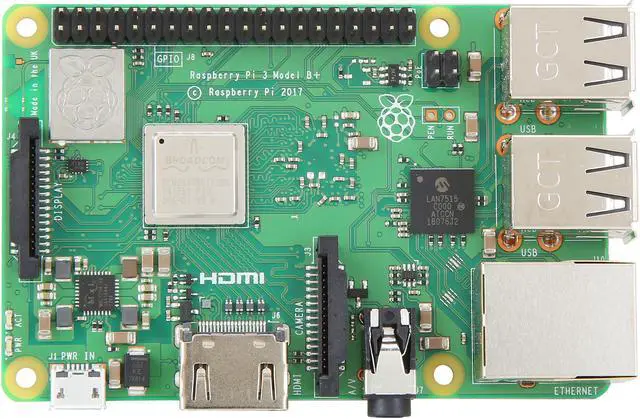

Raspberry Pi 3 Model B+
The latest product in the Raspberry Pi 3 range, the Pi 3 Model B+ is built on the Broadcom BCM2837B0 64-bit quad-core SoC which offers 200MHz increase in peak CPU clock frequency compared with the Pi 3 Model B based on Broadcom BCM2837. Other features include dual-band 802.11ac, Bluetooth 4.2/BLE, faster Ethernet, and Power-over-Ethernet support (with separate PoE HAT).
- Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
- 1GB LPDDR2 SDRAM
- 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE

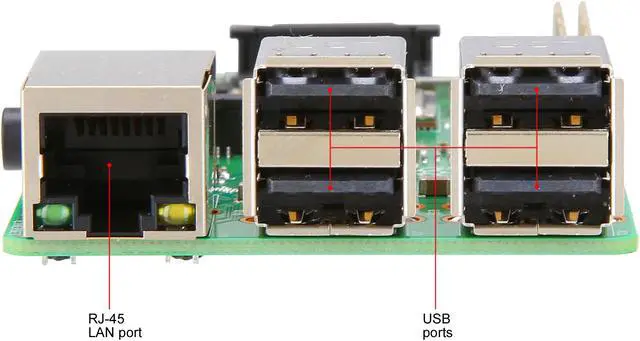

- Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
- Extended 40-pin GPIO header

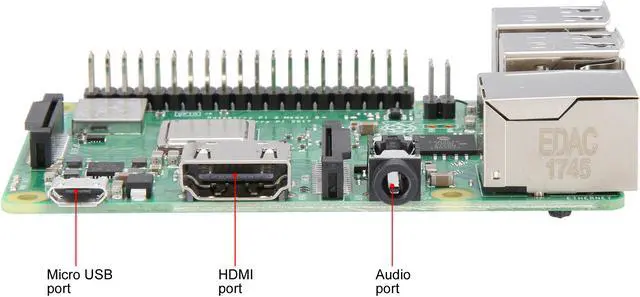

- Full-size HDMI
- 4 USB 2.0 ports
- CSI camera port for connecting a Raspberry Pi camera
- DSI display port for connecting a Raspberry Pi touchscreen display
- 4-pole stereo output and composite video port
- Micro SD port for loading your operating system and storing data
- 5V/2.5A DC power input
- Power-over-Ethernet (PoE) support (requires separate PoE HAT)
What is a Raspberry Pi

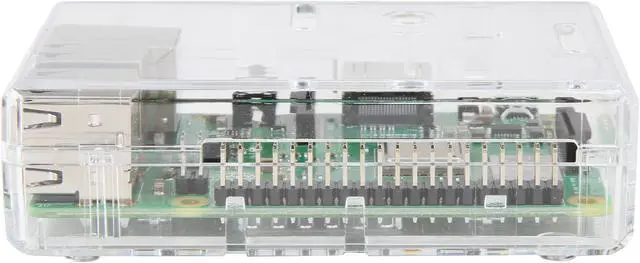

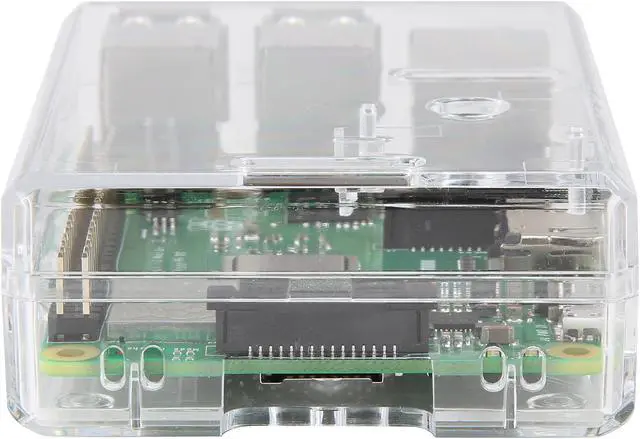

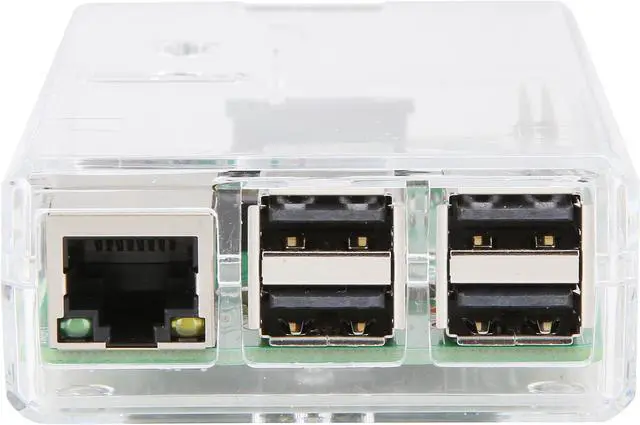

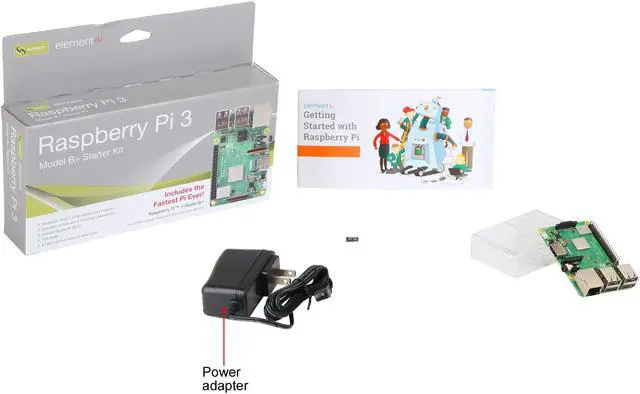

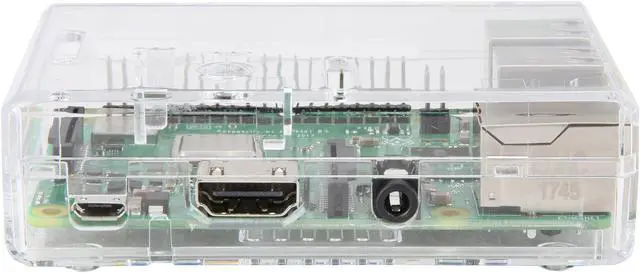

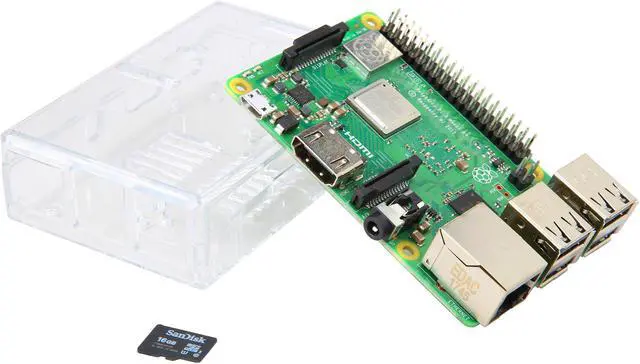

This starter kit provides the core products needed to start exploring the world of Raspberry Pi - Raspberry Pi 3 Model B+ motherboard, a 16GB SD card with OS, a power supply and a protective case. Just add your keyboard, HDMI cable and monitor.
