This PoE Network Video Recorder can integrate Human/Vehicle Detection, PTZ, Auto-Tracking, Two-Way Talk, Motion-Triggered Spotlights, Siren, etc features from all Reolink IP cameras, allowing you to build an intelligent & cutting-edge system on your own.
With or Without Internet
This PoE NVR can be used without being connected to the internet for local recording and live viewing. However, an internet connection is required to enable remote viewing, motion push notifications.

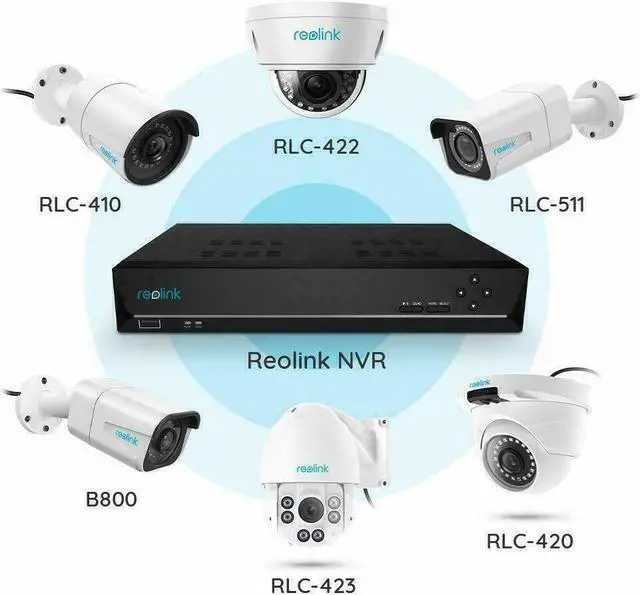

Works with Reolink IP Cameras Only
This Reolink network video recorder only works with Reolink PoE Cameras and WiFi cameras by DC power (Battery-powered cams excluded) in perfect compatibility. The features you like can be combined to build the system as you like. Third-party cameras are NOT supported for this NVR.
Plug & Play, Reliable Connection
The RLN8-410 NVR uses one single ethernet cable (Up to 330ft via CAT6,7 cable) to transmit both data and power for Reolink PoE cameras. Wired system means unmatched stability when loading 4K/5MP/2K Ultra HD images under high bitrates
Reolink 4K 8CH NVR Specifications
| HDMI Output | 3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768 |
|---|---|
| VGA Output | 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768 |
| Maximum Capacity | 12TB (Maximum 6TB HDD/Port);SATA Devices:1 x 2TB SATA HDD; External HDD:1 x eSATA |
| Live View/Playback Resolution | 3840*2160, 2560x1920, 2560*1440, 2048*1536, 2304*1296, 1080P, 720P |
| Network Interface | RJ45,10M/100M Ethernet, 8 Network Ports for IP camera, 1 Giga Network Port for LAN/WAN |
| Supported Standard | IEEE 802.3at |
| Network Protocol | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
|---|---|
| Browser/OS Supported | IE, Firefox, Chrome; PC: Windows, Mac OS; SmartPhone: iOS, Android |
| Power Supply/Consumption | DC 48V/2A; <10W (WiDC 48V/2A; <10W (Without HDD&PoE)thout HDD&PoE) |
| Weight/Dimensions (mm) | 1.2 kg; 260(W) x 41(H) x 230(D) |
| Hardware Version | H3MB18/N2MB02 |
