This PoE Network Video Recorder can integrate Human/Vehicle Detection, PTZ, Auto-Tracking, Two-Way Talk, Motion-Triggered Spotlights, Siren, etc features from all Reolink IP cameras, allowing you to build an intelligent & cutting-edge system on your own.
This PoE NVR can be used without being connected to the internet for local recording and live viewing. However, an internet connection is required to enable remote viewing, motion push notifications.

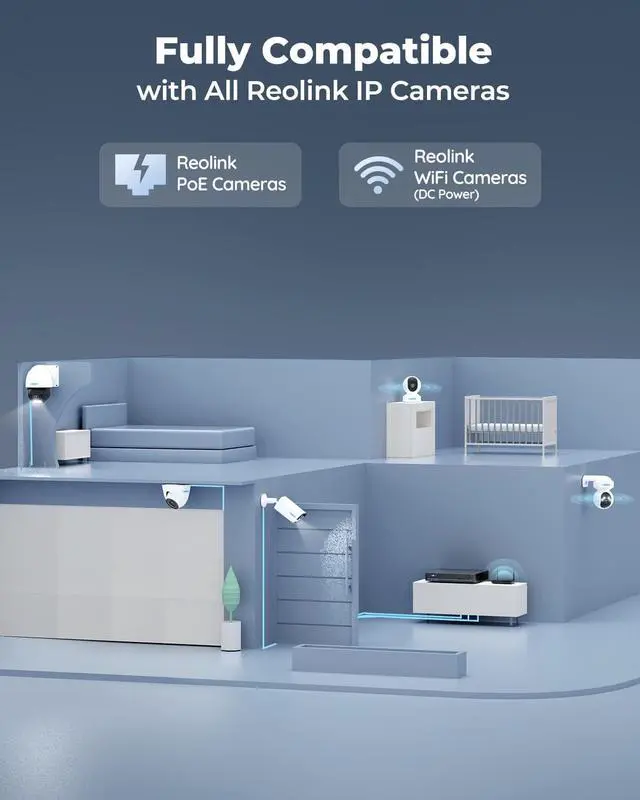

This Reolink Network Video Recorder only works with Reolink PoE cameras and WiFi cameras by DC power (Battery-powered cams excluded) in perfect compatibility. The features you like can be combined to build the system as you like. Third-party cameras are NOT supported for this NVR.
The RLN16-410 NVR uses one single ethernet cable (Up to 330ft via CAT6,7 cable) to transmit both data and power for Reolink PoE cameras. Wired system means unmatched stability when loading 4K/5MP/2K Ultra HD images under high bitrates.
| Power Supply | DC 48V/2.5A |
|---|---|
| Working Environment | Temperature: -10°C ~+55°C (14°F~131°F); Humidity: 10%~90% |
| Power Consumption | <10W (Without HDD & PoE) |
| PoE Supported Standard | IEEE 802.3 af/at |
| Video Format | H.265, H.264 |
| Live View/Playback Resolution | 3840*2160, 2560x1920, 2560*1440, 2048*1536, 2304*1296, 1080P, 720P |
|---|---|
| SATA | 2 SATA Interfaces for 2HDDs |

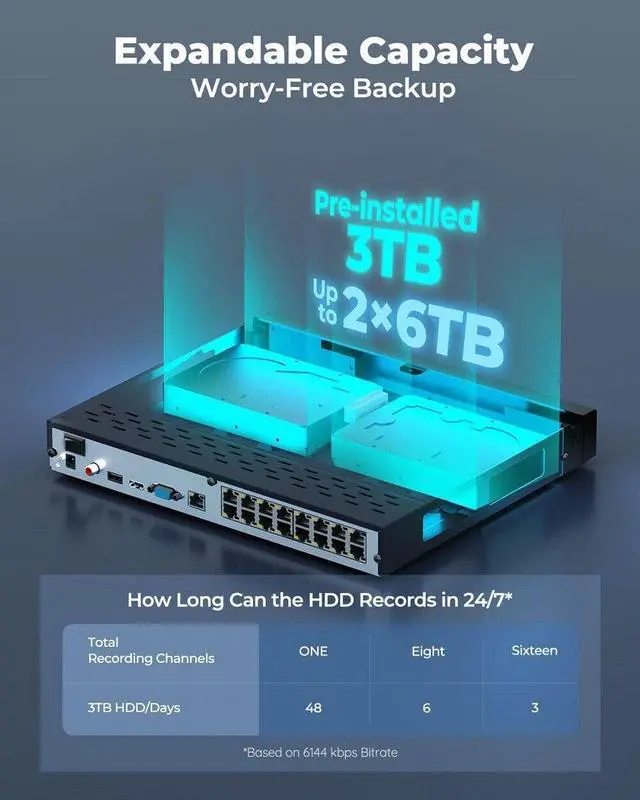

| Capacity | Built-in 3TB, Up to 6TB Capacity for Each HDD |
| External HDD | NO |
| Hardware Version | N2MB02/H3MB18 |

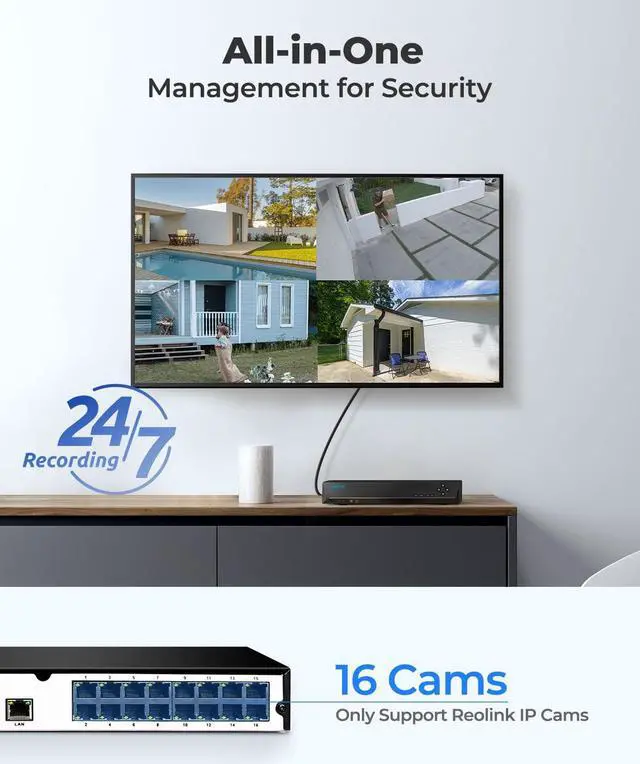

It supports all Reolink 12MP, 8MP, 5MP or 4MP IP cameras. You can choose up to 16 cameras (not included) to work with this NVR & build your own video surveillance system.
The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.
When any of the cameras detect motion, the RLN16-410 could buzz to call your attention. It can also send email and push to you and trigger Recording. In this way, you could be informed in real time when invasion happens.
