Important Notes:
- Reolink NVRs with the hardware version of N2MB02/H3MB18/N3MB01 support the smart detection/playback for the RLC-510A. You can verify the compatibility via the System Information of the NVR.
- The RLC-510A IP camera can be added to some third-party software/NVR such as Blue Iris or Synology. But currently, we could only ensure the full compatibility between this camera and the Reolink NVR/software.
Image Sensor | 1/2.7" CMOS Sensor |
---|---|
Lens | f=4.0mm fixed, F=2.0, with IR Cut |
DC Power | DC 12.0V/1A, <12W (Power Adapter NOT included) |
Record Mode | Motion-triggered recording (default); scheduled recording |
Field of View | Horizontal: 80° Vertical: 42° |
Storage | MicroSD card slot (support up to 256GB) |
Code Rate | Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps) Substream: 64Kbps - 512Kbps (defa |
Browser Supported | IE, Edge, Chrome, Firefox, Safari |
Video Resolution | 2560 x 1920 (5.0 Megapixels) |
---|---|
Night Vision | 30 Meters (100 ft) (LED: 18pcs/14mil/850nm) |
Smart Alarm | Person detection; vehicle detection; motion detection |
Smart Home | Google Assistant |
PoE Standard | IEEE 802.3af, 48V Active |
Audio | Built-in microphone, Audio Recording |
OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |

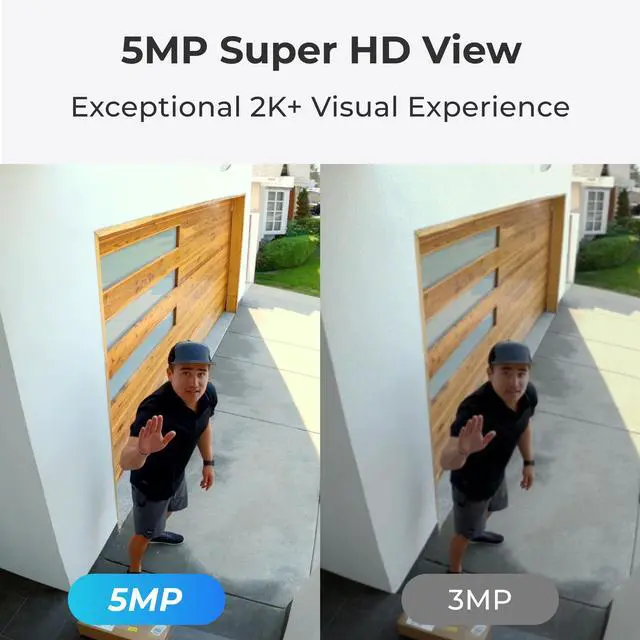

Elevate your viewing experience with 2K+ 5MP Super HD resolution, offering high image quality for precise monitoring and surveillance.

Stay vigilant around the clock with infrared LEDs, providing clear and crisp images at night, ensuring reliable monitoring and security.

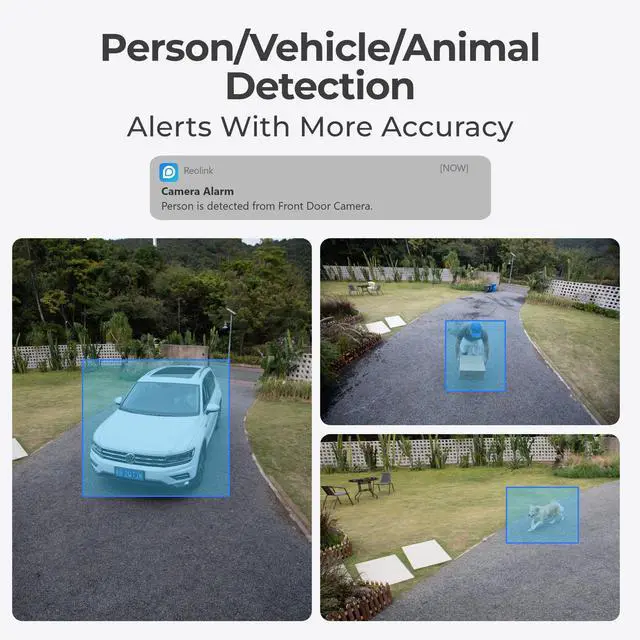

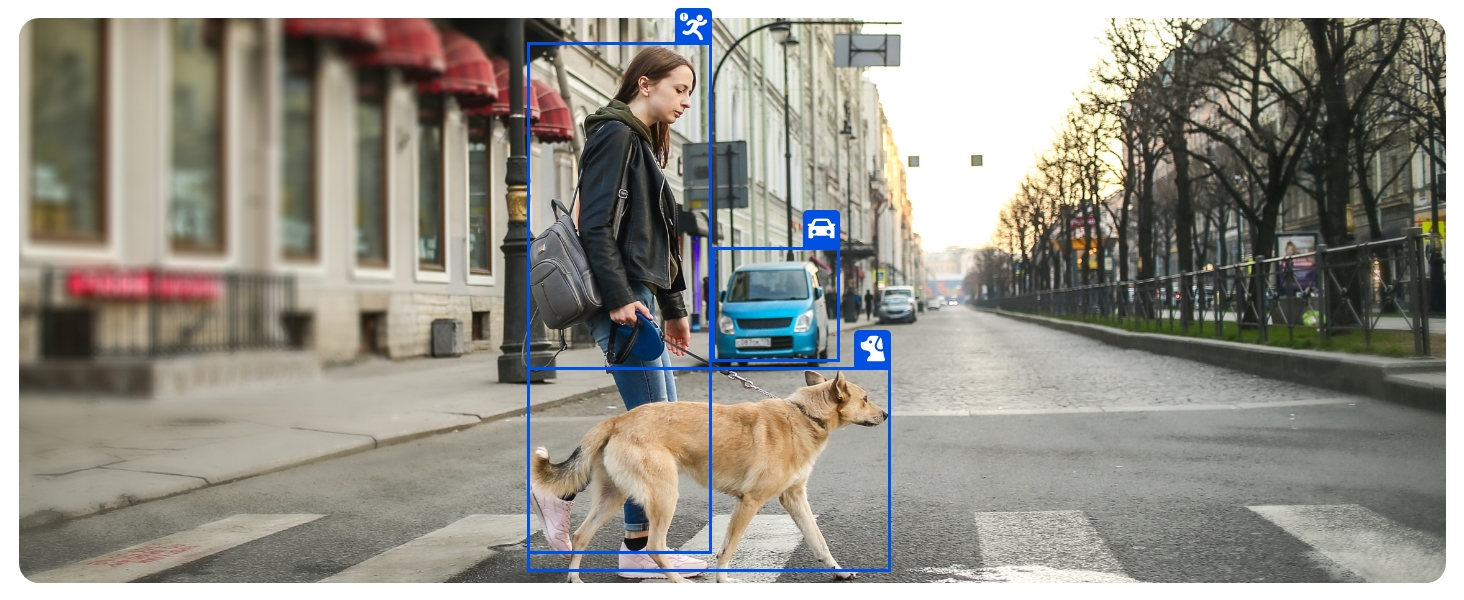

Receive real-time notifications for suspicious people, vehicles, and animals. By distinguishing them from falling leaves or raindrops, the camera minimizes false alarms.

RLC-510A IP camera supports 24/7, scheduled, and motion-triggered recording with local storage on microSD card or NVR, plus backup options via FTP, or NAS.

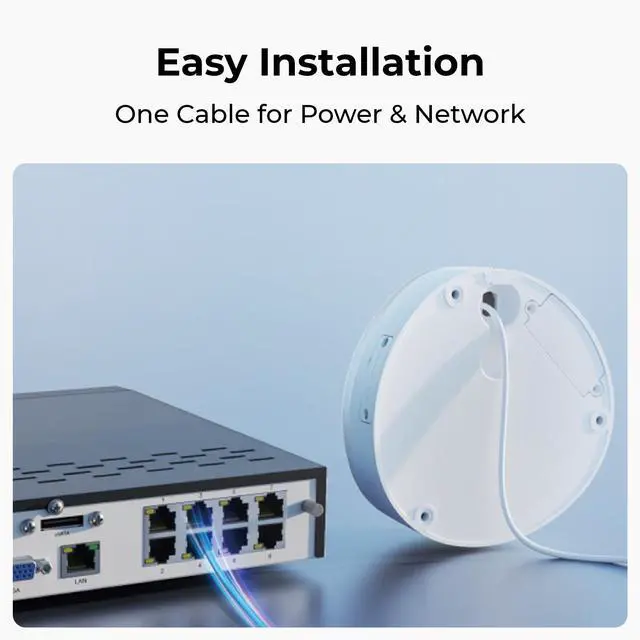

One-cable setup for power & data, streamlining security system deployment. This user-friendly solution ensures effortless installation and reliable operation.
Note: Reolink NVRs are recommended for best performance.

With an IP67 certification for weatherproofing, this camera offers robust defense against dust and rain, ensuring reliable performance in challenging outdoor conditions.

This IP camera will send you real-time push notifications or alert emails to your device, whenever an unusual movement is detected.

It can't be easier to control this IP camera with Google Assistant. Just say "Ok Google, show me the backyard" and the live feed will appear on your Google Nest Hub or Chromecast-enabled TVs.
Note: This feature is incompatible when camera is connected to NVRs.

Use your security camera to shoot time-lapse videos. Keep track of your 3D printing, see whole construction process in a few minutes, or capture beautiful views from sunrise to sundown. Easy to use and fun to share with others.
Note: This feature is incompatible when camera is connected to NVRs.
