Experience seamless streaming with 2.4/5GHz WiFi and Wi-Fi 6. Say goodbye to video buffering delays.
Get strong WiFi signals even over long distances with 4 antennas. Stay online and connected.

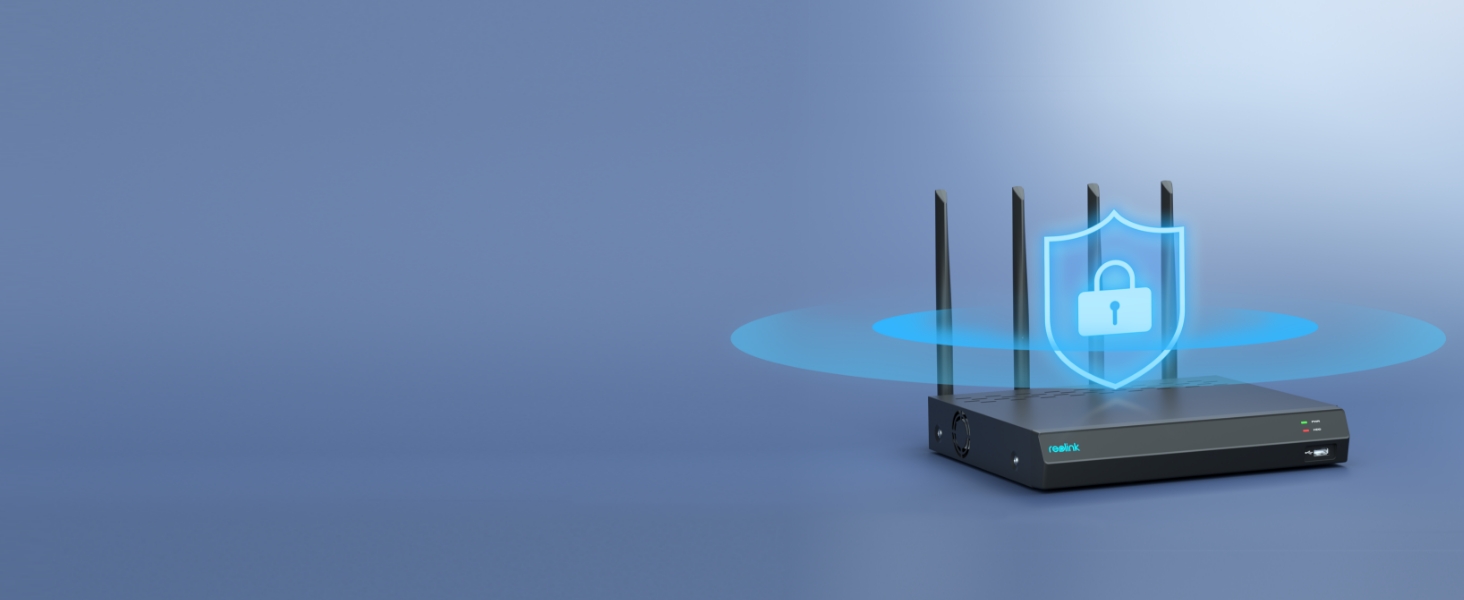

Elevate your security and provide robust encryption and protection against common cyber threats.
Enjoy lag-free simultaneous streaming for the whole family with OFDMA and MU-MIMO technologies.
Boost WiFi resistance to interference for a stable connection, even in complex network environments.
With H.265 compression, save space while preserving quality. Store extensive recordings easily.
Stay vigilant with immediate push notifications and emails upon detecting motion events.

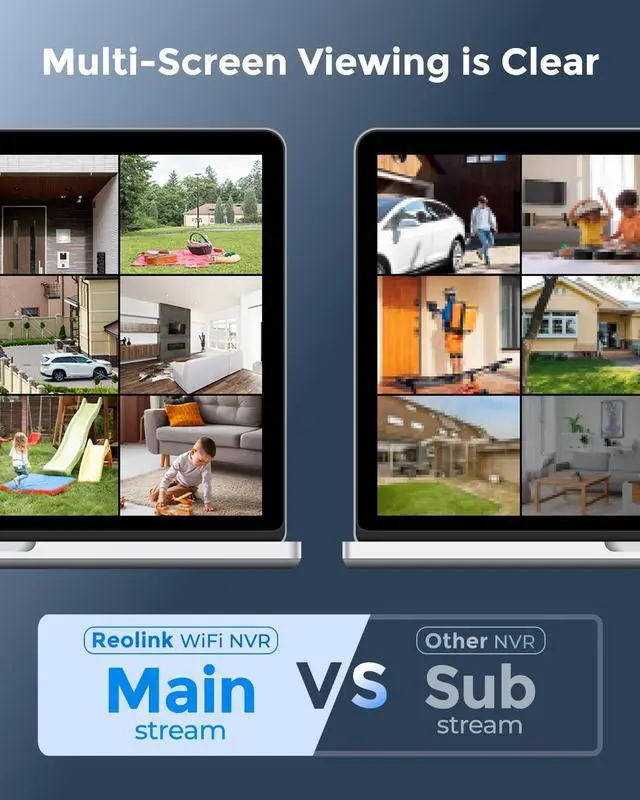

Support max.12 devices to live stream at the same time (2 mainstreams & 10 substreams).

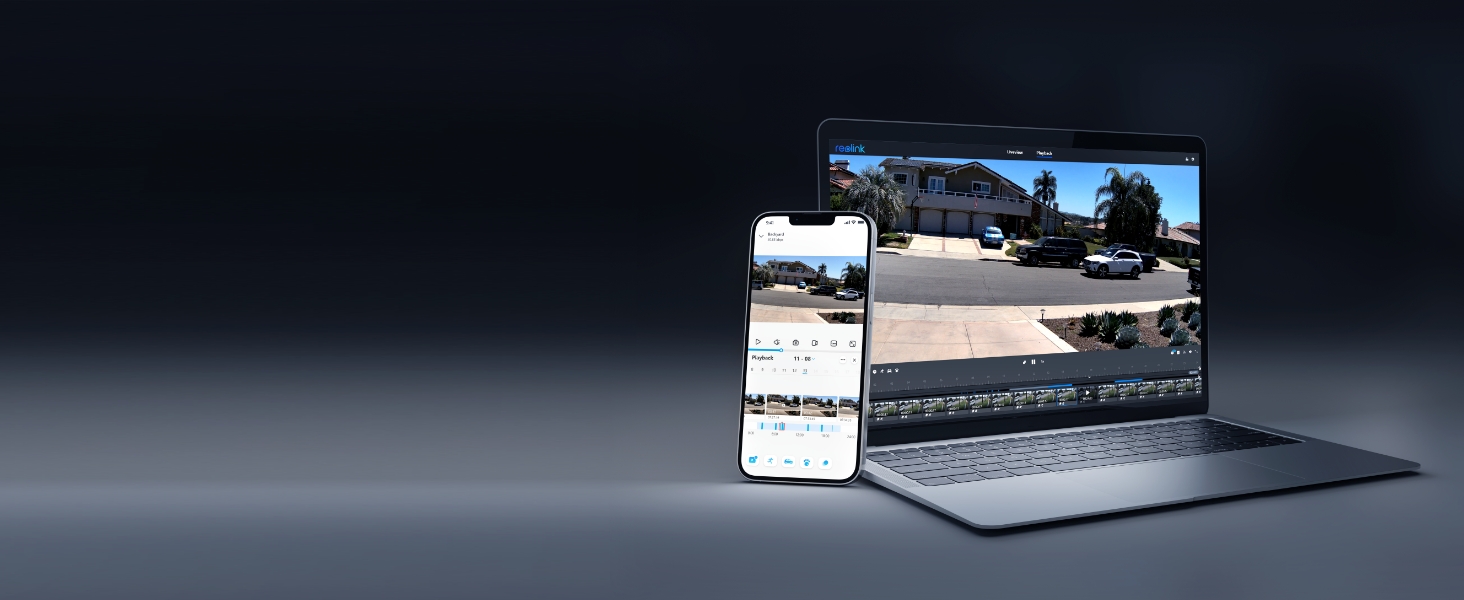

Effortlessly find desired footage by filtering recordings based on the chosen detection mode.

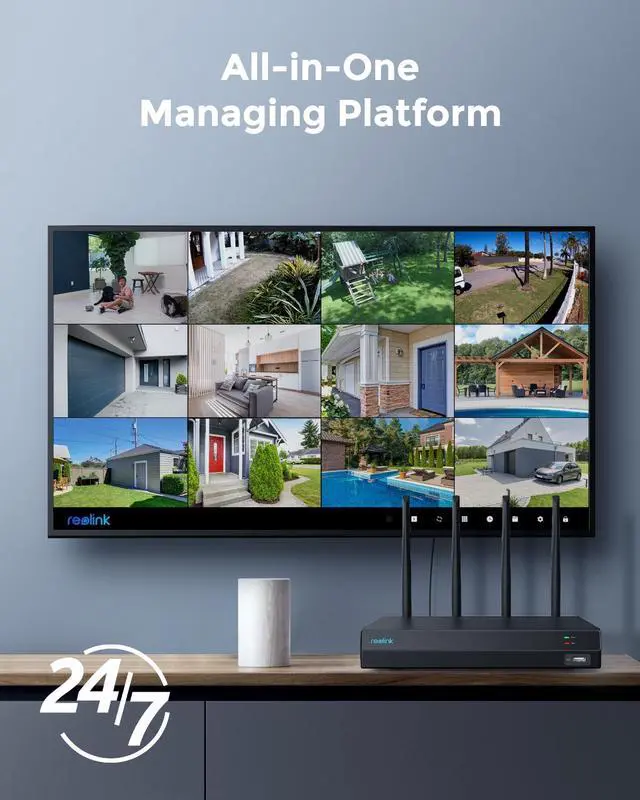

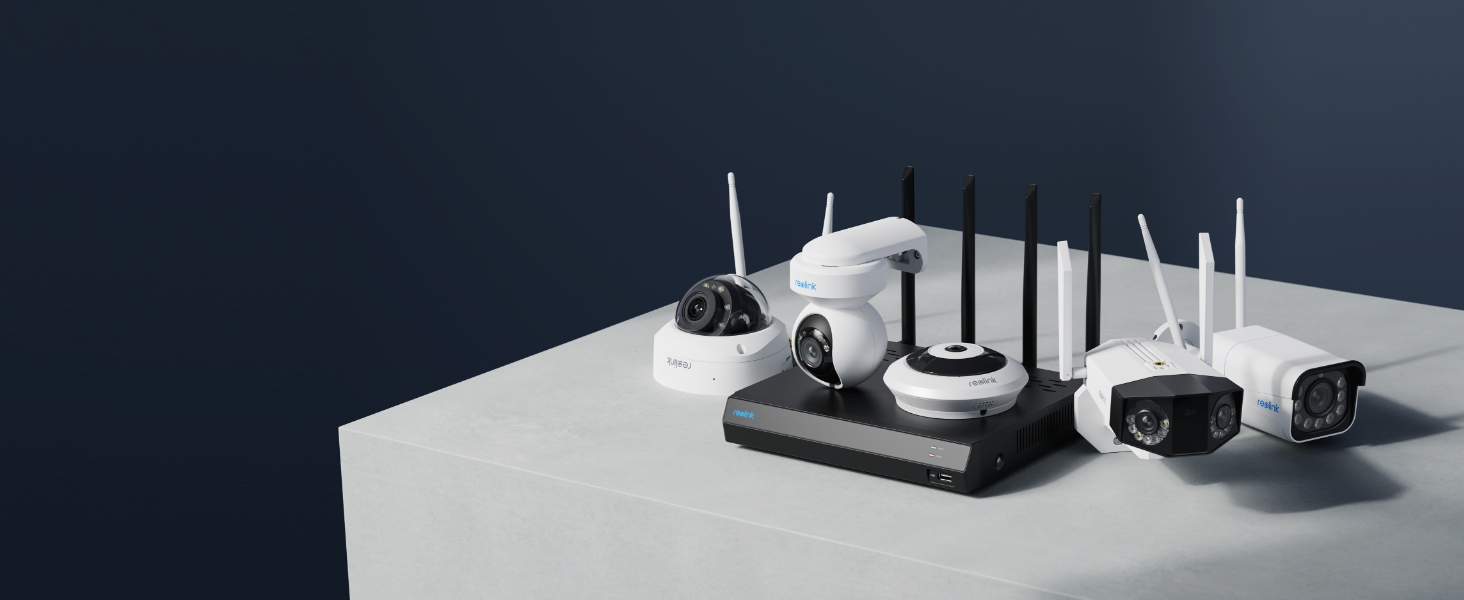

Select your preferred Reolink IP cameras and integrate them with the NVR to build a security system.
| HDMI Output | 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 |
|---|---|
| VGA Output | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Live View/Playback Resolution | 7680X2160, 4608X1728, 4512X2512, 4096X3072, 3840X2160, 2560X1920, 2560X1440, 2048X1536, 2304X1296, 1080P, 720P |
| Wireless Standard | 2.4/5GHz 802.11 b/g/n/a/ac |

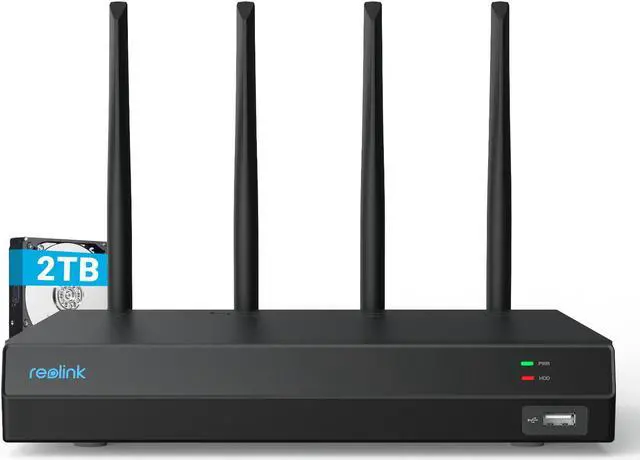

| HDD Installed | Pre-installed a 2TB HDD |
| Network Protocol | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
|---|---|
| Browser/OS Supported | Firefox, Chrome, Edge, Safari; PC: Windows, Mac OS; SmartPhone: iOS, Android |
| Network Interface | 4*10M/100M bit Ethernet Ports for cameras &1*10M/100M bit Ethernet Port for LAN/WAN |
| HDD Capacity | 1*Internal Port, Support Up to 16TB |
| Power Supply | DC 12V/2A |
