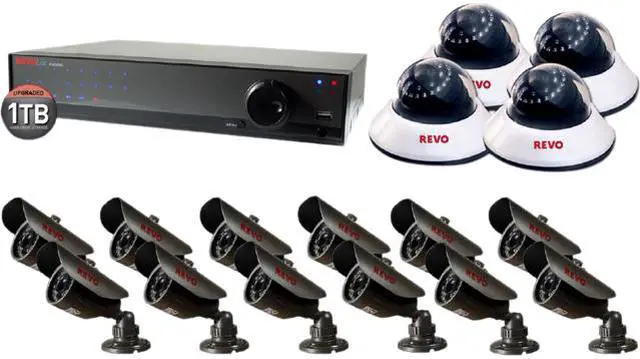

Revo RL161D4EB12E-1T Lite 16CH RJ12 DVR 1TB, 4 Domes, 12 Bullet

(1) Write a Review
  • 16 Ch. 1 TB DVR
  • 660 TVL Indoor / Outdoor Bullet Camera
  • 660 TVL Indoor Dome Camera
Specs
Reviews (1)
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Revo RL161D4EB12E-1T

Model
Brand REVO America
Model RL161D4EB12E-1T
Type Kit Solution
Recording
Camera inputs 16 Channel
Video Input RJ-12 x 12, BNC x 4, Vp-p x 1, auto-terminating, 75 Ohms
Audio Input RJ-12 x 12
Resolution Recording HDMI: 1920 x 1080
VGA: 800 x 600, 1024 x 768, 1280 x 1024, 1440 x 900, 1920 x 1080
Recording Frame Rate 480 fps (NTSC), 400 fps (PAL) @ CIF
Display
Video Output 1 x BNC, 1 x VGA, 1 x HDMI
Audio Output 1 x RCA
Display Frame Rate 30 fps (NTSC), 25 fps (PAL)
Details
Storage Capacity 1TB HDD
Backup Device 2 x USB 2.0
Serial Connectors RS485 Serial Port
Network
Network Connection RJ45
Features
Power Supply DVR: 12V, 5A
Remote Control 1
Bundle
Bundled Camera Number 12
Bundled Camera Spec RCBS30-2A
Image Device: 1/3" Color Image Sensor
Picture Elements: NTSC: 800(H) x 500 (V)
Resolution: 660 TVL
Min. Illumination: 0 Lux (IR On)
S/N Ratio: More than 48 dB
Electronic Shutter: NTSC:1/60S~1/100,000S
Gamma: 0.45
Sync System: Internal
Lens Furnished: Board Lens
White Balance: Auto
Gain Control: Auto
Video Output: 1 Vp-p/ 75 Ohms
Power Supply: DC12V+/-10%
Power Consumption (Off): 60mA max.
Power Consumption (On): 300 mA max.

RCDS30-2A
Image Device: 1/4" Color Image Sensor
Picture Elements: NTSC: 800(H) x 480 (V)
Resolution: 660 TVL
Min. Illumination: 0 Lux (IR On)
S/N Ratio: More than 48 dB
Electronic Shutter: NTSC:1/60S~1/100,000S
Gamma: 0.45
Sync System: Internal
Lens Furnished: Board Lens
White Balance: Auto
Gain Control: Auto
Video Output: 1 Vp-p/ 75 Ohms
Power Supply: DC12V+/-10%
Power Consumption (Off): 90mA max.
Power Consumption (On): 300 mA max.
Kit Feature Other View, Record, Search, Remote Access and Backup video simultaneously with PentaPlex.

Networking and setup are made convenient via EZ Link, three-step automation.

REVO Quickconnect Cables make installation a snap. One cable handles everything: video, audio and power.

Be notified of events that occur via Email, Twitter, Push Notification and more. Email includes Video Clip attachment of the incident.

With Smartphone support, you can use your REVO system from virtually anywhere at any time.

3.6 mm lens provides wide angle view; cameras cover a wider area.

Microphones built into our cameras enable an additional layer of surveillance: the ability to listen in on situations where others can only watch.
Dimensions & Weight
Dimensions DVR (RL16DVR1C): 2.60" x 13.40" x 9.10"
Camera (RCBS30-2A): 2.05" (Diam) x 3.07" (L)
Camera (RCDS30-2A): 5.55" (Diam) x 3.31" (L)
Packaging
Package Contents 16 Ch. 1 TB DVR with 12 Quickconnect (RJ12) and 4 BNC Ports
660 TVL Indoor/Outdoor Bullet Camera with 80' Night Vision (12)
660 TVL Indoor Dome Camera with 80' Night Vision (4)
Wired Mouse
Remote Control
60' RJ12 Cables (16)
Additional Information
First Listed on Newegg February 08, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
