RF-Link AVS-5808 5.8GHz Wireless 8-Channel Indoor Audio/Video System
- AVS-5808
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the RF-Link AVS-5808
| Brand | RF-Link |
|---|---|
| Model | AVS-5808 |
| Specifications | Transmitter Input voltage(module): DC 8V - 32V Current consumption: <150 mA Antenna type: 5 dBi omni-directional antenna Output power @connector 50mV/m@3m Modulatioln type: FM RF deviation (FM): 6.4 MHz peak to peak Channel selection: Rotary Switch Frequency stability: +/-250KHz Output flatness: +0 ~+3dB Video Input level: 1Vpp Video Impedance: 75 ohms Video Pre-emphasis: NTSC or PAL Video D.G.: < +/-8 Video D.P.: < +/-8 Audio Input level: 2Vpp Audio Impedance: 600 ohms Audio Frequency response: 30Hz ~ 12KHz Receiver Input voltage(module): DC 8V - 32V Current consumption : < 170 mA Antenna type: 5 dBi omni-directional antenna RF Input frequency range 5725 ~ 5875MHz Input level @connector: -25 ~ -84dBm IF frequency: 479.5MHz IF bandwidth: 18MHz Gain flatness: 3dB max Noise figure: 2dB Typical Input return loss: 7dB Typical Video Output level: 1V+/-0.15Vp-p Load Video Impedance: 75 ohms Video De-emphasis: NTSC or PAL Audio Output level: 1.4Vpp Audio Impedance: 600 ohms |
|---|
| Features | 5.8GHz 8-CH Wireless AV sender Robust and durable, designed for industrial, commercial indoor wireless audio/video application. Ideal for portable, temporary and/or covert surveillance applications. 8 user selectable channels. Strong immunity of interference from any of 900 MHz or 2.4GHz application such as Cordless phone, 802.11b/g Wireless LAN, Bluetooth, Microwave oven, etc. Low profile metal housing design with convenient slots for permanent mounting. Convenient front panel frequency selection, video gain adjustment, power switch & indicator. Capable in transmitting stereo audio. Operating voltage from 8.0 to 32 volts DC with 90%+ efficient, low noise switching voltage regulators. Transmission range up to 300 feet with clear line-of-sight. Transmission range can be over 7 km with combination of high gain antenna and RF-Link’s 1 watt amplifier (APW-1000). See chart for more details. |
|---|

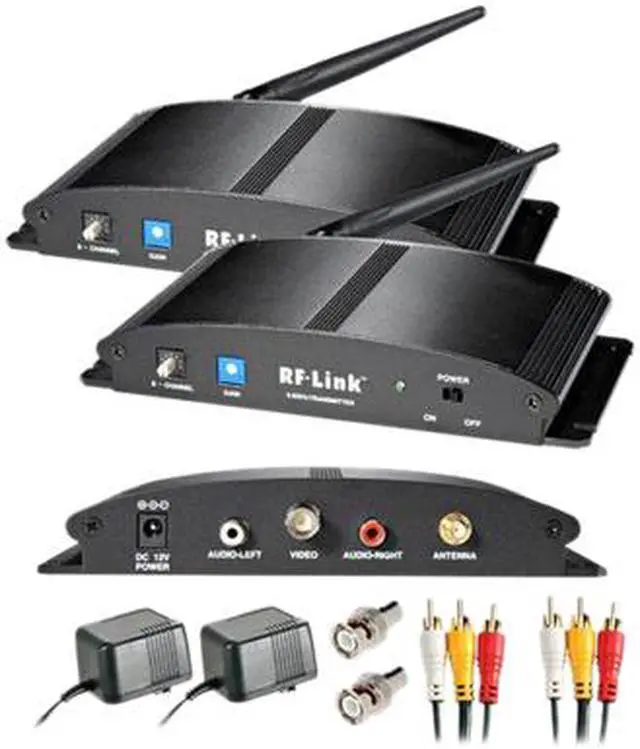

| Package Contents | 5.8GHz wireless 8-CH A/V transmitter (Qty 1) 5.8GHz wireless 8-CH A/V receiver (Qty 1) User guide (Qty 1) Omni (5 dBi) directional antenna (Qty 2) Composite cable (Qty 2) BNC-to-RCA connector (Qty 2) Power adapter (Qty 2) |
|---|
| Date First Available | June 09, 2010 |
|---|
