M.2 NGFF SSD to SATA or mSATA to SATA Adapter Converter Card 2.5 inch HDD Enclosure Case for B Key M.2 NGFF SATA SSD and mSATA SSD

Notice:

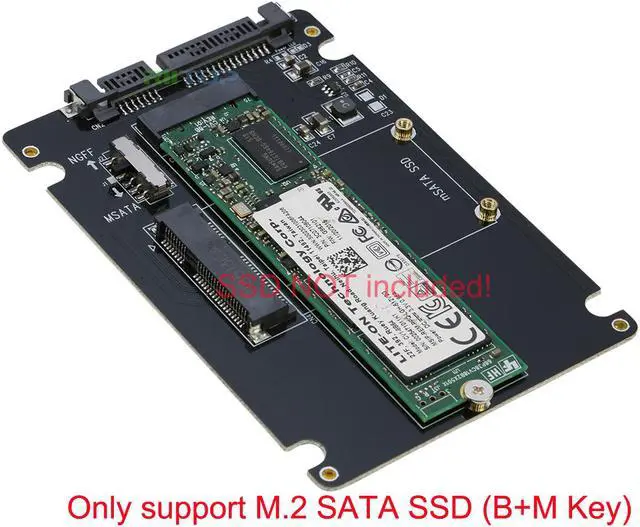

1. DO NOT SUPPORT M KEY PCIe NVME M.2 SSD.Before buying,Please Check Your M.2 SSD is SATA Channel or PCI-E Channel on it's Brand Website.
2. If M.2 SSD inserted, the switch should be dialed to the NGFF. If mSATA SSD inserted, the switch should be dialed to the MSATA.

Features:

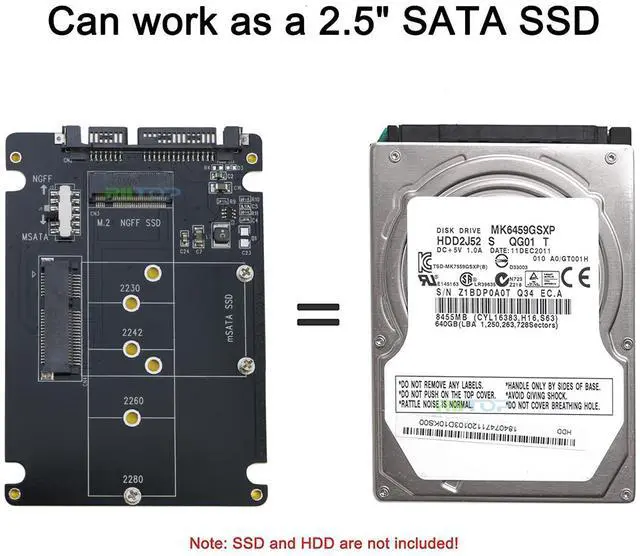

Use it to easily connect M.2 or mSATA SSDs to 2.5" SATA iii port.
Once connected the M.2 SSD shows on your desktop or laptop pc computer as a new partition.
It can be used as a bootable disk and requires no extra driver.
It is suitable for both PC and Mac systems.
With read speed up to 520MB/s.

Specifications:
Dimension: 100x70x7 mm.
M.2 (NGFF) & mSATA to SATA III Adapter Card with Enclosure.
Support SATA Reversion 3.2.
PCI Express M.2 Spec. Revision 0.7, Version 1.0.
PCI Express Mini Card Electromechanical Spec. 1.2.
Thermal shutdown protection.
Short circuit protection, In-rush current suppression.

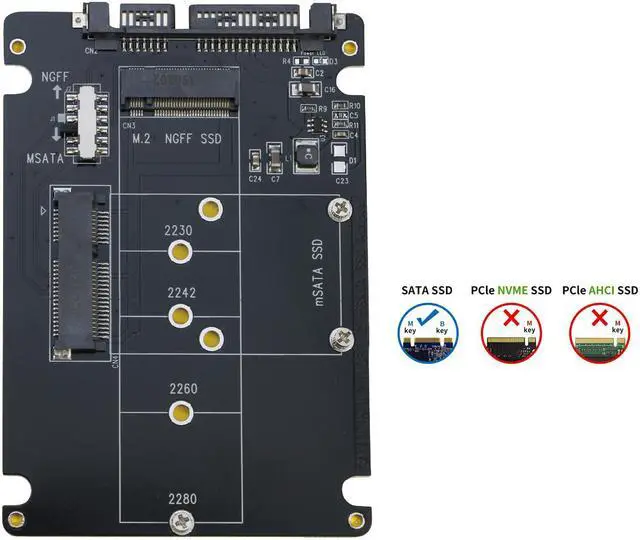

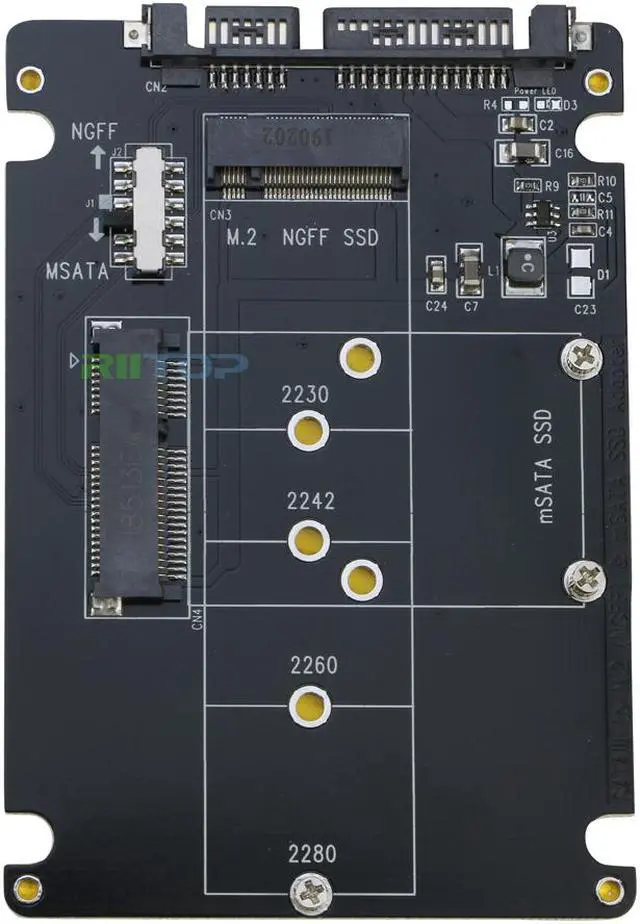

Support the following form factor M.2(NGFF) SSD:
Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)

Support the following form factor mSATA SSD:
Full size mSATA : 50.95mm(L) x 30mm(W)

Package Contents:

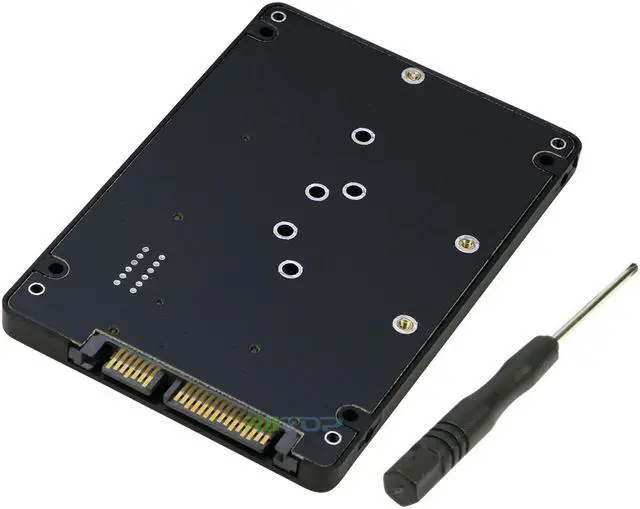

1x M.2 NGFF or mSATA to 2.5" SATA Adapter with Enclosure.
1x Screwdriver.
Screws.
