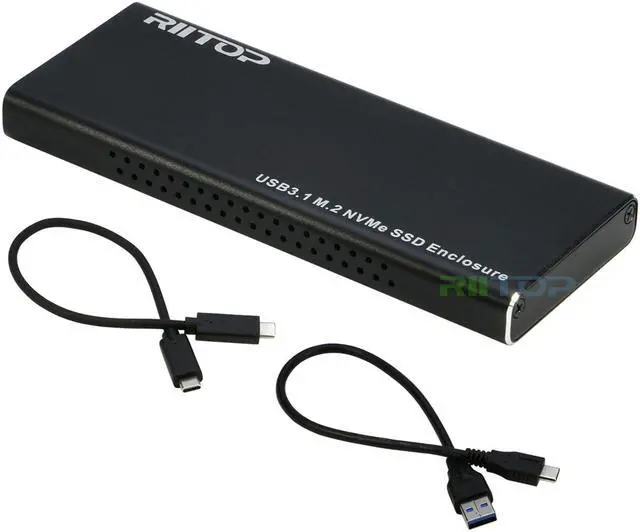

NVME to USB Enclosure Adapter, RIITOP M Key M.2 NVMe PCIe SSD to USB Type C with Aluminum Case in Black (Come with 2 Cables: C-A, C-C)
- NVMe to USB Enclosure Case Adapter
- M Key M.2 NVMe PCIe SSD to USB C Converter Adapter with Enclosure Case
- Hi speed USB 3.1 Type C Gen2 10Gbps
- Compatible with Thunderbolot 3 interface
- Come with 2* Cables: USB C- C, USB C-A
- It's thermal performance is much better than plastic case , ensure NVMe SSD work properly
- supports PCIe M.2 NVMe SSD 2280/2260/2242/2230 mm whole size

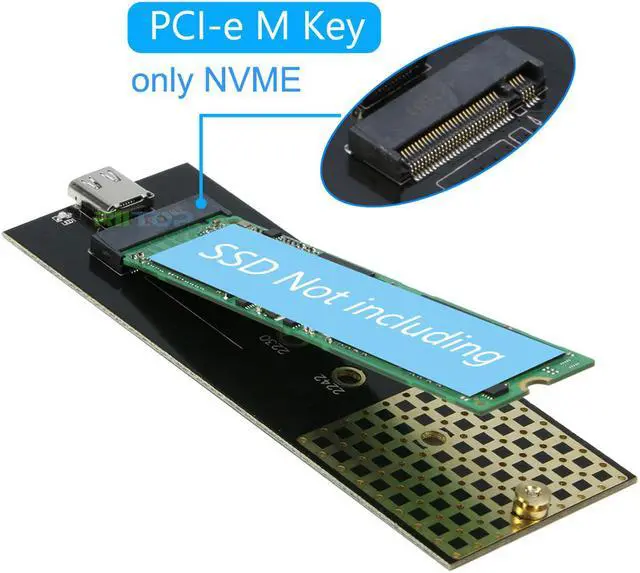

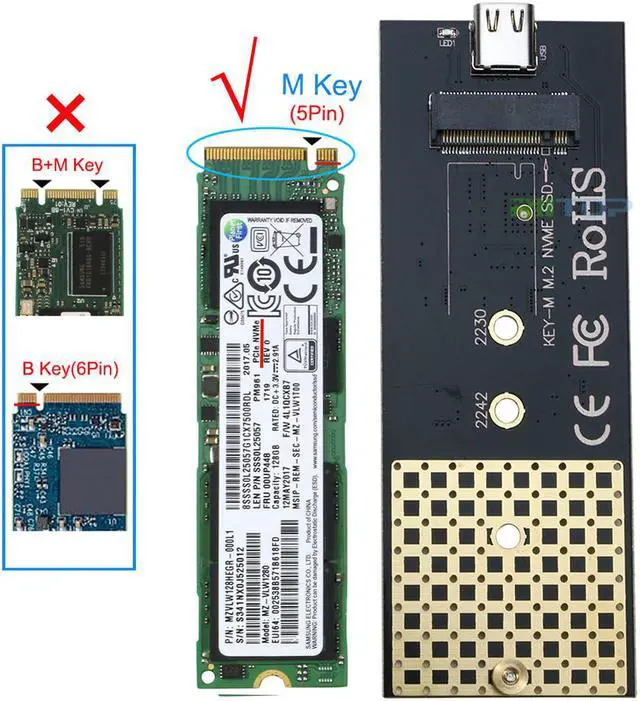

- Only for PCIe M.2 NVMe SSD, NOT support any SATA Nor AHCI B/B+M Key M.2 SSD
- Compatible with most NVMe SSD on the market, such as Samsung SM951- NVMe, PM951-NVMe, 950 Pro NVMe SSD, SM961, PM961, 960 EVO, 960 Pro, 970 EVO, 970 Pro, WD Black NVMe SSD, works on Windows XP / 7 / 8 / 10 and MAC OS. Plug and play, no driver required.
- Come with Two cables: USB Type-C to A cable and Type-C to C cable, make connection easier!
- Note:Samsung 'Magician' software does NOT recognize NVMe SSD through USB port, but "Macrium Reflect software" allows you to clone SSD.
Overview
Specs
Reviews (20)
Any questions? Our AI beta will help you find out quickly.
Try me now
Kindly Note:
1. If the SSD is brand new, Please go to "Disk Management " to "Initialize" it first after connected. Or it can not show in "My Computer".
2. Only for PCIe M. 2 NVMe SSD, NOT support SATA M. 2, Nor AHCI.
3. Samsung 'Magician' software does NOT recognize NVME SSD through the USB port, but "Macrium Reflect software" allows you to clone SSD.
Specifications:
Item: USB 3.1 TYPE-C NVMe SSD Enclosure.

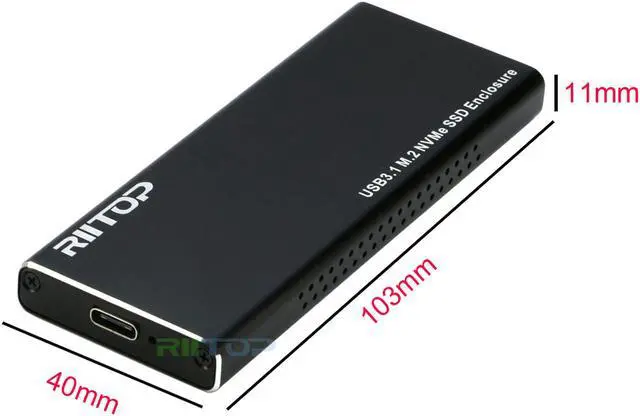

Size: 103*40*11mm.
Material: Aluminum.
Color: Black.
Protocol: NVMe.
Connector: USB TYPE-C 3.1.
High Speed: 10Gbps.
Support: 3D Game, 4K video, HIFI Music, RAM Picture ect. M-key connector, Only support PCIE Protocol.
NVMe Supriority: 1. up theperformance. 2. decrease delay. 3. decrease power dissipation. 4. IPOS of SSD will increase.
Compatible List (NVMe only): Samsung SM951- NVMe, PM951-NVMe, 950 Pro NVMe SSD, SM961, PM961, 960 EVO, 960 Pro, 970 EVO, 970 Pro. INTEL 600P. Liteon T10. And orther PCIE M. 2 NVMe SSD.
Features:
Supports TRIM to the SSD.
Integrates with USB Type-C multiplexer& configuration channel (CC) logic.
Complies with PCI Express Base Specification Revision 3.1 a.
Complies with NVM Express 1.3.
Complies with USB 3.1 Gen 1 and Gen 2 Specification, USB Mass Storage Class, Bulk-only Transport Specification(Revision 1.0 ).
Complies with USB Attached SCSI Protocol (UASP) Specification (Revision 4).
Supports USB Super-Speed/High-Speed/Full-Speed Operation.
Supports USB 2.0 /USB 3.1 Gen 1/2 power saving mode.
Supports external SPI NVRAM for Vendor VID/PID of USB 2.0 /USB 3.1 Gen 1/2 device controller.
Thirteen GPI Os for customization.
Provides hardware controlled PWMs.
Provides software utilities for downloading the upgraded firmware code under USB 2.0 /USB 3.1 Gen1, 2 Design for Windows 7, Windows 10 and MAC 10.10. 5 or later version.
Supports 25MHZ external crystal.
Supports 3.3V I/O.
Embedded 5V to 1.0V voltage regulator.
Embedded 5V to 3.3V linear voltage regulator (LD0).
Package Contents:
1x PCIe M.2 NVMe SSD to USB 3.1 Type C Aluminum Enclosure.
1x USB Type C to Type C Data Cable.
1x USB Type C to Type A Data Cable.
1x Screwdriver.
1. If the SSD is brand new, Please go to "Disk Management " to "Initialize" it first after connected. Or it can not show in "My Computer".
2. Only for PCIe M. 2 NVMe SSD, NOT support SATA M. 2, Nor AHCI.
3. Samsung 'Magician' software does NOT recognize NVME SSD through the USB port, but "Macrium Reflect software" allows you to clone SSD.
Specifications:
Item: USB 3.1 TYPE-C NVMe SSD Enclosure.
Size: 103*40*11mm.
Material: Aluminum.
Color: Black.
Protocol: NVMe.
Connector: USB TYPE-C 3.1.
High Speed: 10Gbps.
Support: 3D Game, 4K video, HIFI Music, RAM Picture ect. M-key connector, Only support PCIE Protocol.
NVMe Supriority: 1. up theperformance. 2. decrease delay. 3. decrease power dissipation. 4. IPOS of SSD will increase.
Compatible List (NVMe only): Samsung SM951- NVMe, PM951-NVMe, 950 Pro NVMe SSD, SM961, PM961, 960 EVO, 960 Pro, 970 EVO, 970 Pro. INTEL 600P. Liteon T10. And orther PCIE M. 2 NVMe SSD.
Features:
Supports TRIM to the SSD.
Integrates with USB Type-C multiplexer& configuration channel (CC) logic.
Complies with PCI Express Base Specification Revision 3.1 a.
Complies with NVM Express 1.3.
Complies with USB 3.1 Gen 1 and Gen 2 Specification, USB Mass Storage Class, Bulk-only Transport Specification(Revision 1.0 ).
Complies with USB Attached SCSI Protocol (UASP) Specification (Revision 4).
Supports USB Super-Speed/High-Speed/Full-Speed Operation.
Supports USB 2.0 /USB 3.1 Gen 1/2 power saving mode.
Supports external SPI NVRAM for Vendor VID/PID of USB 2.0 /USB 3.1 Gen 1/2 device controller.
Thirteen GPI Os for customization.
Provides hardware controlled PWMs.
Provides software utilities for downloading the upgraded firmware code under USB 2.0 /USB 3.1 Gen1, 2 Design for Windows 7, Windows 10 and MAC 10.10. 5 or later version.
Supports 25MHZ external crystal.
Supports 3.3V I/O.
Embedded 5V to 1.0V voltage regulator.
Embedded 5V to 3.3V linear voltage regulator (LD0).
Package Contents:
1x PCIe M.2 NVMe SSD to USB 3.1 Type C Aluminum Enclosure.
1x USB Type C to Type C Data Cable.
1x USB Type C to Type A Data Cable.
1x Screwdriver.
