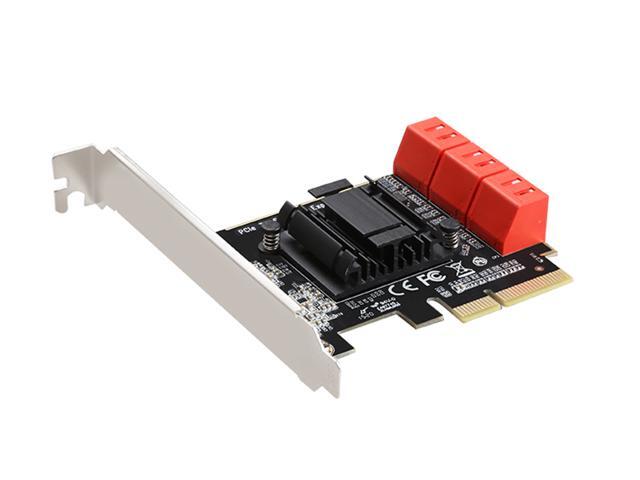

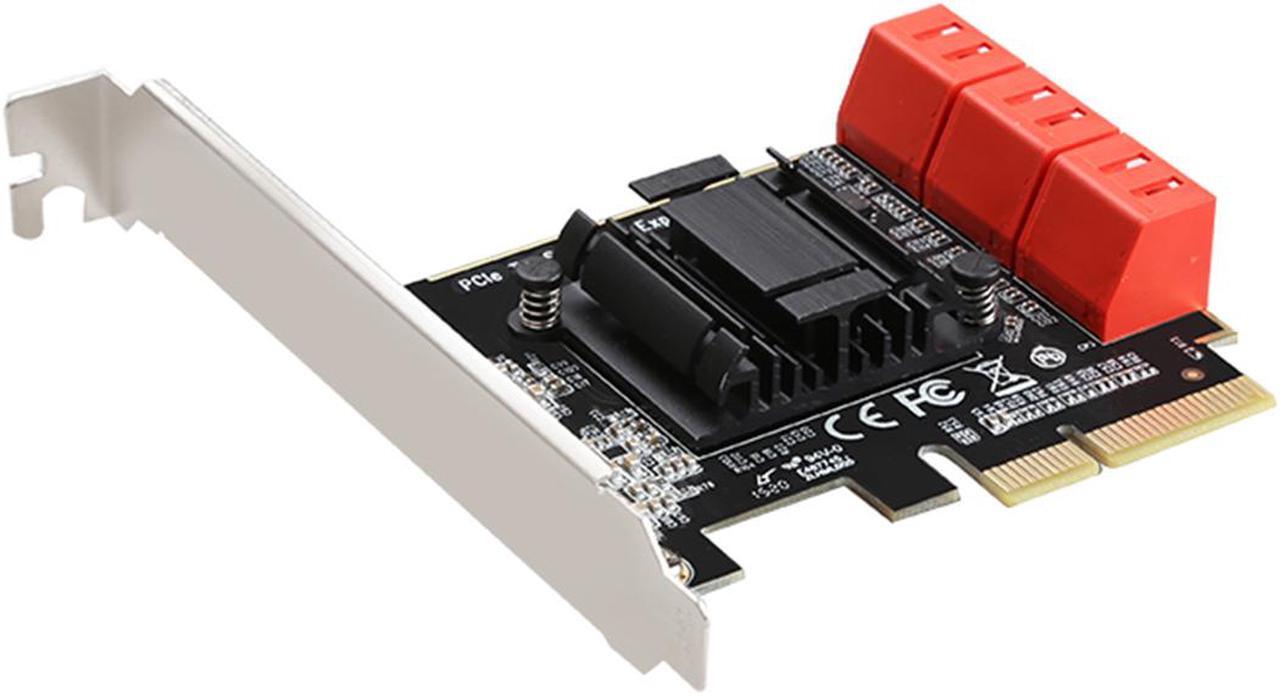

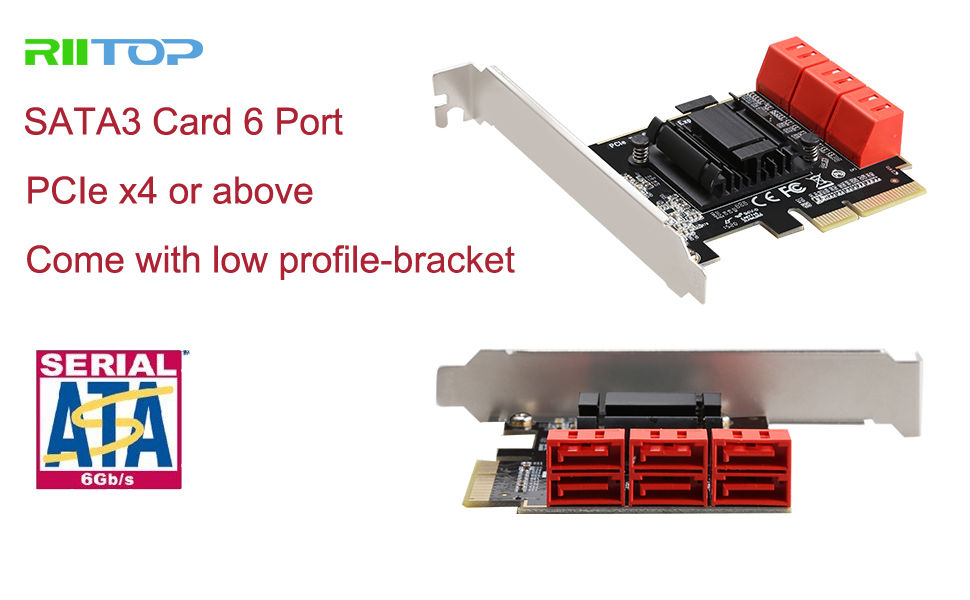

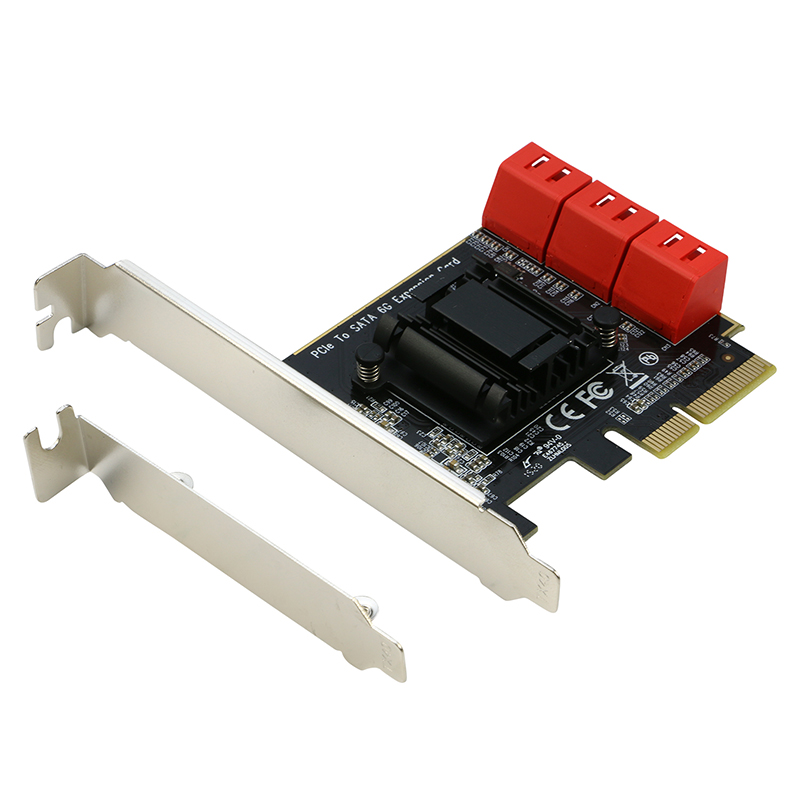

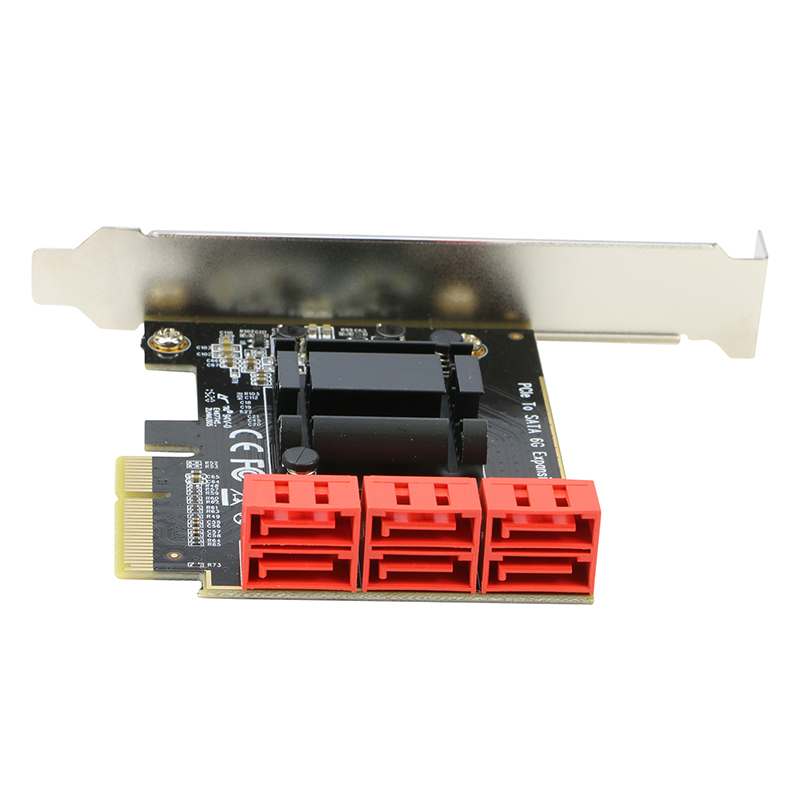

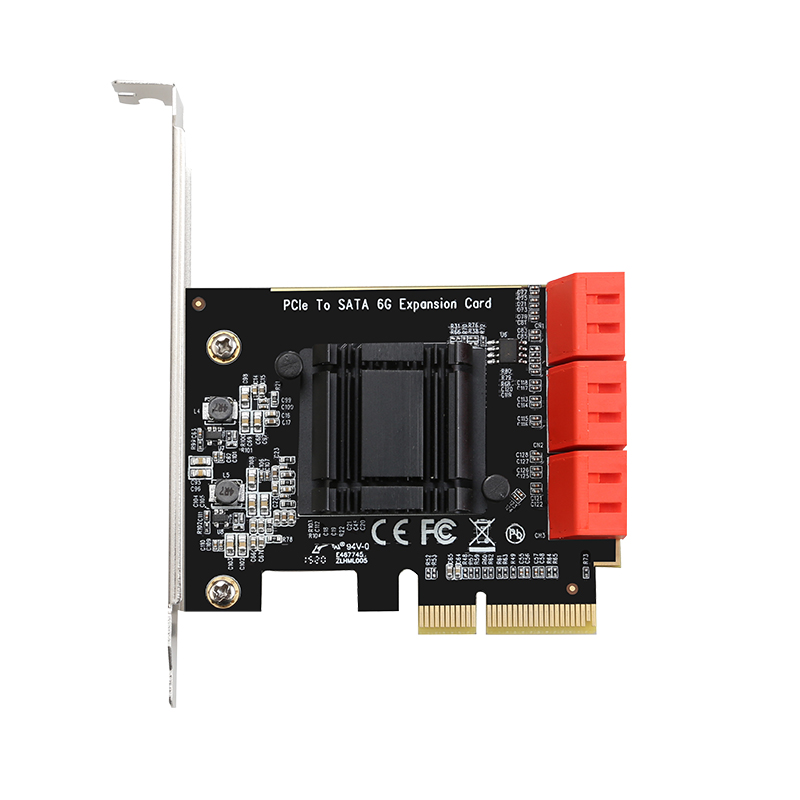

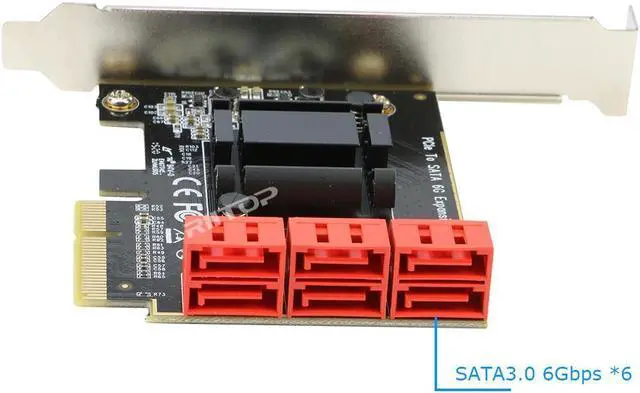

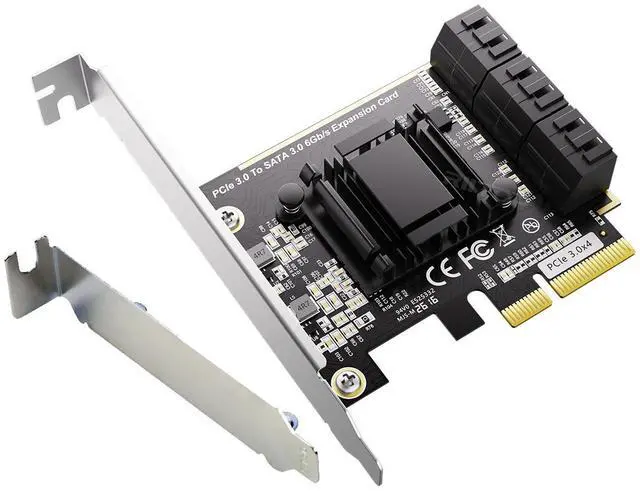

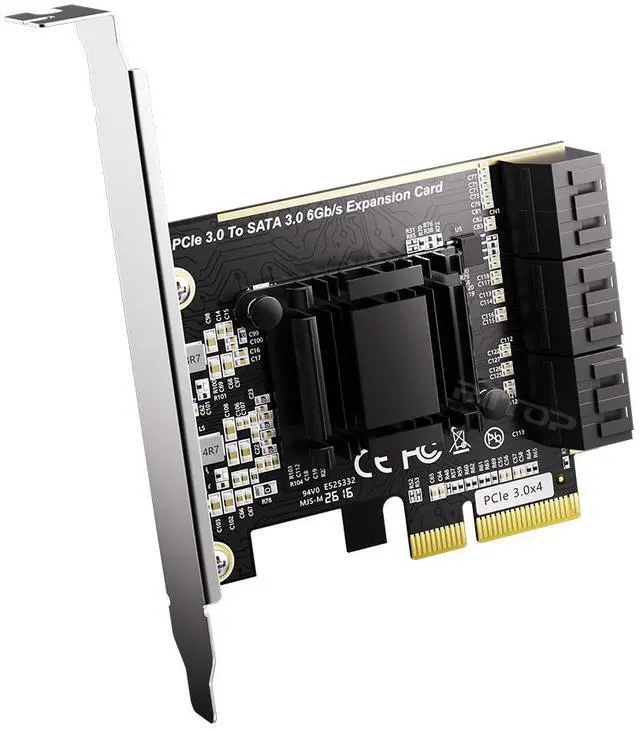

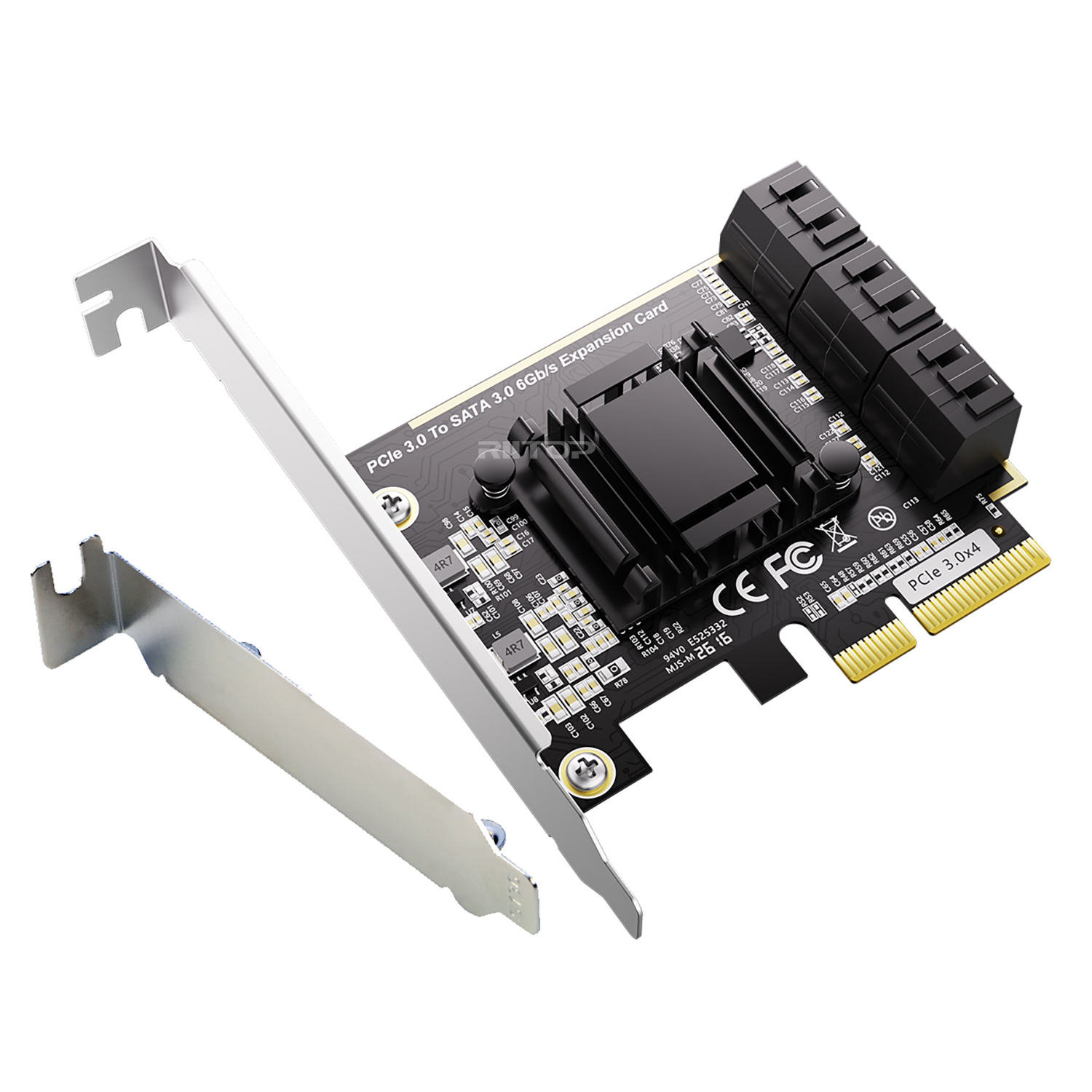

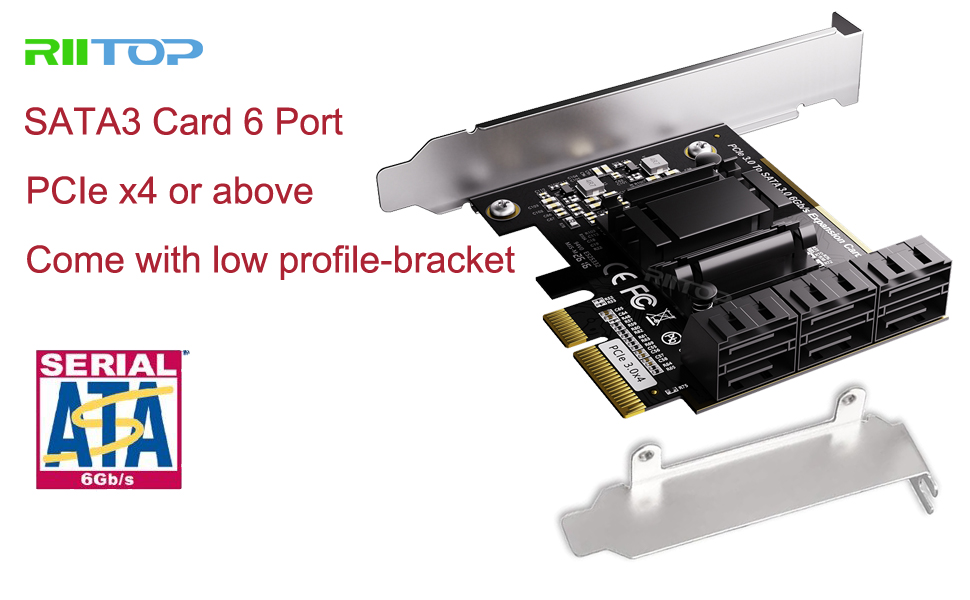

6 Ports SATA iii Controller PCI-e Express 4x Expansion Card
- SATA Card 6 Ports
- SATA3 Converter Expansion Card PCI-e Express
- SATA III 6Gbps Controller Card

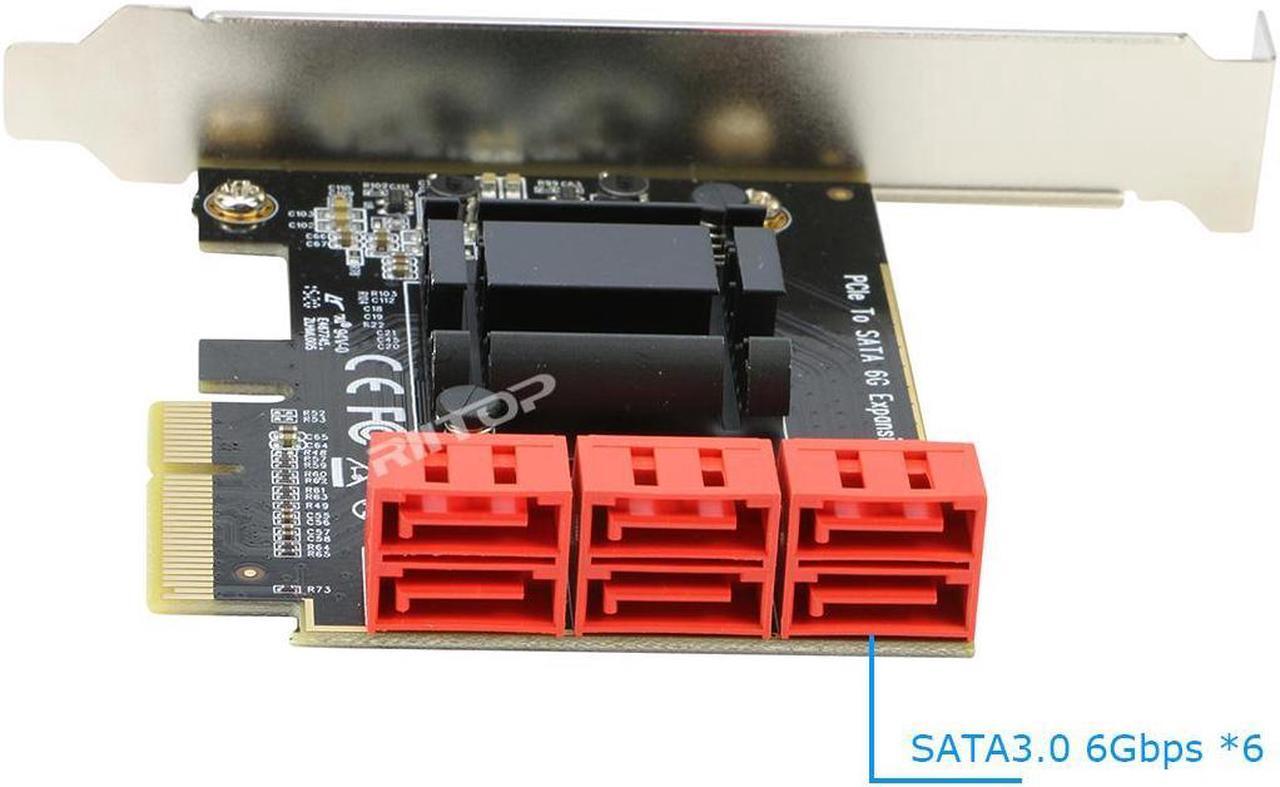

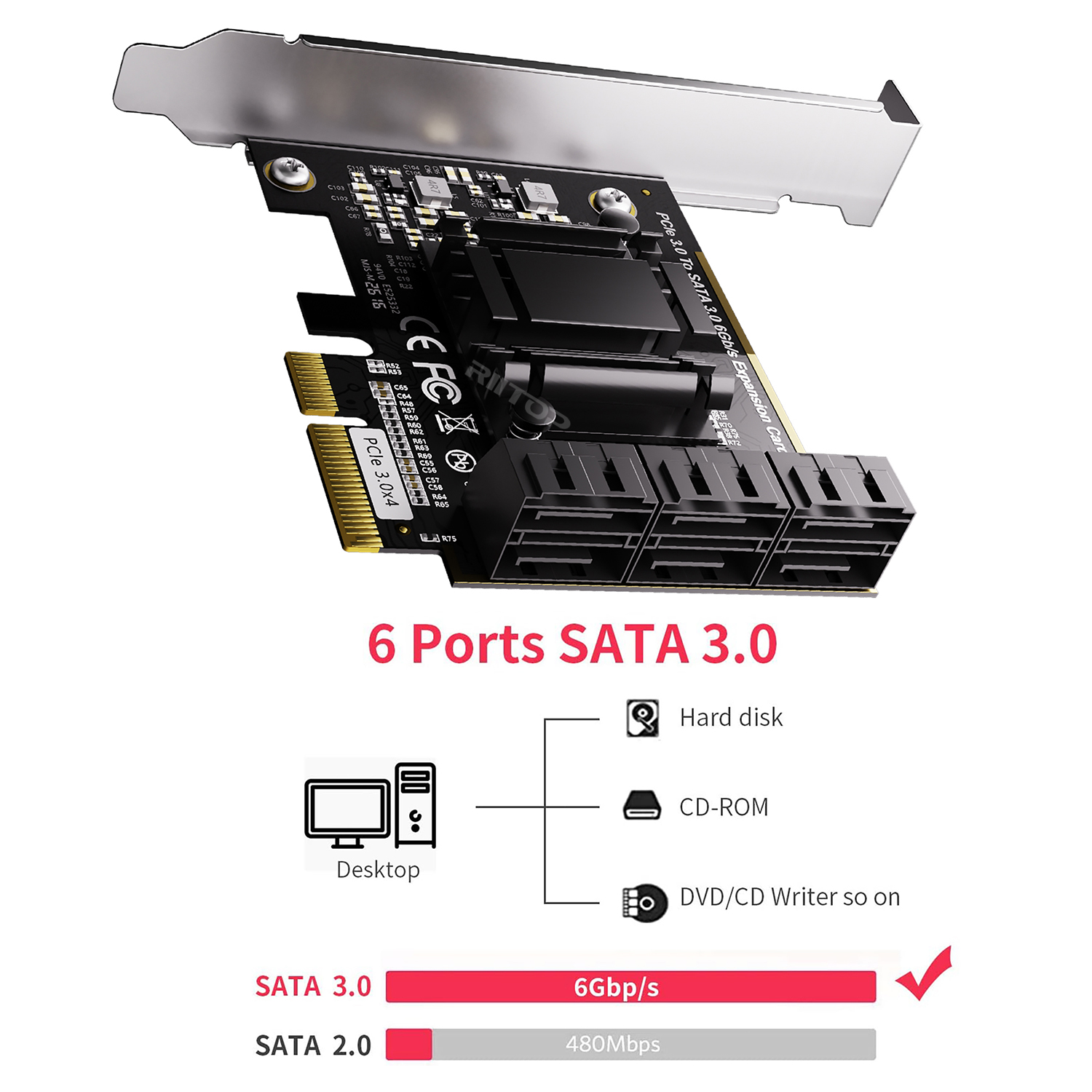

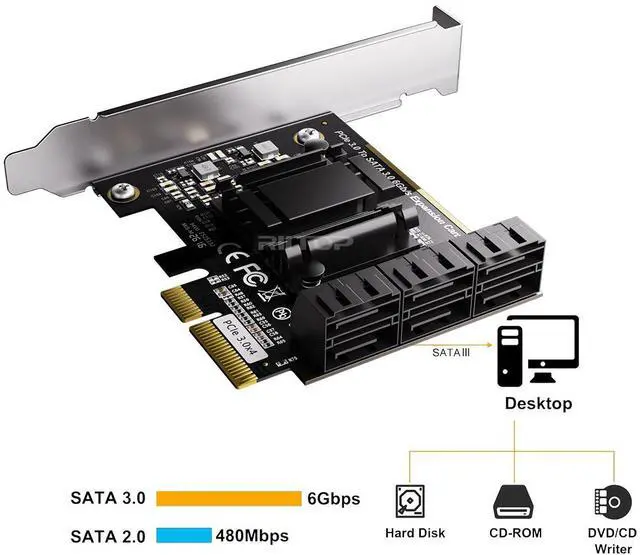

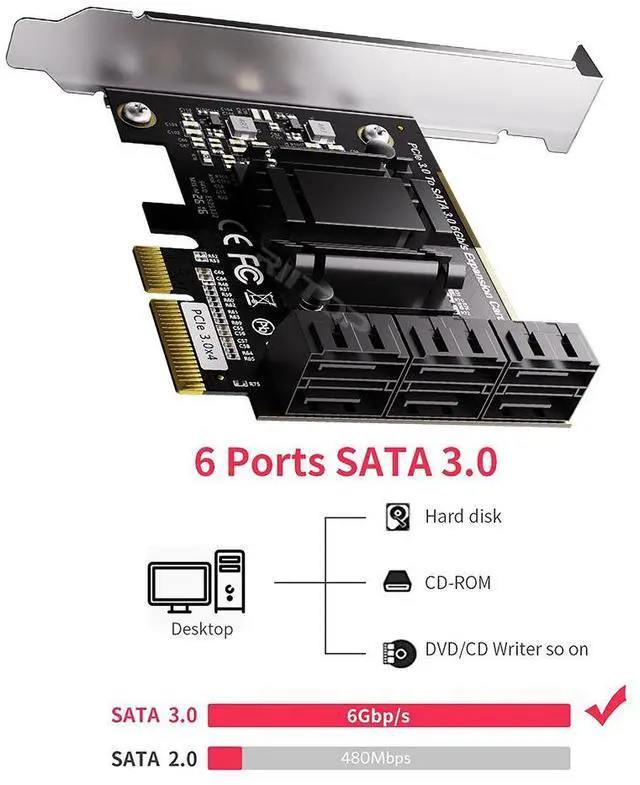

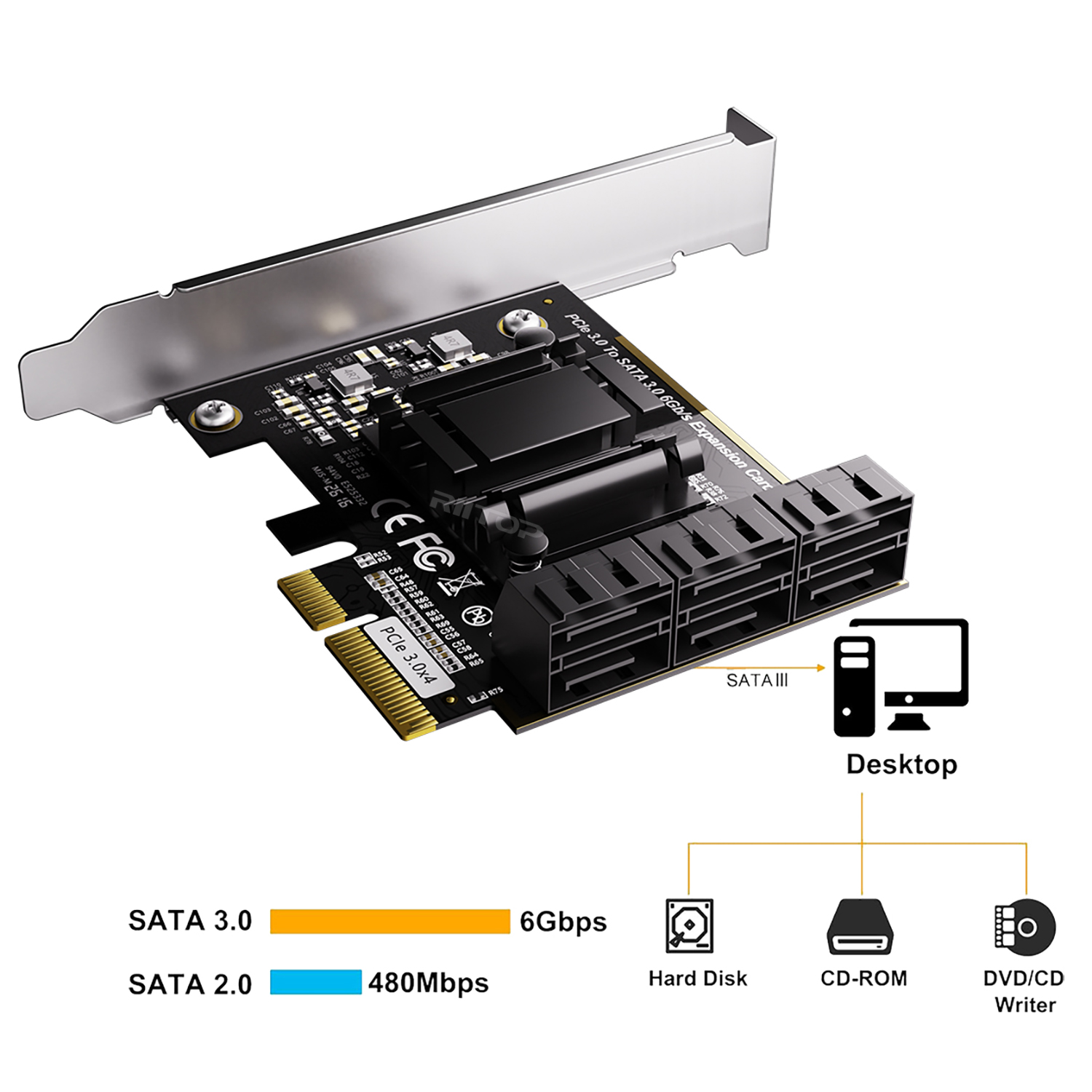

- Add 6* 6Gbps/s SATA 3.0 devices to your computer with the PCIe SATA card. Backward compatible to 1.5 Gbps/s and 3 Gbps/s

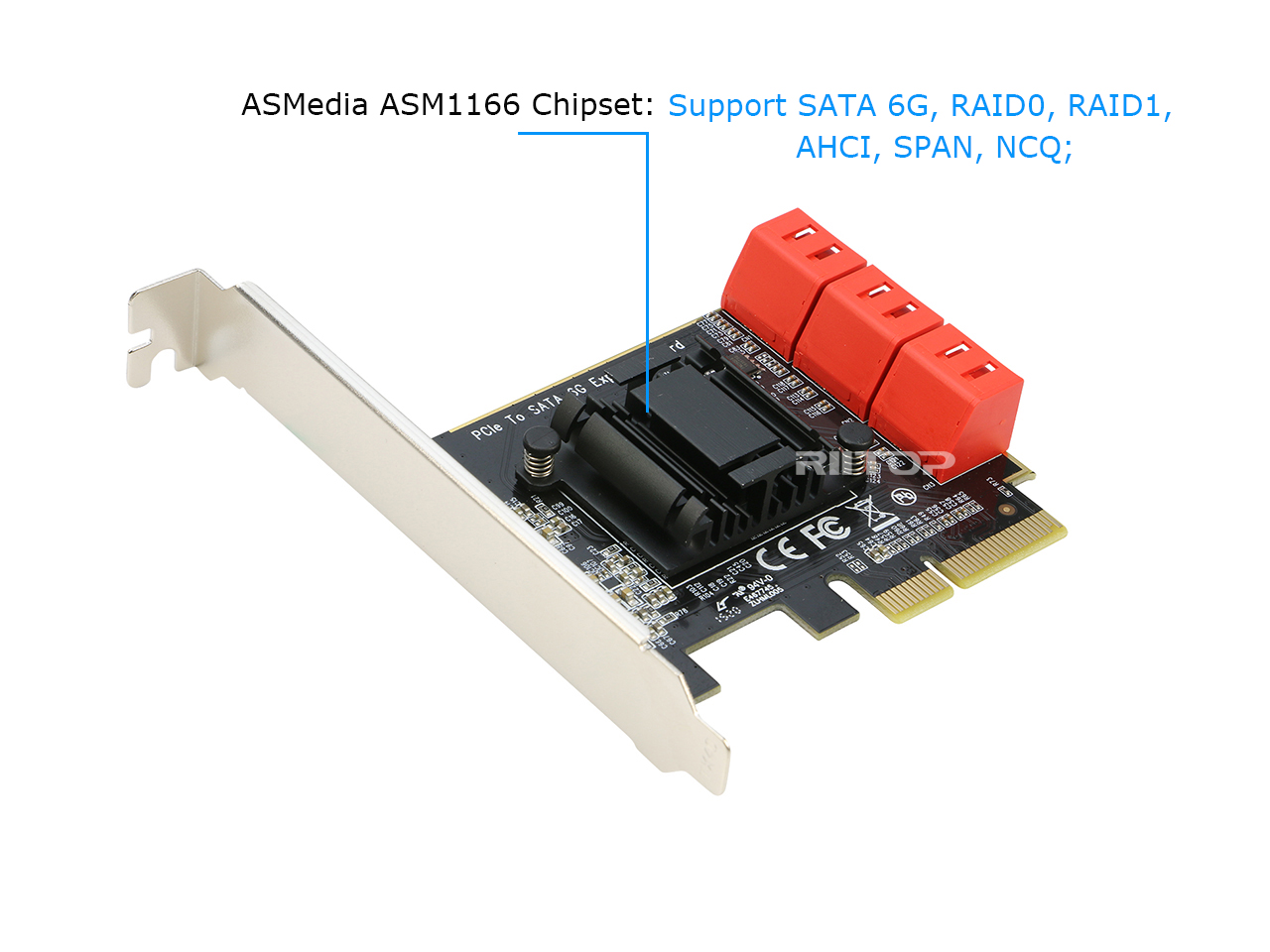

- The 6 port SATA controller based on ASMedia 1166 chip, more stable and wider compatible

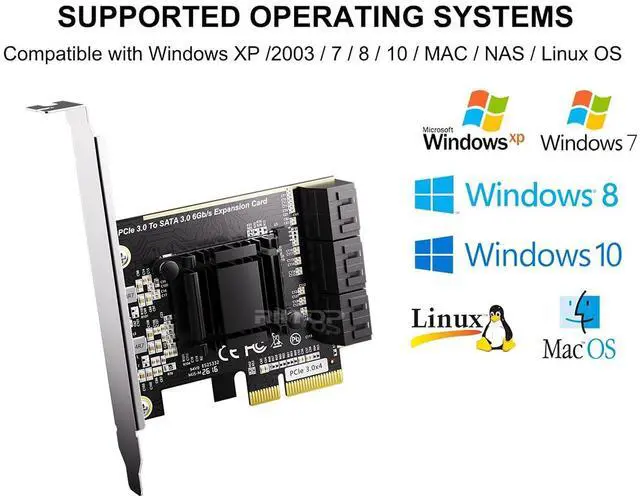

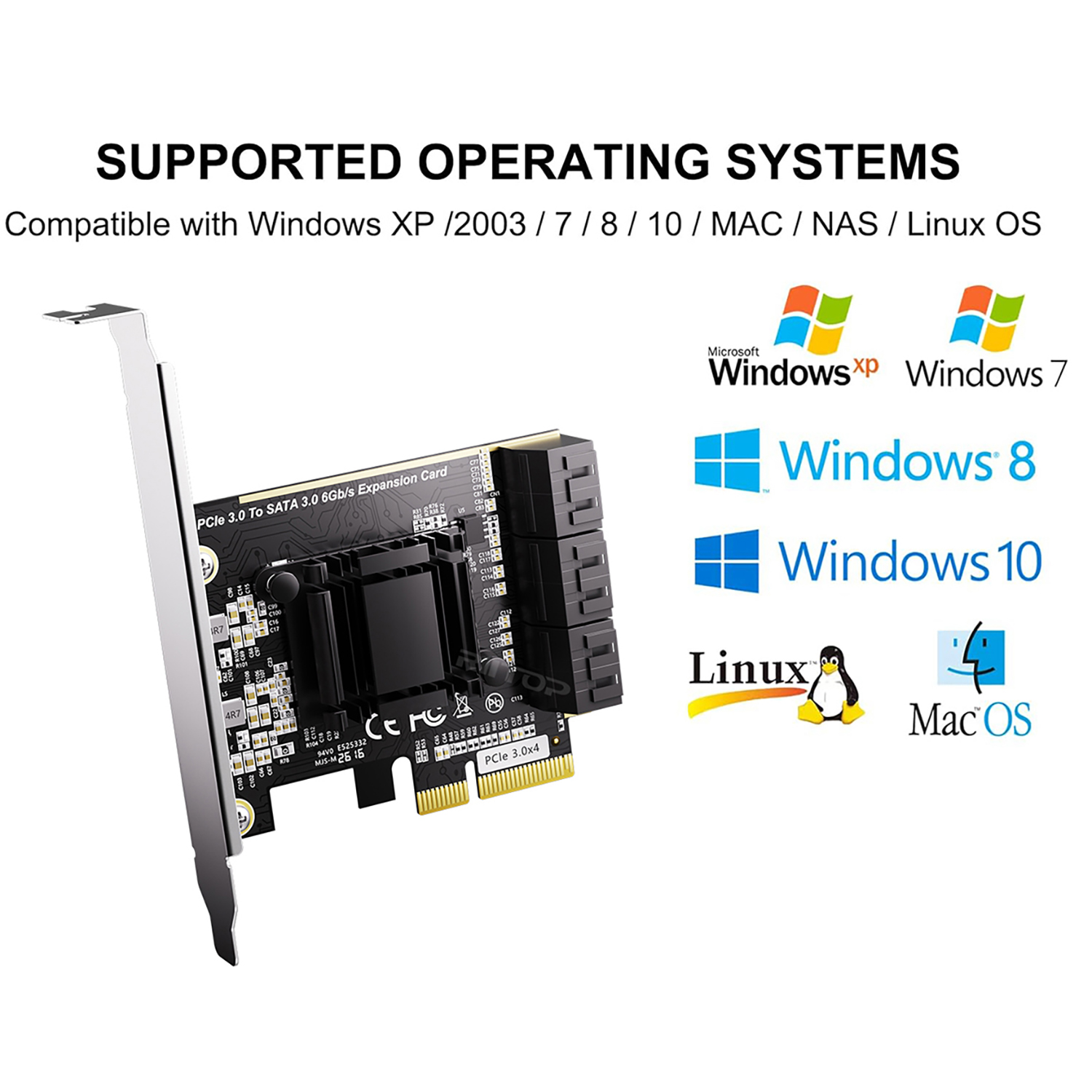

- The SATA expansion card supports Windows XP/ 7/ 8/ 10/ Mac/ NAS/ Linux OS, no driver required. Support install Windows OS from Win10 PE

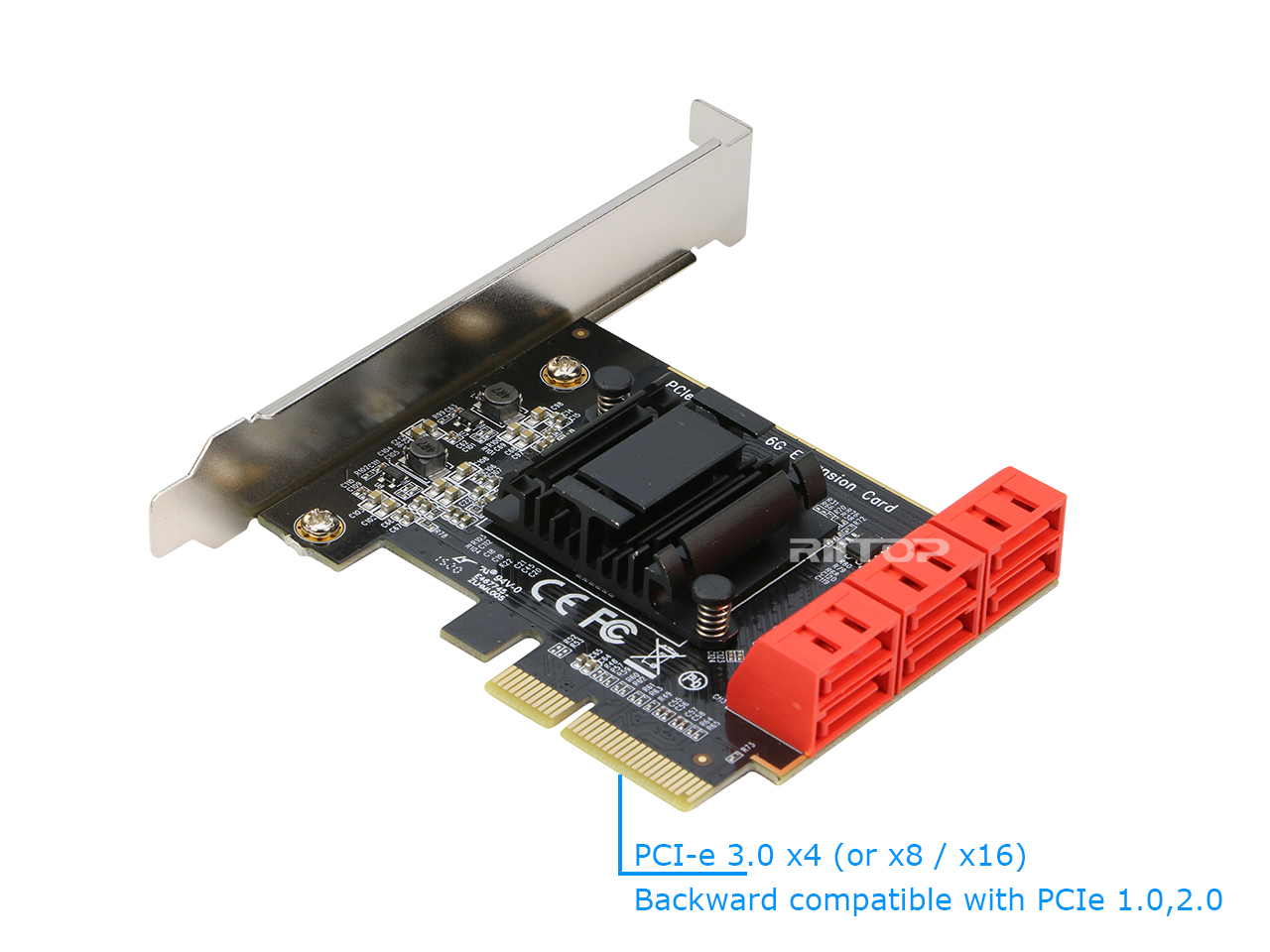

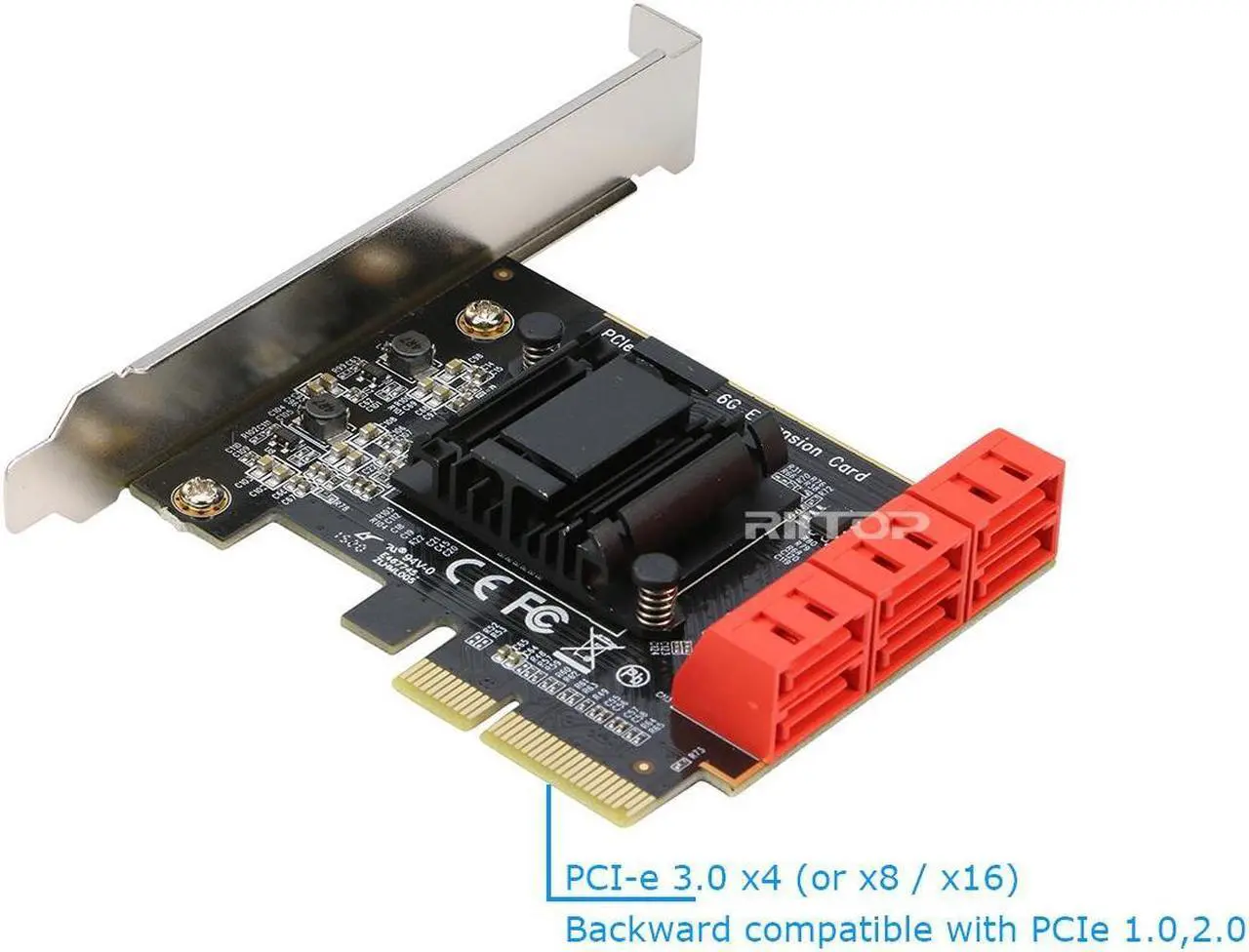

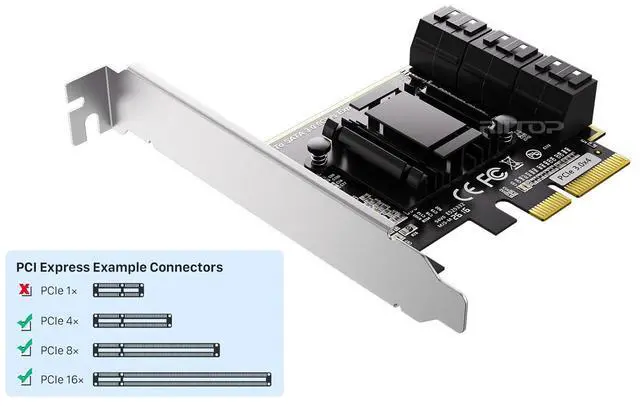

- Our PCIe to SATA III 6 port expansion card , Compatible with most chassis on the market. Fit for PCIe X4/ X8/ X16 slot
- You could make the system to boot from this SATA card but non RAID. BUT If your motherboard has RAID function, you could make a RAID with this SATA card
Features:
6 AHCI SATA III (6 Gbps) ports through PCI Express x4.

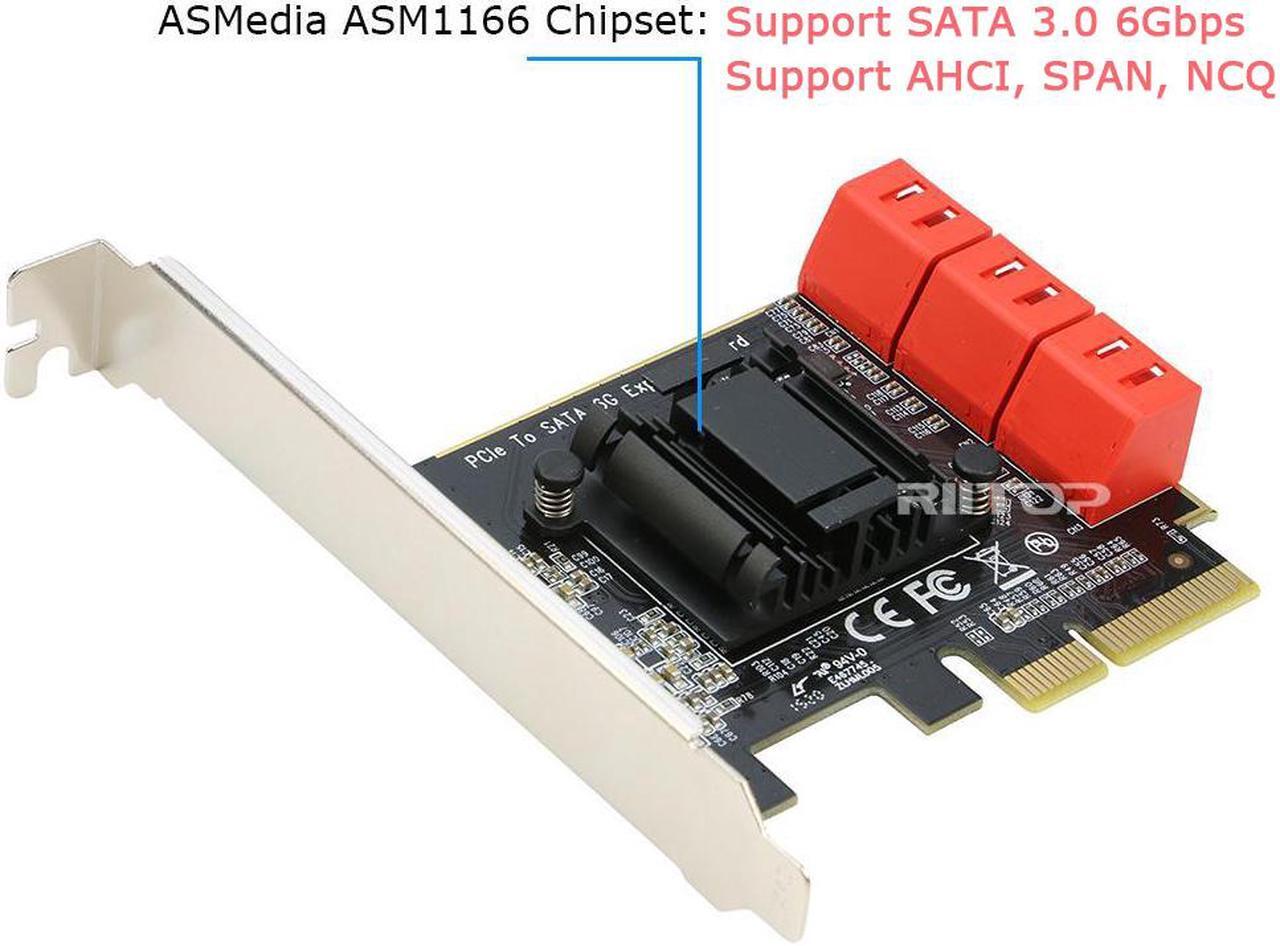

Chipset: ASM 1166

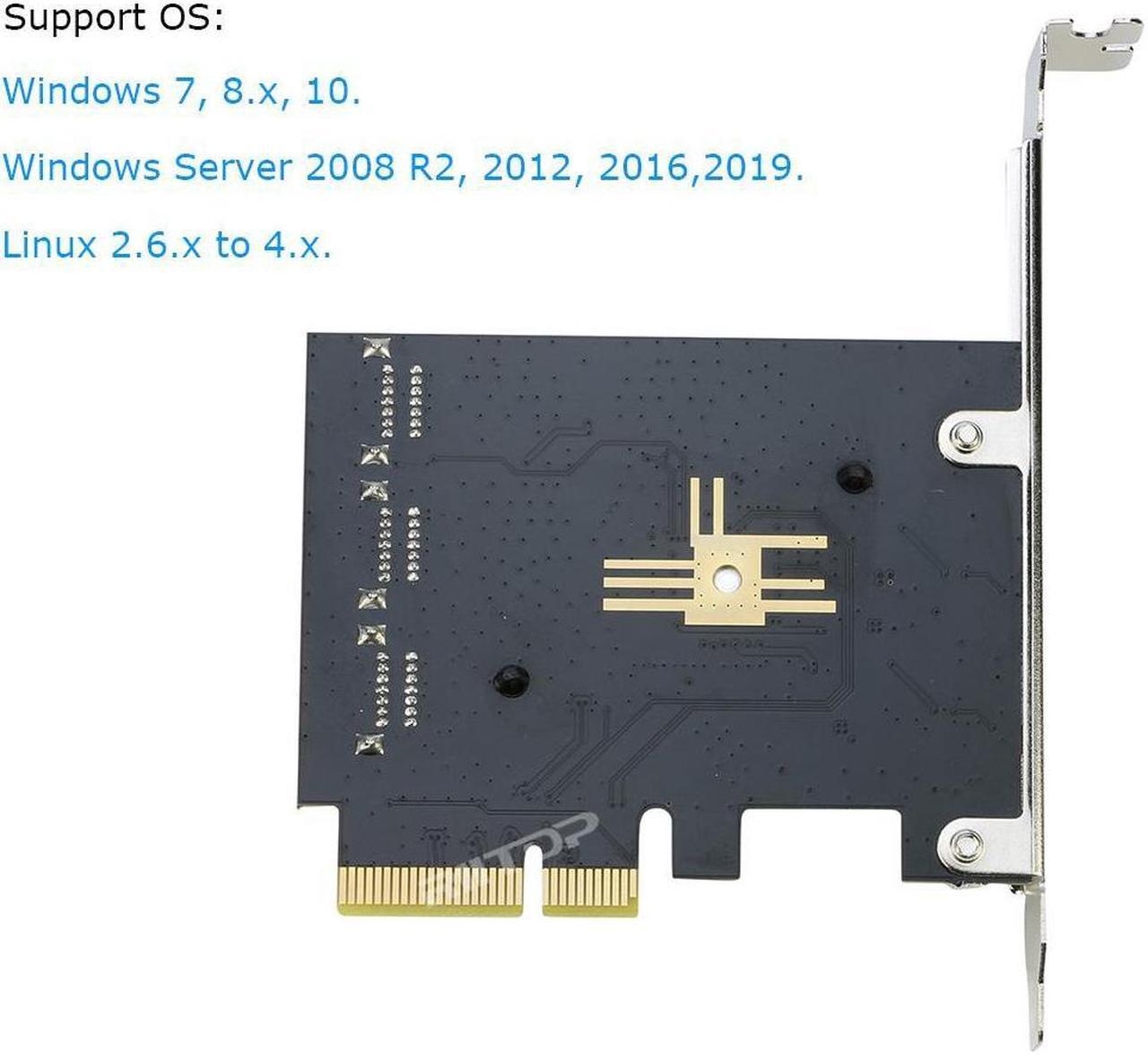

Support OS:Windows? 7, 8.x, 10; Windows Server? 2008 R2, 2012, 2016,2019; Linux 2.6.x to 4.x.
Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps)
drives.
Compliant with PCI Express 3.0 standards.
Port Multiplier Command-based switching supported.
Natively supported single chipset design.
Support Native Command Queuing (NCQ).
Support SSC for both PCIe and SATA.

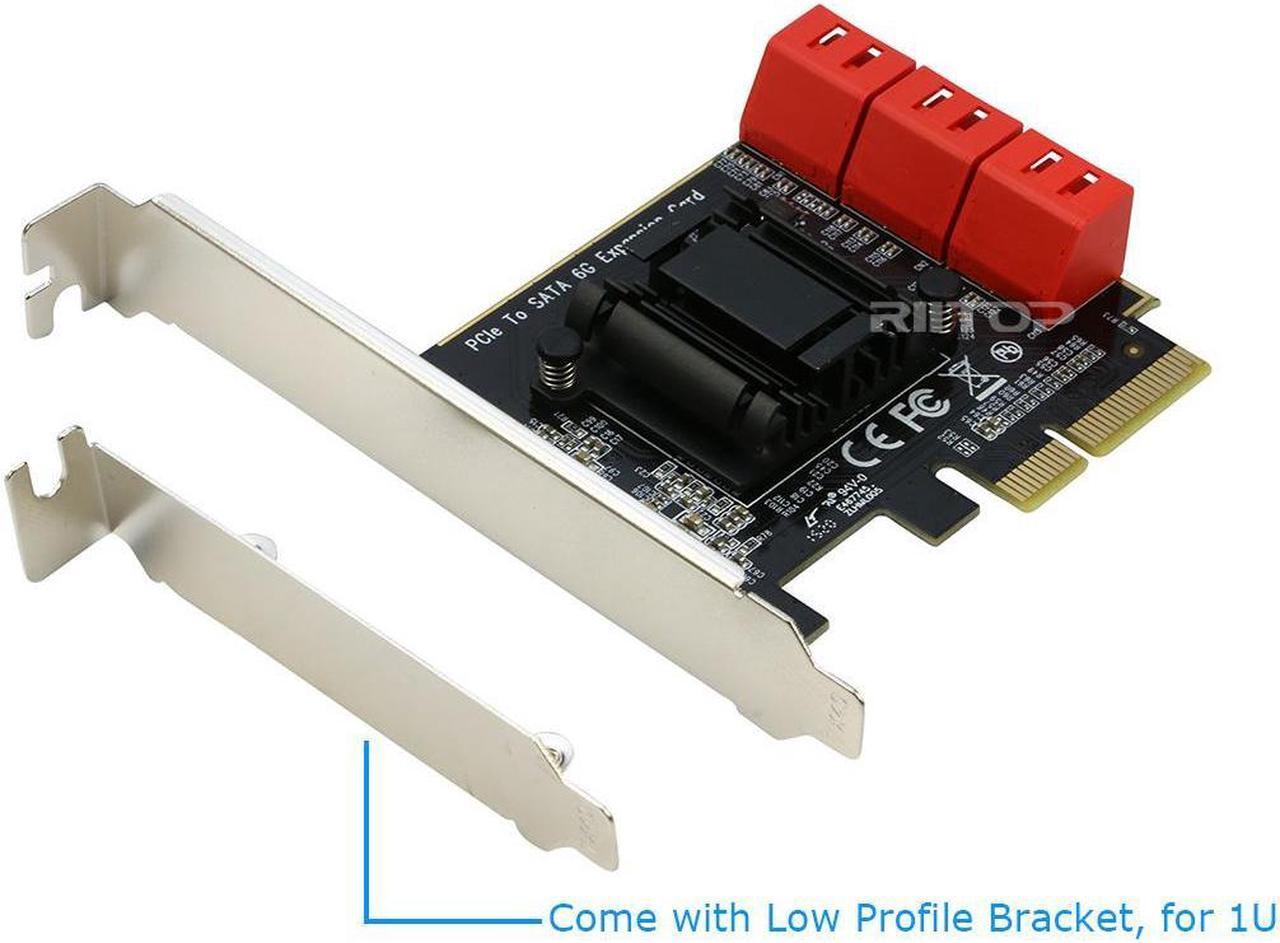

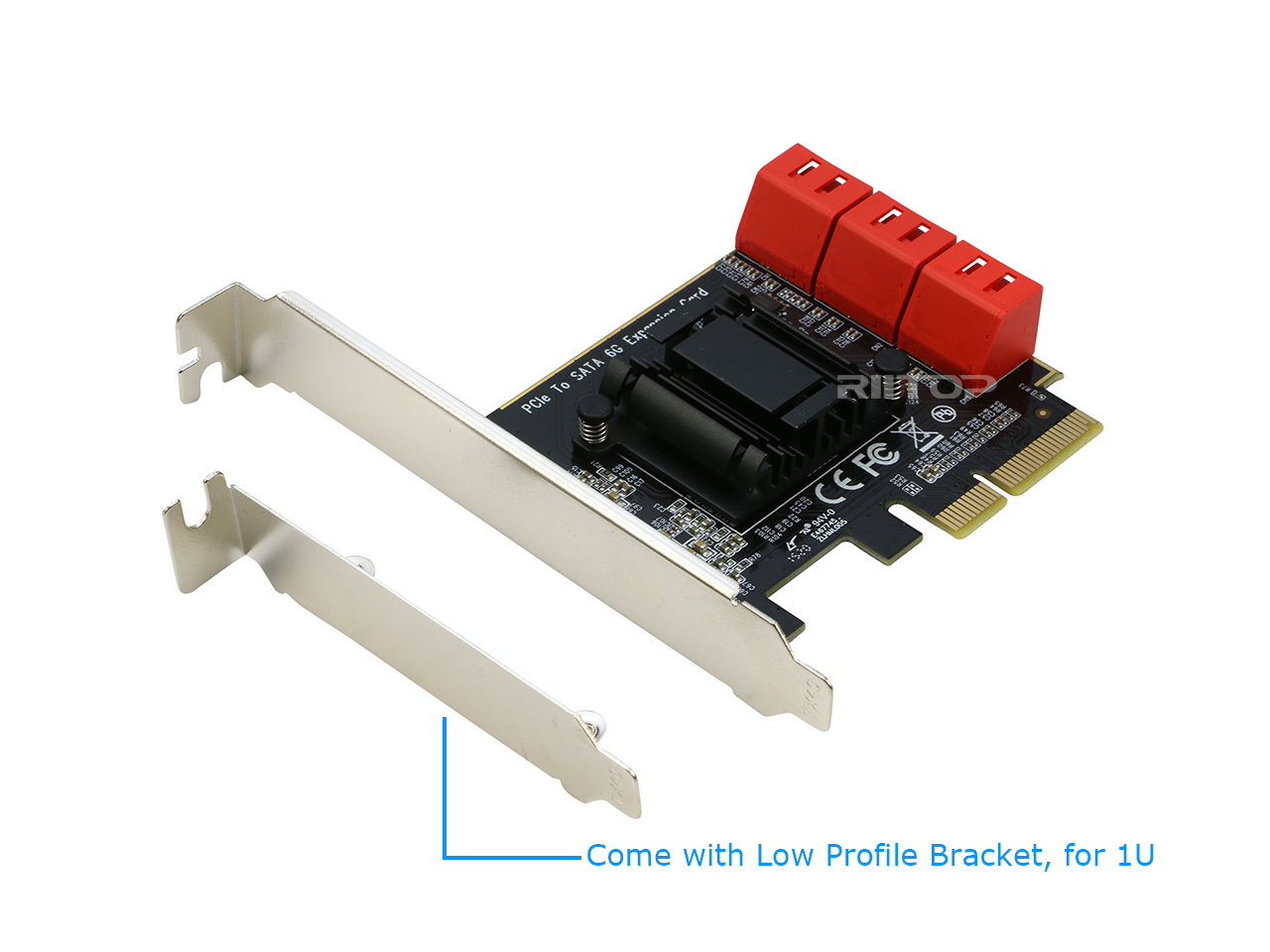

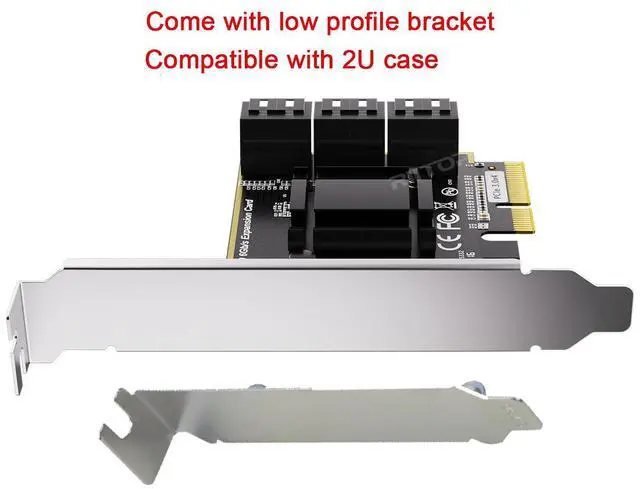

Includes Low Profile/Half-Height installation bracket.
Hardware Requirement:

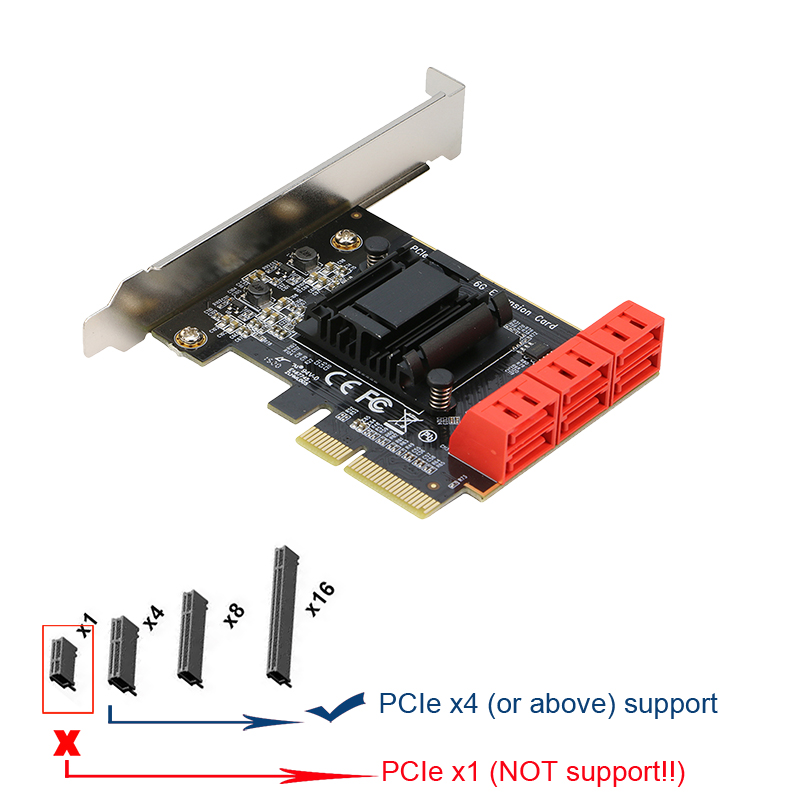

1x PCI-e x4 or above slot.
System Requirement:
Support: Windows? 7, 8.x, 10; Windows Server? 2008 R2, 2012, 2016,2019; Linux 2.6.x to 4.x.
Package Content:
1x 6 Port SATA3 PCI-e Express x1 Adapter Card.
1x Low Profile Bracket.
