Can drives attached to this card be the boot drive?

Not in my old HP Z400. No SATA drives were scanned on the new controller and none showed up in the BIOS Boot Order config. The F9 Boot menu also had no drives attached to this controller. In addition, a SATA SSD on the motherboard built in SATA controller was not available for booting either! I had to switch my built in SATA to IDE emulation mode before I could boot my primary SSD, Once my Linux OS booted, the kernel had no issues detecting the new controller and all 7 SATA disks/ssd's. I am also using mdadm and software RAID 10 with no issues (4 disks). SMART and disks temps both work via the controller and default linux drivers.

Could this be used in a Mac Pro 5.1?

The product information does not specify Mac OS support. It mentions compatibility with Windows 10, 8, Server 2008R2, NAS Synology, Ubuntu, and Linux OS.

Can this be used for SAS drives? I have a SAS hard drive and have a sas to sata passive converter. I hooked up the sata to my Asus motherboard and the drive is not detected. So I need a SAS controller but I have it ocnverted into a sata cable. So would this be able to control the SAS hard drive?

A SAS to SATA cable combines 4 SATA lanes for 4 SATA drives and a SAS port. A SAS drive uses all 4 lanes for the single drive providing a faster interface (like an M2). A SAS to SATA cable is often used when the port is SAS compliant but you want to use multiple SATA drives instead. I have never heard of anyone trying to use it backwards.

$59^.99

Free 30-day Returns

Volume Discounts Available

2+$52.00 ea.

Limit 99999 per customer.

Ships from China.

Sold by UitTek

Top Rated

4.4 (950 seller ratings)

Shipped by UitTek

Price alert

Add to wish list(Found on 2 wish lists)

Best Sellers

RIITOP

Top Rated

4.7 (61 total ratings)

$59^.99
+ FREE SHIPPING

Volume Discounts Available

Meet Your Seller

UitTek

See Seller Store

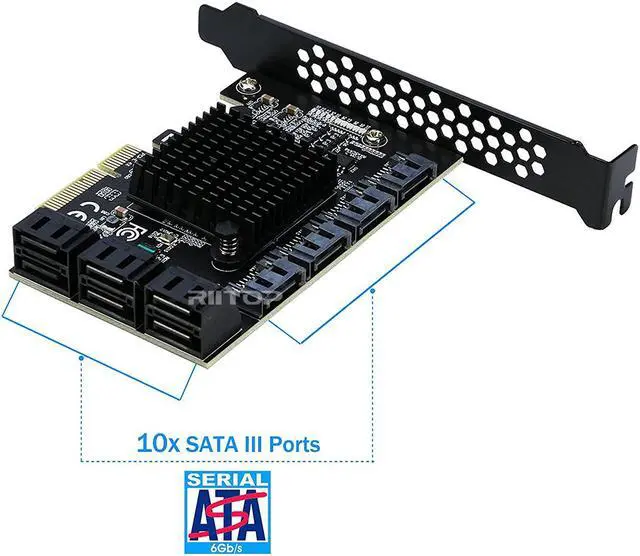

PCIe x4 SATA Card, 10 Port SATA 6Gbps Controller Expansion Card with Low Profile Bracket, Support 10 SATA 3.0 Devices

(1) Write a Review

SATA 3 Expansion Card
PCIe SATA3 Card 10 Ports

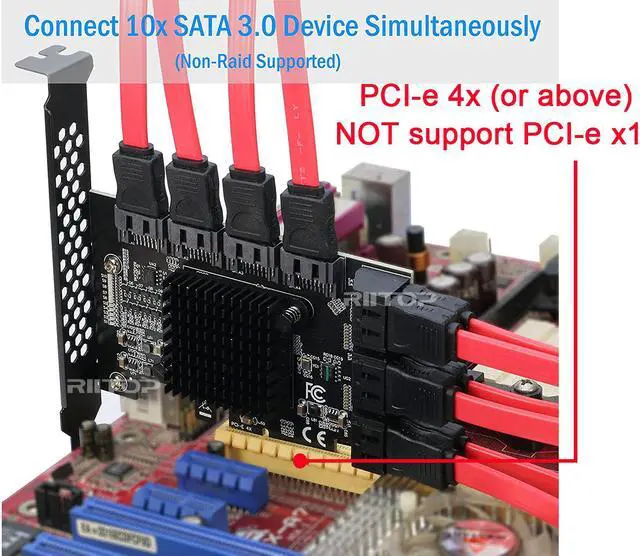

RIITOP PCIe SATA Card allows you add Extra 10x SATA 3.0 Ports via PCI-e x4/x8/x16 slot to your mainboard, No drivers need. Easy to install, Plug and play

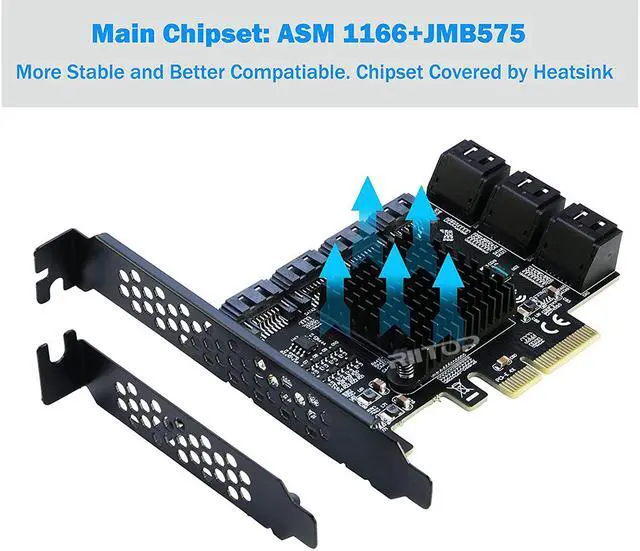

[Chipset and Speed] - RIITOP PCIe to SATA Adapter adopts AMS1166+JMB575 Master Chipset, more stable and compatible, PCI-e x4 Gen3 transmission. Supports SATA transfer rate up to SATA III (6Gbps), backward compatible with SATA II (3Gbps), SATA I (1.5Gbps)

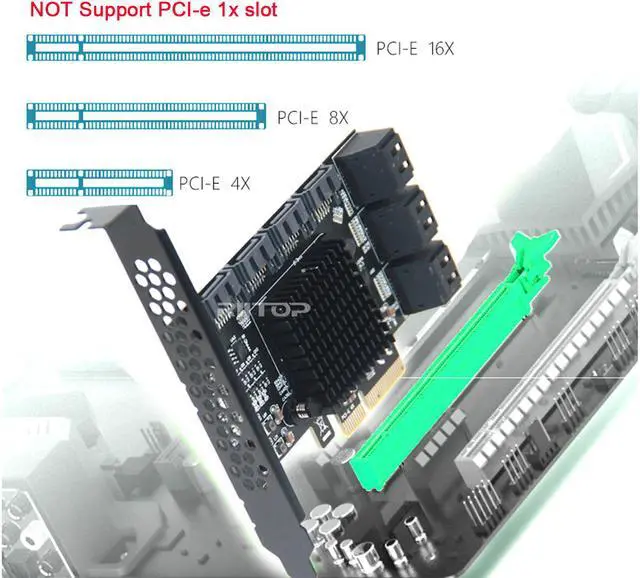

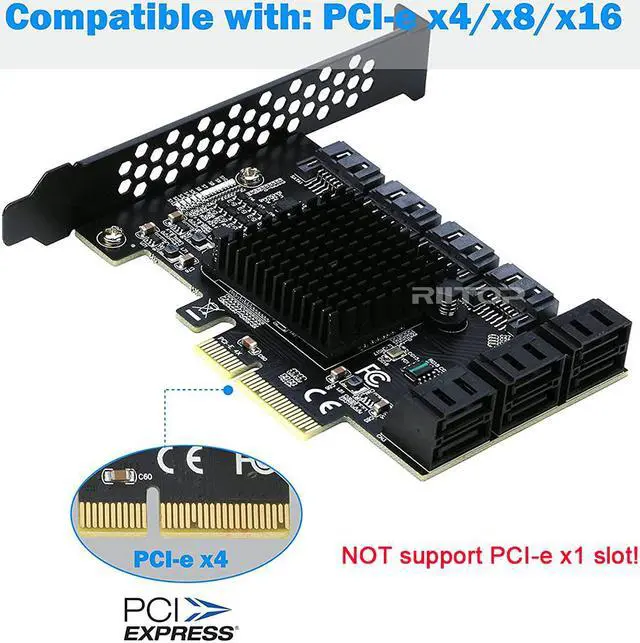

[Hardware Requirement] - Available PCI-e x4/x8/x16 on Mainboard. Recommend install RIITOP SATA3 Card on PCI-e 3.0 or 4.0, the PCI-e SATA 3 Card will work on full-speed. Please Note: This SATA PCIe Card can not be installed on PCI-e x1 Slot
[Compatibility] 1. Hardware Compatibility: Support 2.5inch SSD/HDD, 3.5inch HDD, 5.25inch Blu-ray drive and other SATA Interface Devices 2. Systems: Windows 10/ 8/ Server 2008R2/ NAS Synology/ Ubuntu/ Linux OS
[Package including] 1x RIITOP SATA PCIe Card 10Ports; 10x SATA Cables; 1x Low-Profile Bracket

Overview

Specs

Reviews (1)

See all Q & A

PCIe x4 SATA Card, 10 Port SATA 6Gbps Controller Expansion Card with Low Profile Bracket, Support 10 SATA 3.0 Devices

RIITOP PCIe SATA Card allows you add Extra 10x SATA 3.0 Ports via PCI-e x4/x8/x16 slot to your mainboard, Easy to install, Plug and play
RIITOP PCIe to SATA Adapter adopts AMS1166+JMB575 Master Chipset, more stable and compatible, PCI-e x4 Gen3 transmission. Supports SATA transfer rate up to SATA III (6Gbps), backward compatible with SATA II (3Gbps), SATA I (1.5Gbps)
Available PCI-e x4/x8/x16 on Mainboard. Recommend install RIITOP SATA3 Card on PCI-e 3.0 or 4.0, the PCI-e SATA 3 Card will work on full-speed. Please Note: This SATA PCIe Card can not be installed on PCI-e x1 Slot
Hardware Compatibility: Support 2.5inch SSD/HDD, 3.5inch HDD, 5.25inch Blu-ray drive and other SATA Interface Devices
Systems: Windows 10/ 8/ Server 2008R2/ NAS Synology/ Ubuntu/ Linux OS
[Package including] 1x RIITOP SATA PCIe Card 10Ports; 10x SATA Cables; 1x Low-Profile Bracket

Note:

Please do NOT connect system disk, only work with extended partitions.

Features:

10 Ports AHCI SATA III (6 Gbps) through PCI Express x4 Slot. (NOT support pcie 1x slot, please note!)
Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps).
Compliant with PCI Express 3.0 standards.
JMB575 + ASM1166 Chipset.
Includes Low Profile/Half-Height installation bracket.

Note:

Please do NOT connect system disk, only work with extended partitions.

Specifications:

Chipset: JMB575 + ASM1166.
Slot: Suiltable for PCI Express 4x (or above).
Port Number: 10 Port SATA 3.0.
Dimension: 80*22 mm.

Note:

Please do NOT connect system disk, only work with extended partitions.

Support OS:

For Windows 7, 8.x, 10,
For Windows Server 2008 R2, 2012, 2016,2019,
For Linux 2.6.x to 4.x.

Note:

Please do NOT connect system disk, only work with extended partitions.

10 port sata controller expansion card pcie x4

Package Included:

1x RIITOP PCIe x4 SATA iii Expansion Card 10Ports;
10x SATA Cables;
1x Low-Profile Bracket.

Note:
1. NOT support PCIe 1x slot, please note!

Features:
10 Ports AHCI SATA III (6 Gbps) through PCI Express x4 Slot.
Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps).
Compliant with PCI Express 3.0 standards.
JMB575 + ASM1166 Chipset.
Includes Low Profile/Half-Height installation bracket.

Specifications:
Chipset: JMB575 + ASM1166.
Slot: Suiltable for PCI Express 4x (or above).
Port Number: 10 Port SATA 3.0.
Dimension: 80*22 mm.

Support OS:
For Windows 7, 8.x, 10,
For Windows Server 2008 R2, 2012, 2016,2019,
For Linux 2.6.x to 4.x.

Package Included:
1x RIITOP PCIe x4 SATA iii Expansion Card 10Ports;
10x SATA Cables;
1x Low-Profile Bracket.

Best Seller Ranking	#57 in Controllers / RAID Cards

Model
Brand	RIITOP
Model	PCEX4TS-10P

Details
Type	SATA III (6.0Gb/s)
External Connectors	N/A
Internal Connectors	10 Ports SATA 3.0
Interface	PCI-Express x4
Transfer Rate	Up to 6Gb/s
RAID	No
Operating Systems Supported	Support Windows 10/ 8/ Server 2008R2/ NAS Synology/ Ubuntu/ Linux OS

Features
Features	RIITOP PCIe SATA Card allows you add Extra 10x SATA 3.0 Ports via PCI-e x4/x8/x16 slot to your mainboard, No drivers need. Easy to install, Plug and play [Chipset and Speed] - RIITOP PCIe to SATA Adapter adopts AMS1166+JMB575 Master Chipset, more stable and compatible, PCI-e x4 Gen3 transmission. Supports SATA transfer rate up to SATA III (6Gbps), backward compatible with SATA II (3Gbps), SATA I (1.5Gbps) [Hardware Requirement] - Available PCI-e x4/x8/x16 on Mainboard. Recommend install RIITOP SATA3 Card on PCI-e 3.0 or 4.0, the PCI-e SATA 3 Card will work on full-speed. Please Note: This SATA PCIe Card can not be installed on PCI-e x1 Slot [Compatibility] 1. Hardware Compatibility: Support 2.5inch SSD/HDD, 3.5inch HDD, 5.25inch Blu-ray drive and other SATA Interface Devices 2. Systems: Windows 10/ 8/ Server 2008R2/ NAS Synology/ Ubuntu/ Linux OS

Package Contents
Package Contents	1x RIITOP SATA PCIe 4x Card 10Ports; 10x SATA Cables; 1x Low-Profile Bracket
