Functional, reliable, efficient and quiet to power your gaming computer.

AT A GLANCE

ONYX power supplies are designed to hit the sweet spot for practical real-world performance, reliability, and price.

FEATURES

ENHANCED PROTECTION

Provides reliable power for great gaming

To protect you and your PC, ONYX PSUs include full over-voltage, under-voltage, over-current, over-power, and short-circuit protections. They have plenty stable power to support modern single and dual GPU gaming PCs.

SEMI - MODULAR FLEXIBILITY

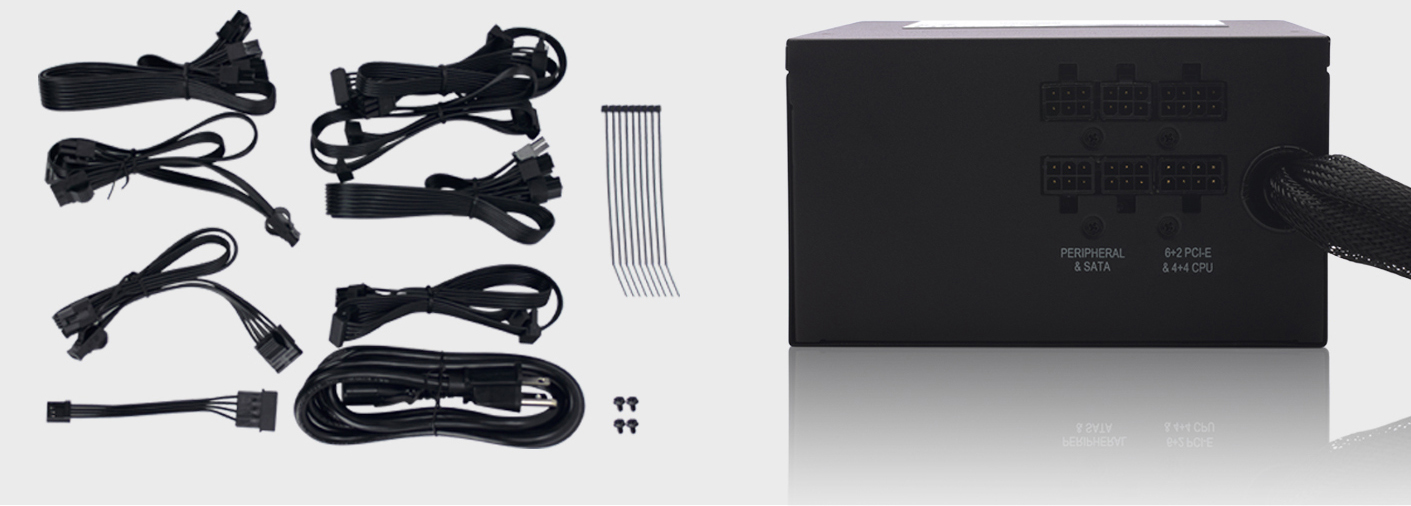

The modular cabling system lets you use only the cables you need.

The semi-modular design allows you to use only the cables you need, which helps reduce clutter and improve airflow.

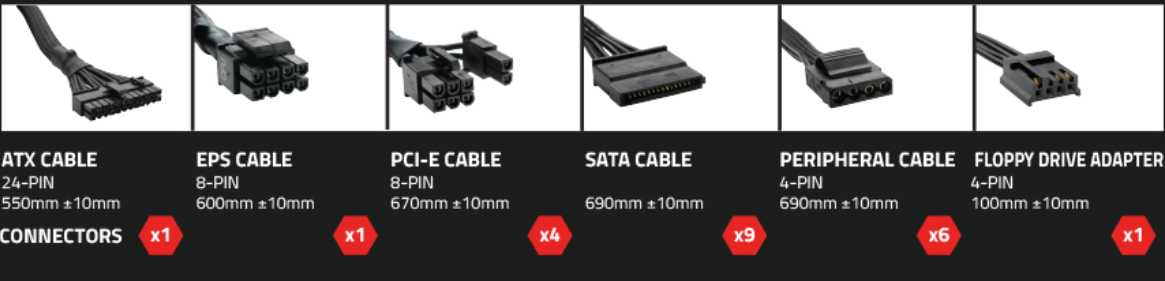

Plenty of cables are included to support nearly any PC configuration, including dual GPU systems. The high-quality flat cables are clearly marked, making installation a breeze.

KEY HIGHLIGHTS

Manufactured and stress tested to strict standards for trouble-free installation and smooth operation.

The semi-modular design allows you to use only the cables you need, which helps reduce clutter and improve airflow.

Plenty of cables are included to support nearly any PC configuration, including dual GPU systems. The high-quality flat cables are clearly marked, making installation a breeze.

CERTIFIED PERFORMANCE

All ONYX PSUs are designed with safety with over-voltage, under-voltage, over-power, over-temperature, short-circuit protections.

General Features

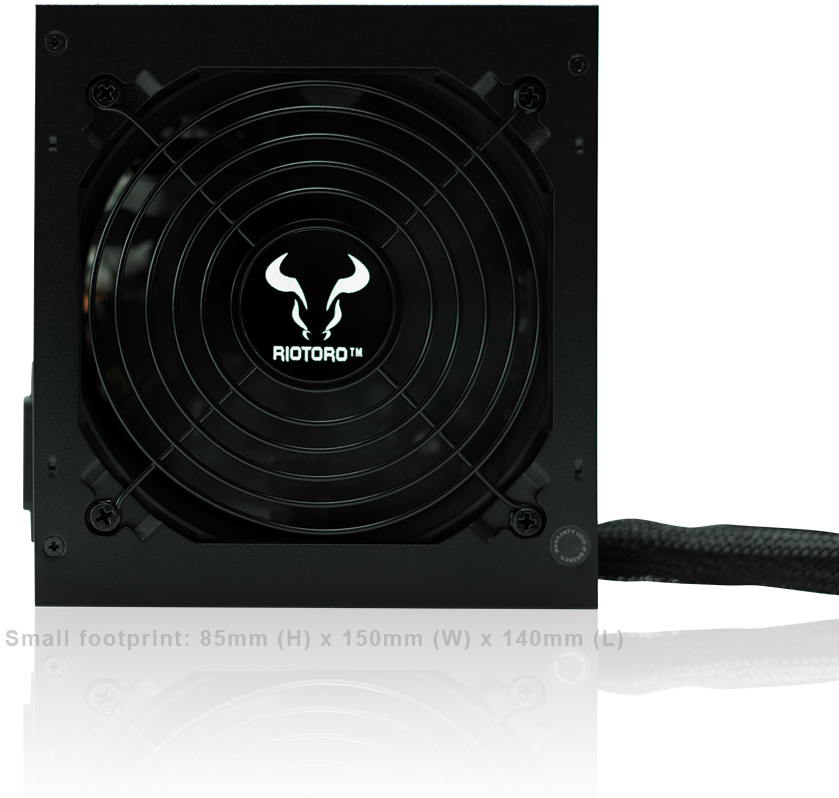

Dimensions:
85mm (H) x 150mm (W) x 140mm (L)

Life Expectancy:
100,000 hours

Efficiency:
80 PLUS Bronze certified for 85%+ efficiency

Active PFC:
YES

Voltage:
Universal AC input froM 100 to 240v

ATX standard:
ATX 2.4, EPS 2.92 and backward compatible.

80 PLUS Gold Certified for 85%+ efficiency

SPECIFICATIONS

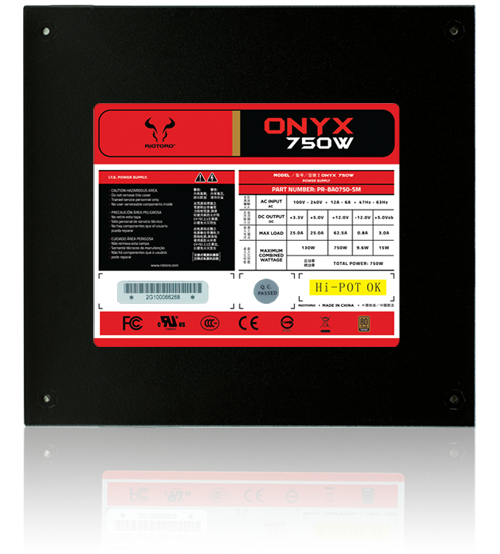

DC Output:	+3.3V	+5.0V	+12.0V	+5.0Vsb	-12.0V
Max Load:	25.0A	25.0A	62.5A	3.0A	0.8A
Max Load:	130W		750W	15W	9.6W
Total:	750W

Brand	Riotoro
Model	PR-BA0750-SM
Series	ONYX

Type	ATX 12V 2.4
Maximum Power	750W
Fans	120 mm fan
PFC	Active
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	6
Haswell Support	Yes
Modular	Semi-Modular
Hold-up Time	10mSec 80% Load

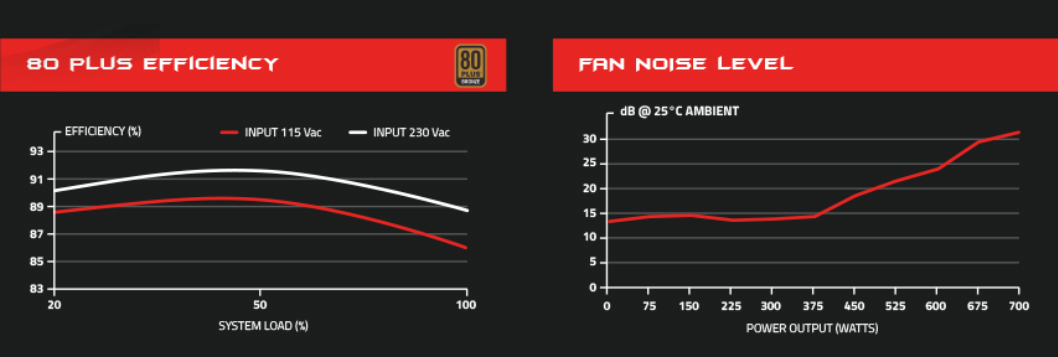

Efficiency	PSU is rated for at least 82% efficiency at 20% load, 85% at 50% load, and 82% at 100% load
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Overload Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	10 A
Output	+3.3V@25A, +5V@25A, +12V@62.5A, +5Vsb@3A, -12V@0.8A
MTBF	100,000 Hours
Approvals	FCC, UL, CUL, CCC, CE, BSMI, WEEE, RoHS
Dimensions	3.39" x 5.91" x 5.51"
Weight	3.53 lbs.

Connectors	ATX, CPU, PCI-E, SATA, PERIPHERALS
Features	80 Plus Bronze Certified to Reduce Heat, Noise, Operations Cost, Semi Modular Flat Cable Type to Reduce Clutter Improve Air Flow, Japanese Bulk Capacitor, Fully Compatible With Intel/AMD Latest Prosecceors and GPU And Major Brand of Mother Boaerds, Thermally Controlled Rifle Bearing Fans Inaudible Under Average Loads
