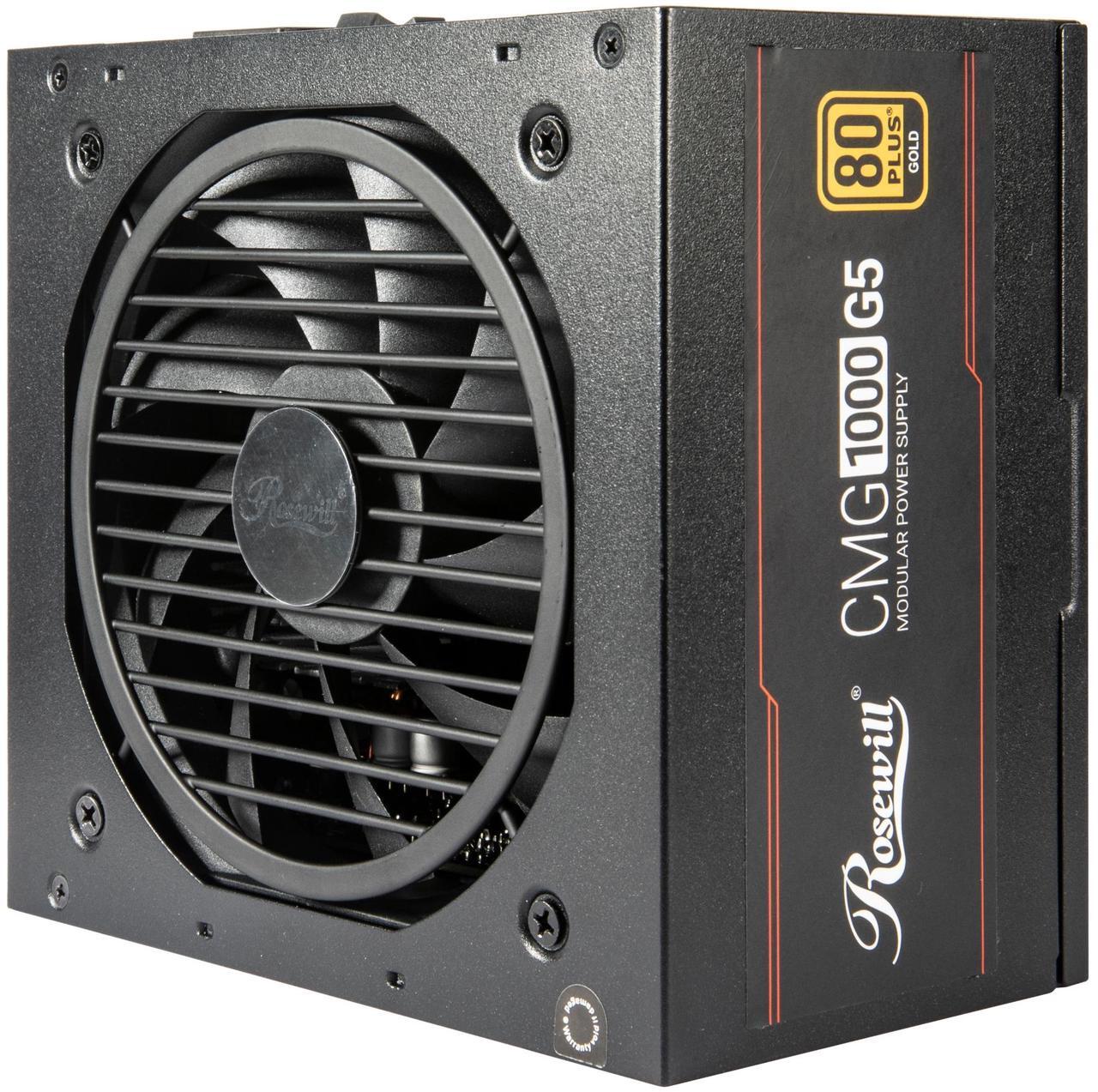

Rosewill CMG5 1000W, ATX 3.0 & 3.1 Compatible, 80+ Gold 1000W Full Modular Power Supply, PCIe 5.0 600W 12V-2x6 Connector, 100% Japanese Capacitors, 120mm FDB Fans - CMG1000G5
OPEN BOX Product Type
- Intel ATX 3.0 & 3.1 Ready
- Fully Modular 80 PLUS® Gold Certified
- Native 600W PCIe 5.0 / Gen 5 12+4 Pin 12V-2x6 Cable
- Up to 235% Power Excursion & 300% GPU Power Excursion
Specs
Learn more about the Rosewill CMG1000G5
| Brand | Rosewill |
|---|---|
| Series | CMG |
| Model | CMG1000G5 |
| Type | ATX 3.0 Compatible / ATX 3.1 Compatible |
|---|---|
| Maximum Power | 1000 W |

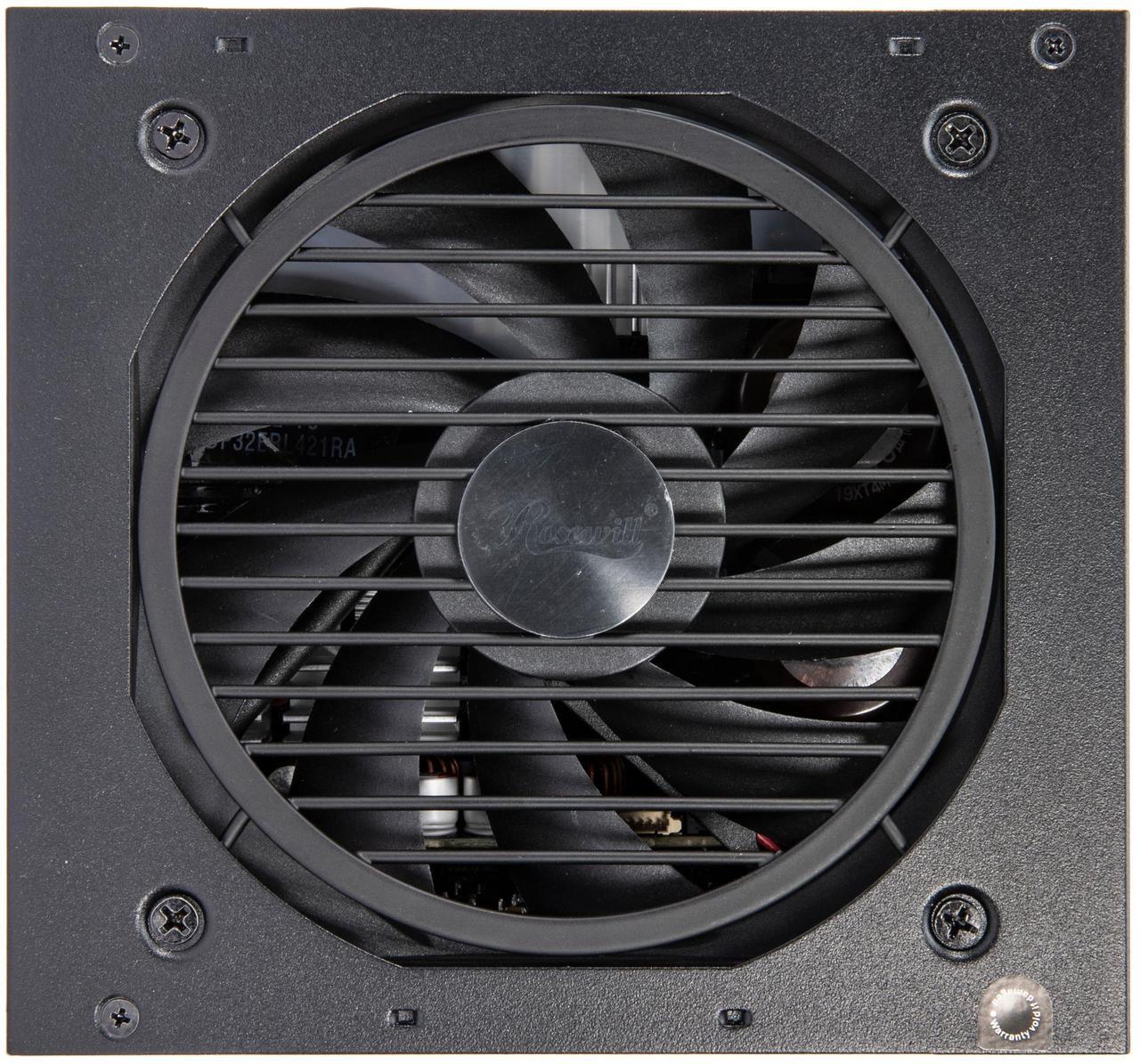

| Fans | 1 x Silent 120mm FDB fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin & 1x 12+4-Pin |
| SATA Power Connector | 8 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Max PSU Length | 140 mm |
| Modular | Full Modular |
| Hold-up Time | 16ms min. |
| Efficiency | Up to 92% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |

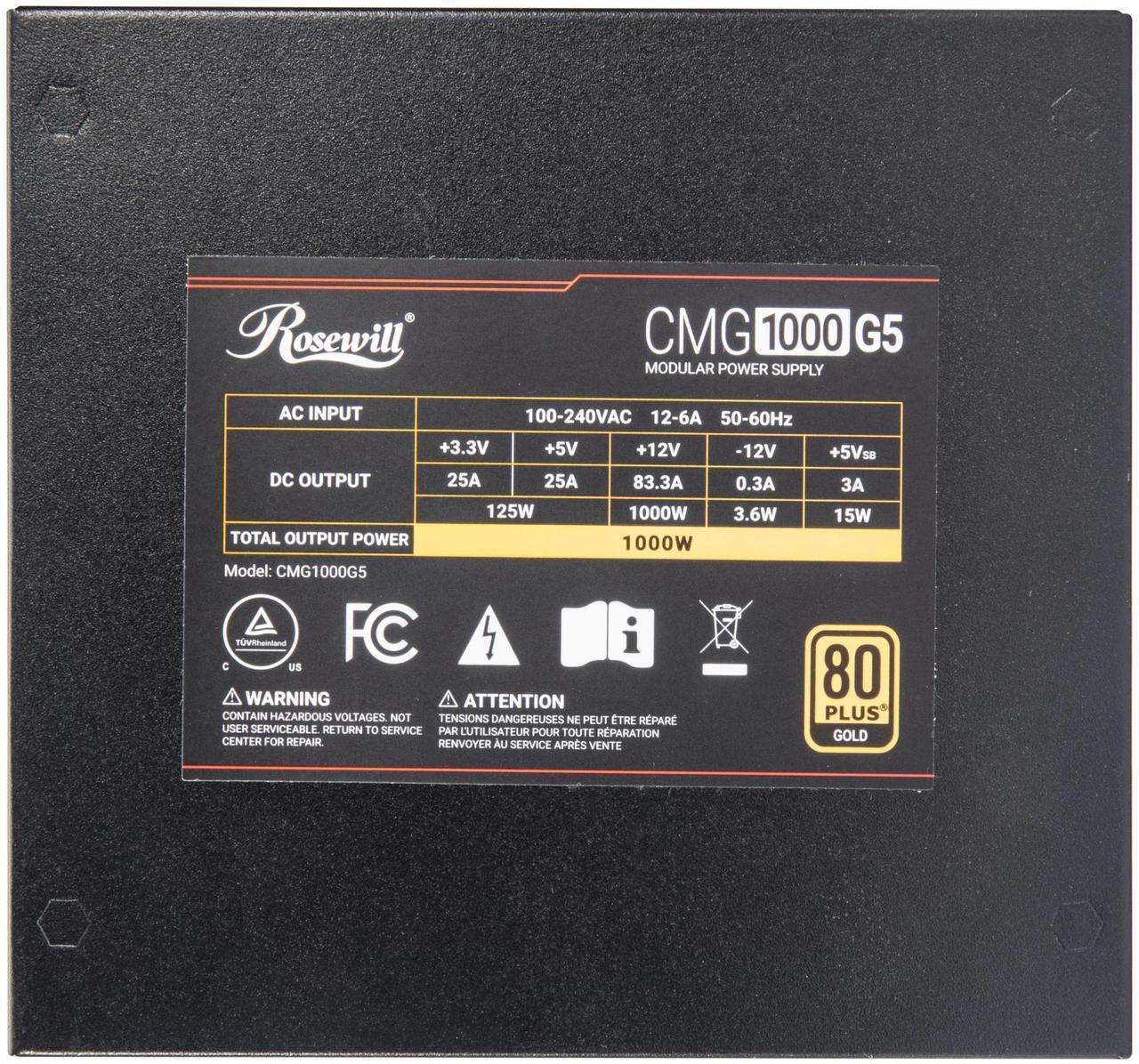

| Output | +3.3V@25A, +5V@25A, [email protected], [email protected], +5VSB@3A |

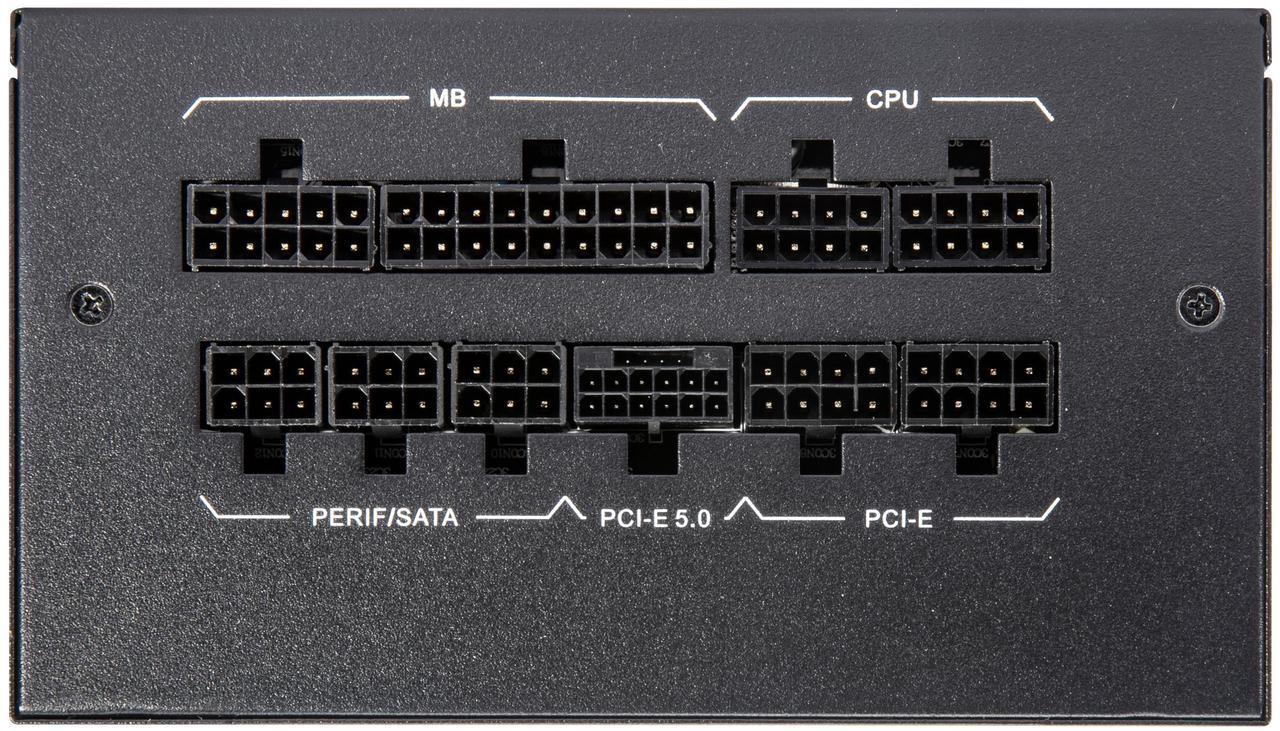

| Connectors | 1 x 20+4-Pin Main Connector 2 x 4+4-Pin ATX12V / EPS12V Connector 4 x 6+2-Pin PCI-E Connector 1 x 12+4-Pin 12VHPWR Connector 8 x 15-Pin SATA Connector 4 x 4-Pin Peripheral Connector |
| Features | Newest PCIe 5.0 and ATX 3.0 Compatible 12+4-Pin 12VHPWR Connector 80 PLUS GOLD Certified Compact 140mm size 1000 Watts Max Power Single strong 12V rail - ideal for Gaming system 1 x Silent 120mm FDB Fan Active-PFC with auto AC-input voltage adjustment (100 - 240V) Over Temperature Protection / Over Current Protection / Over Voltage Protection / Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components Safety & EMI Approval: cTUVus, FCC |
|---|
| Date First Available | September 27, 2023 |
|---|
