Brand | Rosewill |
---|---|
Series | Green series |
Model | RG430-2 |
Type | ATX12V v2.3 & EPS12V v2.91 |
---|---|
Maximum Power | Continuous 430W@40°C |

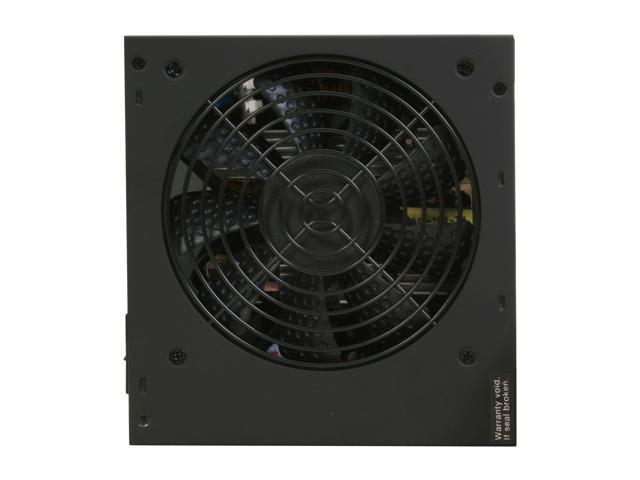

Fans | Silent 120mm Golf Fan |
PFC | Active |

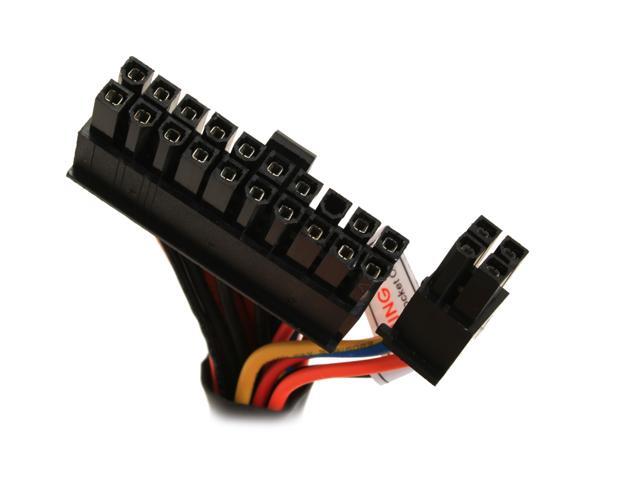

Main Connector | 20+4Pin |
+12V Rails | 4 |
PCI-Express Connector | 1 x 6-Pin |
SATA Power Connector | 4 |
SLI | No |
CrossFire | No |
Modular | No |
Power Good Signal | 100-500ms |
Hold-up Time | 16ms min. |
Efficiency | > 80%, Up to 85% |
Energy-Efficient | 80 PLUS Certified |
Over Voltage Protection | +3.3V, +5V, +12V1, +12V2, +12V3, +12V4 |
Input Voltage | 100 - 240 V |
Input Frequency Range | 47 - 63 Hz |
Input Current | 10A @ 115V, 5A @ 230V |

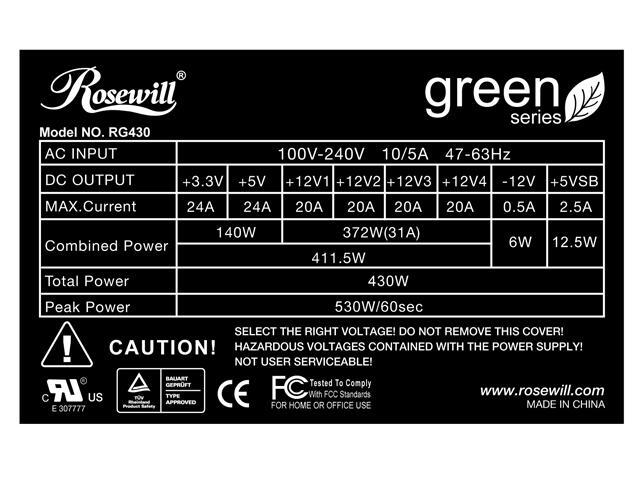

Output | +3.3V@24A,+5V@24A,+12V1@20A,+12V2@20A, +12V3@20A, +12V4@20A,-12V@0.5A,+5VSB@2.5A |
MTBF | >100,000 Hours |
Approvals | TUV, FCC, UL, CE, ROHS |

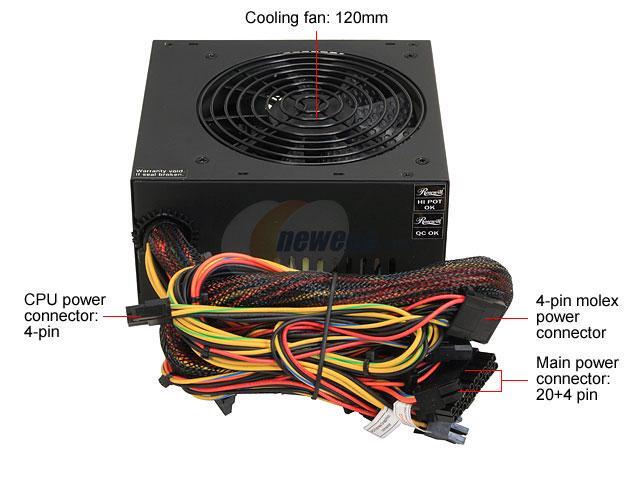

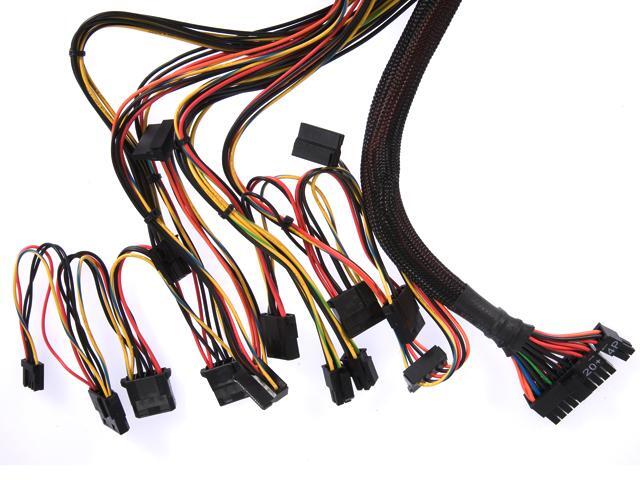

Connectors | 1 x 20+4-Pin Main Connector 1 x 4+4-Pin ATX12V/EPS12V Connector 1 x 6-Pin PCI-E Connector 6 x 4-Pin Peripheral Connector 4 x 5-Pin SATA Connector 1 x 4-Pin Floppy Connector |
Features | Supports both Intel and AMD Systems Four 12V rails provide independent reliable power Active power Factor Correction(PFC) provides clean and reliable power to your system Universal AC input 90~264V automatically scans and detects the correct voltage 12V Combined Output 396W (33A) 3.3V, 5V Combined Output 140W 3.3V, 5V, 12V Combined Output 411.5W 1x Silent 120mm Golf Fan with Auto Fan Speed Control for better silence Black Coating Housing Mesh sleeving on main cable for easier cable routing and better ventilation Over Temperature/Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components |
---|
Dimensions | 5.91" x 3.39" x 5.51" |
---|---|
Weight | 3.85 lbs. |
Date First Available | October 07, 2008 |
---|
