Question 1

Are there compatibility concerns when installing ATX or micro-ATX motherboards in the CASE RW FBM-X2-400 HELIX, especially with larger CPU coolers or multi-GPU setups?

Accepted Answer

This case supports both microATX and miniITX motherboards, but it does not accommodate full-sized ATX boards. Regarding larger CPU coolers, the case’s compact size means you’ll want to check cooler height—there’s some room but not for very tall tower coolers. Multi-GPU setups are limited by the four expansion slots and overall space, so large or multiple GPUs might be a tight fit.

If you plan to run a 240mm AIO cooler, the case supports radiator mounting in the front, which helps with CPU cooling in a smaller case. Just make sure your GPU length and cooler height fit within the dimensions provided by Rosewill, as airflow and cable management are designed more for mid-range builds than high-end multi-GPU rigs.

Question 2

What is the step-by-step process for installing components inside the CASE RW FBM-X2-400 HELIX to ensure proper fit and ventilation?

Accepted Answer

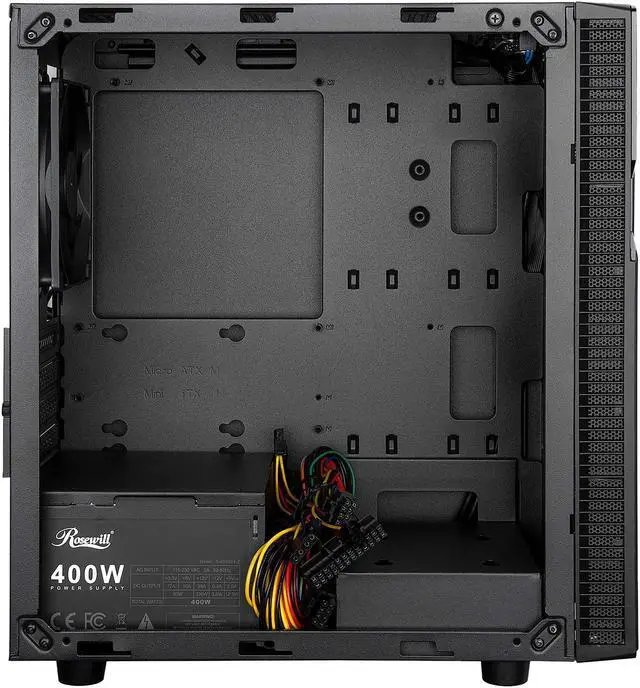

Start by installing your microATX or mini ITX motherboard into the tray, aligning it with the included standoffs and rear I/O shield. Mount your storage drives in the 3.5" or 2.5" bays, then fit your GPU and other expansion cards into the four available slots. Connect power from the pre-installed 400W PSU, and make sure cables are tucked neatly to keep airflow clear. The case comes with one 120mm rear fan and supports up to four more fans or a 240mm radiator in front, so check that nothing blocks these airflow paths.

To maintain good ventilation, avoid overcrowding the front intake area with large cables or oversized components, which can reduce cooling efficiency. If you’re adding a 240mm AIO cooler, mount it in the front position for optimal airflow. Cable management is straightforward here, but spending a bit more time securing cables behind the motherboard tray will help keep internal temperatures down and improve system stability over time.

Question 3

Would upgrading from an older RW FBM-X2 model to the CASE|RW|FBM-X2-400 HELIX improve my system’s cooling and expandability?

Accepted Answer

Upgrading to the RW FBM-X2-400-HELIX model can improve your system’s cooling and expandability compared to older FBM-X2 models, mainly because it includes support for a 240mm AIO radiator in the front and has more fan mounting options—two additional 120mm fans in the front and two on top. It also comes with a pre-installed 400W PSU, which may offer more stable power delivery depending on your previous setup.

That said, if you’re focusing on heavy cooling upgrades or futureproofing with larger GPUs, the compact mini tower design still limits airflow compared to larger cases. Also, the included PSU is non-modular and fixed at 400W, so if your build demands more power or cleaner cable management, you might need a separate PSU upgrade down the line.

Question 4

Can I use this case for a computer intended for social media use and surfing?

Accepted Answer

Yes, this case is suitable for building a computer intended for social media use and surfing, as it is designed for versatile performance and can accommodate the necessary hardware.

Question 5

Can I use this case to build a computer for my friend?

Accepted Answer

Yes, you can use this case to build a computer for your friend. It is designed for building a gaming or office PC and has a spacious interior suitable for current hardware and future upgrades.

Question 6

Is this case suitable for basic computer use?

Accepted Answer

Yes, the Rosewill FBM-X2-400-HELIX Micro ATX Mini Tower Desktop Gaming PC Case is suitable for basic computer use, as it is designed for both gaming and office systems.

Question 7

Does the case come with a pre-installed PSU?

Accepted Answer

Yes, the case comes with a pre-installed 400W power supply.

Question 8

What is the maximum length for a gpu that can fit in this case?

Accepted Answer

11" about the size of 3 fan GPU

Question 9

What are the specs of the PSU? How many SATA ports does it support?

Accepted Answer

Power Supply is rated at 400w and I have always ran them harder at 700-800w personally and had great success.
+3.3v  12A   80w
+5v   10A     80w
+12v  28A    336w
-12v  0.3a    3.6w
+5Vsb   2.5A  12.5w

20+4 pin    1
CPU 4+4 pin1
PCI-E 6+2 pin 2
SATA3
MOLEX3
FLoppy(FDD)1

Hope this helps!

Question 10

Can I put an internal disk drive in here? Are the legs removable? Rather not have dust collect under the case.

Accepted Answer

Legs are removable and no, there is not room on the outside for a disk drive, but there will be plenty of space inside.  I assume you're talking about a CD Drive.  A usb CD Drive is probably your best bet.

Type	Mini Tower
Color	Black
Case Material	Steel / Plastic
With Power Supply	400W
Power Supply	400W
Power Supply Mounted	Bottom
Motherboard Compatibility	Micro ATX / Mini-ITX
Side Panel	without Side Window

Internal 3.5" Drive Bays	1 (3)
Internal 2.5" Drive Bays	3 (4)
Expansion Slots	4

Fan Options	Front - 2 x 120mm / Rear - 1 x 120mm / Top - 2 x 120mm
Pre-installed Fans	Rear - 1 x 120mm
Radiator Options	Top - Up to 240mm

Max GPU Length	280 mm
Max CPU Cooler Height	150 mm
Max PSU Length	140 mm
Dimensions	14.96" x 7.48" x 13.78"
Weight	9.70 lbs.
